1.25m width aluminum expanded metal machine for production filter roll



Product Description




Raw Materialof expanded metal:


Low carbon steel sheet, aluminum sheet, stainless steel sheet, aluminum magnesium alloy sheet, copper sheet, etc .


Application of expanded metal mesh:


The finished product expandable metal mesh could be widely used for step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.Industry and civil architecture, road, railway.




technical parameters






































































































Type



JQ25-6.3



JQ25-16



JQ25-25



JQ25-40



 JQ25-63



JQ25-100



JQ25-160



Depth(mm)



1.0



1.0



1.5



2.5



 4



6



6



Width(mm)



500



1000



1250



1500



 2000



2000



2500



Stroke per min(times/min)



290



180



160



80



 67



60



50



Distance(mm)



0-1.5



0-10



0-10



0-10



 0-20



0-20



0-20



Lenght of Mesh(mm)



max.12.5



max.25



max.30



max.80



 max.200



max.200



max.200



Motor(KW)



2.2



3



4



11



 11



15



18.5



Weight(T)



0.95



2



3



6



 10



12



14



Measurement(mm)



1090*710
*1450



1800*1320
*1550



1940*1600
*2010



2870*1990
*2140



 2400x3500


x2300



3600*2500
*3000



4100*2500
*3000

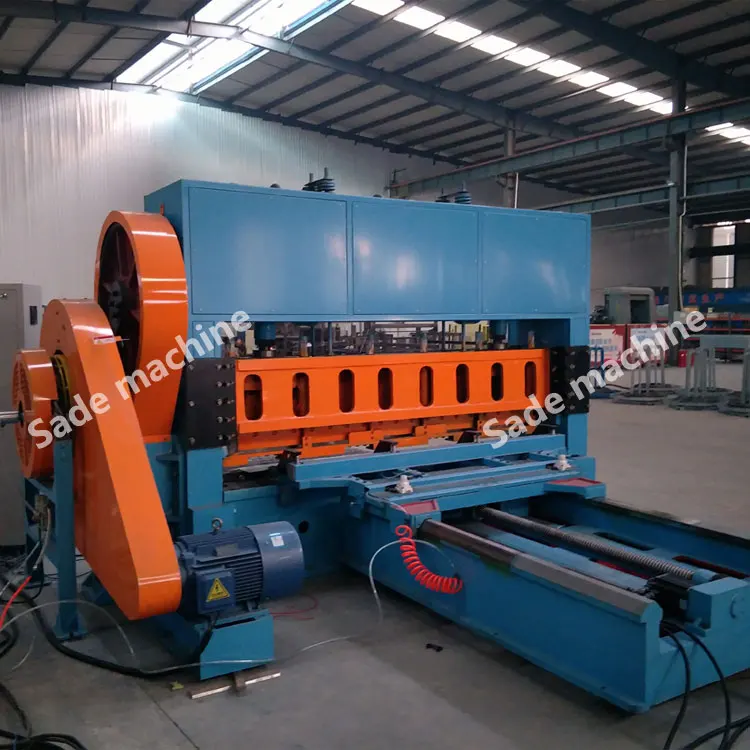

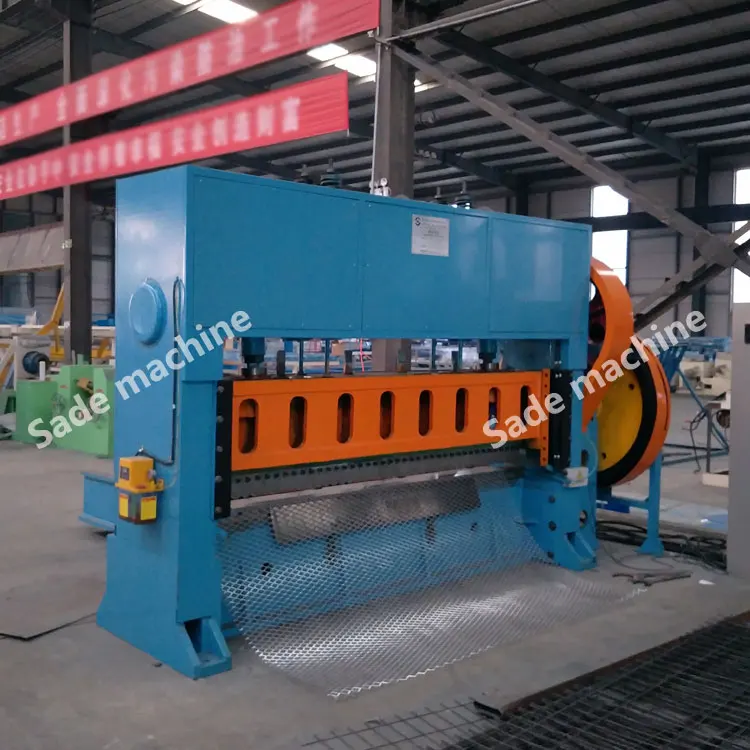

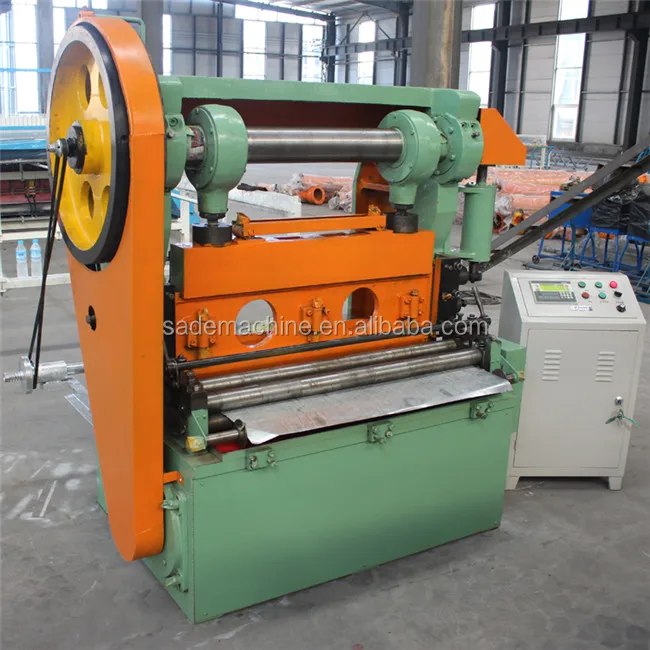

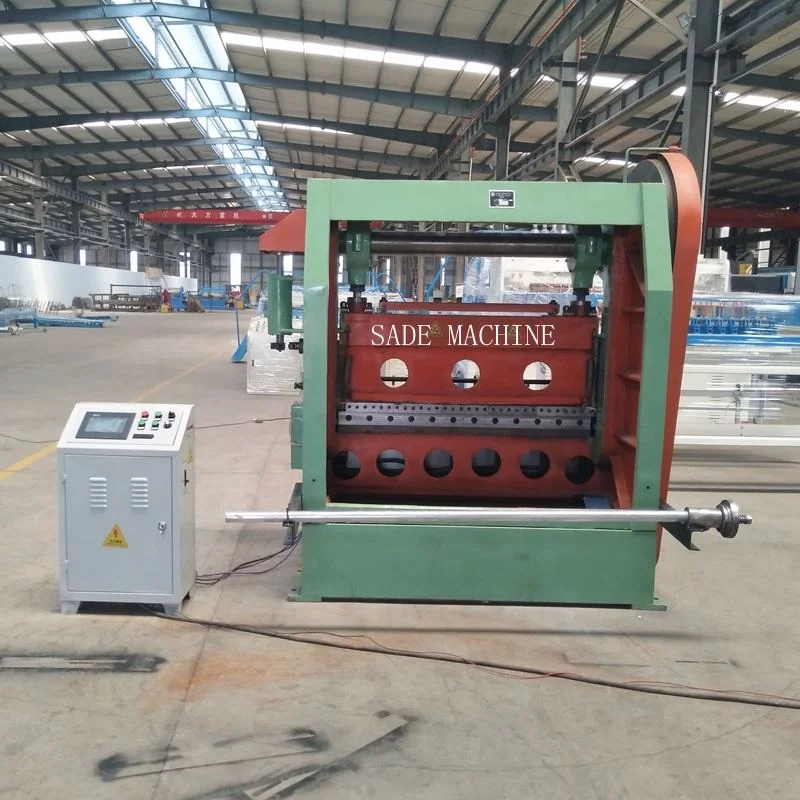

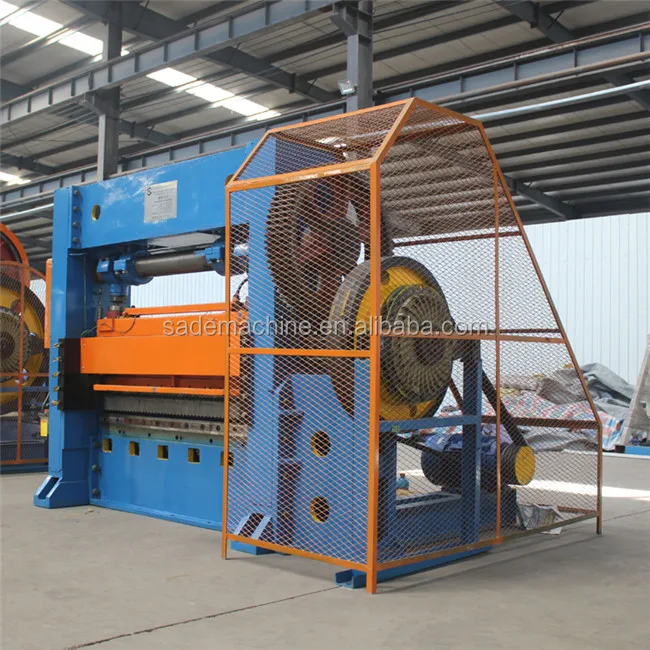

Detailed Images


 pin








Feedback








Application


 6.3T--




Also we have heavy type  expanded metal mesh machine:


100T-06


-



Packaging & Shipping


       Expanded metal machine clients








Company Information


QWhere is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

QHow many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.

QCan your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

QWhat's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
