Easily Shape and Cut Tyco Xps Foam Board

Категория: >>>
Поставщик: Hangzhou Tyco Industrial Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Company Information

1.The leader of manufactring in XPS Tile backer board and Xps Shower tray in China. TYCO as the first company developed the two products in China,who strats export since2007.

2.Owns big warehouse and developed equipments,which guarantee the big supply capacity
It covers an area of 30 acres(25,000sqm) and16,000sqm plant.
The month production ability is about 50,000~60,000pcs.

3.Strong R& D. which support our customers develop new products efficiently.

4.valuable Customer like B&Q, Leroy Merlin, Homelux are selling our boards.

5.”Honest, Passion,Inovation and Multi Win ” stratage helps to develop with our customer and empolyees move foreward step by step.

Why us

production describe

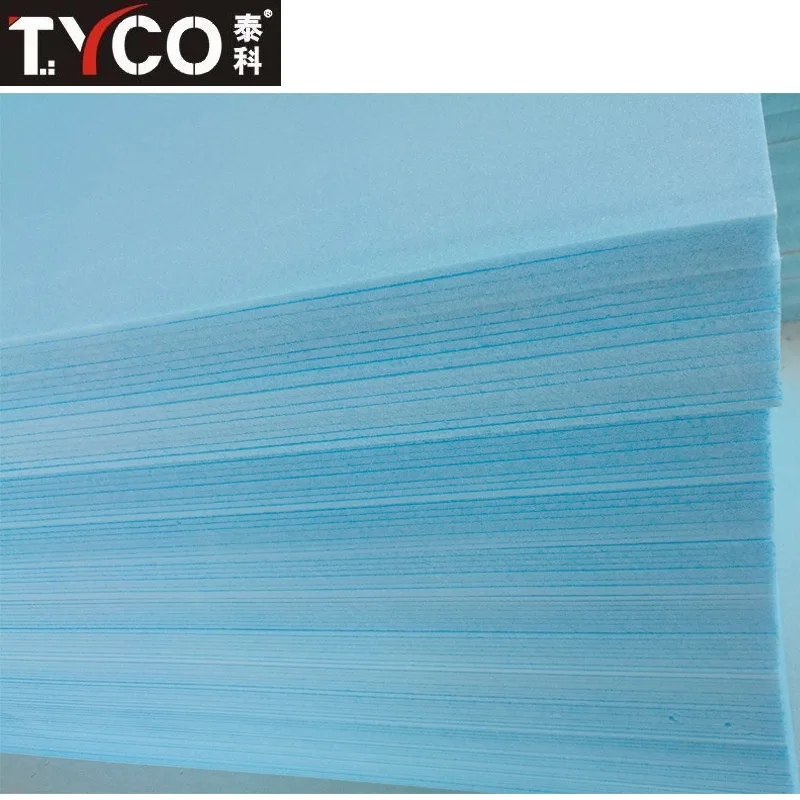

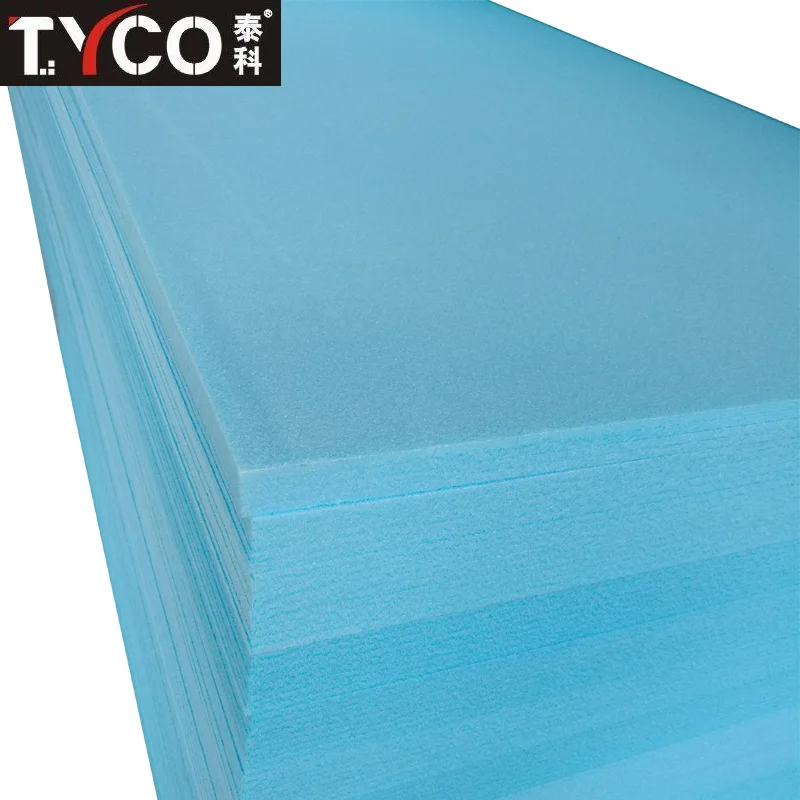

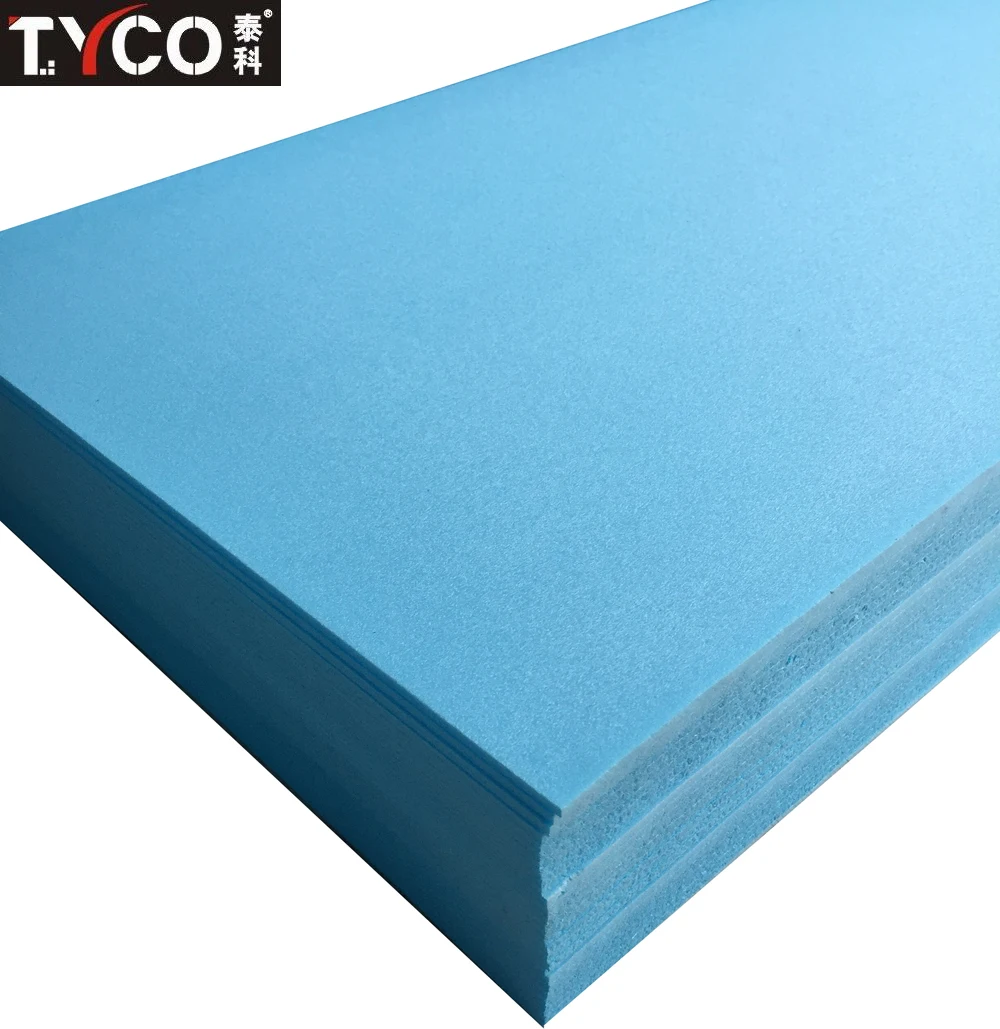

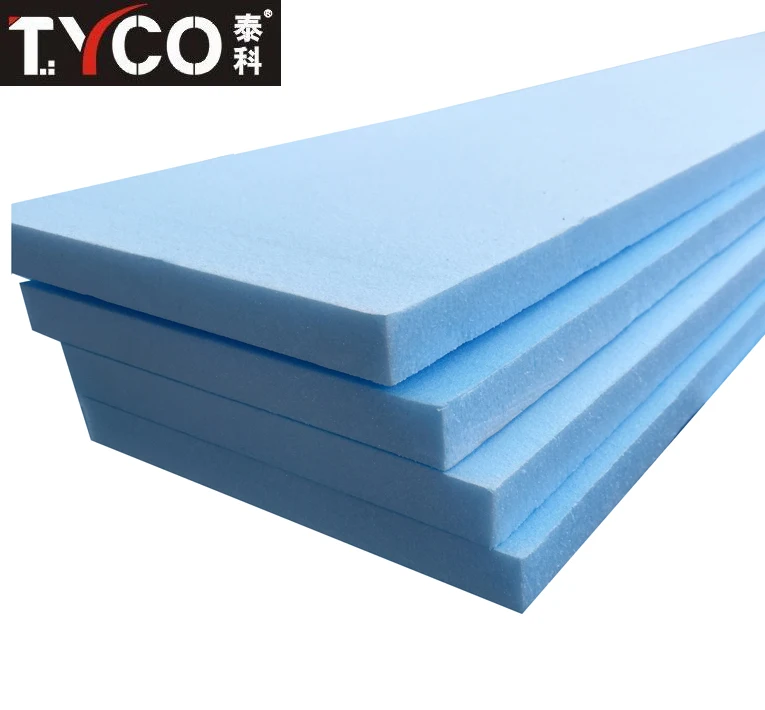

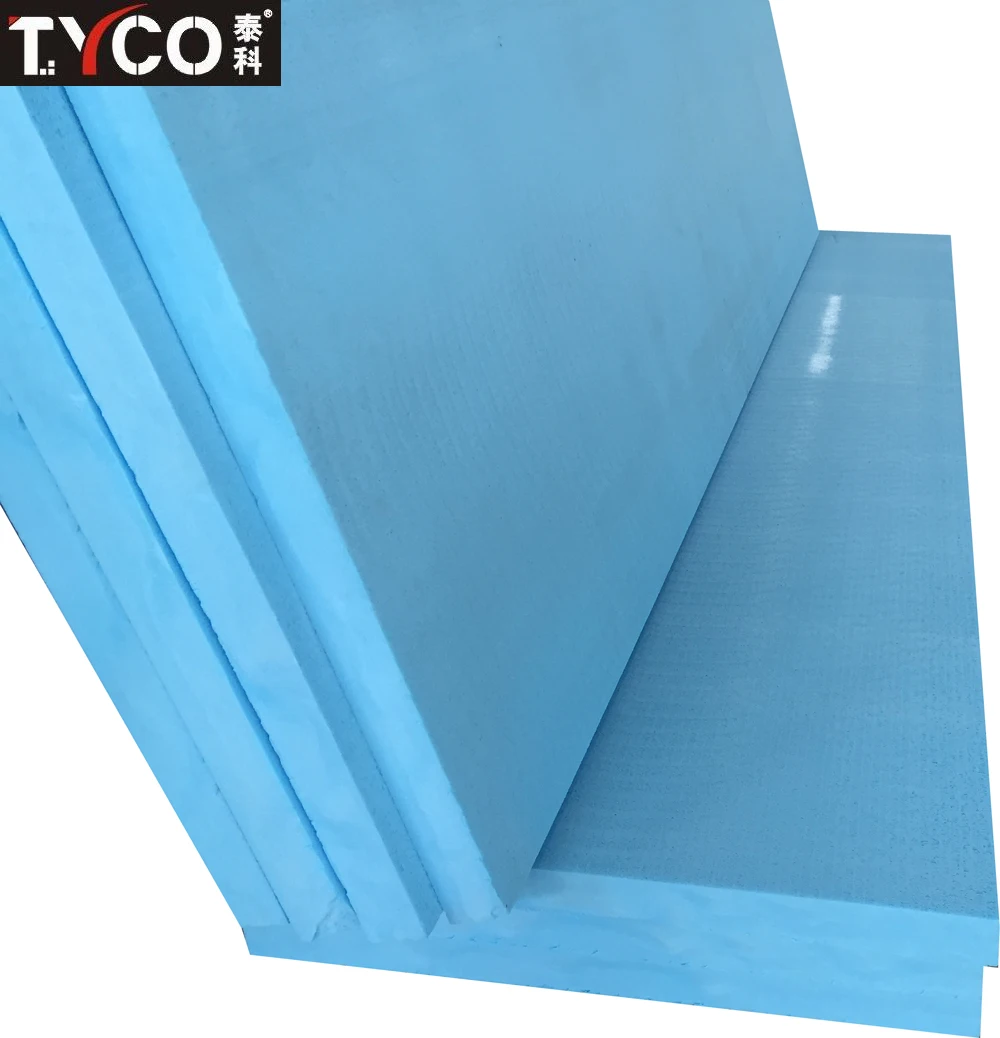

The Board is made of Extruded Polystyrene.This kind of board is widely used for building insulation.
When the house is installed with the boards, it is just like a thermal barrier. The heat lose can be greatly reduced.
When used under underfloor heating the board greatly increases the response rate and overall efficiency of all under floor heating systems.

Characteristic

Stable performance and anti-aging: The extruded polystyrene (XPS) insulation boards can be used 35-50 years.
Resistance to compression: compared with other thermal insulation material(200Kpa for EPS), it has better compressive strength(around 300Kpa), which make it the ideal solution for heavy domestic or industrial loads
Water resistance: Polyfoam is almost 100% closed cell and as such is unaffected by moisture
Lightweight: volume optimization and easy to handle
Resistance to deformation
Resistance to impact
Versatile: the closed cell structure and density of Polyfoam allow specific edge details and surface finishes to be cut into the boards to make them as fit for the job as possible. Moreover, Polyfoam can be cut into almost any shape.
Recyclable: Polyfoam can be 100% recycled

Technical Data

\t Specific Information
\t Density	\t 32+-2Kg/m3
\t Thermal conductivity, 90 days, 10° C	\t 0.028~0.03W/mK
\t Compressive strength at 10% deflection or yield, (vertical)	\t >=250Kpa
\t Tensile strength	\t >=250Kpa
\t Water absorption	\t <=1.00% Vol-%
\t Capillarity	\t nil
\t Coefficient of linear thermal expansion	\t 0.07mm/k
\t Temperature limits	\t -50° C, + 75° C

Availlable size

\t Length of the board	\t mm	\t < =6000mm
\t Width of the board	\t mm	\t normally 600/1200mm
\t Thickness of the board	\t mm	\t 20~100mm(other thickness can be customized)
\t Normal color: Blue (other colors need to be customized)
