Высококачественный промышленный телецентрический оптический объектив с фиксированным временем

Высококачественный промышленный телецентрический оптический объектив с фиксированным временем

Категория: >>>
Поставщик: Guilin FT-Opto Co. Ltd.

Цена:110,00 $ - 130,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

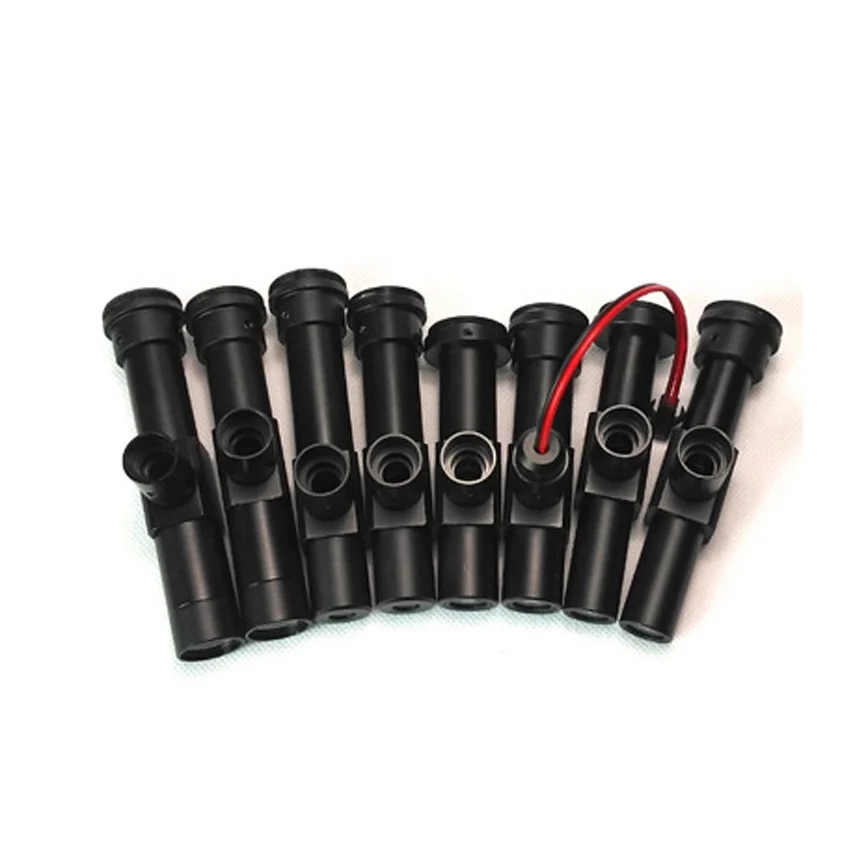

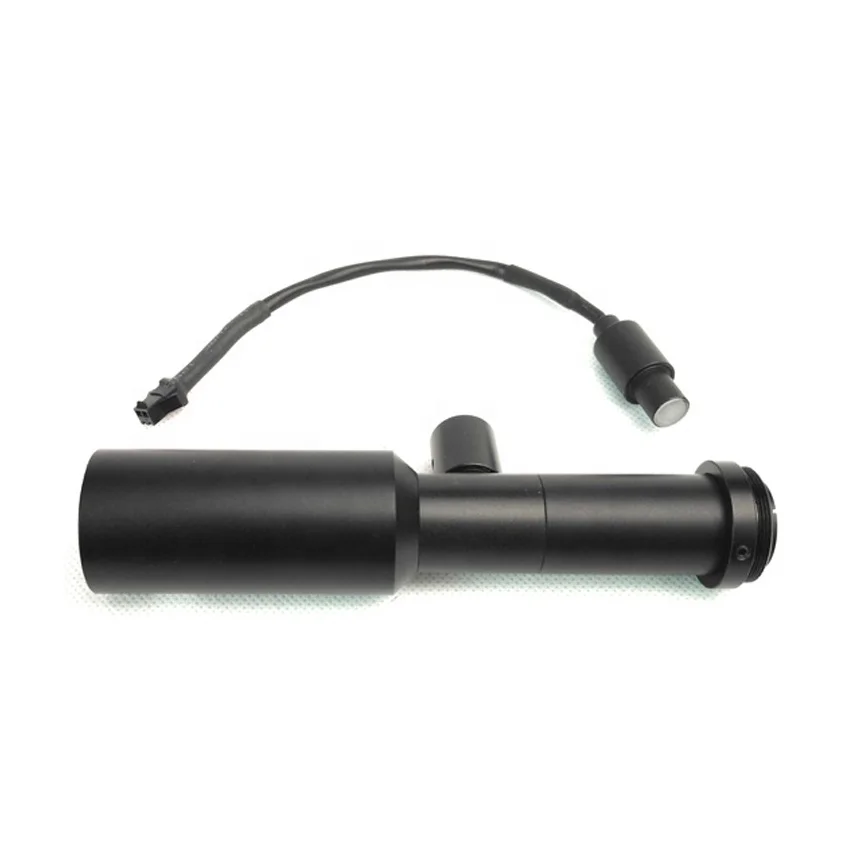

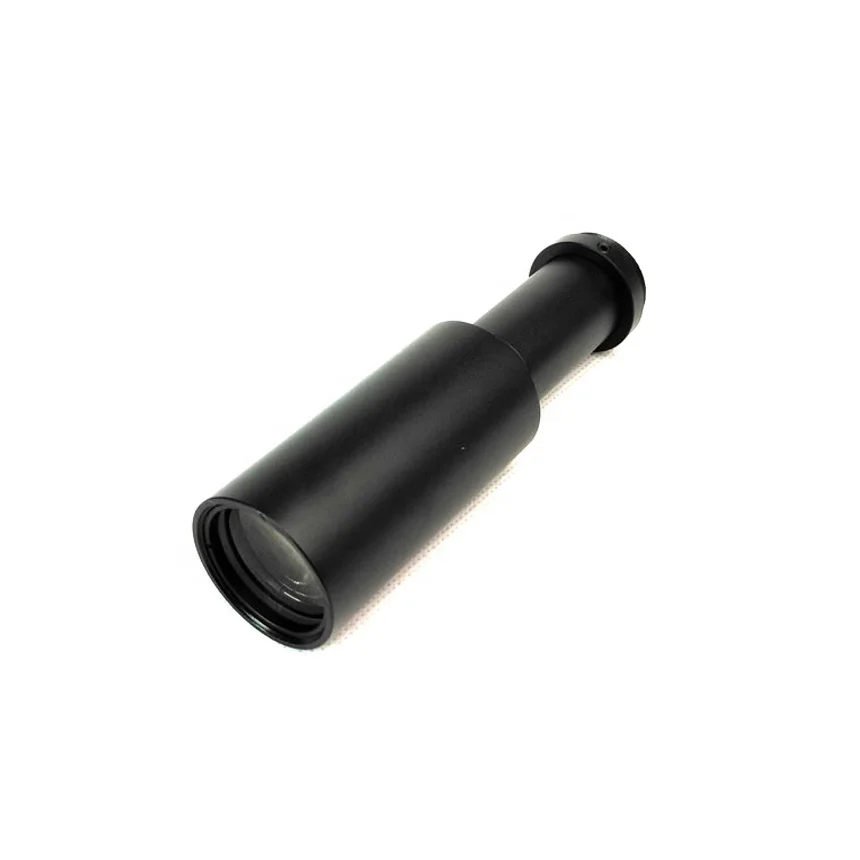

FB Series high quality fixed times industrial telecentric optical lens Feature .FB Series high quality fixed times industrial telecentric optical lens is adopt with the object-side telecentric design, standard CCD interface which is suit for 2/3'',1/1.8'',1/2'' ,1/3'',1/4''and 1/6'' CCD camera. .Telecentricity<1''.The back installation diameter:22 mm .With coaxial illumnation, or can choose the LED coaxial illumination and 8mm fiber Horn Coupling .T means Telecentric, C means Coaxial. . This Fixed times telecentric optical lens is widely used in automated manufacturing equipment, machine vision systems, such as SMT machine, solid crystal machine, rubber injection machine, etc .Customizing all kinds of magnification and working distance lens according to customer's request, fast delivery.
Big NA ,low Mag.and LWD series Telecentric Coaxial Lens (FBnC-wdT n means magnification, wd means working distance)
MODEL	COAXIAL LIGHT	MAGNIFI CATION	WD	DEPTH OF FIELD	NA	RESOLU TION	F/#	DIST	<	SENSOR SIZE	MOUNT	T1	X	Y
FB03-110T	FB03C-110T	0.3	110	4.83	0.028	0.012	5	<0.13%	1"	1/2"	C	122	70	21
FB03-150T	FB03C-150T	0.3	150	4.83	0.028	0.012	5	<0.2%	1"	1/3"	C	122	70	21
FB03-180T	FB03C-180T	0.3	180	4.83	0.028	0.012	5	<0.32%	1"	1/3"	C	122	70	21
FB03-200T	FB03C-200T	0.3	200	4.83	0.028	0.012	5	<0.3%	1"	1/3"	C	122	70	21
FB33-650T	FB33C-650T	0.33	650	7.48	0.016	0.021	10	<0.9%	1"	1/3"	C	108	70	7
FB35-68T	FB35C-68T	0.35	68	4.08	0.028	0.012	6	<0.15%	1"	1/3"	C	135	70	33.5
FB04-150T	FB04C-150T	0.4	150	3.62	0.028	0.012	7	<0.2%	1"	1/2"	C	122	70	21
FB47-280T	FB47C-280T	0.47	280	3.08	0.028	0.012	9	<0.6%	1"	1/2"	C	122	70	21
FB05-68T	FB05C-68T	0.5	68	1.82	0.044	0.008	6	<0.1%	1"	1/2"	C	130	70	28.5
FB05-110T	FB05C-110T	0.5	110	1.82	0.044	0.008	6	<0.1%	1"	1/2"	C	161	70	59.5
FB05-180T	FB05C-180T	0.5	180	1.82	0.044	0.008	6	<0.07%	1"	2/3"	C	142	70	40.5
FB05-250T	FB05C-250T	0.53	250	2.70	0.028	0.012	9	<0.4%	1"	1/2"	C	130	70	28.5
FB05-265T	FB05C-265T	0.5	265	2.86	0.028	0.012	9	<0.4%	1"	1/2"	C	152	70	50.5
FB05-500T	FB05C-500T	0.5	500	3.64	0.022	0.015	11	<0.8%	1"	1/2"	C	121	70	19.5
FB05-510T	FB05C-510T	0.5	510	3.64	0.022	0.015	11	<0.8%	1"	1/2"	C	121	70	19.5
FB05-550T	FB05C-550T	0.5	550	5.00	0.016	0.021	16	<0.6%	1"	1/2"	C	115	70	13.5
FB06-150T	FB06C-150T	0.6	150	1.52	0.044	0.008	7	<0.05%	1"	2/3"	C	161	70	59.5
FB06-240T	FB06C-240T	0.6	240	2.42	0.028	0.012	11	<0.6%	1"	2/3"	C	133	70	32
FB08-65T	FB08C-65T	0.8	65	1.81	0.028	0.012	14	<0.15%	1"	2/3"	C	161	70	59.5
FB10-530T	FB10C-530T	1	530	2.50	0.016	0.021	31	<0.55%	1"	2/3"	C	152	70	50.5
FB10-630T	FB10C-630T	1	630	2.50	0.016	0.021	31	<0.35%	1"	1/2"	C	171	70	69.5

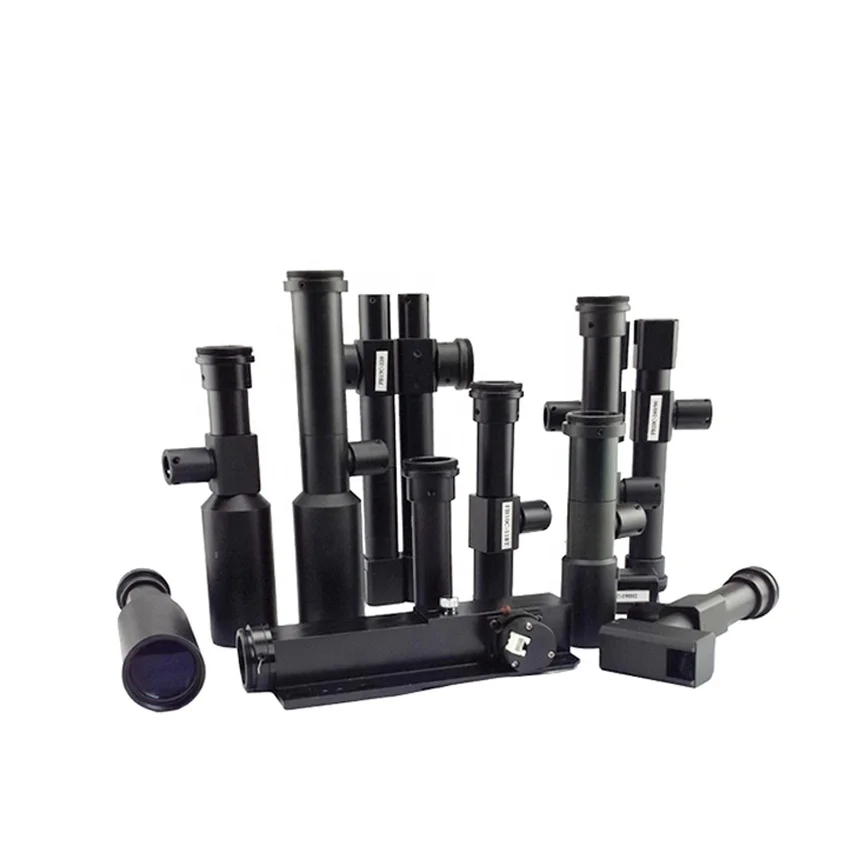

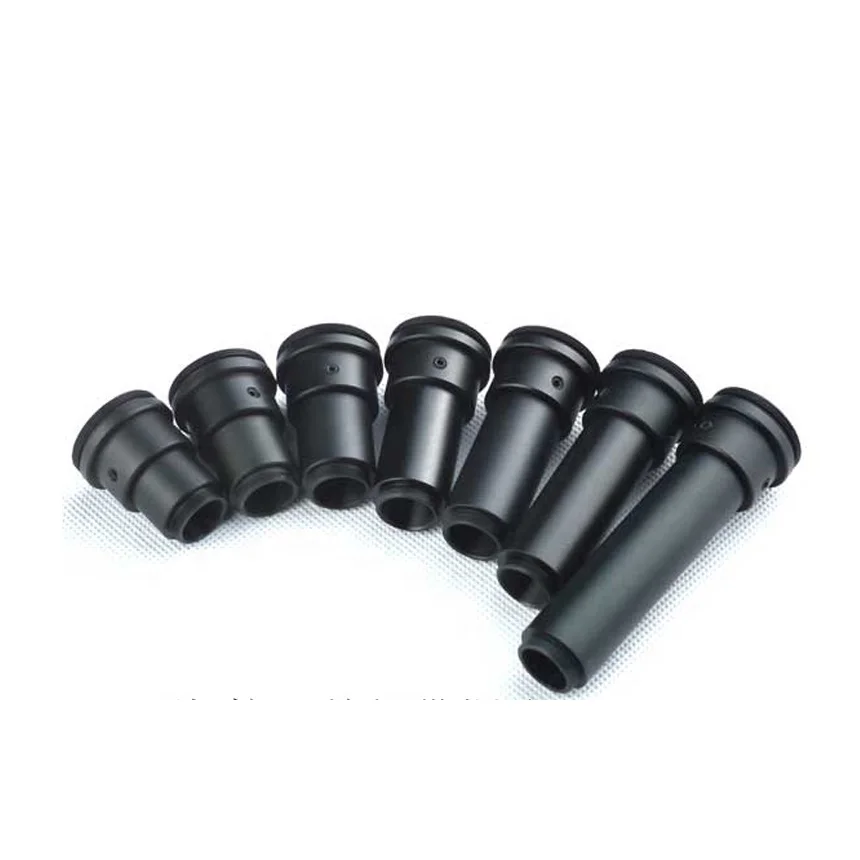

FB Series high quality fixed times industrial telecentric coaxial optical lens

.jpg

>> Click here to get more latest microscope catalogue

Company Profile

Guilin FT-OPTO Co.,Ltd is a new high-tech enterprise which is specialized in high resolution zoom lens, machine vision lens, HDMI camera, LCD monitor, monocular digital microscope, measuring & tools microscope and stereo microscope. Our products are extensively used in the industry of electronic and precise industry dectection , education , laboratory and measuring instrument.

Through years of effort, our company gathered a group of professional sales and technology development personnel. Our products are widely sold in Southeast Asia, Europe and the United States countries, .
We promise to give you the most advanced technology , best products , lower operation cost and most convenient service

Work Shop

Product Workshop.JPG

FAQ

Q: Can I get the sample order?

A: Yes.We welcome sample order to test and check quality.Mix sample are acceptable.

Q: How long is the delivery date?

A: It usually 1-7 working days.

Q: How do you ship the goods and how long does it take arrive?

A: We usually ship by DHL,Fedex,Tnt ,SF ,EMS, By sea or By air.It usually takes 3-5 working days to arrive.

Q: How to proceed the order if I have logo to print?

A: First,artwork for visual confirmation,and next is sample picture or sending sample to you.

Q: How is your quality control?

A: We have strict QC process and all the products will be 100% testing before shipping.

Q: What is your payment way?

A: T/T,Paypal,L/C,Western Union,Alipay

Q: Do you offer guarantee for products

A: Yes,we offer one year warranty for the product.
