Китай заводская цена машина для резки печатных плат/машина плат

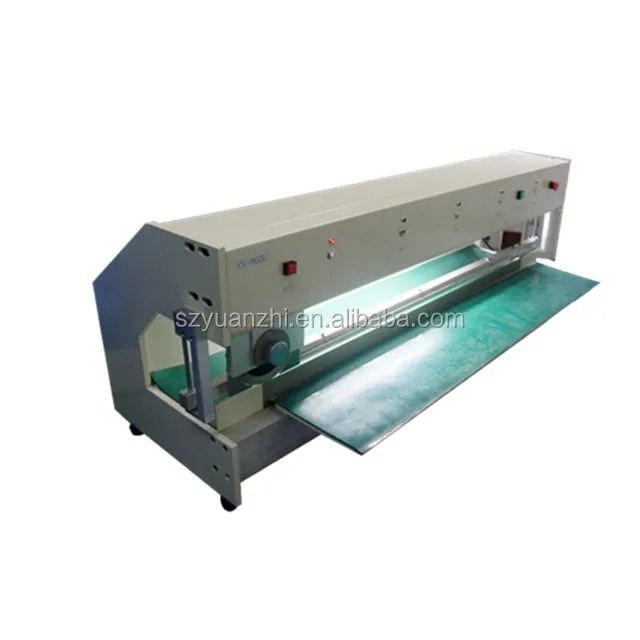

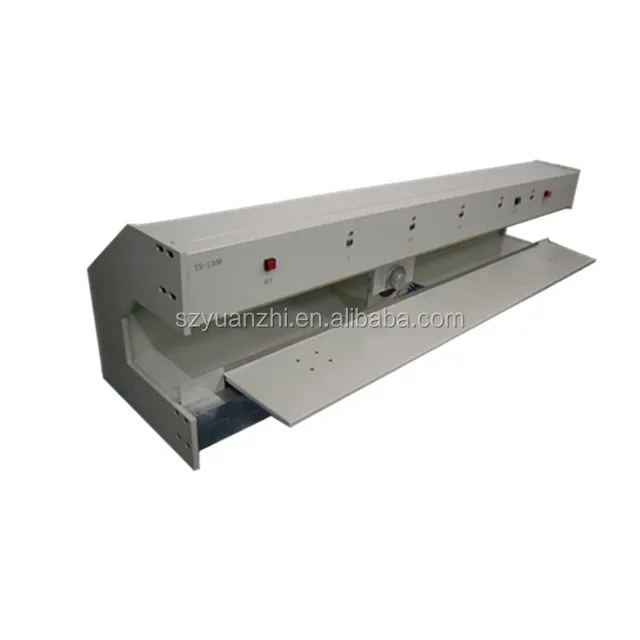

We have four models PCB separator, suitable for 0-1200mm length PCB.

Features:

1. The nether linear blade is used to fix the PCB V-cut, the upper circular blade moves to separate the PCB. By pressing the foot-pedal to control the action of circular blade.

2. Adopt step motor, can separate all kinds of V-cut PCB 3.Max separate length 1200mm (400mm, 600mm, 900mm, 1200mm is optional)

4. The stroke of the upper circular blade can preset. (Setting rang: Between any two groups of 0,100, 200,300,400mm)

5. Blade moving speed can switch between 300mm/s and 500mm/s.

6. The gap between two blades is easy to adjust

7. Operation is very safe, the circular blade is covered by material, avoid the blade hurting hand. Also can install a sensor, when hand or foreign matter enters into the working area, it will stop immediately.

8. Blade material is SKH7 from Sweden, long lifetime. During cutting, it can effectively decrease cutting stress to avoid welding spot cracking.

9. Available PCB thickness: 0.2-3.2mm

10. PCB V-cut thickness: 0.2-2mm

About Packing

All machines will be packed in wooden case. Export standard packing ensures shipment safety.

About Delivery

All machines will be surely shipped in lead time: Small machines 5~7 working days after payment, Large machines 10~15 working days after payment. Customized machines and large quantities will be executed according to the contract.

Warranty and Maintenance

CE, RoHS certified.

One year warranty and whole life maintenance!

----Purchase Guidance

If not sure which one is your best choice within the budget, please provide the details or samples to us. We will provide the best solutions and machines.

As one of leading manufacturer in China, we offer factory price and very thorough quality check before

----After Sale Services

We provide lifelong support after sale including operation guidance, parts replacement and maintenance support. Just feel free to contact us.

----Technology Consultation

Any question about wires, cables, machinery, and even the production line please feel free to contact us. We can provide reasonable budget and suggestions.

----OEM Services

We provide OEM services.

With years' sale production and sales experience, our machines have gained good reputation among customers.

1. Thank you for your excellent communication, service and order processing! It’s a pleasure to do business with you.

------------Berry Lussing

2. Yes, machine works perfectly. I will make a video and put it on YOUTUBE for you so you get plenty of referrals.

------------Peter McWhinney

3. Cutting machine works very well, great! Every day we use it, good helper for us. ------------Branislav Vrskovy

4. Yes machine arrived safely. We have been using it for about 2 weeks now and it seems to be performing well. Thank you for following up with us. ------------Diane Porter

5. We received the machine yesterday and today we switched it on for the first time, it is working perfectly.

------------Mathew Perry

6. Thanks for your quick response. Yes our first cutting machine is working fine and without any problems.

------------ Mathew Perry

7. Thanks for a very professional service you provided for me. The cutting machine is perfect and I am very impressed with it. ------------Sean

8. You had supplied one component counting machine. Quote attached FYR. The machine is working fine. I need to order one more. ------------Alexandre

Welcome to contact for more information about our machine. Videos can be sent to you.
