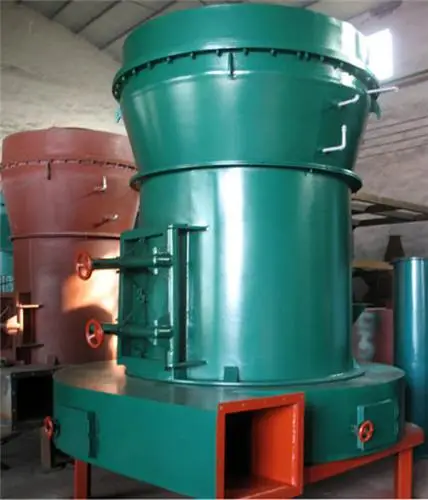

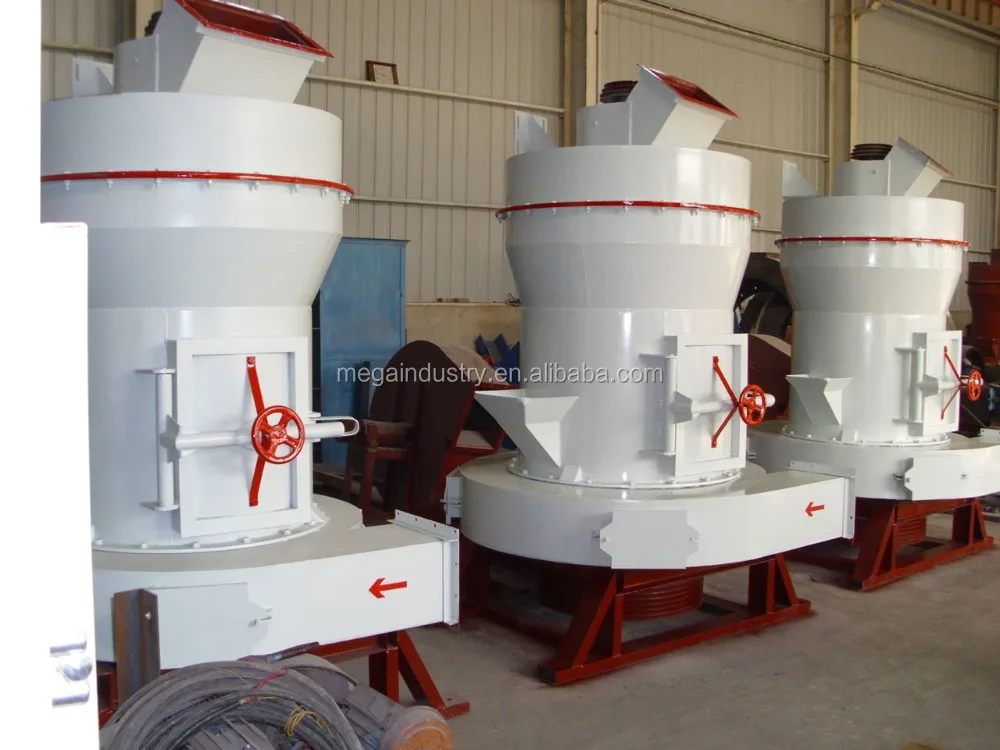

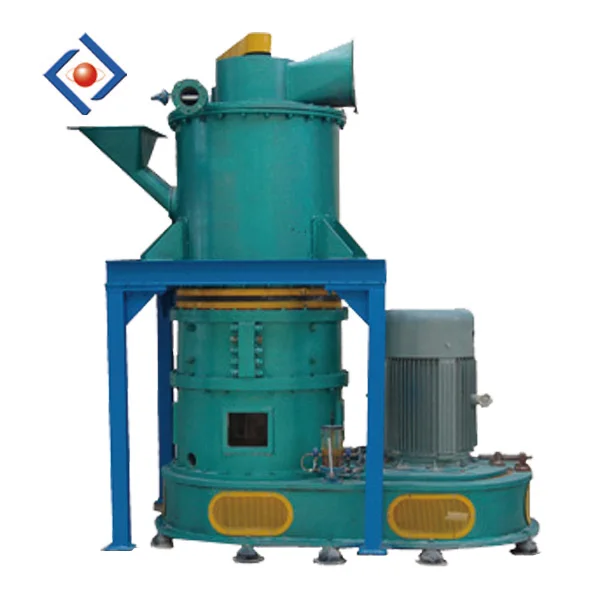

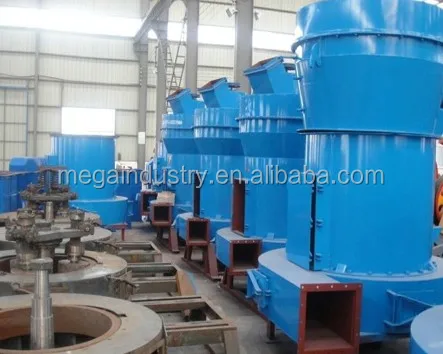

Большой Мельница Raymond 5R4119

Описание и отзывы

Характеристики

Raymond mill is suitable for grinding the nonflammable and non-explosive materials with humidity below 6% and Mohs hardness less than 7, such as barite, calcite, limestone, marble, glass and so on. It is widely used in mining, chemical industry and building material.

Product features:

1, the machine for vertical structure, cover an area of an area small, systemic strong, from raw materials to the rough machining transported to powder and the final package, but are an independent production system.

2, compared with other grinding equipment, the screening rate is as high as 99%.

3, Raymond grinding host transmission device of the sealed gear box and pulleys, is stable and reliable operation.

4, Raymond milling machine parts are important USES the high quality castings and profiles manufacturing, sophisticated technology, rigorous process, to ensure the durability of the whole equipment.

5, electrical system USES centralized control, ground powder workshop can realize no one basic operations, and maintenance.

The main structure:

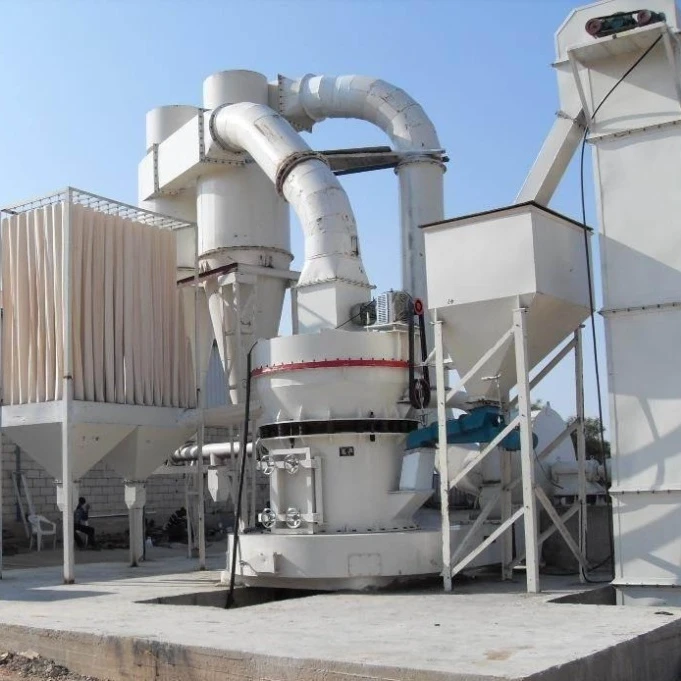

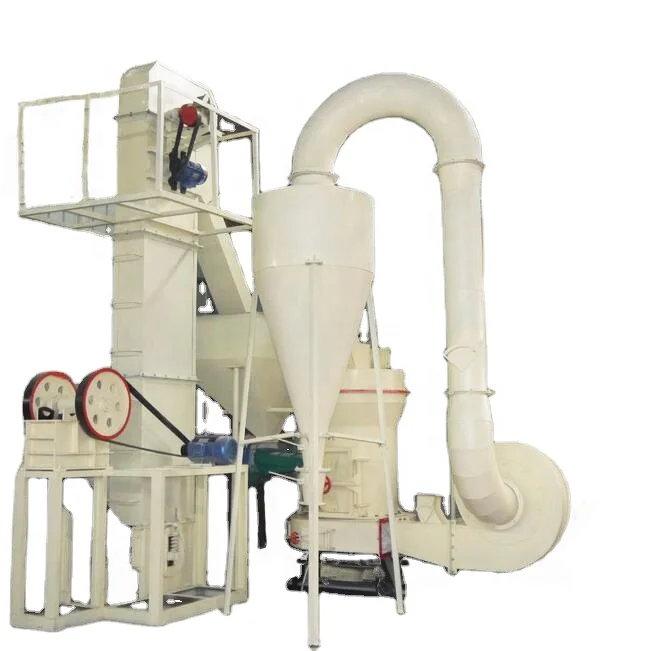

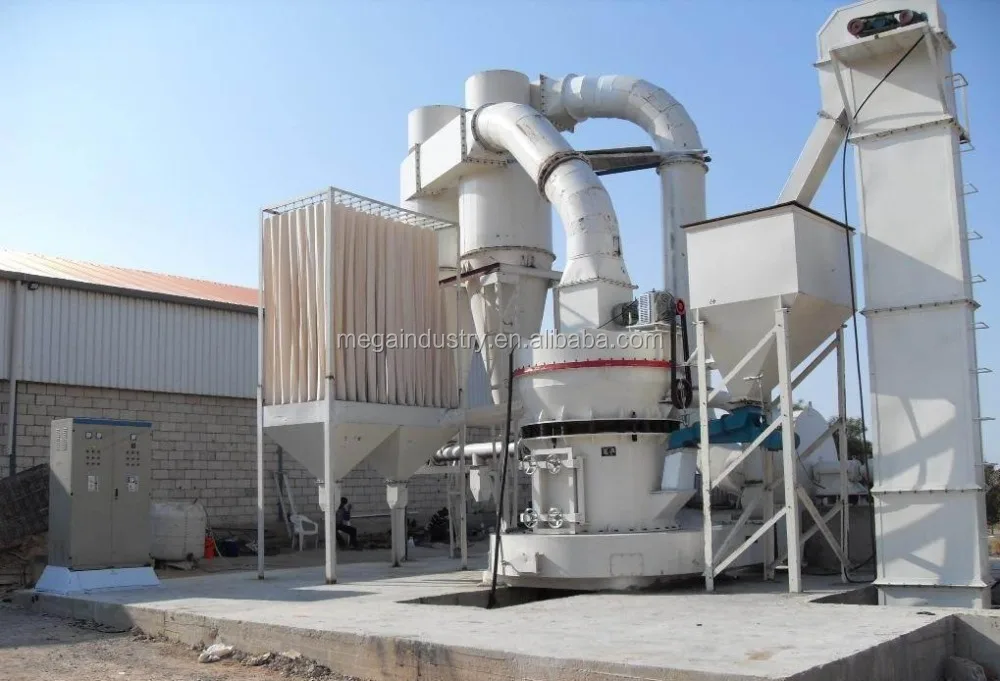

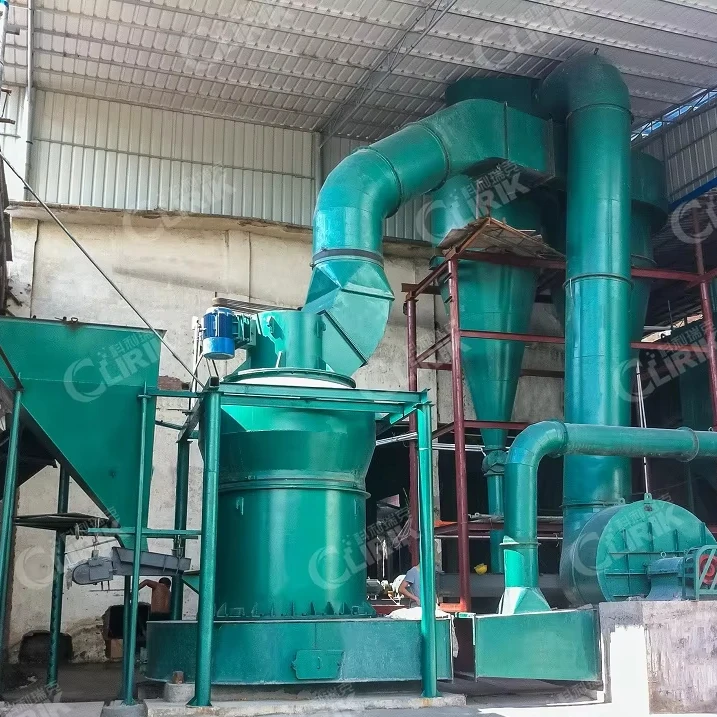

The structure is mainly by the host, analyzer, blower, finished product cyclone separator, micro powder cyclone separator and duct composition. Among them, the host by frame, into the wind diffuser, shovel knife, grinding roll, grinding ring, cover of shell.

Working principle:

Raymond milling machine work, will need to smash the material from machine shell side cover the into hopper to join machines, rely on hanging in the host the plum flower shelf of grinding roller, around the vertical axis of revolution, while rotation itself, because when the role of rotating centrifugal force, grinding roll to outside swings, tight pressure in grinding ring, make the shovel knife scooping up material to roll grinding and ground between ring, for grinding roll rolling rolling and achieve the purpose of the crushed material.
