Ютон KT A с изменяющимся наклоном Аксиального потока парника птицы; Хорошо пропускает воздух; Циркуляционный вентилятор вытяжной пыли огонь дыма проект воздуходувки

Ютон KT A с изменяющимся наклоном Аксиального потока парника птицы; Хорошо пропускает воздух; Циркуляционный вентилятор вытяжной пыли огонь дыма проект воздуходувки

Категория: >>>
Поставщик: Guangdong Gaoze Ventilation Equipment Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

header

Product Description

YUTON Tube Axial Flow Fan
1.Typical Feature and Application

Reasonable structure with high intensity blade

Low noise, high efficiency

Suitable for exhausting high temperature gas, oily gas and dusty

Suitable to transmit the air with the temperature below 80 centigrade in the environment where has not flammable , explosive and caustic air, the dust containing index is below 150 mg/m3

2. Performance Range

Fan Type	Axial fan with adjustable aluminum blade
Certificate	CE,CCC
Electricity Current Type	AC(Alternating Current)
Voltage	220/380V
Frequency	50HZ
Power	0.75KW-7.5KW
Speed	1450-2800 RPM
Air Volume	8370m³/h up to 30650 m³/h
Static Pressure	100Pa up to 476 Pa
Motor	Standard Motor

3.Composition

Fan Housing	fan housing, fan casing, Double flanged casing manufactured with mild steel or galvanized sheet steel. Casing covers the overall length of motor and impeller. It is welded with mild steel plate with connecting flanges at both ends. Casing can also provided with foot mounting arrangement to install fan on the ground.
Impeller	the punch forming blades are made of aluminum or galvanized steel. The impellers also has manually adjustable pitch blades.
Inlet and Outlet Ducts	Connect with flanges
Motor	Standard Motor, cast Iron with pure copper

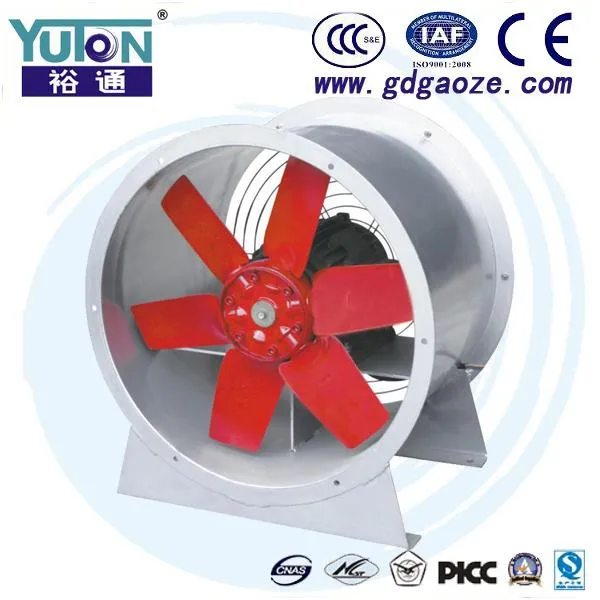

KT-A Axial Fan1.JPG

4.Fan Operation

Before set up the fan,check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts.

When the fan is rotating,check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing,it can not higher than ambient temperature 40 °c

If the fan has very severe shock,hitting ,and bearing temperature rise rapidly,please stop the fan right away.

5.Fan Certificate and Quality Control

By our efforts,our company Gaoze was selected as the member of China General Machinery Industry Association Ventilation Fan Branch. Our products enjoy good reputation among our customers . Our Products were awarded as "Brand-name and High Quality Products" by "China Quality Evaluation Center" &"Guangdong Branch of Social Servey Institute China"; Furthermore, a number of products are applied patents, which are up to the advanced standard. We are "Guangdong Private Scientific and Technological Enterprise" and past the "National Industrial Products License Certificate". Energy saving axial duct fan and multi-blade centrifugal fan developed by our company obtained the standard certification, most of our products past the certificate of "CCC" and "CE". We are fully implementing ISO 9001:2008 Quality System.

6.Fan Maintain

Periodically clean the inner dust, dirt and other impurities

Periodlically check the fan to avoid rusting

Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation.

7.Technical Specification

Model (No)	Voltage (V)	Power (W)	Revolution (rpm)	Air Flow (m3/h)	Pressure (Pa)
KT4A-2	380	1.5	2800	8370	250
KT4A-4	220/380	0.75	1450	4000	53
KT5A-2	380	3	2800	10728	260
KT5A-4	220/380	1.5	1450	7000	128
KT6A-2	380	7.5	2800	19590	476
KT6A-4	220/380	3	1450	16000	260
KT6A-2	380	5.5	2800	17650	363
KT4C-2	380	1.5	2800	8370	250
KT4C-4	220/380	0.75	1450	4000	53
KT5C-2	380	3	2800	10728	260
KT5C-4	220/380	1.5	1450	7000	128
KT6C-2	380	7.5	2800	19590	476
KT6C-4	220/380	3	1450	16000	260
KT6C-2	380	5.5	2800	17650	363
