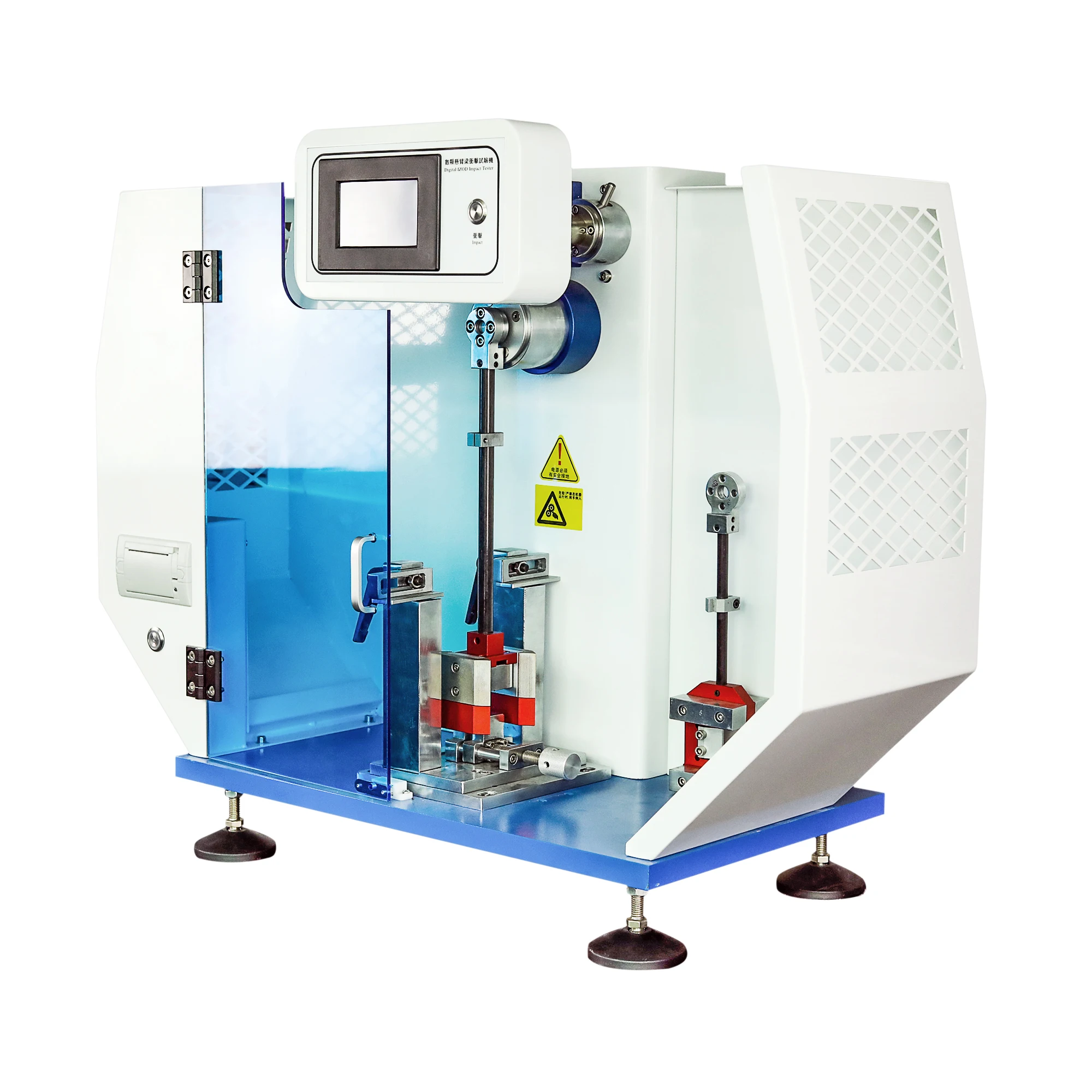

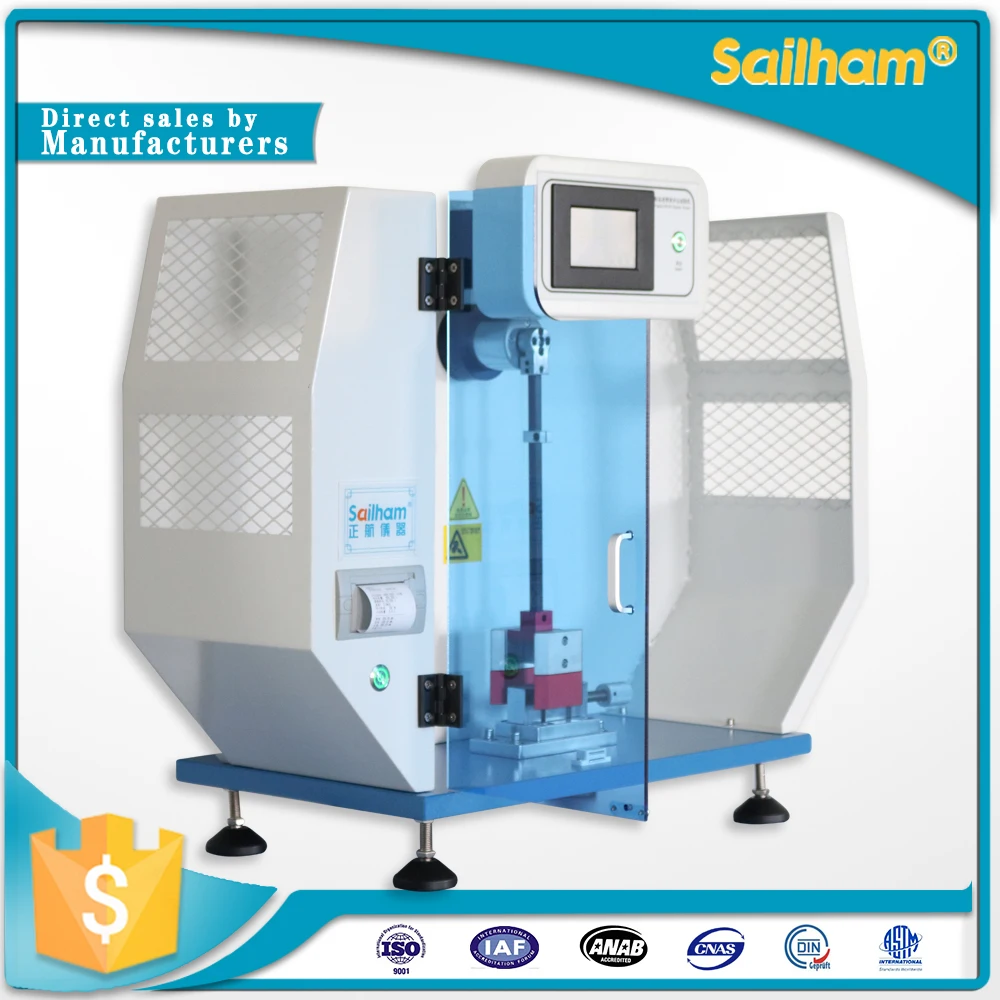

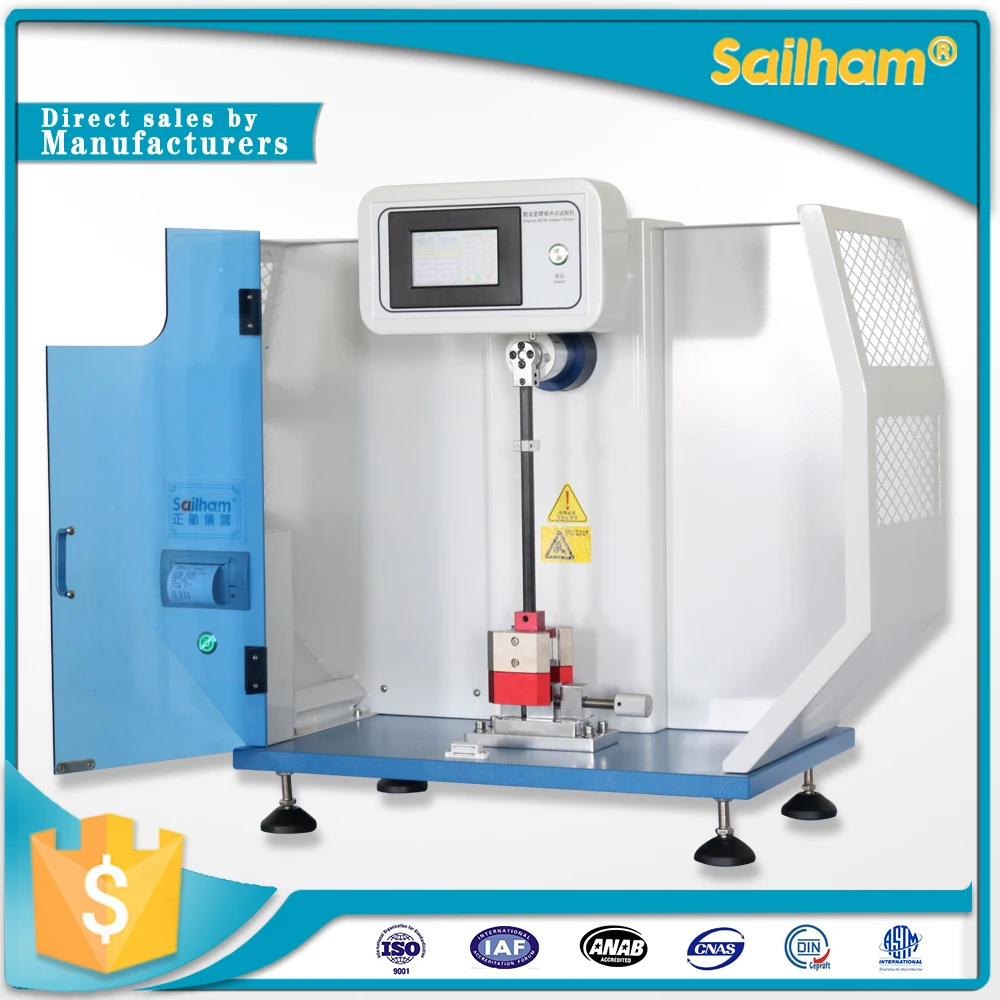

CE certificated plastic izod impact strength testing machine
Product Description
it is possible to perform such tests on raw materials such as metals, polymers, textiles, rubbers, adhesives, food as well finished components.
How the Izod Impact test works?
The Izod impact test fixes one end of a notched specimen in a cantilever position by means of a vice. A striker on the arm of a pendulum or similar energy carrier then strikes the specimen. The energy absorbed by the specimen in the breaking process is known as the breaking energy. The breaking energy can be converted into an indication of a materials impact resistance using such units as foot-pounds or joules.
Product Specification
Model No | ZH-XBL-5D | ZH-XBL-22D |
Pendulum energy | 1.0J,2.75J, 5.5 J | 11J,22J |
Impact speed | 3.5m/s | |
Display method | Color touch screen | |
Brands and precision angle sensor | Omron encoder accuracy to 0.01 ° | |
Energy display accuracy | 0.01J | |
Pendulum up angle | 150° | |
Impact center distance | 335mm | |
Distance from impact blade to clamp | 22mm | |
Cutting edge radius | R=0.8±0.2mm | |
weight | 85kg | |
Meet the standards | ISO180—2000,ASTM D256-2010; | |
Power | AC220V±10% 50HZ | |
Sailham Equipment (Dongguan)CO., LTD.is a leading manufactuer that specializes in manufacturing and marketing the cost effective& nbsp;and reliable environmental test chambers. Our main products includes:environmental test equipment and mechanical/optical equipment, such as:programmable constant temperature humidity test chamber, high - low temperature cycling test chamber,thermal shock test machine(2zone or 3zone), high-low temperature shock chamber,Highly pressure accelerated aging test machine,rapid temperature change test chamber, walk-in constant temperature humidity chamber,high temperature oven, vacuum chamber, uv test chamber, xenon lamp aging test chamber, IP56 rain-resistant test chamber, IPX(Level 1 to 8) sand and dust test chamber, Ozone ageing test chamber, salt spray test machine,radial-boom impact test machine,container compressure tester,vibration test machines,drop test machines,tensile test machins etc .More>>
Our Team
Maching workshop
Certifications
Exhibitions and customers visit our factory
Packaging and shipping
Our partner
FAQ
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
Click here to CONTACT US
Похожие товары

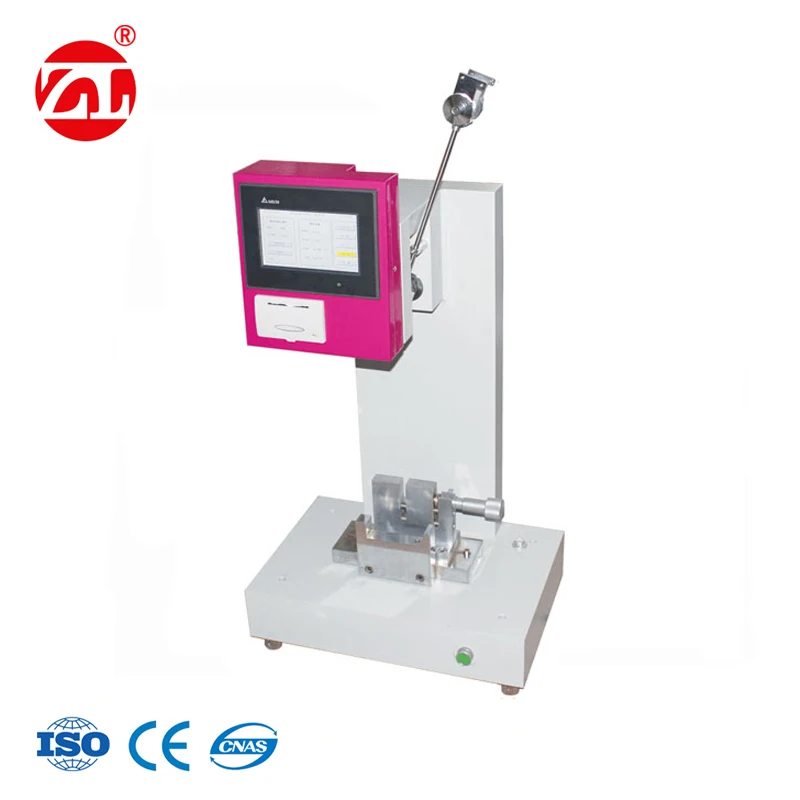

Izod маятниковый ударный испытательный станок для пластика/charpy тестер
Шарпи/izod маятник Влияние Тестер цена

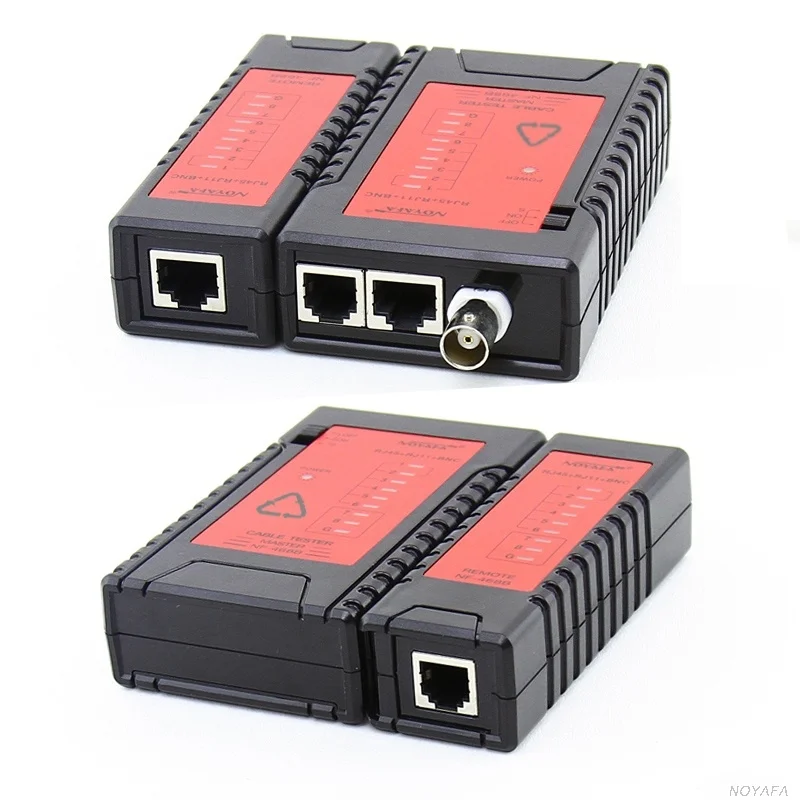

Нояфа бренд! Высокое качество Портативный Usb Кабельный тестер в сети связи Lan
