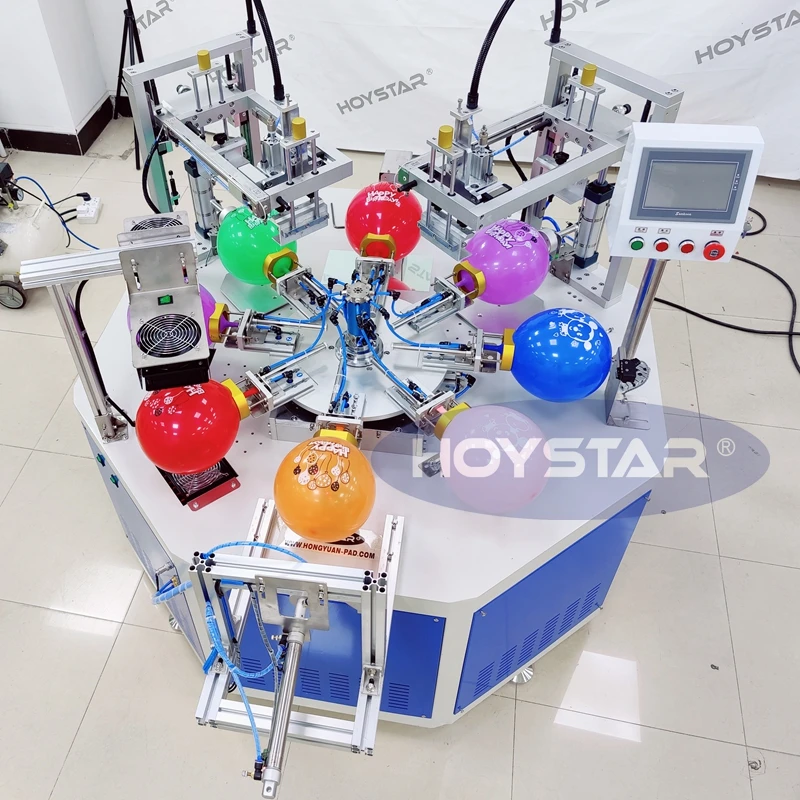

Поворотная Станция трафаретная печатная машина для воздушных шаров/кремниевый воздушный шар/резиновый шар Трафаретный принтер

Application:

This machine is specially customized and design for printing balloons, Whole machine case adopt 8 deformation design with powder spraying treatment, suitable for printing image/logo or words on balloons, printing speed max. get 1000-1200pcs per hour, turntable servo motor and precision planet reducer control. Run smoothly, speed fast, loading by hand, automatic blowing, automatic printing ,automatic unloading. Machine match balloon rotation device, with 2 printing function that 2 color 1 side or 1 color double side, every stations with precision sensor,  Can automatically identify whether there are balloons in each station, Design of unique Balloon blowing device and Balloon clamping device to made balloon blowing speed faster and high efficient.

Main function

1.    Automatic blowing function with non balloon non-blowing function
2.    Automatic printing head with non balloon non-printing function
3.    Automatic unloading with non balloon non-unloading
4.    Air blowing pressure independent control, air pressure adjustable
5.

6.    Balloon automatic rotation with non balloon non-rotation, can print 2 side of balloon
7.    With automatic Cold air blowing function can dry ink faster
8.    Turntable adopt serve motor and precision speed reducer control, Run smoothly and speed fast adjustable
9.

10.    Balloon rotation adopt Unique vacuum device Combined fast rotating electric motor, rotation speed adjustable
11.    Machine every actions can be control independently, Convenient debugging machine
12.


Main technical parameters:

1.    Printing balloon diameter:   200-220mm
2.    Printing area:                   150*150mm
3.    Printing speed:                1200pcs /hour
4.    Air pressure:                   6-8 Bar
5.    Voltage:                        220V 50HZ Single phase
6.    Power:                         1.5KW
7.    Dimension:                    1800*1500*1550mm
