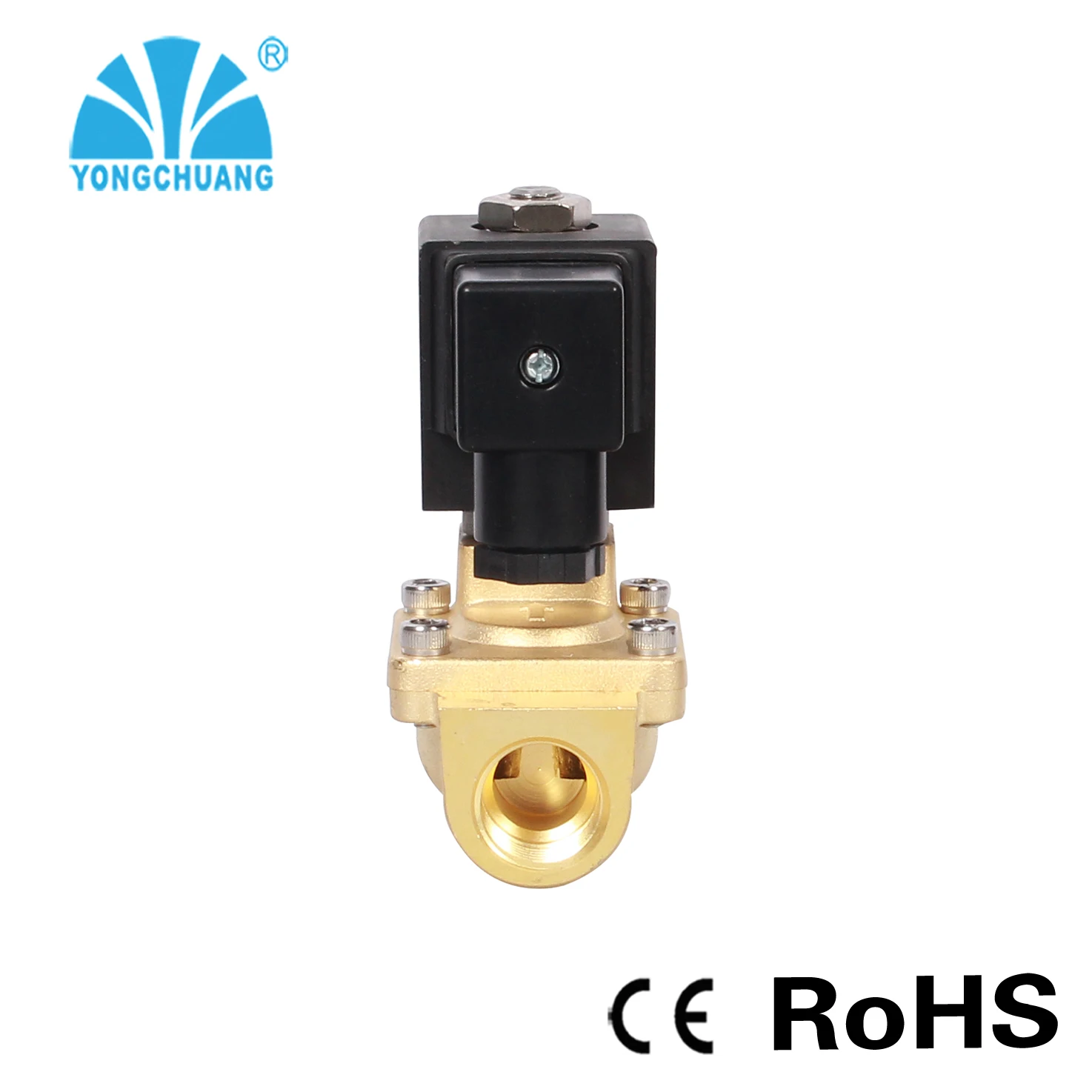

Characterisc | 1)Pilot operated diaphragm construction with less power 2)Pressusre started from 0.3 bar 3)Life time up to 1Million times. |
Medium | Air,water,oil,etc. |
Temperature | NBR:-10°C to 80 °C EPDM:-30°C to 120 °C FKM:-30°C to 150 °C |
Pressure | YCD11: 0.03-1.6Mpa |
Port size | 3/8'-2' |
Port thread | G,NPT |
Orifice | 12-50mm |
Voltage | DC-12V,24V AC-24V,120V,110V,220V/50HZ |
Tolerance | ±10% |
Coil | S211B,24VA(AC),18W(DC),IP65,100%ED |
Special coils | EX coil AC220V,DC24V Latching coil DC6-12V NASS coil 0543 is suitable for YCD21 |
Material | Body- stainless steel, BRASS Seal- NBR,EPDM,FKM,special sealing material Amature tube-stainless steel 304 Plunger-stainless steel430F Stop-stainless steel 430F Springs-SS304 Shading rings- red copper |
![]() ![]() ![]() |
|
