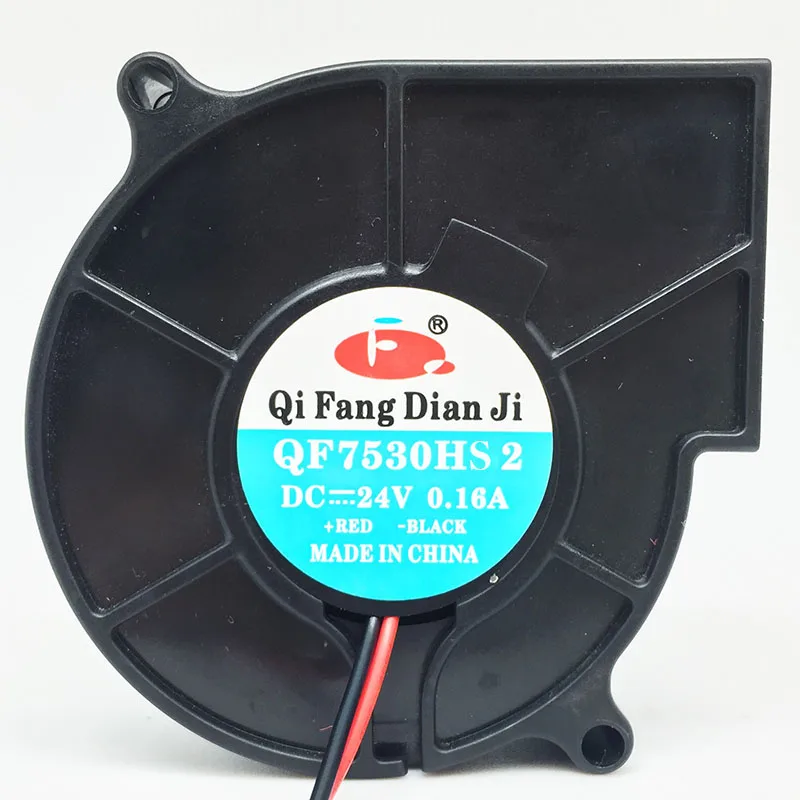

Центробежный вентилятор 12 В 24 7 5 см 75 мм x 30 3 дюйма 7530

Products Catagories of axial flow fan

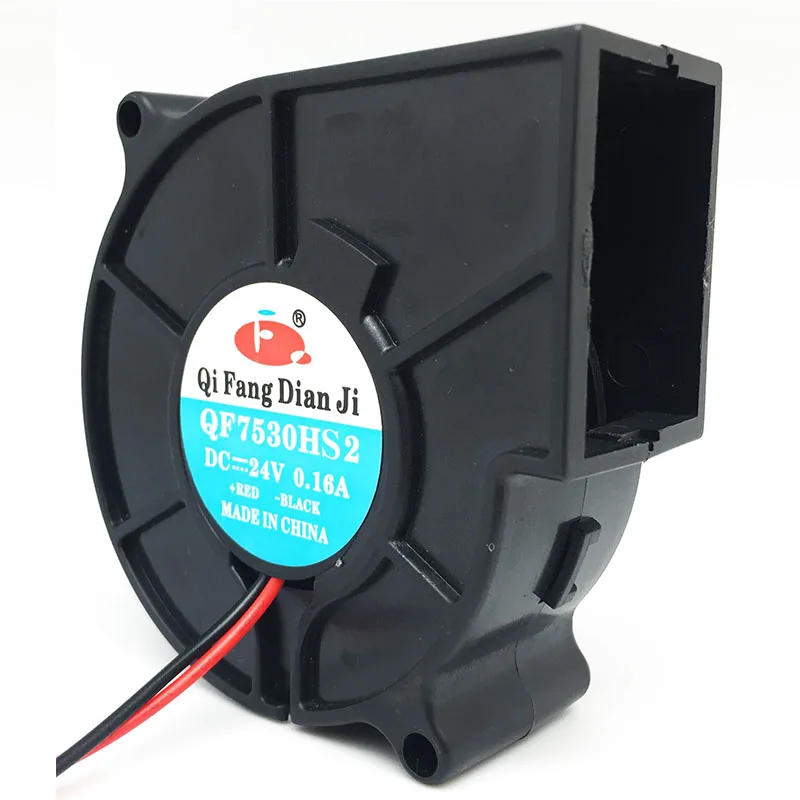

 Specification of 5v 12v 24v 7.5cm 75mm x 75mm x 30mm 3 Inch 7530 DC Centrifugal Blower Fan

1	blower fan  casting	plastic / Die-Cast Aluminum,black
2	impeller of exhaust fan	plastic/  Die-Cast Aluminum, Painted Black
3		high temperature resistance, flame retardant, waterproof, etc

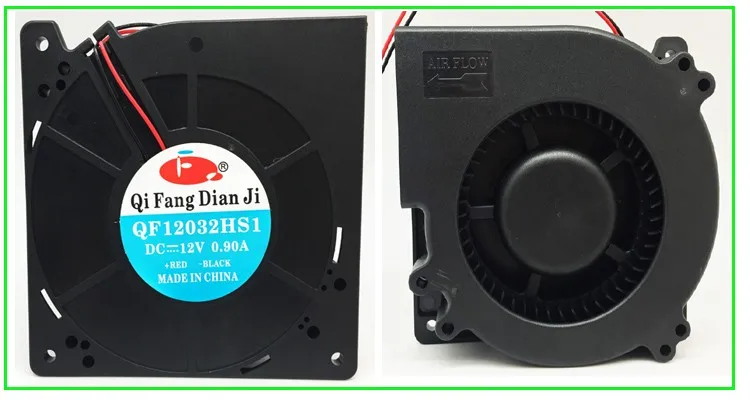

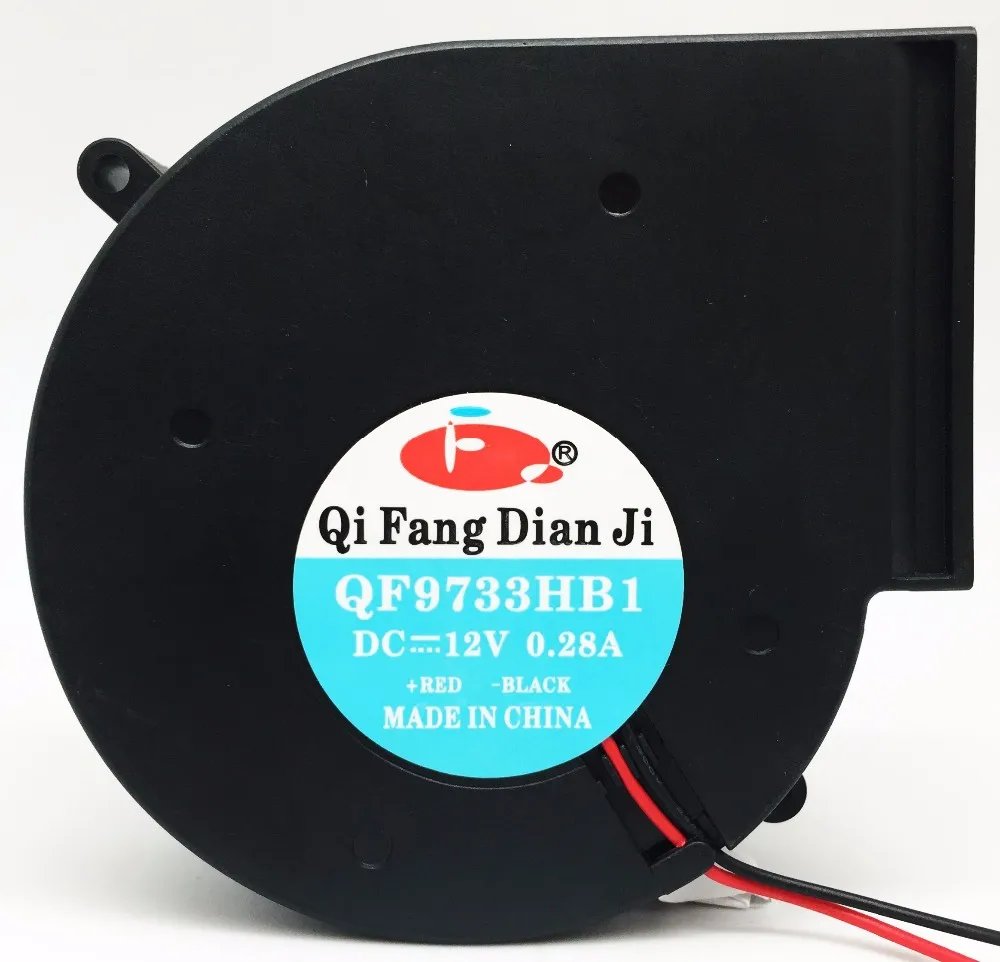

4	blower fan type	QF5015HS/B;QF7515HS/B;QF7530HS/B;QF9773HS/B;1275E-H06W-2BL30;12097E-H13W-2BL
In QFDJ factory, there are herself moudling workshop, so we can do your customized size, thanks.
5	Bearing type	ball bearing/dual ball bearing
6	Terminal or lead wire	Terminals or Lead Wire
7	Operating Voltage Range	3v/5v/7v/13v/27v
8	Operating Temperature	-10°C to + 70°C for Sleeve Type/  -20°C to + 80°C for Ball Type
9	weight-g	26g
10

Data sheet of   5v 12v 24v 7.5cm 75mm x 75mm x 30mm 3 Inch 7530 DC Centrifugal Blower Fan

model of blower fan	bearing type	rated voltage	operation voltage	rated current A	rated speed	air flow CMF	AIR Pressure	noise level dBA	weights g
QF7015HS5	sleeve bearing	5V	3.5-5.7	0.35	3000/5000	4.5	3.5/23.6	25/44	26
QF7015HB5	ball bearing	5V	3.5-5.7	0.35	3000/5000	4.5	3.5/23.6	25/44	26
QF7015HS1	sleeve bearing	12V	6.0-13.8	0.18	3000/5000	4.5	3.5/23.6	25/44	26
QF7015HB1	ball bearing	12V	6.0-13.8	0.18	3000/5000	4.5	3.5/23.6	25/44	26
QF7015HS2	sleeve bearing	24V	12.0-27.96	0.14	3000/5000	4.5	3.5/23.6	25/44	26
QF7015HB2	ball bearing	24V	12.-27.6	0.14	3000/5000	4.5	3.5/23.6	25/44	26

Qifang Electric Co.,Ltd is a professional industrial fans manufacture with more than 25 production history, and our products cover:cooling fan,DC fan,AC fan,blower,Radiation fan,DC Brush fan etc

1. Warranty: 2 years with QFDJ Brand and 5 years with NMB-QFC

2. Private Labelling: All of axial fans are able to be Private labeled.

3. Products Quality: 100% products inspection before delivery.

4. Customized Service: As we have our own molding department,

    customized service can be provided.

5. Prompt customers Services: E-mail will be replied in 24 hours

6. Sample: available for you (low value sample is free, others is charged)

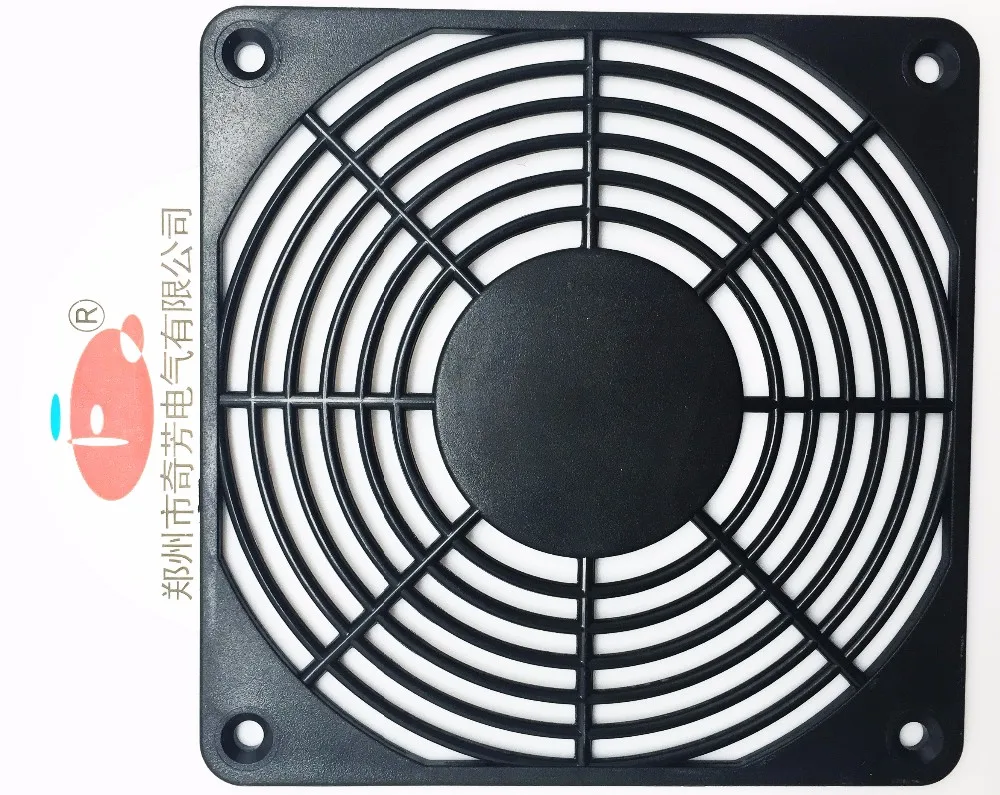

7. Finger protced cover or duct protect cover free for you with fans

axial fan in our factory: ac axial fan,dc axial fan,ec axial fan, blower,centrifugal fan,fan cover

QFDJ has been devoted herself in axial Radiator fan and blower assembly for car blower fan sale production and research for 25 years. our fan by incorporating the cutting edge designs and the high quality materials into24 volt fan blower motor,High precision bearings, which are long life and maintenance free, are all standard. Additionally, each axial Radiator fan and blower assembly for car blower fan sale carries QFDJ's brand, which have higher metal induction and lower magnetic loss than any other manufacturers.

1. What is a DC Axial blower Fan?

An DC blower fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. It blows air along the axis of the fan, or parallel to the track of the blade axis. Standard DC Axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm,120mm, 150mm, and 200mm.

2. How to choose a DC blower fan?

To choose a DC blower  fan, you should consider the points below
a. fan voltage
b. fan current
c. fan speed
d. fan airflow
e. fan noise
f. fan lifespan

3. What is a bearing?

Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 60000hours or more.

4. How do we carry out quality control?

Usually, there are two ways to monitor reliability during the manufacturing process.
a. Early Life Test
This is used as a mean of process control aimed at identifying any latent manufacturing problems and determining the
effectiveness of burn-in. Every day, 5 samples will be picked up randomly from one of the production lines for burn in at 50°C+/-5°C for 24 hours.
b. On-going Reliability Demonstration
This is a longer-term program aimed at providing data on continuous basis to demonstrate the reliability of product. 10 units per month are randomly collected from one of the production lines for burn-in for 168 hours at 0°C+/-5°C. Units are monitored and tested on daily basis. Failed units will be analyzed and corrective actions taken where necessary.

5. What can I do if we can not find the suitable fan model in the fan list?

Please contact us for customized fans.
