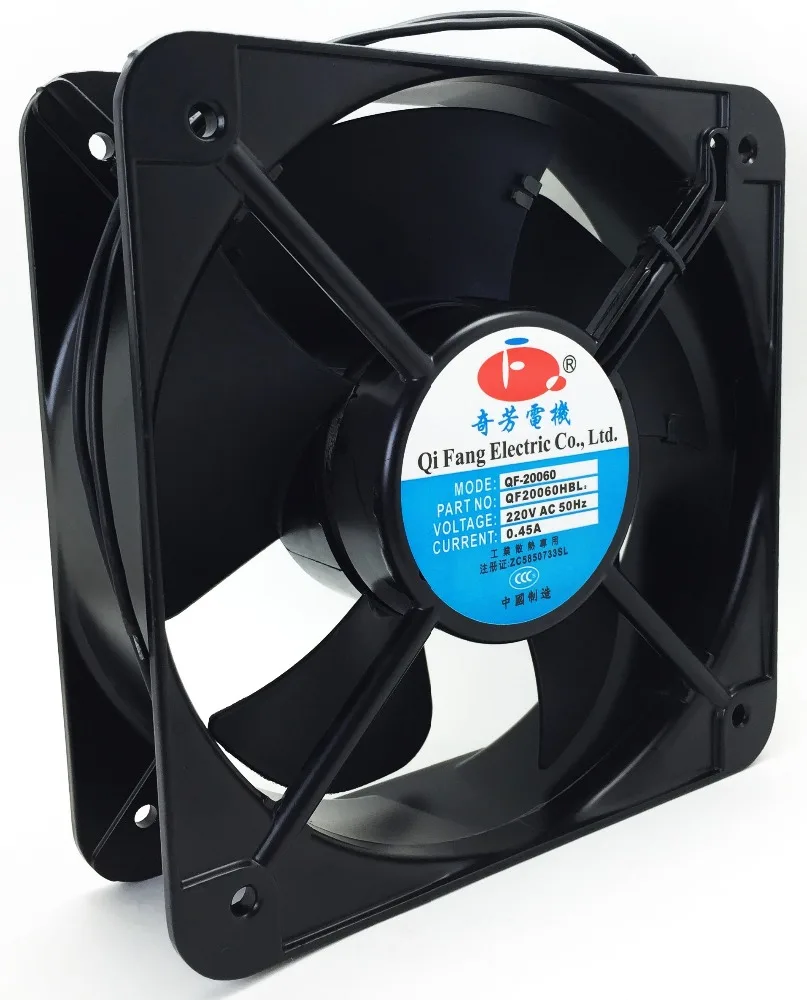

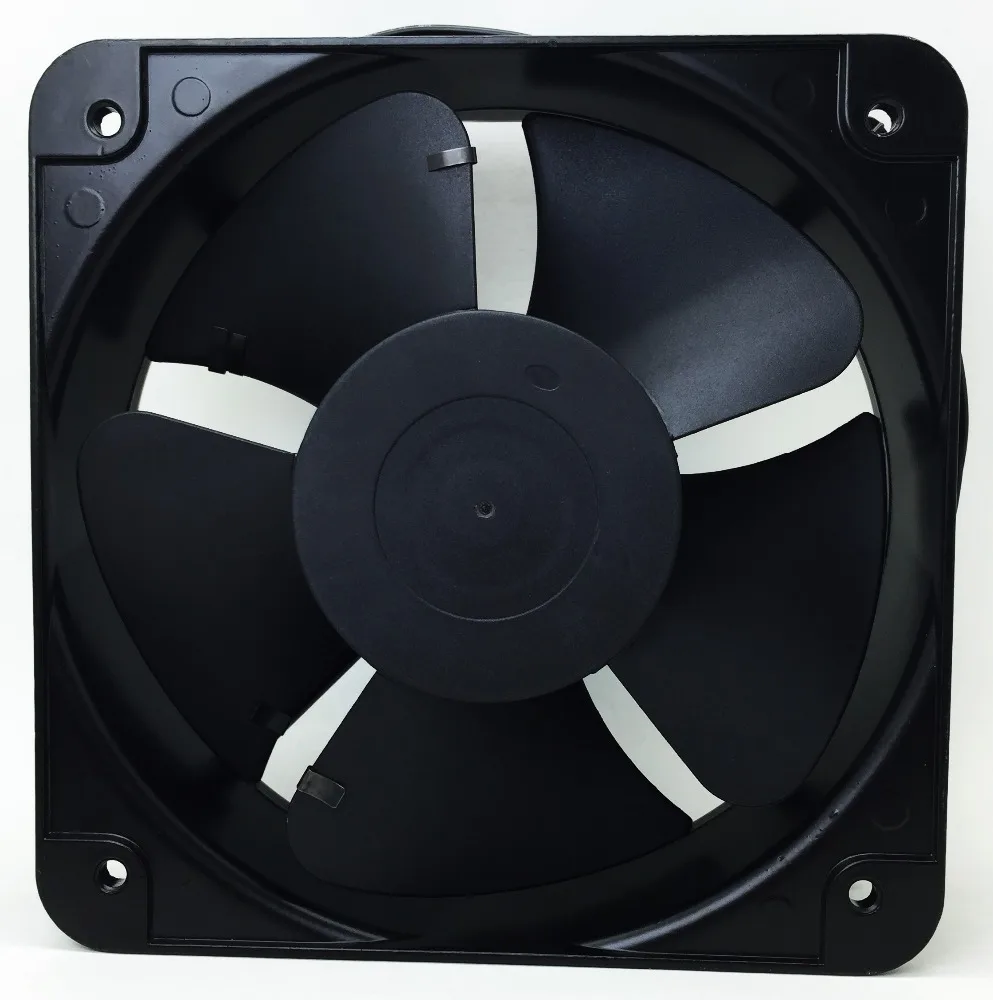

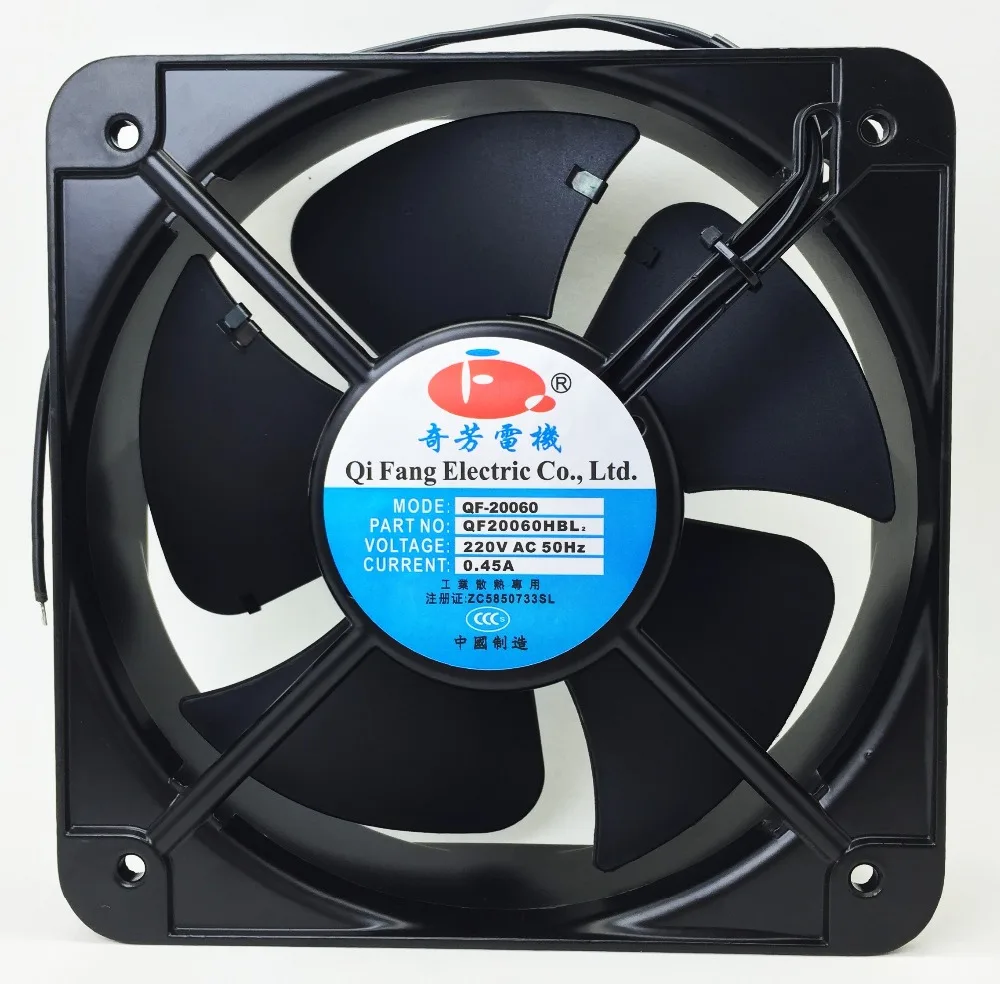

Высокотемпературный нейлоновый вытяжной вентилятор 200 мм для промышленного шкафа вентиляторы 230 В переменного тока

Сохранить в закладки 60560919701:


Цена:10,11 $ - 12,58 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


high temperature resistance  200mm industrial cabinet exhaust fan 230V ac fans



Product Description


200mm industrial exhaust fan 220V fans :   dear friend, it is so lucky of you to find us, we are a famous industrial cooling fan factory with 25 years production history.


200mm industrial exhaust fan 220V fans  AC industrial fan , we can offer you more than 2% or 3 % discount to other suppliers, for our production is from the beginning, also we are glad to do business with you with low profit but fast sale.






























































































1



Model Number



 QF17250HBL1



2



Frame size(mm)



200x200x60 mm



3



Bearing type



 Ball bearing



4



Rated voltage



110V,220V,380V, 240 V



5



Rated Current



 0.14 A



6



Rated speed



2300 RPM - 3150 RPM



7



Max. air flow



17-22 CFM



8



Max. air pressure



3.0-4.5 mmH20



9



Noise Level



 44 dB-A



10



Input power



 30.8 Watt



11



Safety approvals



 UL,RoHS,CCC,CE



12



Life Expectancy(Dual Ball Bearing)



 50000hrs min at 40 degree C/L10 relative humidity 65%±20%



13



Life Expectancy(Sleeve bearing)



 30000hrs min at 40 degree C/L10 relative humidity 65%±20%



14



Operation Temperature



 -20~80 degree C (relative humidity 35~85% RH)



15



Storage Temperature



 -10~70 degree C (relative humidity 20~85% RH)



16



Protection



 Thermally Protected (Auto Restart) / Impedance Protected



17



Function



 Water Proof for IP55/IP68/IP67

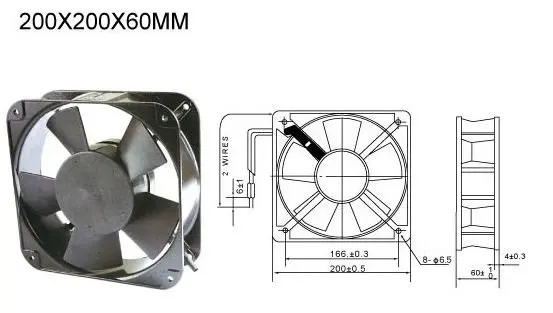

 Drawing of 200 mm axial  AC fans 220V with ROHS, CE certified industrial fans


200mm industrial cabinet exhaust fan 230V ac fans


200mm industrial cabinet exhaust fan 230V ac fans200mm industrial cabinet exhaust fan 230V ac fans200mm industrial cabinet exhaust fan 230V ac fans


 About the more detail information on 200mm AC fan, please contact us directly.





















































AC fan modelFreq.voltagebearingcurrentpowerspeedairflowpressurenoise
QF20060HBL150/60110B0.13-0.4547.3-382300-2500150-19011/1352/54
QF20060HBL250/60220B0.13-0.4547.3-382300-2500150-19011/1352/54
QF20060HBL350/60380B0.13-0.4547.3-382300-2500150-19011/1352/54







Packaging & Shipping


 200mm industrial cabinet exhaust fan 230V ac fans


as usual, the fan packing will be 10 piece into a carton, if customer has special demand, the fans packing can be with customer design.





Our Services


 Qifang Electric Co.,Ltd is a professional industrial fans manufacture with more than 25 production history, and our products cover:cooling fan,DC fan,AC fan,blower,Radiation fan,DC Brush fan etc


 if any inquiry in fans, you are welcome to contact us directly, factory direct sales& competitive price can save you cost by 2% or 3% than other suppliers.


industrial fan DC picture.jpg


 AC FANS











Company Information


 200mm industrial cabinet exhaust fan 230V ac fans200mm industrial cabinet exhaust fan 230V ac fans200mm industrial cabinet exhaust fan 230V ac fans200mm industrial cabinet exhaust fan 230V ac fans


 200mm industrial cabinet exhaust fan 230V ac fans








FAQ





why you can choose us as yours fan supplier:


1.Reliable quality as well as competitive price,great performance and long life expectancy


2.High speed and large air flow,low noise and low power consumption


3.Ball or sleeve bearing for options,lead wire or terminal for options


4.Automatic Restart and Reverse Polarity Protected,Water Proof for IP55/IP68/IP67 can be selective


5.Sample lead time:5-7 days,bulk production lead time:15-20 weeks


6. Professional service





Payment:


1.We can accept the Payment T/T and L/C.


2.The payment for the high value sample will be charged, and will be returned to you after confirming the mass production.


3.The payment for the low value sample is free, but the freight should be taken by you.


Shipment:


1.FOB Qingdo/Shanghai or Shenzhen for mass production.


2.DHL,UPS,FEDEX,TNT or any other international express for sample or small quantity.


3.Anyway,the more details can be discussed.


Shipping:


1.The sample will be shipped by express, like FEDEX, DHL, UPS and EMS. And the freight should be paid by clients.


2.The mass goods will be shipped by air for any emergency, the freight will deal with you for the concrete condition.


3.Usually, the products will be shipped by sea.


My dear friend, if any question on industrial fan, please contact us directly, here a rich experience team in R&D, Producing, sale, is glad to do their best to support yours business.


200mm industrial cabinet exhaust fan 230V ac fans


More information on high temperature resistance  nylon blade 200mm industrial cabinet exhaust fan 230V ac fans, you are welcome to contact us directly.
