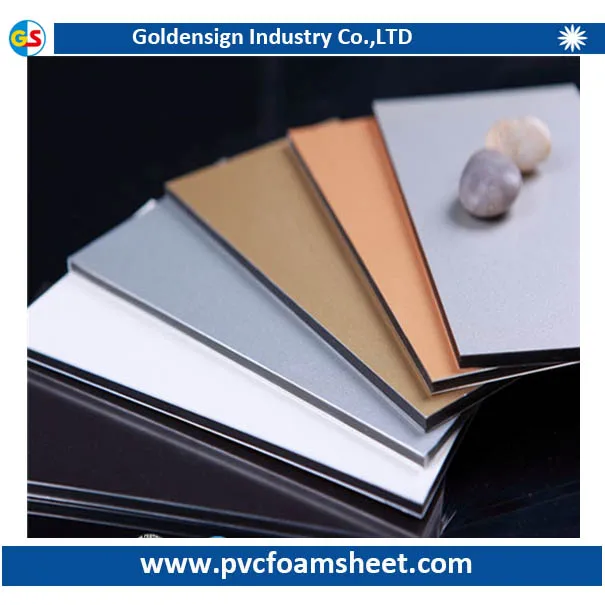

PE COATED aluminum composite panel price list aluminum composite  Introduction:

1)Material:

A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer

B) Core: nontox low density polyethylene

C) Back: aluminium alloy sheet coated with polyester resin painting

D) Surface coating thickness: 32μ±1μ

E) Aluminium alloy: 3003 H24

F) Sheet thickness: 0.3mm,0.4mm,0.5mm

2)Dimensions

A) Thickness: 3mm,4mm,6mm,8mm,10mm

B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max)

C) Length: 2440mm,3050mm,3200mm( max:6000mm)

D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness

E) Standard size:1220*2440mm

F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm

G) Non-stanard size are available according to requirement

3)Standard:

A) West Europe standard ( Germany DIN Standard);

B) The EAST Europe standard ( Russian standard );

C) The commonweathlth standard (U.K BS Standard );

D) The North America ASTM standard;

4)Features:

A) Light weight,flat surface and high strength

B) Excellent heat insulation ,sound insulation,fire-resistance,acid-resistance,alkali-resistance,weatherproofness and non-resonance

C) Various uniform colors

D) Rbright ,elegan and magnificent,fit for various designs

E) Kynar 500 PVDF resin feature strong chemical resistance,unique colors can be easily maintained

5)Applications:

  A) May be widly used in gallaies,exhibition,saloons,stores,offices,banks,hotels,restaurants and apartments

  B) An ideal decorative materials for buildings

  C) An ideal outer and inner walls

  D) Kitchen cabinees,billboards,signboards,tunnels,subway,interiors

  E) Cellings,eaves,galleries,balconies,partitions,interior decorations

  F) Telephone tooths,vehicle bodies,yachts,industrial usage etc.

PE COATED aluminum composite panel price list aluminum composite Specification:

6)SkyRainow® ACP compared with different products( Lightness / Rigidity ):

The composite structure of SkyRainbow® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes Sky Rainbow ® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes.
Comparison of thickness and weight of panels with equal rigidity

7)SkyRainow® ACP compared with solid aluminium: Required thickness and actual weights of panels with same rigidity

8)Skyrainbow ACP Tolerance(mm) :

9)Skyrainbow ACP Physical Properties for Panel:

10)Physical properties for aluminium and coating:

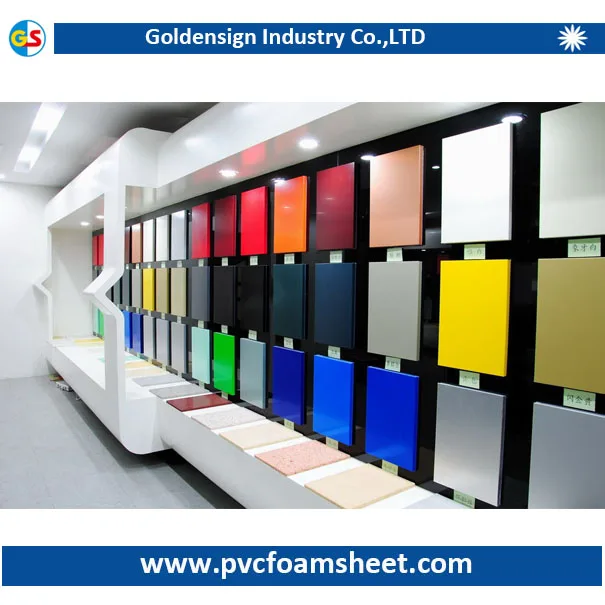

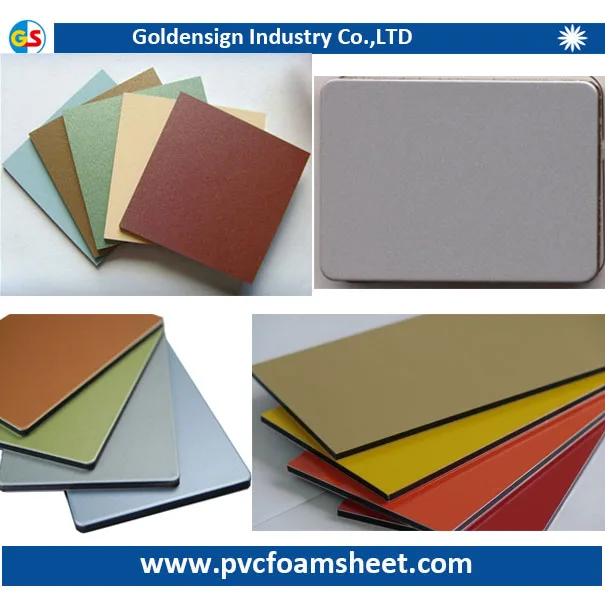

PE COATED aluminum composite panel price list aluminum composite Optional Colors:

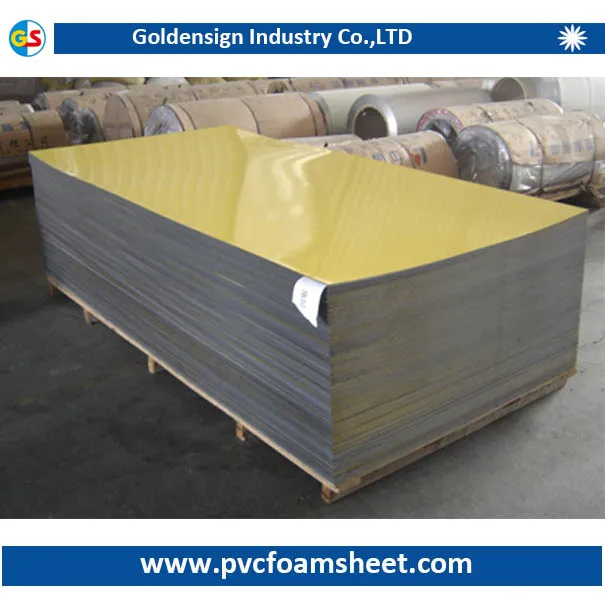

PE COATED aluminum composite panel price list aluminum composite Packing:

11) Packing:Put all the panles in one wooden box. Stocks: the packings are less 6 per one pile.Loading the container time, we will use timbers to reinforce.
