automatic positioning tracing edge ccd camera co2 laser cutting machine with CE ISO IAF certification







automatic positioning tracing edge ccd camera co2 laser cutting machine Applicable Materials:


Wood, organic glass, crystal, acrylic, plastic, cloth, paper, leather, rubber, ceramic, glass and other nonmetal materials.


automatic positioning tracing edge ccd camera co2 laser cutting machine Laser Features

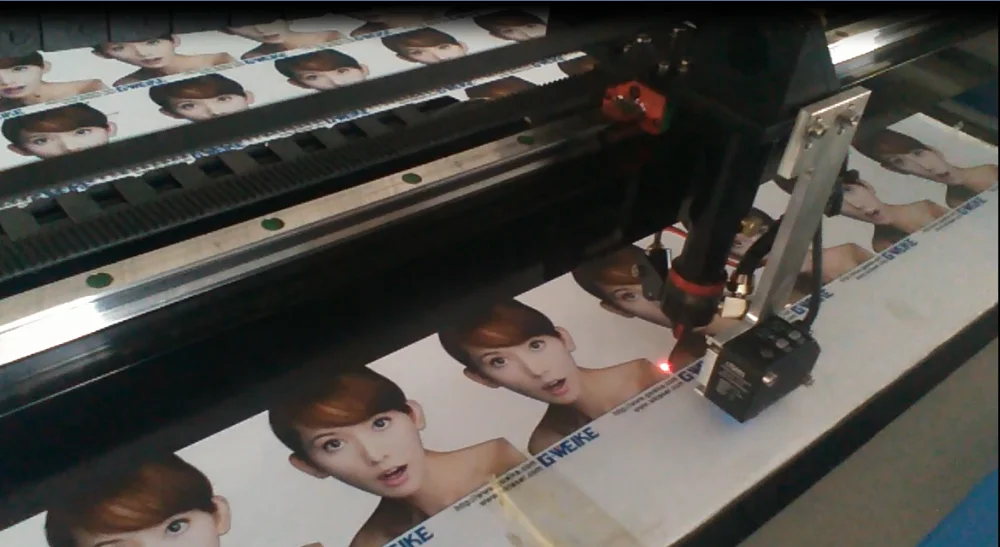

It has 500 megapixel high precision visual recognition function and is very suitable for auto-recognition cutting for  large format embroidery lable of craft slippers and featured parts of plush toys. It has various recognition modes, such as cutting with featured point position, cutting with figure picking of design and cutting with mark point position, which can ensure the whole label cutting fast and with high precise. It is the most advanced laser cutting machine in present market.


automatic positioning tracing edge ccd camera co2 laser cutting machine Technical Parameters

















































































ModelLC6090C CCD camera  laser cutting machine
Laser TypeSealed CO2 Laser Tube
Laser Power60/80/100/130/150w(optional)
Cutting Area900mm x 600mm
Whole Machine Size1360*1010*1070mm
Cutting Speed0-60,000mm/min
Resetting Position Accuracy±0.05mm
Working VoltageAC 110-220V±10%, 50-60Hz
Gross Power <1,000w
Operating Temperature0-45℃
Operating Humidity5-95%
Minimum Shaping CharacterEnglish 1x1mm
Graphic Format SupportedDXF,PLT,AI,DST,DXP,BMP
Driving MotorStepper
Cooling ModeWater-cooling and Protection System
Auxiliary EquipmentsExhaust-fans, air-exhaust pipe
Controlling SoftwareDSP Control System
Compatible SoftwareCorelDraw Photoshop AutoCAD
Net Weight200kg





.jpg

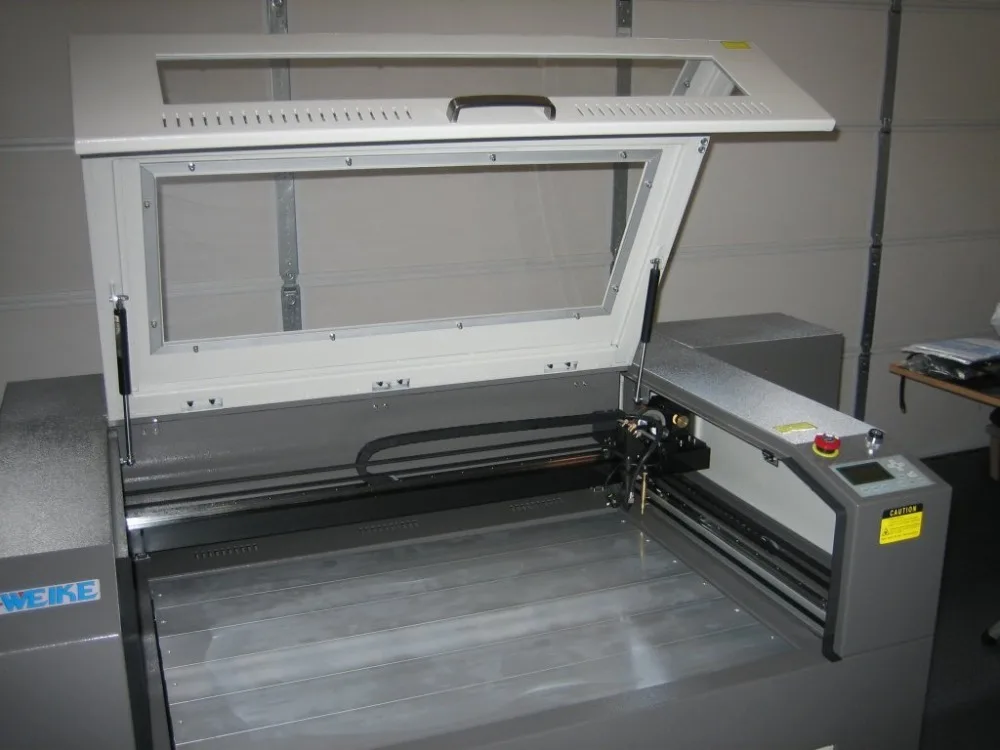

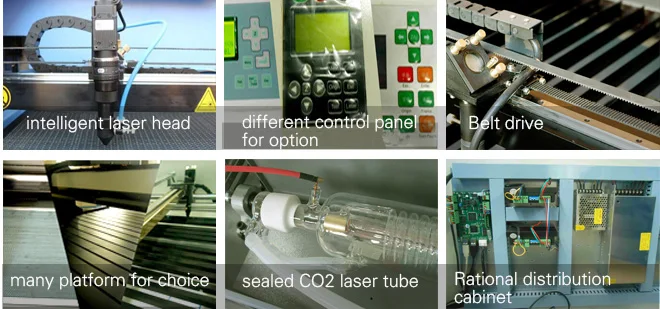

ccd camera co2 laser cutting machine main configuration










ccd camera co2 laser cutting machine Control Panel










 ccd camera co2 laser cutting machine Samples











company introduction.png


Jinan G.Weike Science & Technology Co., Ltd was established in July 2004 in Jinan, the provincial capital of Shandong Province in China. It is one of the biggest laser equipment manufacturers in Northern China. The main products of our company are fiber laser cutting machine, metal & nonmetal laser cutting machine, CO2 laser cutting machine, laser engraver machine, CNC router etc. Our machines can be used to cut or engrave all kinds of materials such as carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, wood, acrylic, bamboo, jade, crystal, plastic, cloth, paper, leather, rubber, ceramic, glass and other metal or nonmetal materials.


Now the company owns about 200 employees, most of them having bachelor’s degree to guarantee our high quality and professional service. Each year, we sell more than 3000 sets of machine to USA, Canada, Australia, Europe, Southeast Asia, Africa and other 90 countries and areas. We also supply OEM service for more than 10 foreign manufactures.





 CE FDA .jpg


After 13 years development, we have passed ISO90001 international quality system certification, European Union CE certification and American certification.










one of the biggest laser cutting & engraving mahchine manufacturers in China







 High quality and professional service








  Package and Delivery



1. Our Wooden Case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.




 Many kinds of transportation and payment terms for your choose







Each year, we attend all kinds of trade shows at home and abroad. You can consult us in advance and inspect our machine at the trade shows in person.
