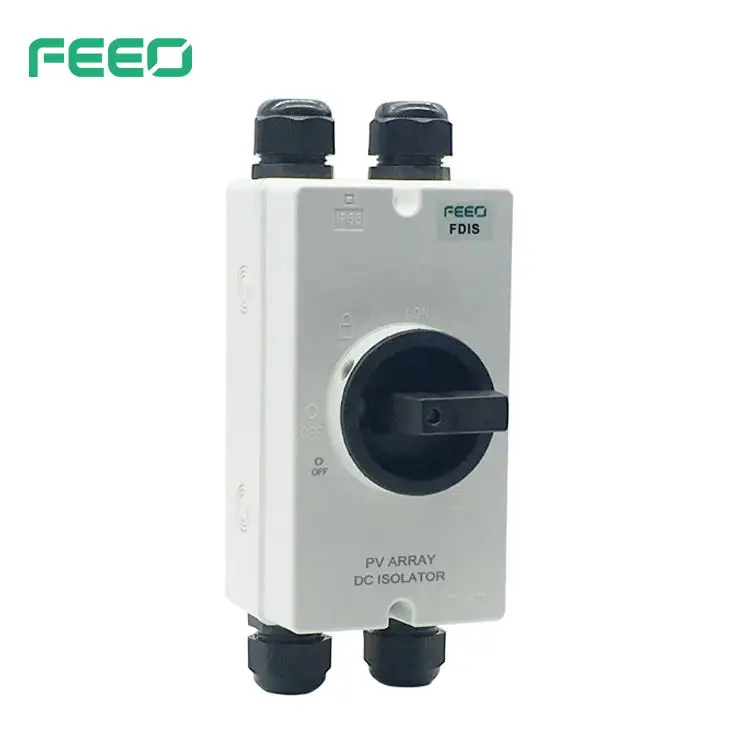

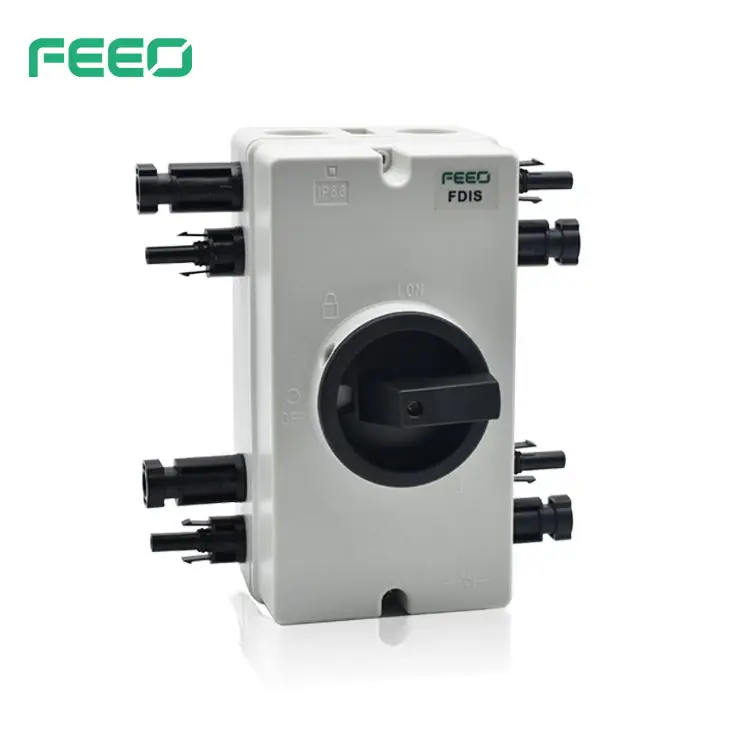

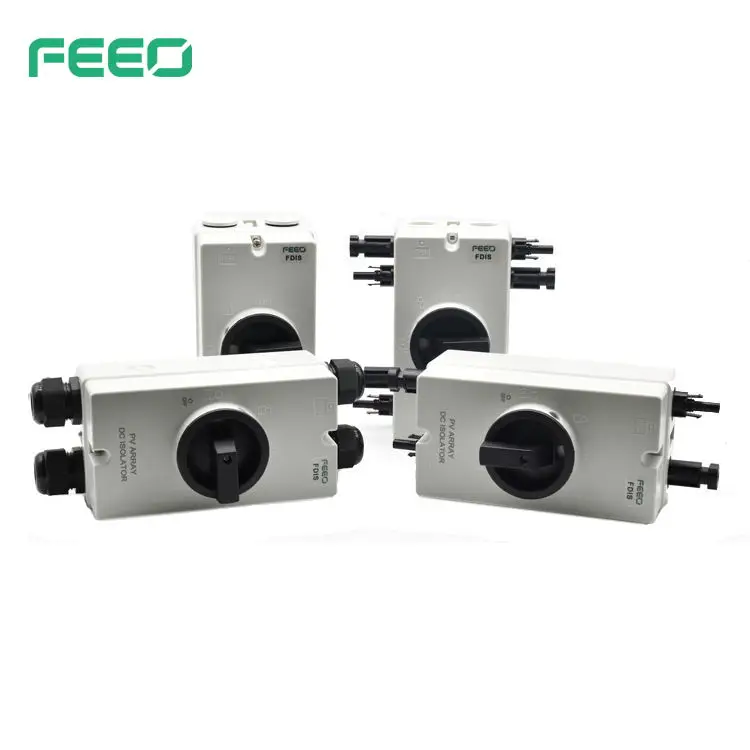

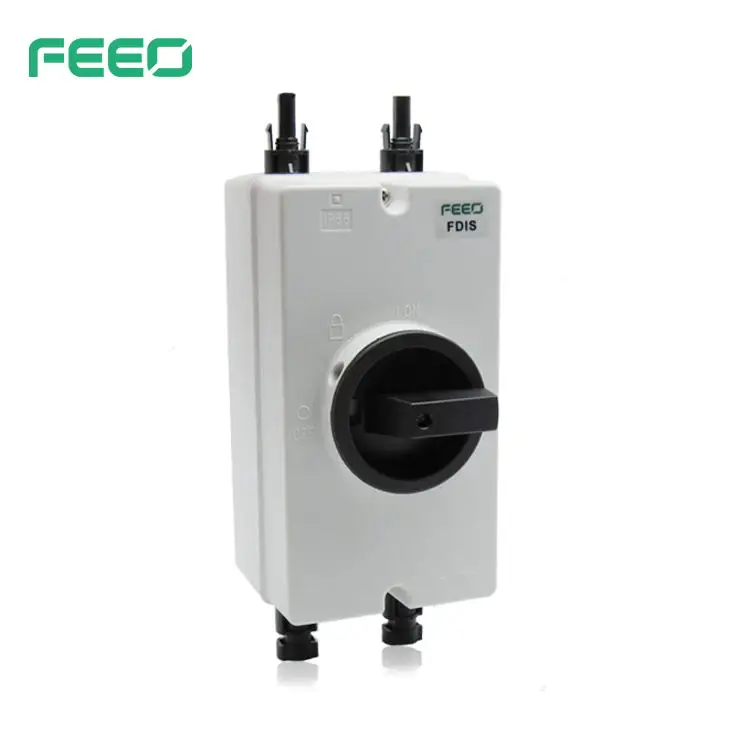

energy saving dc isolator ip66 main switch

main switch Features:

1.Compact and suitable were space is limited
2.DIN rail mounting for easy installation
3.Load-breaking up to 8 times rated current making it ideal for motor isolation
4.Double-break with silver rivets-superior performance, reliability and long lasting
5.Highly visible red/yellow handle
6.Large padlockable red/yellow or grey/black handles
7.Comprehensive range, 16 to 32A models
8.High IP 66 rating
9.Easy to install and operate
10.10 years warranty

main switch Parameters:

Technical parameters			Model	FDIS-32
Rated insulation voltage	Ui		V	1500
Rated heating current	Ithe		A	32
Rated impulse withstand voltage	Uimp		V	8000
Rated short-time withstand current(1s)	Icw	2,4	A	1000
Rated short-time withstand current(1s)	Icw			2H	A	1700
Rated short-circuit making capacity	Icm	2,4	A	1000
Rated short-circuit making capacity	Icm			2H	A	1700
Rated short-circuit current	Icc		A	5000
Maximum fuse specifications	gL(gG)		A	80
Mechanical life				10000
DC poles				2 or 4
Operating temperature			℃	-25 to +70
Storage temperature			℃	-40 to +70
Class of pollution				2
IP level				IP66

Detailed Images

Large silver contacts

Switch contact silver, silver layer is thicker, low temperature rise, good arc extinguishing effect, a long service life. Not because the silver layer depletion leads to ignition switch.

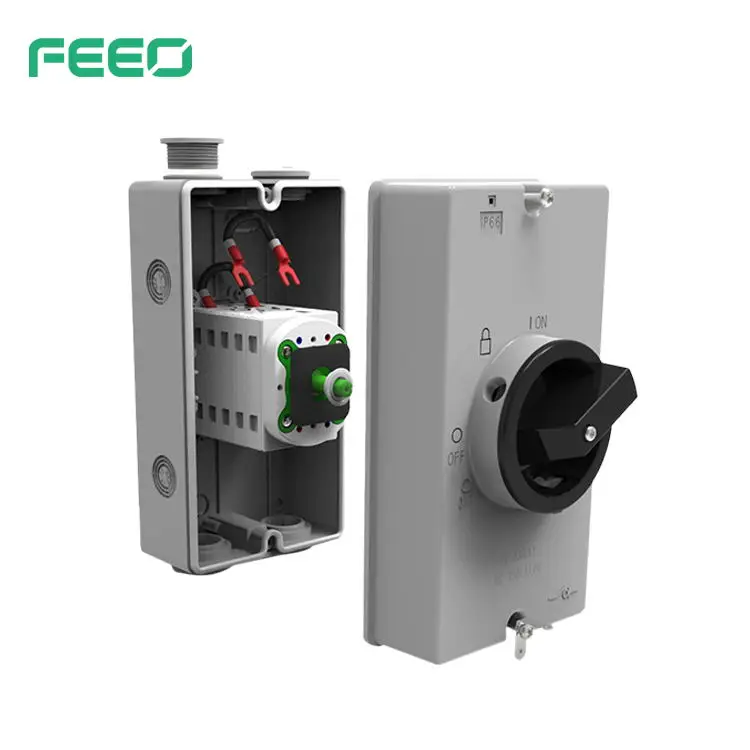

Wire jumper

Safety lock

“FEEO”DC ISOLATOR designed a safety lock.Rotate the extra 30 degrees to lock the switch.

Waterproof seal

Waterproof grade: IP66

Packaging & Shipping

main switch Package:

Standard export carton packing:
DC ISOLATOR with solar connector 10pcs/ctn
DC ISOLATOR without solar connector 20pcs/ctn
Carton Size 52*40*25CM3

main switch Delivery Time:

3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.

main switch Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

TUV Certificate

YUEQING FEEO ELECTRIC CO.,LTD.

is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR.
