8 м 12 15 мобильная телекоммуникационная башня Военная электрическая телескопическая мачтовая
- Категория: >>>
- Поставщик: Tianjin Talents International Trade Co. Ltd.
Сохранить в закладки 60569680586:
Описание и отзывы
Характеристики
About us
Product Description

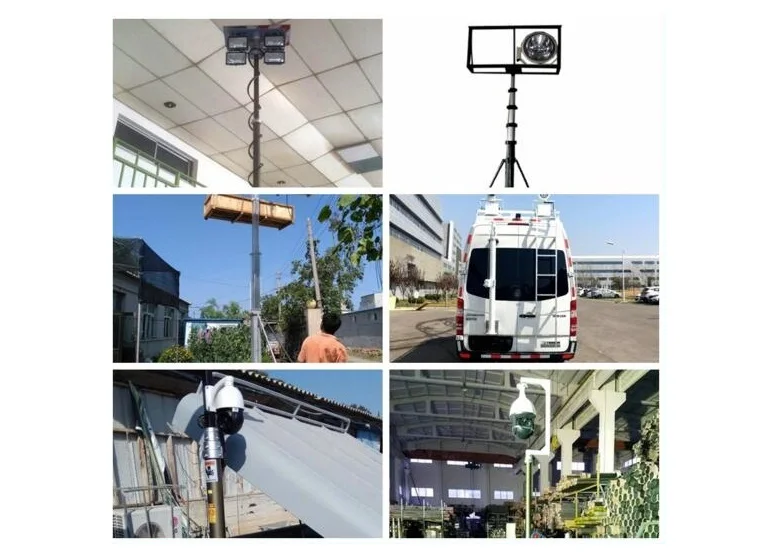

1. We develop and manufacture telescopic masts,
material is aluminum alloy or steel,for nearly unlimited applications,
material is aluminum alloy or steel,for nearly unlimited applications,
it's used in radio facilities,for monitoring and illumination systems in public works and
military installations, for radio amateurs, in metrology, emergency lighting, antenna
and mobile communication fields.
In addition, we are able to offer special solutions for non-standard applications.
2.Especially our motorized mast has same advantages as manual telescopic mast, it can be operated electrically
or manually, and it can be self-locking at any position.
2.Especially our motorized mast has same advantages as manual telescopic mast, it can be operated electrically
or manually, and it can be self-locking at any position.
technical data | ||||||
main spec. | Closed length:2m (Bottom base included) Extended length: 8m (Bottom base included) Max. payload: 30kg Temperature: working temp:-45--+65 deg C Storage Temp:-60--+70 deg C | |||||
main pole in sections | 42-55-69-83-98-114-132mm | |||||
Bottom base | length*width:500*200mm Thickness: 12mm | |||||

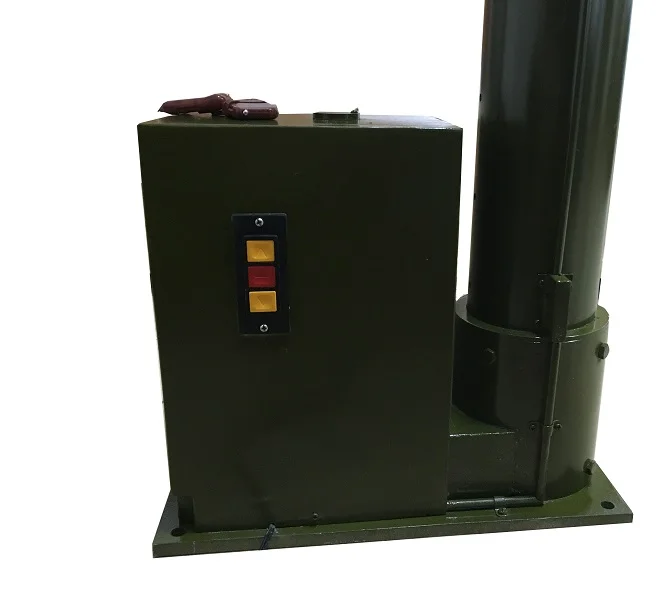

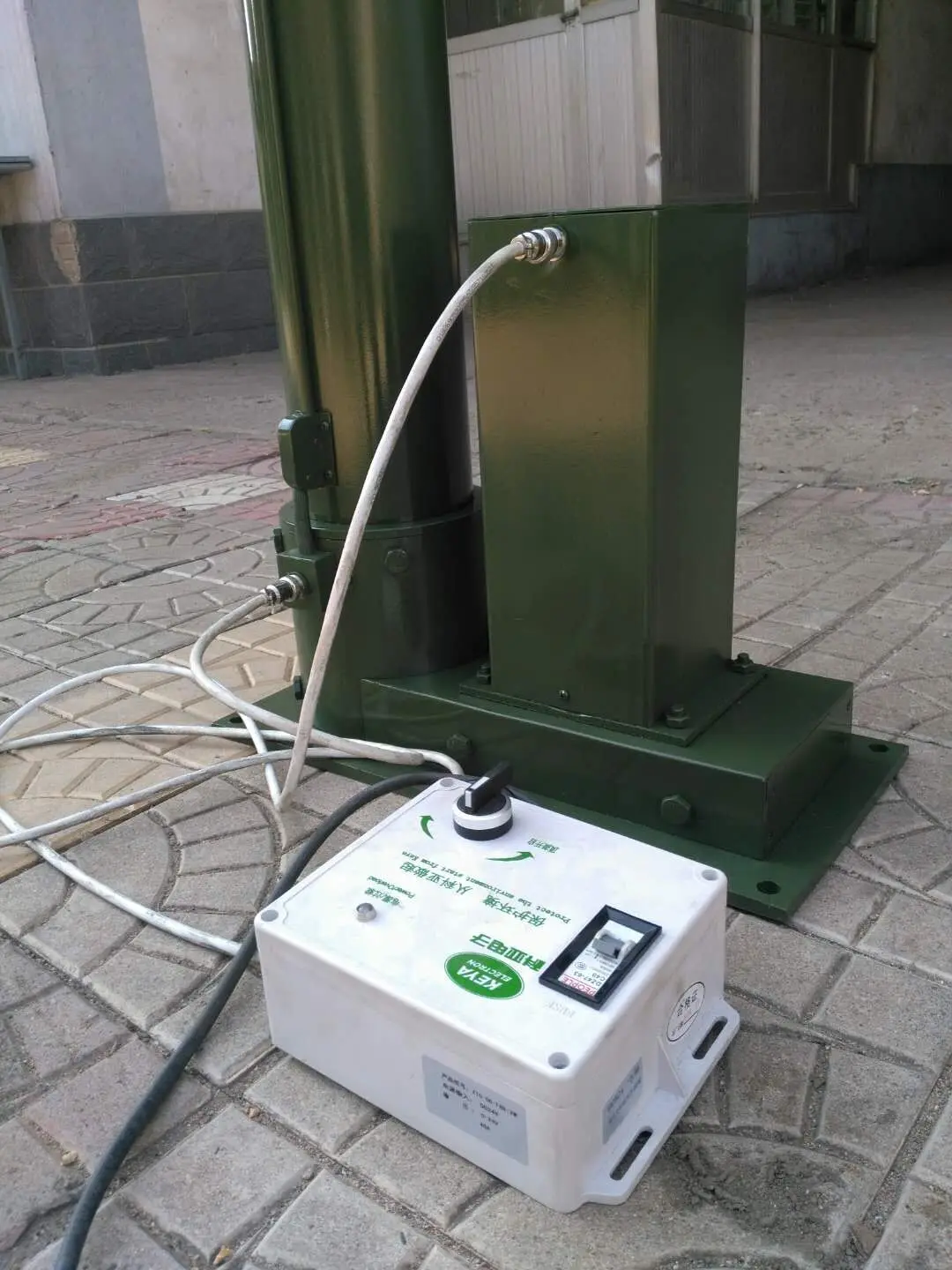

Accessories | Motor: (AC220v 550w)---------------------------------1 piece Handle lifting bar----------------------------------------1 piece Electrical equipment control box---------------------1 unit Remote-controller----------------------------------------2 pieces | |||||
Material | Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm) | |||||
Color | the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: powder coating | |||||

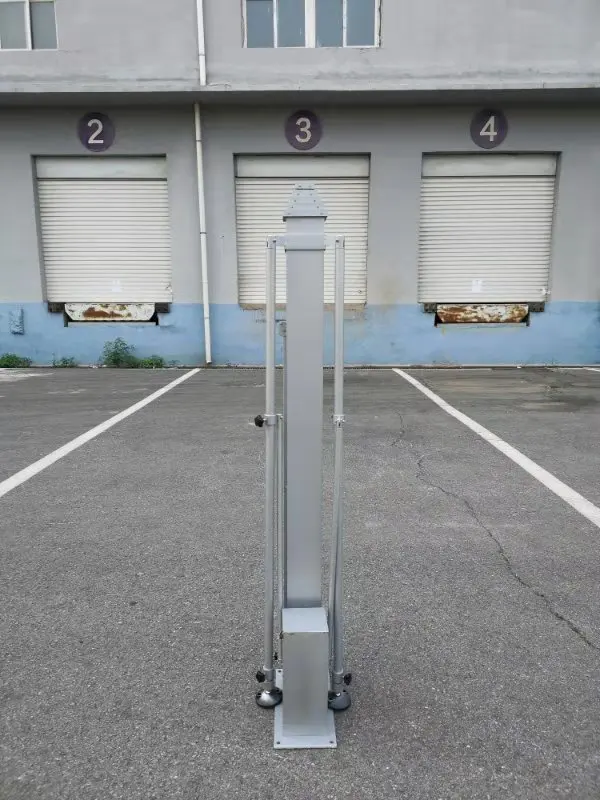

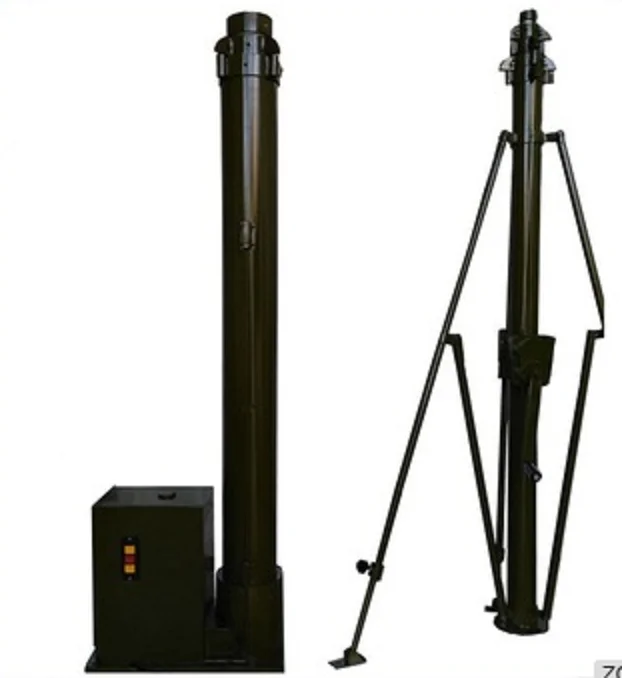

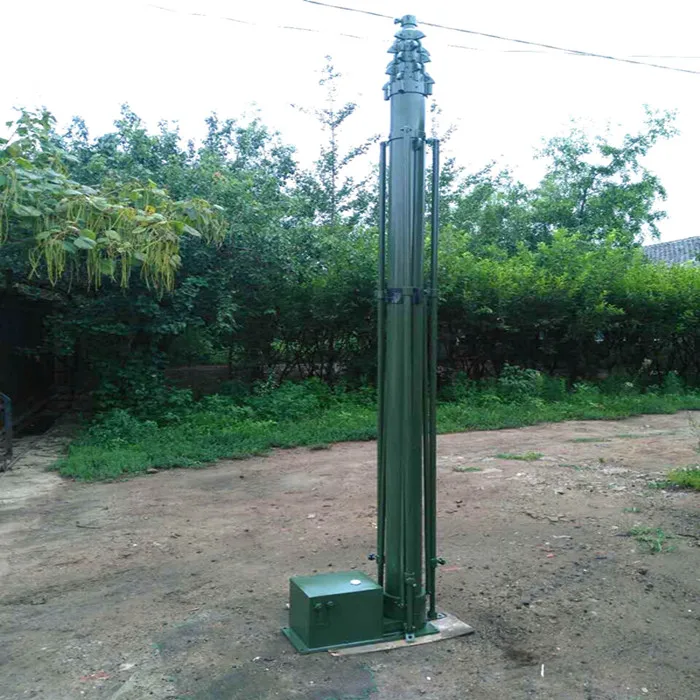

Product picture
Packing & Delivery
package | ||||||
plywood packed | one set mast with accessories wrapped by polyester tapes, then packed into a plywood case | |||||
After-sale service

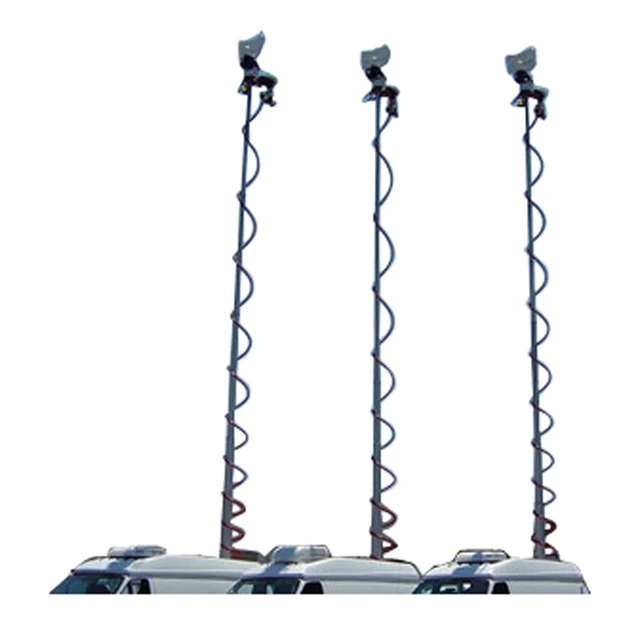

Mast with guy wires fixed for ground use Mast with guy wires fixed for vehicle use
A. 1 year warrantyB. Installation Instructions:
1.if mount on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if motorized mast hitting one ground anchor per 120 degrees.
3.Mount lifting handle bar or remote-controller to raise up motorized mast
1.if mount on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if motorized mast hitting one ground anchor per 120 degrees.
3.Mount lifting handle bar or remote-controller to raise up motorized mast
C. Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
it's better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
3.Regularly check the connection parts in normal condition.
Catalog
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade motorized mast as follows
Extended height (m) | No. of section | Retracted height (m) | Outer tube range (mm) | Top payload (kg) |
4 | 3 | 1.6 | 60-80 | 30 |
5 | 4 | 1.65 | 50-80 | 30 |
5 | 4 | .85 | 118-200 | 600 |
6 | 5 | 1.7 | 50-90 | 30 |
8 | 6 | 2 | 42-114 | 30 |
8 | 5 | 2.3 | 50-130 | 100 |
10 | 6 | 2.4 | 69-160 | 100 |
12 | 7 | 2.3 | 42-132 | 30 |
15 | 7 | 3.1 | 42-132 | 30 |
15 | 7 | 3.1 | 55-160 | 75 |
18 | 8 | 3 | 55-200 | 50 |
20 | 7 | 3.6 | 55-160 | 50 |
23 | 8 | 3.5 | 55-230 | 50 |
25 | 8 | 4 | 98-250 | 150 |
30 | 10 | 4.1 | 42-200 | 170 |
FAQ
Q1: How long is warranty?
A1: 1 year
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
Contact info
About"Talents"
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube
and carbon fiber tube.
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we have built up
Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer.
We think outside the box and are continually developing new products to meet customer requirements,
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we have built up
Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer.
We think outside the box and are continually developing new products to meet customer requirements,
what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
Похожие товары
Военный Мачтовый полюс с вращением на 360 градусов, 9 м
850,00 $ - 980,00 $
7070 Jantes бронза универсальная Swift японская ГЛУБОКАЯ ТАРЕЛКА Алюминий 15x7 4 отверстия PCD 5x10 0/114.3 15 16 17 18 дюймов диски литые диски
28,00 $ - 45,00 $

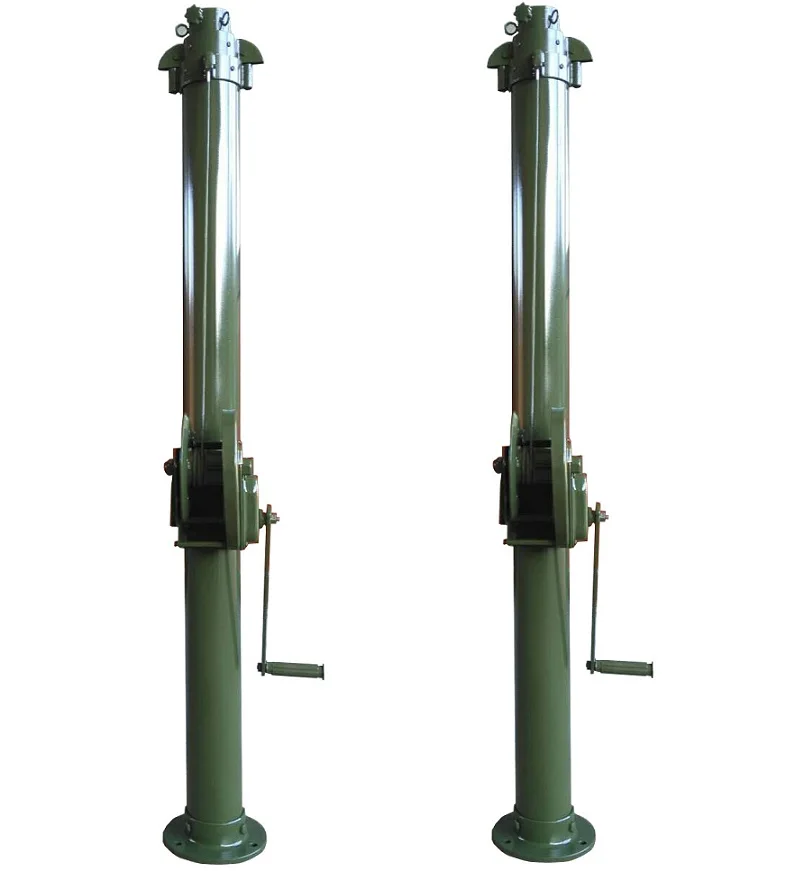

200 кг нагрузка на головку 10 футов Военная ручная лебедка алюминиевая телескопическая мачта
780,00 $ - 900,00 $
6 м портативная пневматическая телескопическая мачта для освещения/мониторинга
Электрическая моторизованная и механическая телескопическая мачтовая опора 4-18 метров для антенны и камеры
40-футовый алюминиевый военный портативный антенный Мачтовый штатив

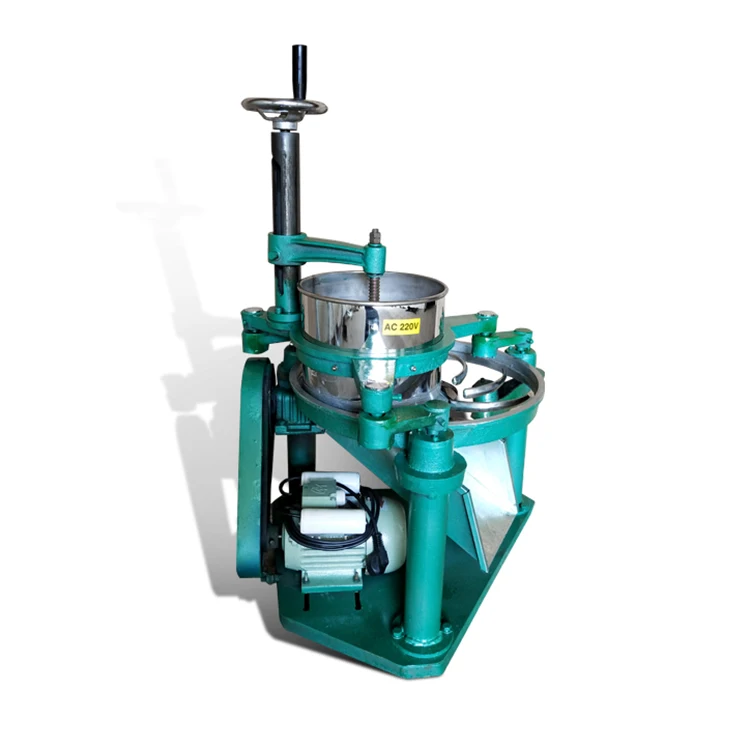

Китайская скручивающаяся машина для скручивания чайных листьев, долговечная, по низкой цене
