TJ 1530 одной оси и двойного лезвия токарный станок с ЧПУ для лестницы/стул ноги/стол

Сохранить в закладки 60570154444:


Цена:4 000,00 $ - 7 500,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

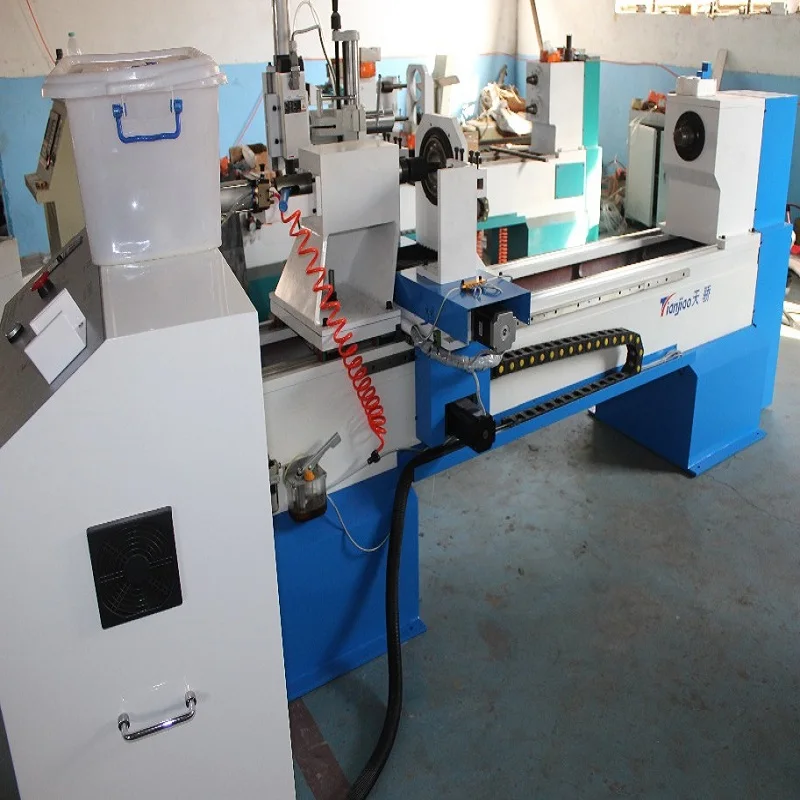

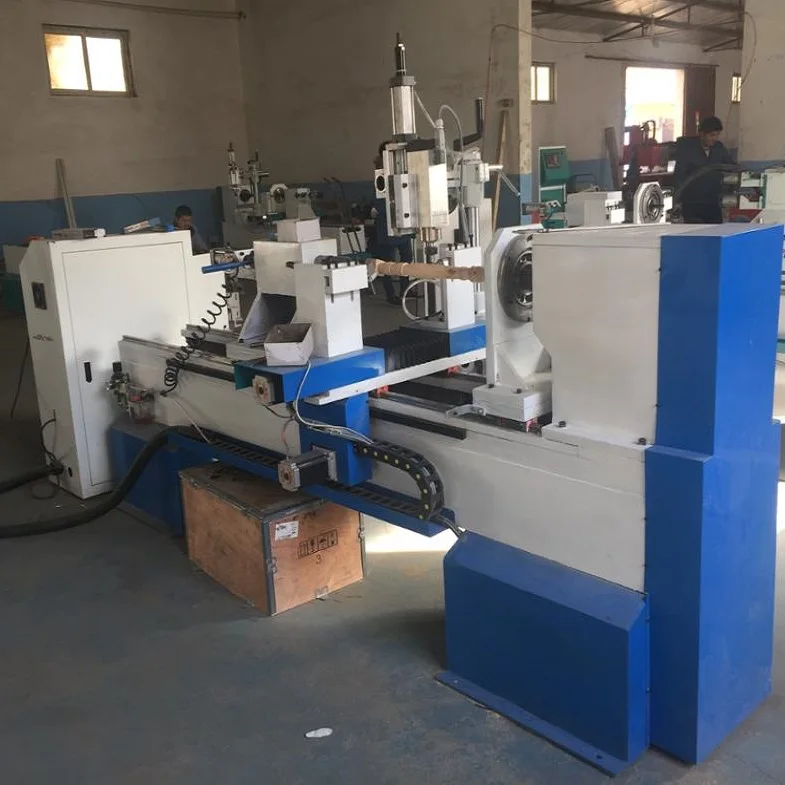

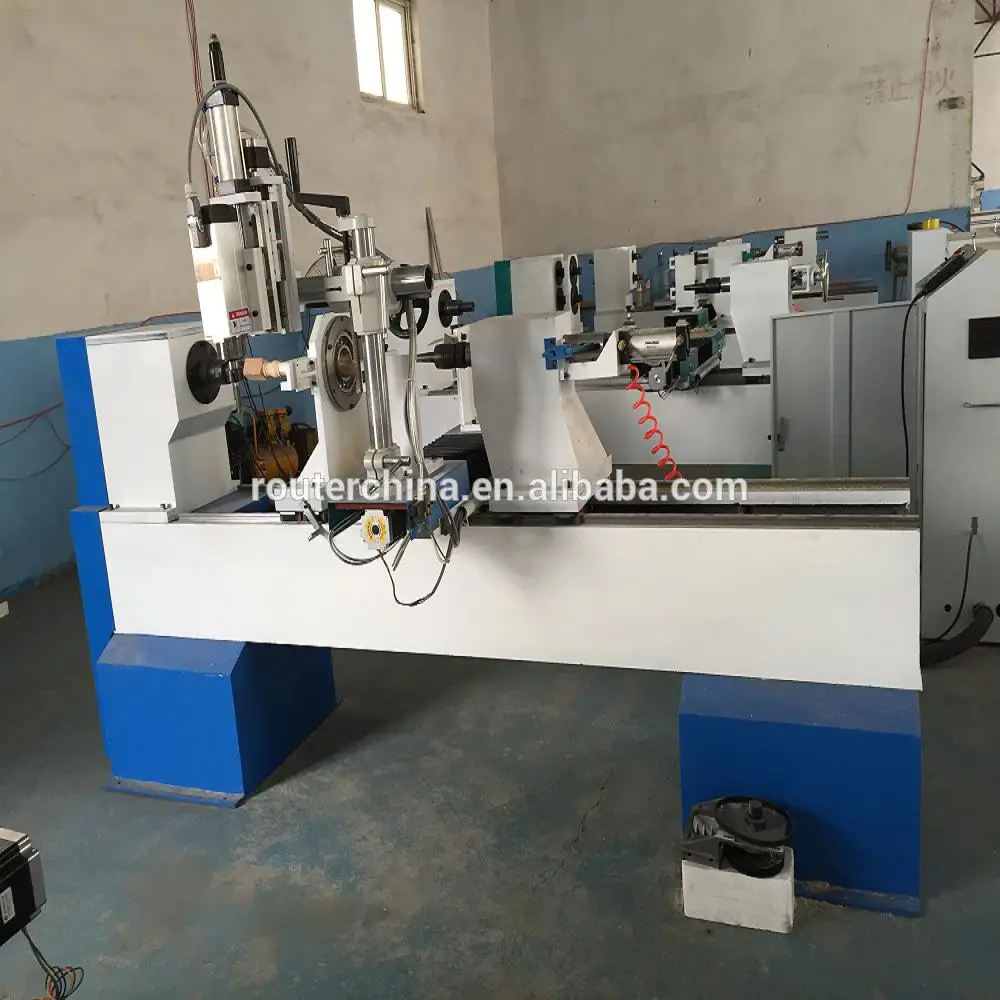

TJ-1530 single axis and double blade CNC Lathe machine for stair/chair legs/table legs








Product Description







1.Detailed Features:


1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.


2. Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.   wood cnc turning lathe


3.Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.


4. Adopt Germany ball screw and Taiwan PMI helical square  guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack.


5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.


6. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet pane.


7. One time tool setting to finish the whole work piece.


2.Technical Parameters:


















































Model



TJ1530/TJ2030/TJ2530



Max turning length



100-300mm or option



Max turning diameter



300mm/300mm/160mm



Number of axis



2 axises 1 blade/1 axis 1 blade/1 axis 2 blade or option



Maximum feed rate



200cm/min



Minimum setting unit



0.01cm



Spindle motor power



4kw



Air pressure



0.6-0.8Mpa



Power supply



AC380v/50hZ or 220v/50hz or option



Overall dimensions



300*110*170cm



Weight



1600kgs



3.Suitable Materials and Industrial Applications:





 Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.


Wood lathe machine is used for wood cutting. it can realize arbitrary rotor turning processing with coordination between the longitudinal axis and horizontal axis, then can realize milling, engraving, guarantee the processing product rotational stability, high cutting efficiency. Suitable for stair column, curved round, vase, table and chair legs, European furniture Roman column, wooden hangers, washbasin, etc.; cylindrical, conical, curved, spherical and other complex shapes of revolving wood products or wooden semi-finished products


Used for Wood of any species, composite materials (particleboard, fiberboard, MDF, plywood, etc.), “Alucobond”, “Dibond”, any polystyrenes (including PVC and polystyrenes with polycarbonate), getinaks, artificial stone, acrylic glass and plexiglass, model plastic


1.Horizontal flat bed structure;
2.The spindle drive is variable frequency stepless speed regulation;
3.The X/Z axis adopts stepping drive;
4.The bed rail is a high-precision linear guide;
5.Precision ball screw, automatic forced lubrication;
6.Double-station tool holder, rough car, fine car completed in one time;
7.The control system adopts mature CNC controller, 12-inch color screen, international standard 8.CNC language G code, supports a variety of software, and supports technical function expansion.


4.Main Parts:

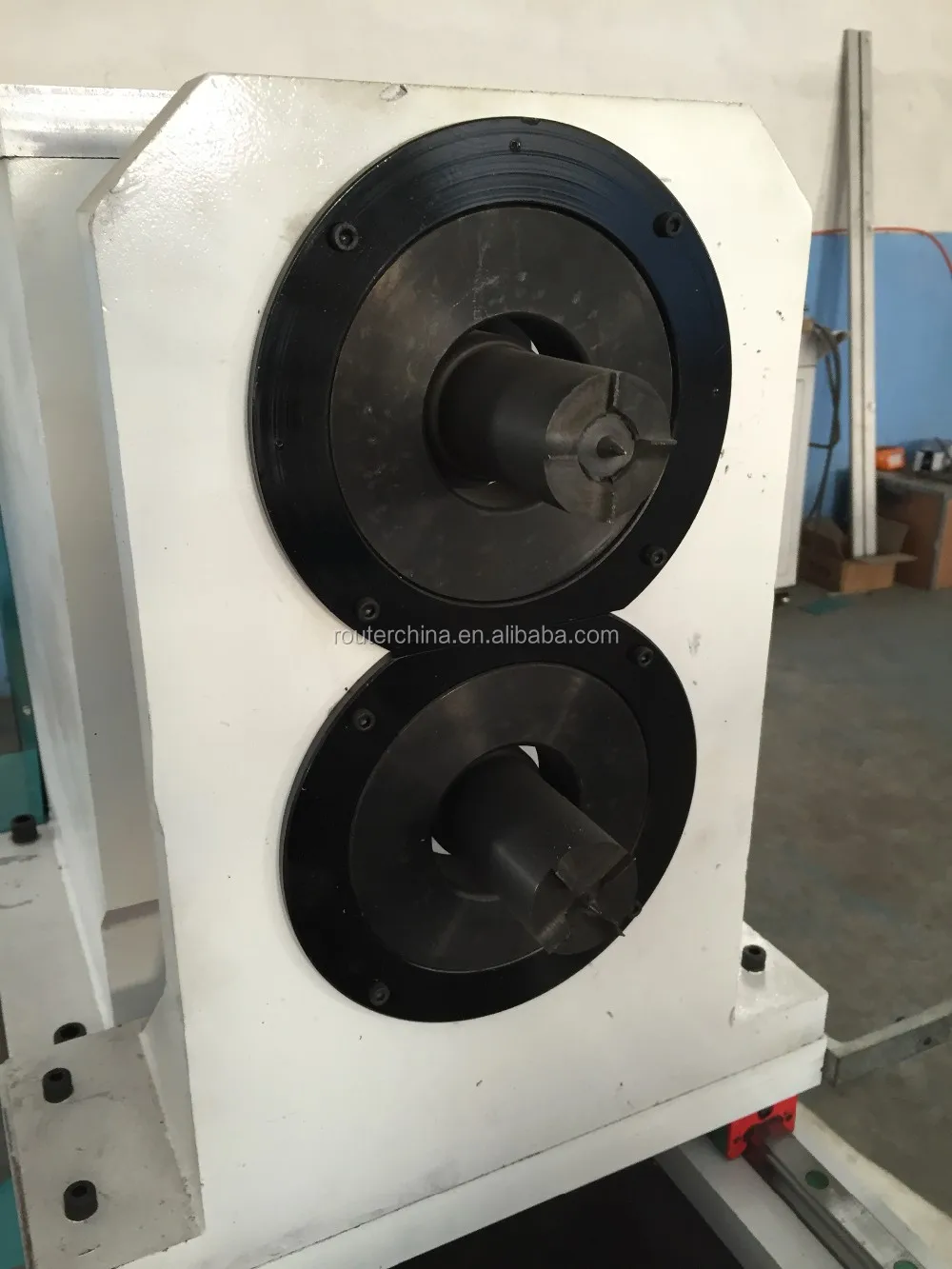

the distance between the centers 1500mm two axis one spindle cnc wood lathe hot sale tj1516 for russia


5.Optional Parts:


1. More rotary axis


2. Spindle


3. Different power requirement


4. Upgrade controller


5. Servo motor


6. Bigger working diameter and length, etc.

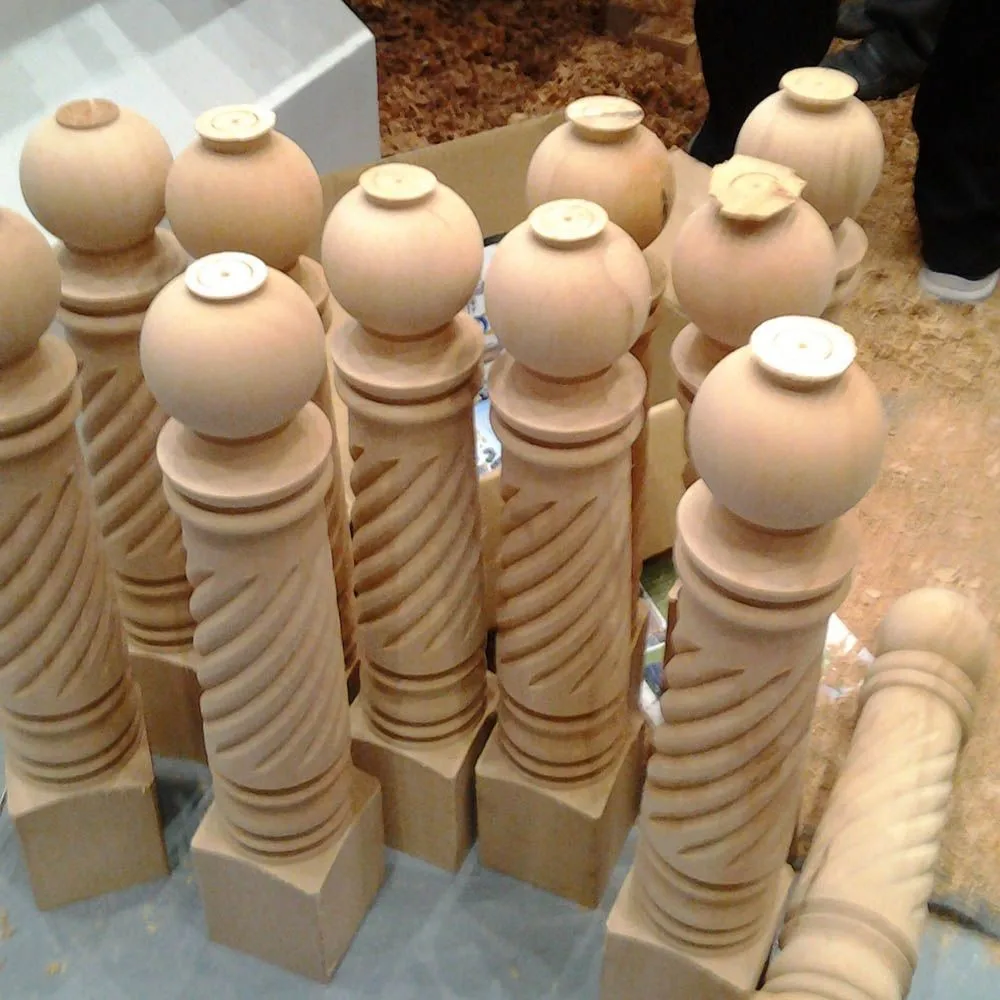

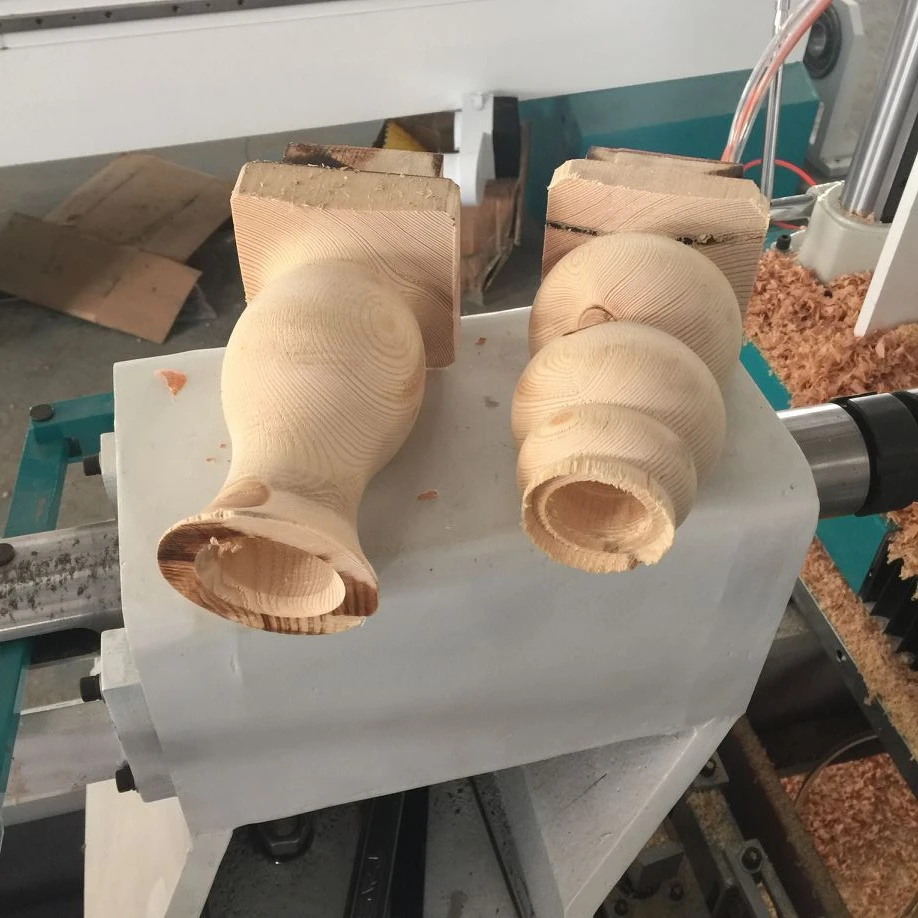

Samples


 1587353059





FAQ


Q1: How to choose a suitable machine?


       You can tell us the working piece material, size, and the request of machine function. We can


       recommend the most suitable machine according to our experience.


Q2: This is the first time I buy the machine, is it easy to operate?


       We can provide the operation manual or video for guiding. If it is hard for you learning, we can


       also help you by “Team vieweronline, with telephone or Skype explain.


Q3: Can you customize the machine for me?


       Yes, we provide customized solution, but considering the cost, we will recommend the


       standard configuration to you first.


Q4: What is the guarantee? In case the machine break down?


       The machine has 1 year guarantee, fail parts will be replaced for free if the machine under


       “ normal operation”.


Q5: How about the documents after shipment?


       We will send all the documents by air after shipment. Including packing list, commercial


       invoice, B/L, and other certificates required by clients.


Q6: Delivery time?


       For standard machine, it would be 7-10 working days; for non-standard machine, it would be


       20 - 30 working days.


Q7: How is the payment?


       Normally we accept T/T or L/C, if you like other terms, tell us in advance.


Q8: Do you arrange the shipment for me?


       For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange


       the shipment by yourself.


Q9: How is the packing?


       Step1: water proof wrapping film with foam protection in each corner.


       Step2: Solid seaworthy wood box package with steel belt.


       Step3: Save space as much as possible for container loading.





Packaging & Shipping


photobank (2)




Inside Packing



  • Use professional Stretch Film to cover the whole lathe

  • Stretch film package with foam protection in each corner.


Outside Packing



  • Sandard export wooden cases and pylwood cases

  • Save space as much as possible for container loading.


Transport



  • We support shipping, air, land and express

  • You can choose the most suitable way of transport


If you have any special request for packing, we can do it.





Our Services




Before sale



  • Patient introduce and professional suggest buying selection

  • Real time report production situation

  • Take pictures and make videoes with your done machine

  • Strict test and debugg machine quality before shipping


After sale



  • 24 hours on line service and phone on

  • 2 years gurantee term

  • During gurantee term, repair or change damaged parts for free

  • Exceed gurantee term, offer at cost price





Company Information





T___06


  Why choose Tianjiao product?


1.Tianjiao  product is widely used in almost all the materials which you can think of.
2.Tianjiao Company is specialized in cnc router and cnc lathe machine manufacturing and selling.


   There is no middle man and no agent, so the price is moderate.
3.Tianjiao machine with high precision and high reputation is the most reliable goods you can choose
4.Tianjiao Company has all kinds machines in store, the delivery time is much shorter than other


   companies.
5.Tianjiao Company has international tech service office and provides 24 hours online service and tech


   support  for customers.





Our customers
