Высокомощное защитное стекло с лазером CO2 ZnSe AR покрытием
- Категория: >>>
- Поставщик: Wuhan Especial Optic Inc.
Сохранить в закладки 60572307587:
Описание и отзывы
Характеристики
Product Description

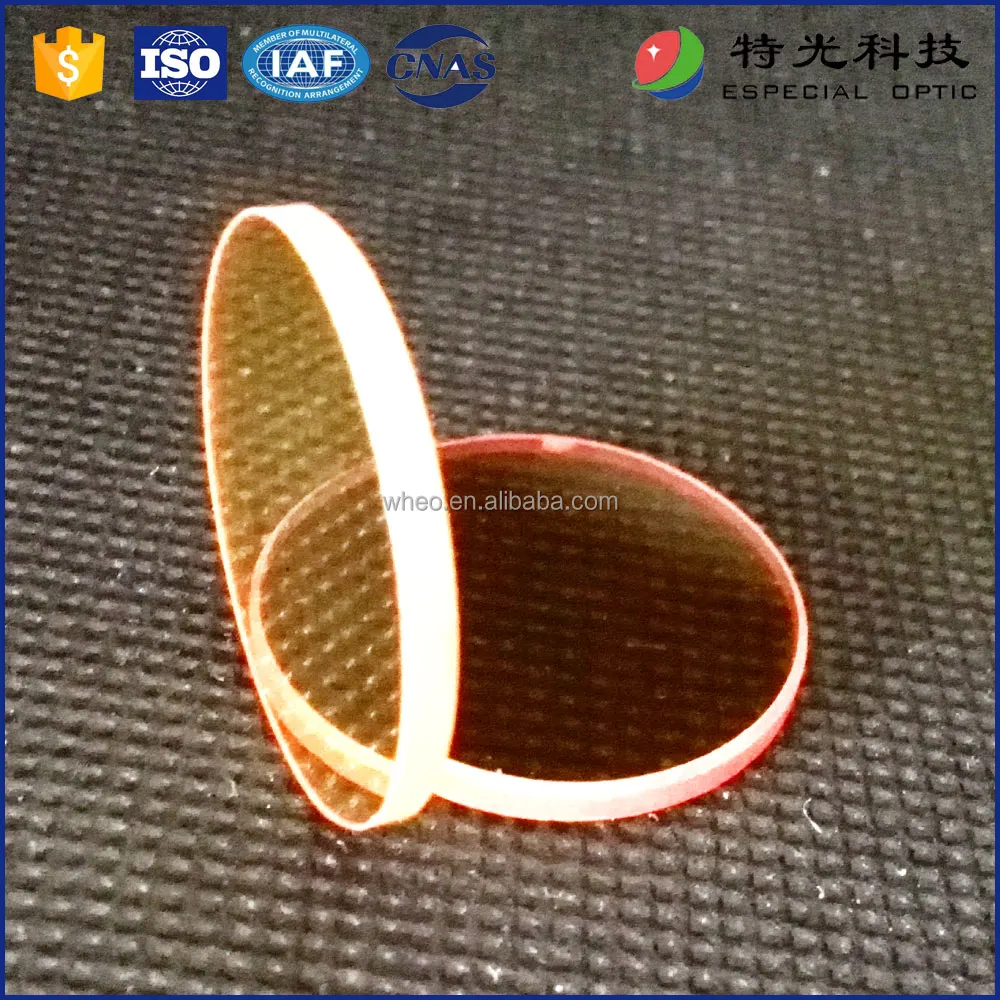

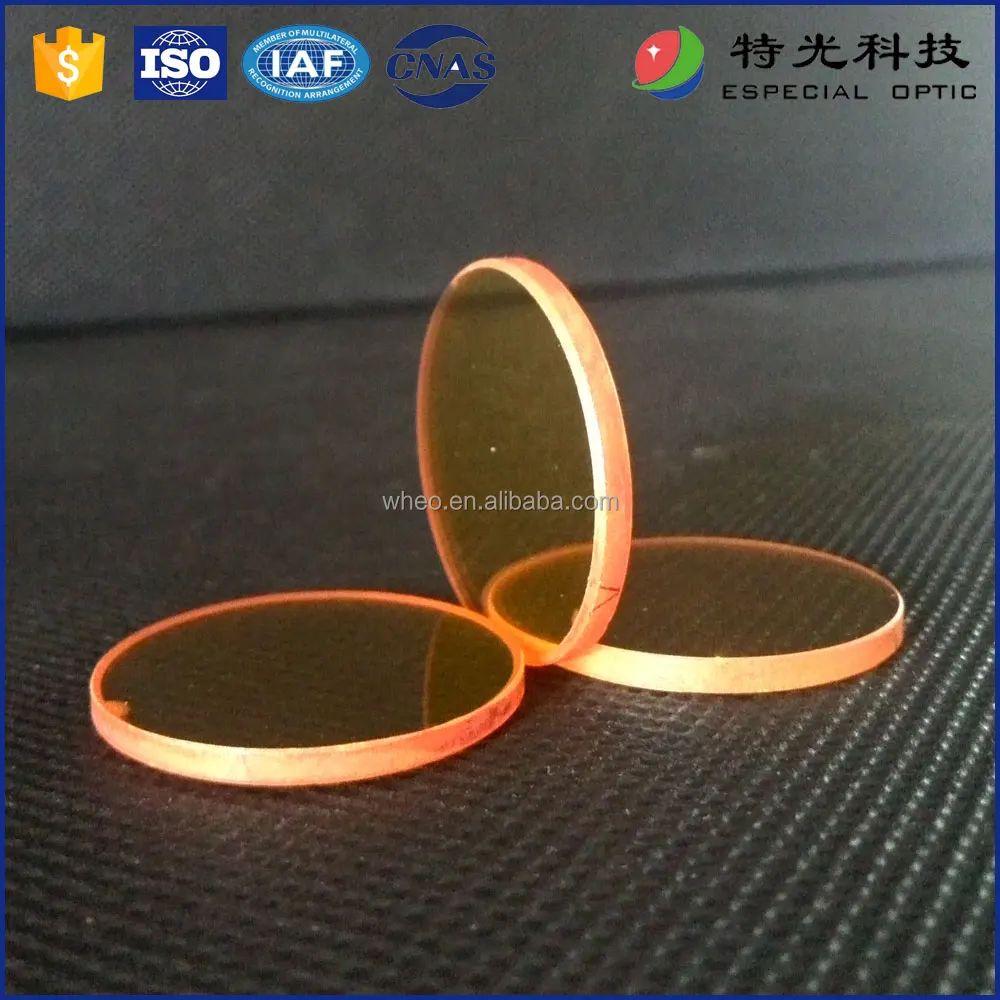

AR coating ZnSe windows
The transmission range of Zinc Selenide ZnSe-CVD is 0.5 - 20 µm.
ZnSe CVD used for high power CO2 laser optics at 10.6µm, for protective optics windows or optical elements in FLIR (forward looking infrared) thermal imaging equipment, optics for medical and industrial applications (optical plane parallel windows (plates, disks, blanks), wedged windows, optical meniscus, spherical and cylindrical lenses, prisms, resonator mirrors of CO2 laser).
The refractive index is near 2.4. Zinc Selenide has a very low absorbtion coefficient and is used extensively for high power infrared laser optic. It is non-hygroscopic.
Zinc Selenide (ZnSe) - transparent in wide spectral range from yellow (visible) to far IR. ZnSe material is a chemically inert, non-hygroscopic and highly pure product that is very effective in many optical applications due to its extremely low bulk losses, high resistance to thermal shock and stability in virtually all environments, easily machined.
ZnSe windows specifications | ||||
Standard precision | High-precision | |||
High-precision | ||||
Dimension Tolerance | φ5-100mm+0/-0.2 | φ3-150mm+0/-0.2 | ||
Thickness Tolerance | 1-15mm+/-0.1 | 1-30mm+/-0.05 | ||
Angle | 1 arc minutes | 10 arc seconds | ||
Surface Quality | 60/40 | 20/10 | ||
Flatness N<λ/2@633nm(at 50mm) N<λ/10@633nm(at 50mm) Clear Aperture >90% >95% Chamfer Protected <0.5mmx45deg Protected <0.5mmx45deg | N<λ/2@633nm(at 50mm) | N<λ/10@633nm(at 50mm) | ||
Clear Aperture | >90% | >95% | ||
Chamfer | Protected <0.5mmx45deg | Protected <0.5mmx45deg | ||
Coating | customize | customize | ||
ZnSe properties | ||
Chemical Formula | ZnSe | |
Molecular Weight | 144.33 | |
Crystal Class | Cubic, hexagonal | |
Crystal Structure | Polycrystalline | |
Density, g/cm3 at 293 K | 5.27 | |
Melting Temperature, K | 1790 | |
Thermal Conductivity, W/(m K) at 300 K | 18 | |
Thermal Expansion, 1/K at 173 K at 273 K at 473 K | 5.6 x 10-6 7.1 x 10-6 8.3 x 10-6 | |
Specific Heat, cal/(g K) at 296 K | 0.081 | |
Debye Temperature, K | 246 | |
Bandgap, eV | 2.7 | |
Solubility in water at 298 K | 0.001 g/100 g H2O | |
Knoop Hardness, kg/mm2(100 g load) | 105 | |
Young's Modulus, GPa | 70 | |
Bulk Modulus, GPa | 40 | |
Poisson's Ratio | 0.28 | |
Our Company
Wuhan Especial Optic established in 2012, compliance with ISO 2009.
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.
We can custom all these optical components strictly as per your requirements. For instance, surface quality, flatness, tolerance and so on.
In addition, we have various kinds of products in stock. If you need samples, please write to us at sales@wheo.cn for free sample.
Our Service
a: Dimesion size : 5-300mm , thickness up to customer requirements
b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.
c: AR HR DLC coating or as your request
For more please visit our website: www.wheo.cn
Optical design
We can design optical components according to your requirements.
Production
Our current production capacity includes but not limited to cutting, grinding, polishing,coatin and testing.
After-sales service
If you have questions about our products you can contact us directly.
Our products
BK7 windows
caf2 window
AR coating Ge window
ZnSe window
AR coating SI window
AR coating ZnS window
Sapphire window
Fused Slica window
optical lens
Cylindrical Lens
Powell Lens
optical convex mirror
Al coated mirror
Gold coated mirror
Optical Filter
Optical Prism
Galvo Mirror
Packing & Delivery
Packing Details: Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details: 7 days for stock.
3-4 weeks for custom-made products for sample.
in common, 4 weeks for mass production
FAQ
What's the way of shipping?
We commonly use UPS, FedEx, DHL, TNT, SF, EMS etc. If you have your own express account, it's great.
How to pay?
We usually draft Trade Assurance Order on Alibaba, you can pay by the most convenient way which also protect most of your rights.
What's the deliver time?
For inventory: the delivery time is around 5 workdays.
Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.
How to ensure the safety of payment?
Wuhan Especial Optic.,INC is the gold supplier and supports Alibaba Trade Assurance. Payment<=5000USD, 100% in advance. Payment>5000USD, 50% T/T in advance, balance before shippment.
Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
Contact us
Wuhan Especial Optic.,INC
Contacts: David Liu
T: 86-027-87504830
P: +86 18622556450
WhatsApp: +86 18622556450
Email: david(at)wheo.cn
website: www.wheo.cn
Похожие товары

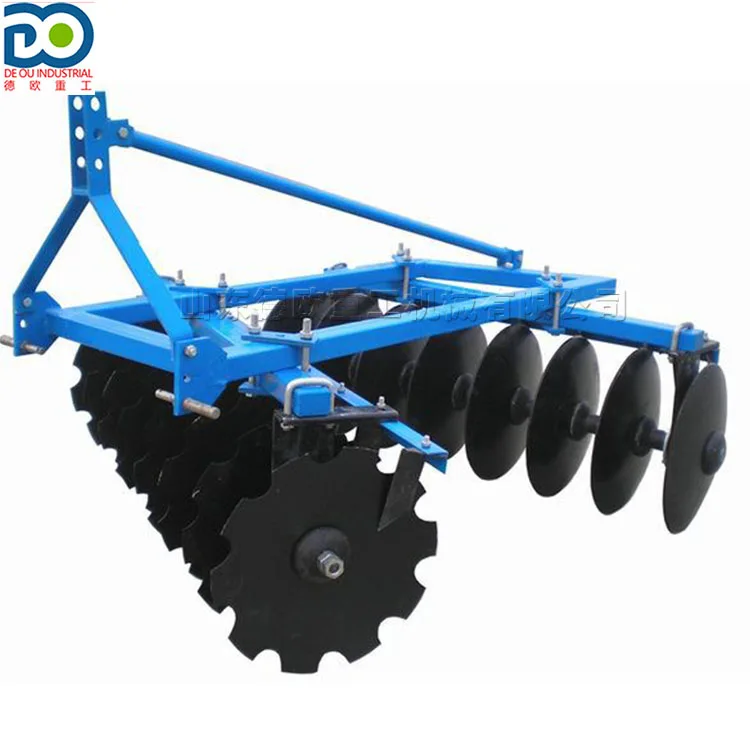

Сельскохозяйственная техника с сертификатом CE, дисковая борона, оборудование для культиватора
Лидер продаж, рекламные экологически чистые складные холщовые хлопковые многоразовые сумки

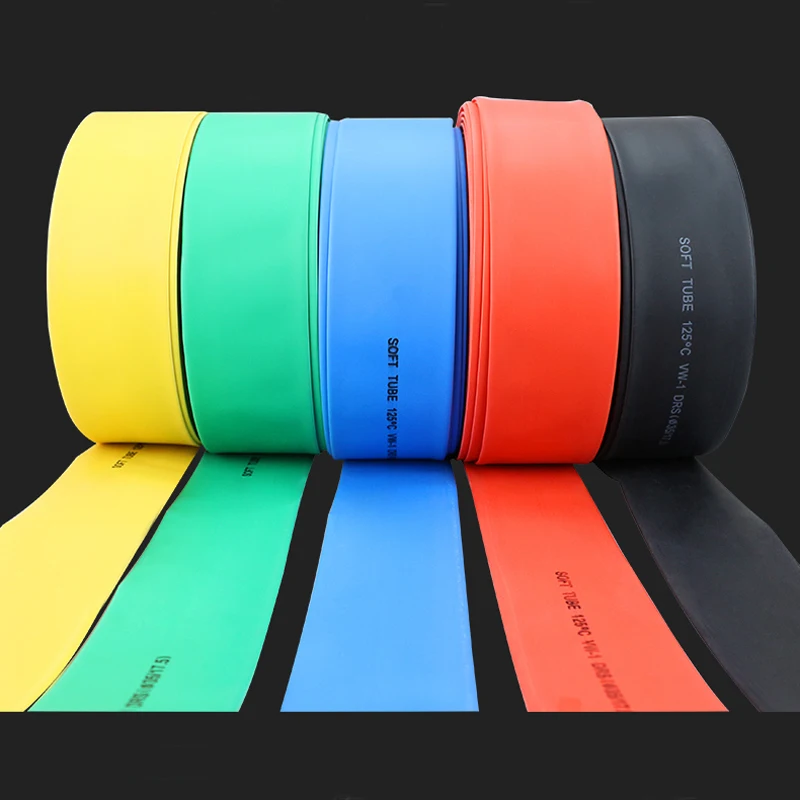

Термоусадочная трубка для шины

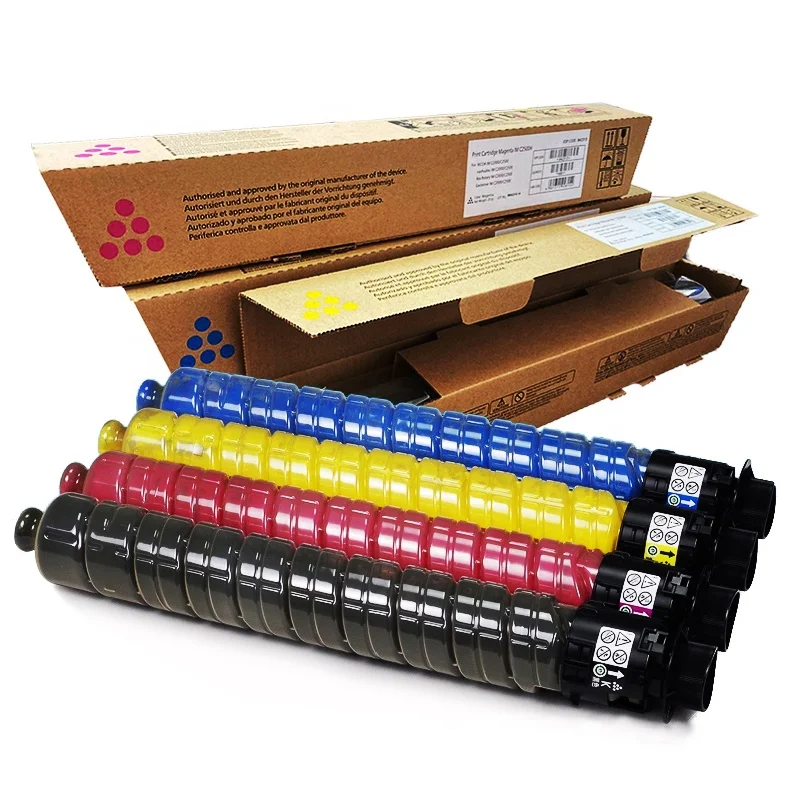

Покупку напрямую с китайской X & O Топ принтер картридж производитель завода Совместимый Тонер Ricoh SP C840 C841 C840dn C842dn

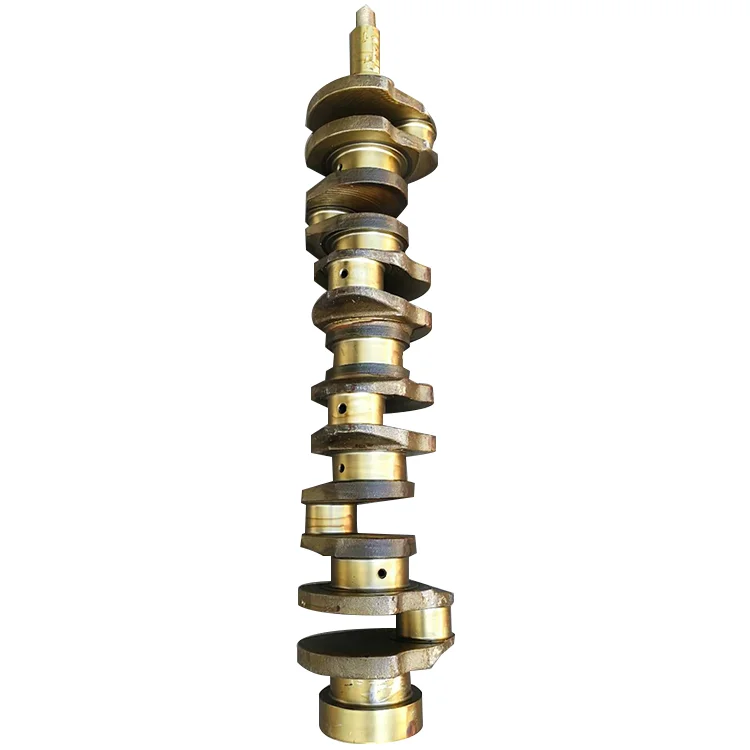

Коленчатый вал для дизельного двигателя CAT 320D C6.4 экскаватор машинное оборудование части двигателя

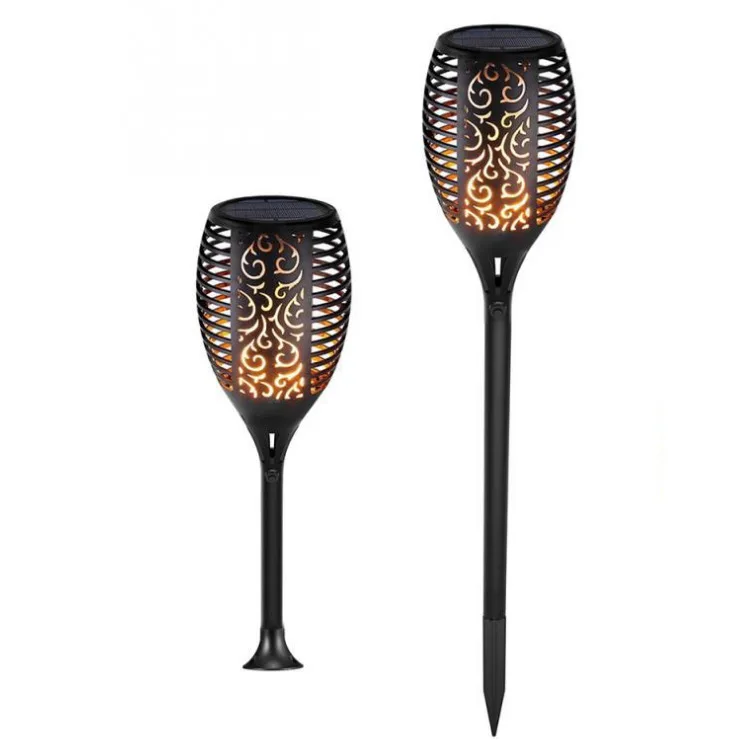

Современный декоративный светодиодный фонарь небольшого размера, танцевальный огонь, ночные светильники на солнечных батареях, уличный фонарь с пламенем, светодиодный садовый светильник
4,06 $ - 5,00 $

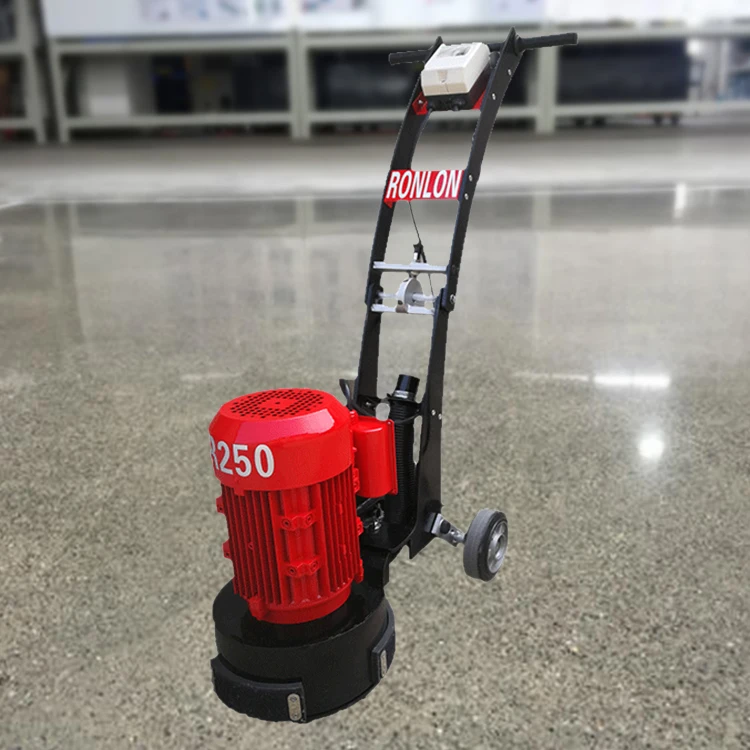

Полировщик для бетонного пола, керамическая полировка пола с пылесосом
