Солнечные коллекторы с плоской панелью покрытием из аланида

Солнечные коллекторы с плоской панелью покрытием из аланида

Категория: Solar Collector >>>
Поставщик: Dezhou BTE Solar Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Flat plate solar collector:
BTE solar develops own production line with Germany 4.0 concept, Averagely 55s/p can delivery your order in short time. And have passed CE and Solar Key Mark certification We ranked the TOP 3 in the solar thermal world, can handle OEM&ODM orders. High efficiency and long working life,solar absorber using laser welding, welding point is small and stable，all products tested by 3 times before delivery，provide 5 years warranty.

Bontel Advantages:

1. The high weather-proof selective absorbing film from full-automatic magnetron sputtering production line developed by Bontel;

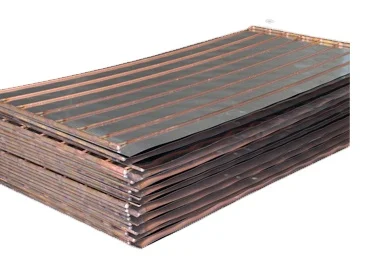

2. With Bonding heat transferring technology and laser welding technology;

3. High quality low-iron tempered glass with surface treatment to get high transmittance and low emittance;

4. Circulation fluid in closed copper pipes, no glass tubes. So collectors without corrosion and circulation fluid leaking;

5. The solid built-in absorber plate can absorb all solar radiation improve working efficiency and integrated well with buildings.

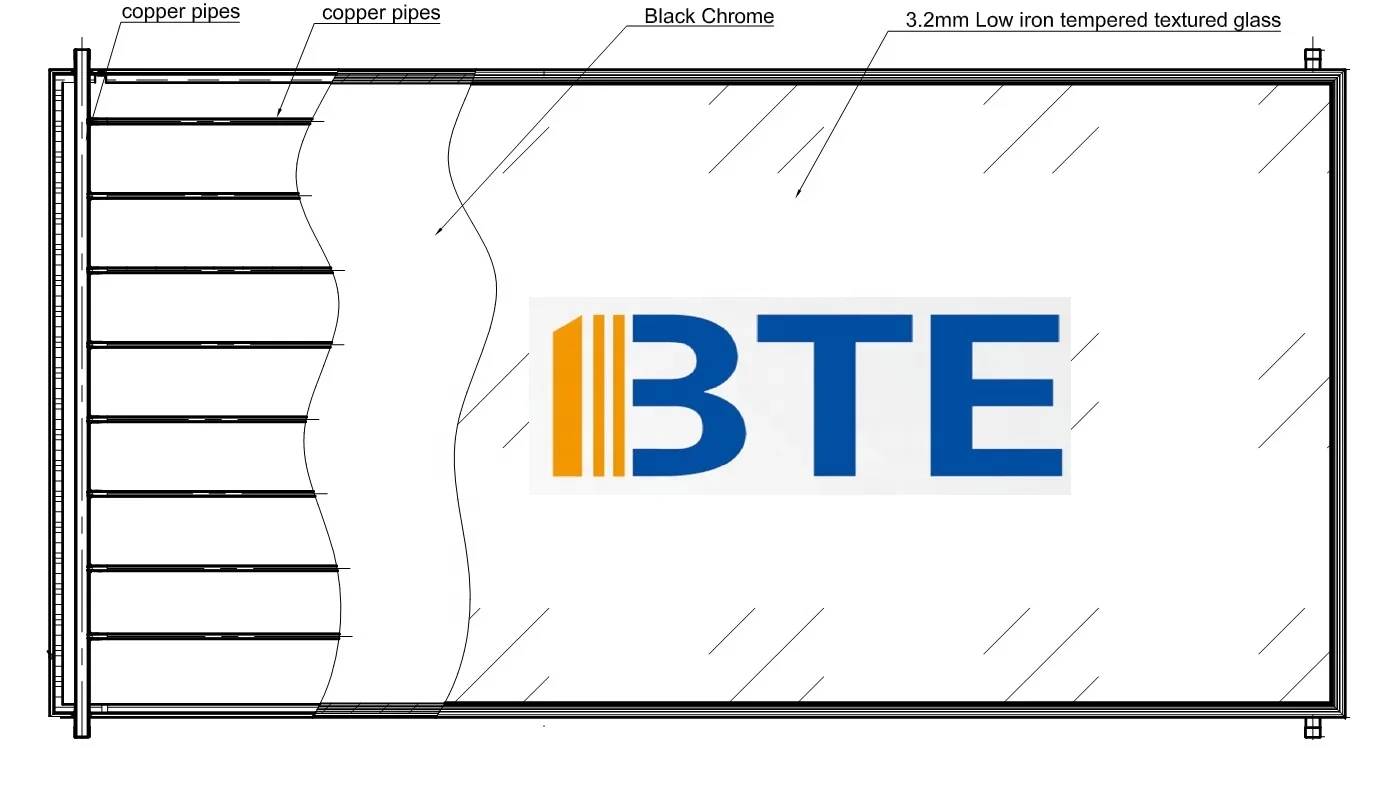

Specification

Specification	BTEB-I/0.6-L-2.0	BTEF-I/0.6-L-2.0	BTEG-I/0.6-L-2.0
Film	Black Film	Blue Film	Germany imported Blue Film
Overall size(mm)	1000x2000x80/95	1000x2000x80/95	1000x2000x80/95
Frame	1.0mm Aluminum	1.0mmAluminum	1.0mm Aluminum
Absorption area (square maters)	1.89	1.89	1.89
Header pipe	CopperTP2 Φ22x0.6	CopperTP2 Φ22x0.6	CopperTP2 Φ22x0.6
Grid pipe	CopperTP2 Φ10x0.5	CopperTP2 Φ10x0.5	CopperTP2 Φ10x0.5
Cover material	3.2Low-iron tempered -glass	3.2Low-iron tempered -glass	3.2Low-iron tempered -glass
Transmittance	≥92%	≥92%	≥92%
Bottom cover	0.50mm Hot galvanized plate	0.50mm Hot galvanized plate	0.50mm Hot galvanized plate
Insulation	Bottom: glass fiber frame: polyester fiber	Bottom: glass fiber frame: polyester fiber	Bottom: glass fiber frame: polyester fiber
Working Pressure	0.8MP	0.8MP	0.8MP
Remark	1. Frame: Aluminum 6063-T5; 2. Our full automatic production line can produce different specification products according to your own requirements; 3. We can supply Self-cleaning Glass for all collectors.

Products Advantages

Short delivery time within 2 weeks.

All products tested 3 times before delivery and can offer 5 years warranty.

BTE has CE, Solar KeyMark and ISO9001 certification. Ranked the TOP 3 in the solar thermal world.

We can accept OEM & ODM orders. Solar Collectors have high efficiency and long working life.

Product Compared

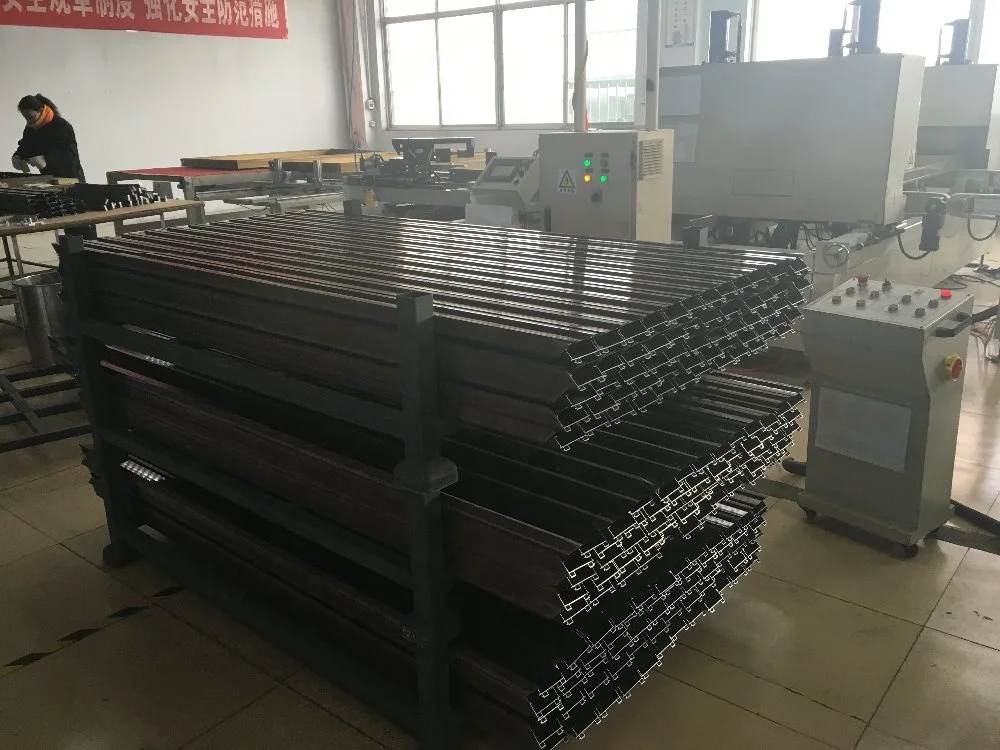

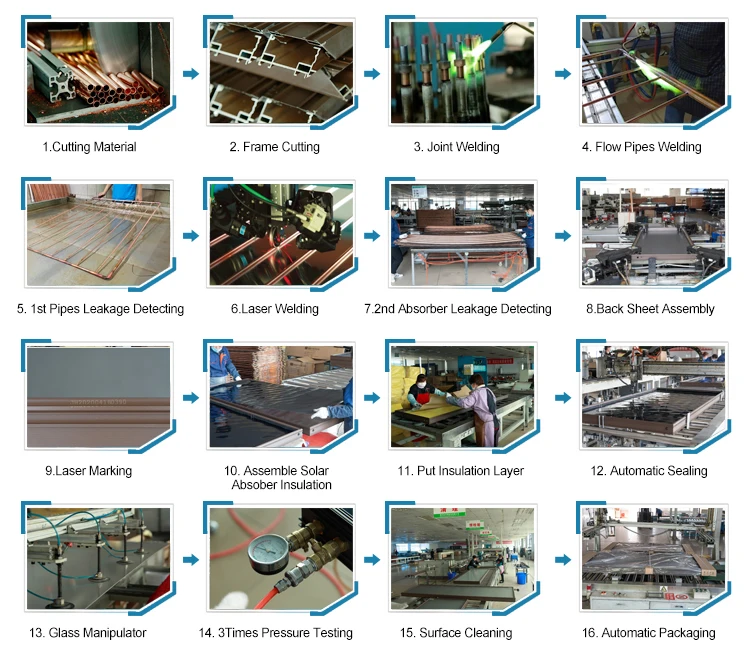

Production process

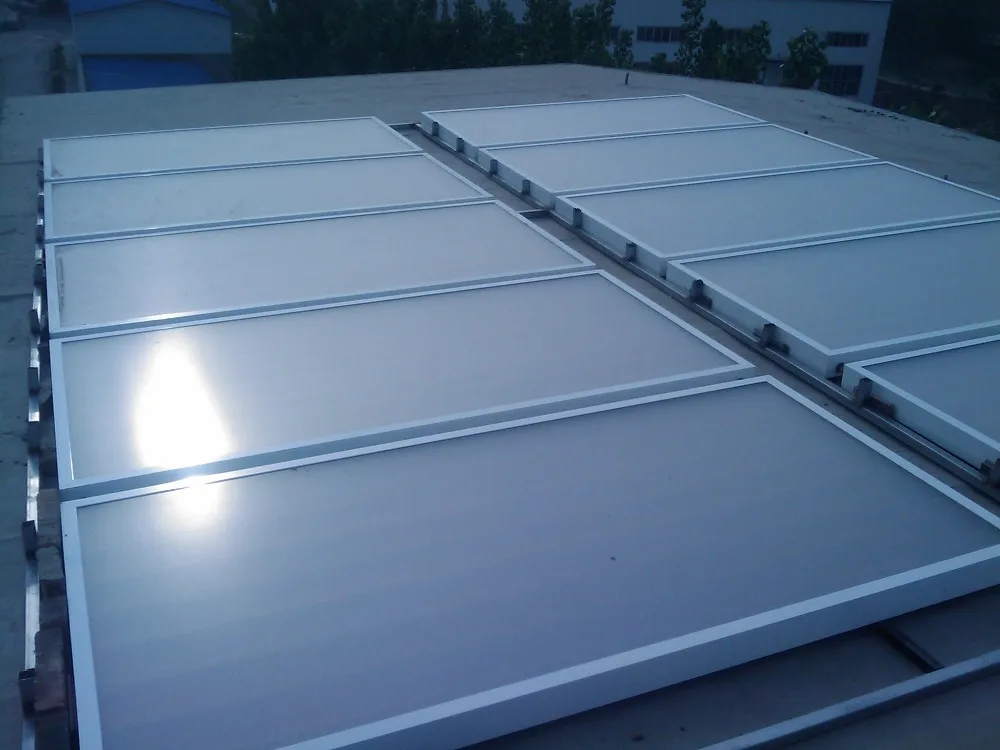

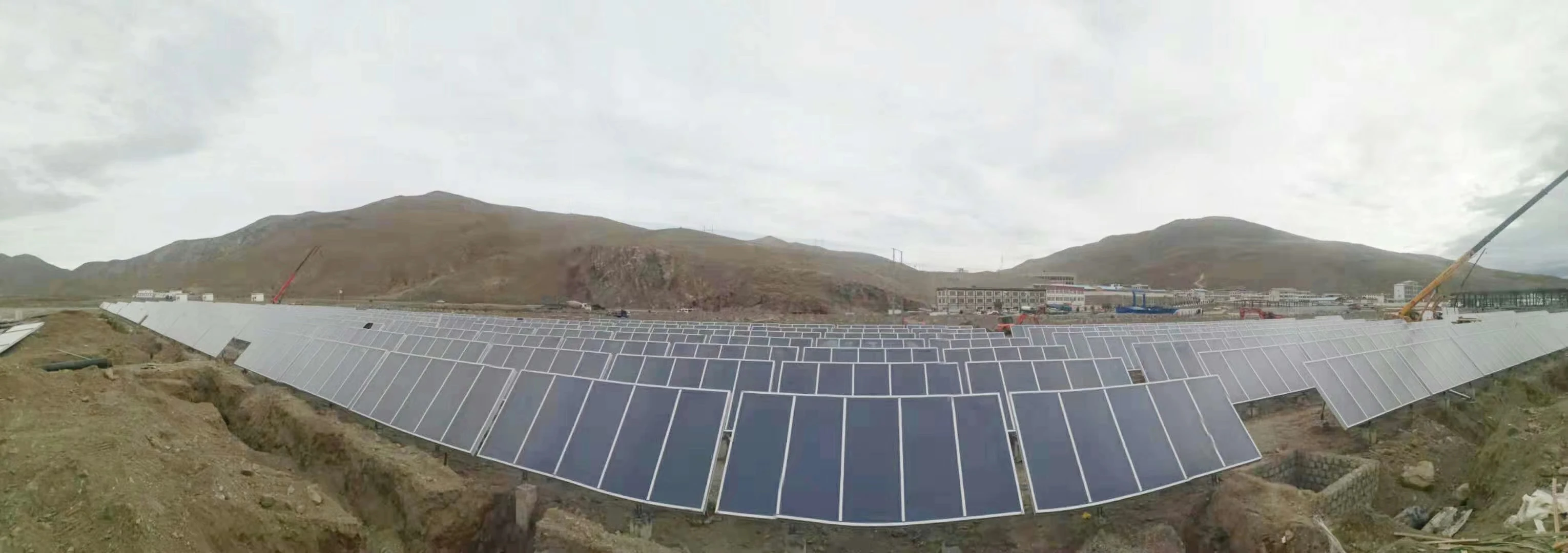

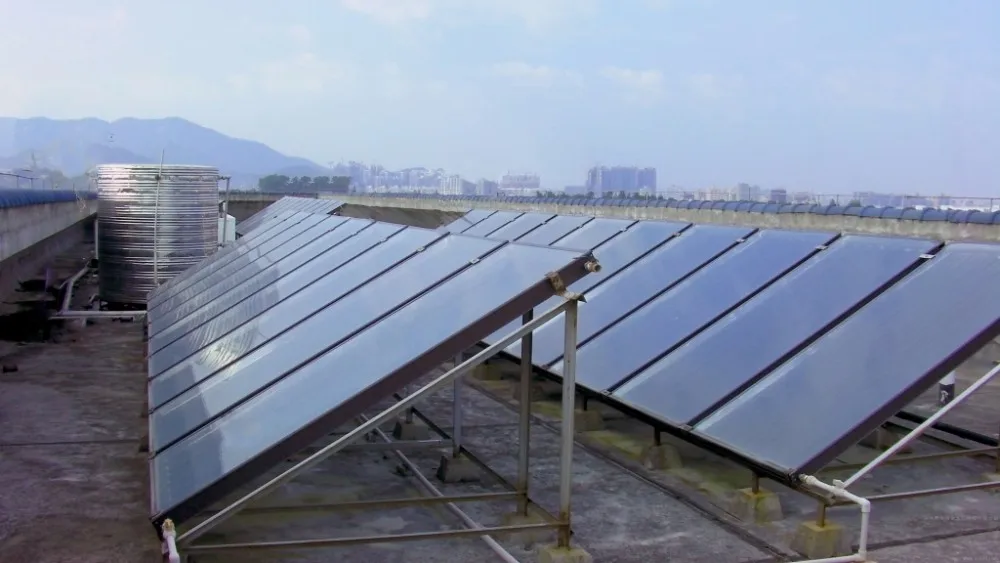

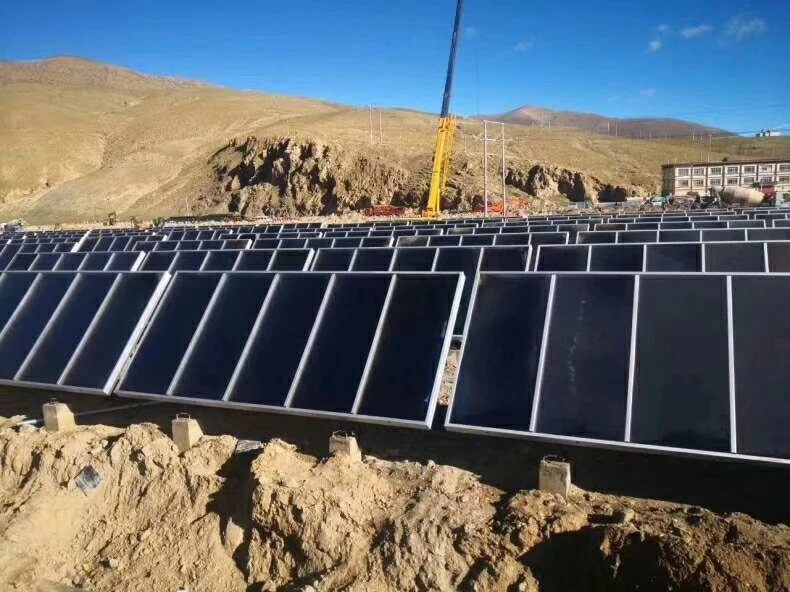

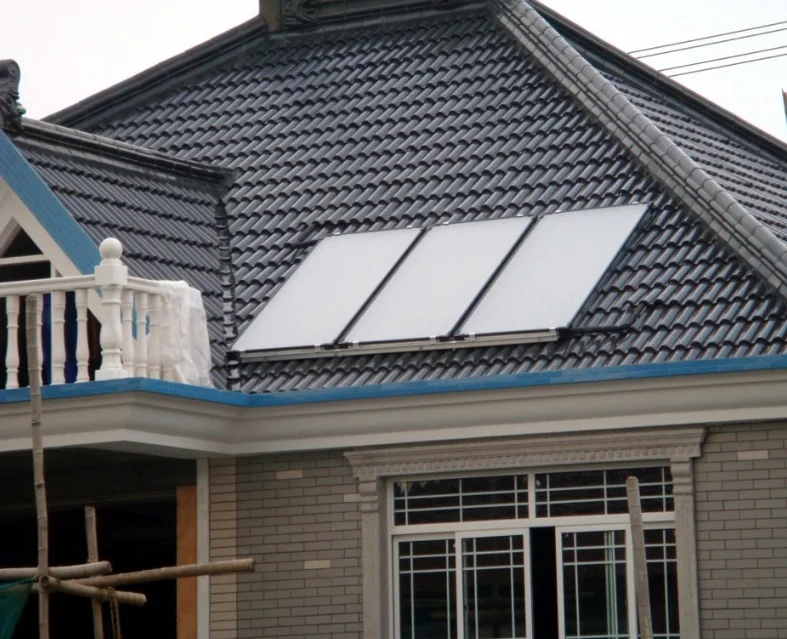

Product application

Why choose us

Company Profile

Dezhou B T E Solar Co., Ltd. is founded in 2009, located in Shandong Province,China, which is an innovative company focused on the field of solar thermal applications and has a number of independently intellectual property rights in core technology. Relying on high advanced technical strength, we have independently developed the full automatic production lines, and production efficiency has reached the international level. Based on the idea of industrial 4.0, it has built a global professional solar thermal system in High , med Ium and low temperature like flat plate collector, U pipe collector, heat pipe collector and solar water heaters. Now BTE is not only a manufacture, also supply different energy saving solutions to global partners.

Now BTE products have pass Solar Key Mark and CE certificate. We have developed various solar collectors for different working temperature and circumstance. The solar thermal products include flat plate collectors, U pipe collectors, Heat pipe collectors, manifold collectors, compact pressurized and non-pressure solar water heater. We have cooperated with many home and abroad enterprises for long-term in solar system. We have been devoting ourselves to research, development and innovation of solar energy core technology. With the aim of creating professional flat plate collector producing base in the world, we will work to make the world more energy saving and beautiful with the cleaning circumstance.

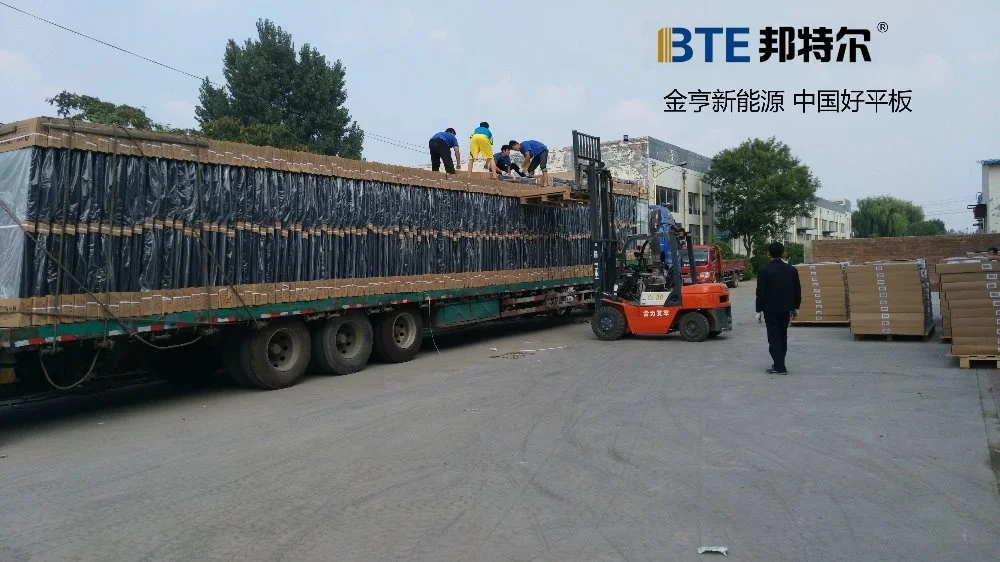

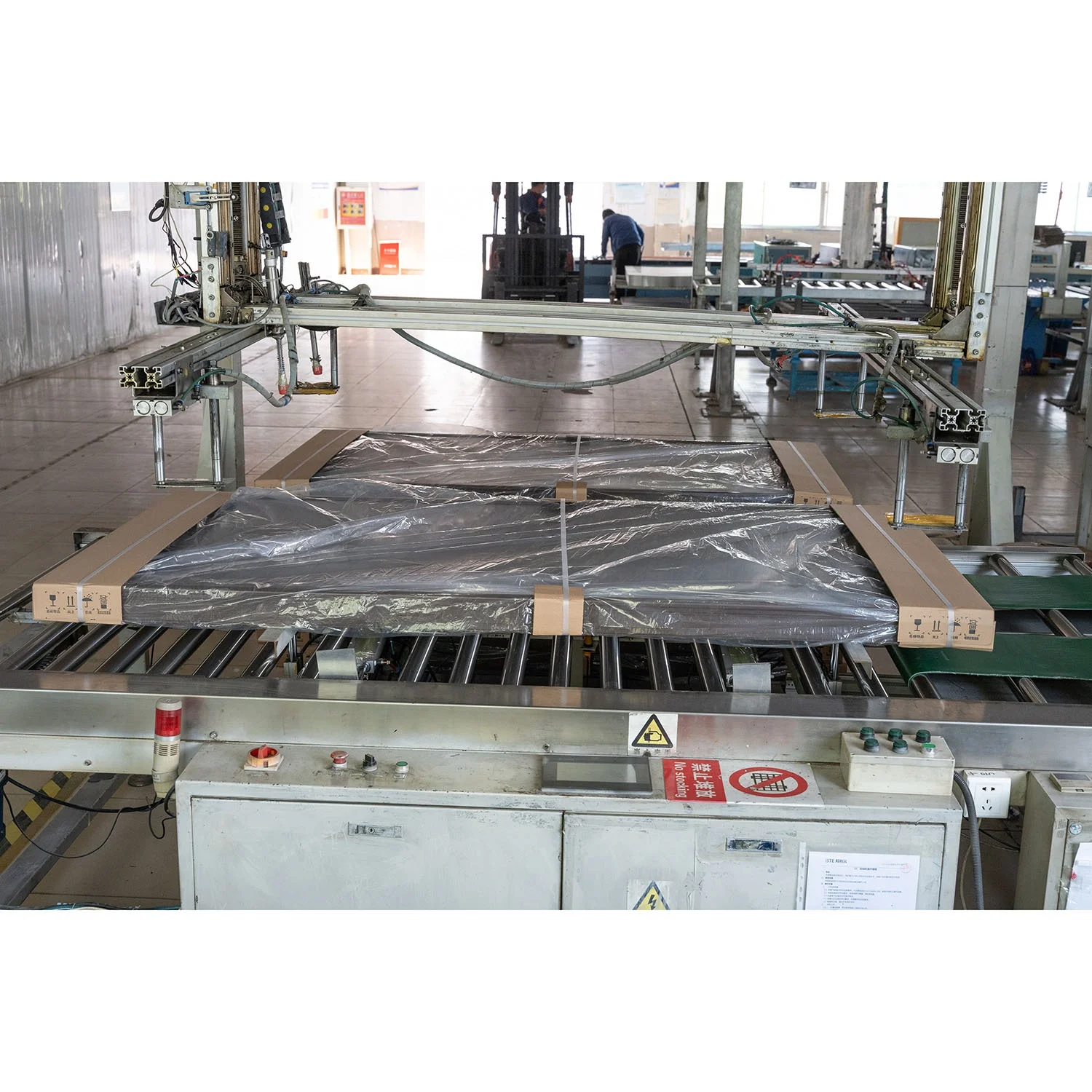

Packing & Delivery

Packing: LCL: Plywood wooden pallet/case

FCL: Export carton packing

FAQ:

1. Is your company a trading company or factory?
We have own factory,Welcome to visit our factory.

2. What is your Delivery Time?
LCL order/Sample order:10days. Full container order:14days.

3. Can you do make with my brand?
Yes, OEM&ODM order are both welcome and accept.

4. What is your MOQ?
1 set.

5. What is your Packing?
LCL order/Sample order in woden case. Full container order in high quality export carton.

6. What is your FOB Port?
We accept FOB Qingdao , Shanghai,Tianjin etc.

7. What is your Monthly Production Capacity?
24000PCS.
