Product Description

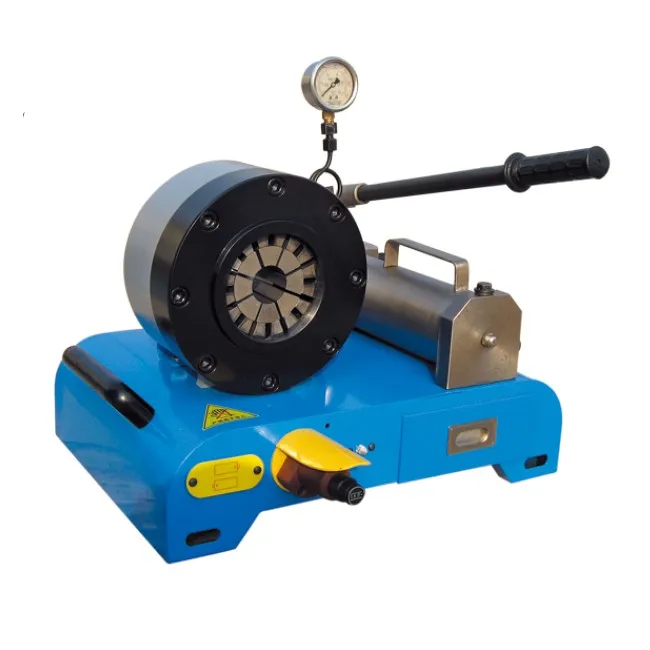

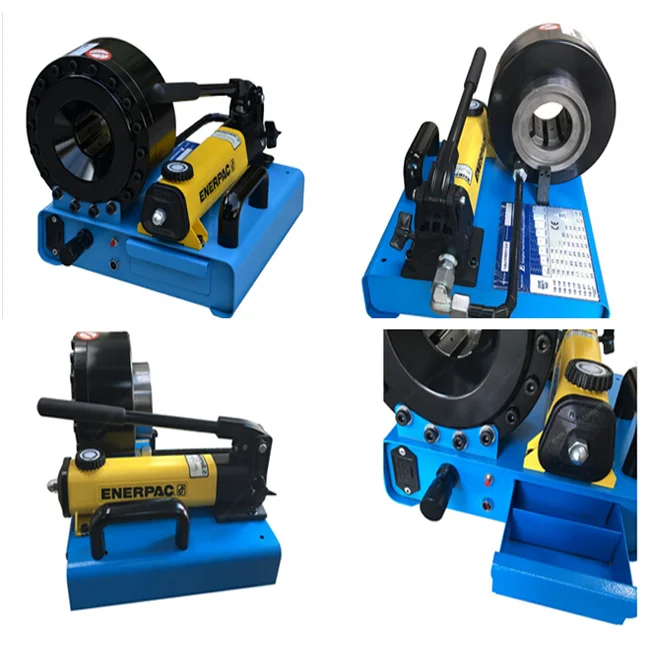

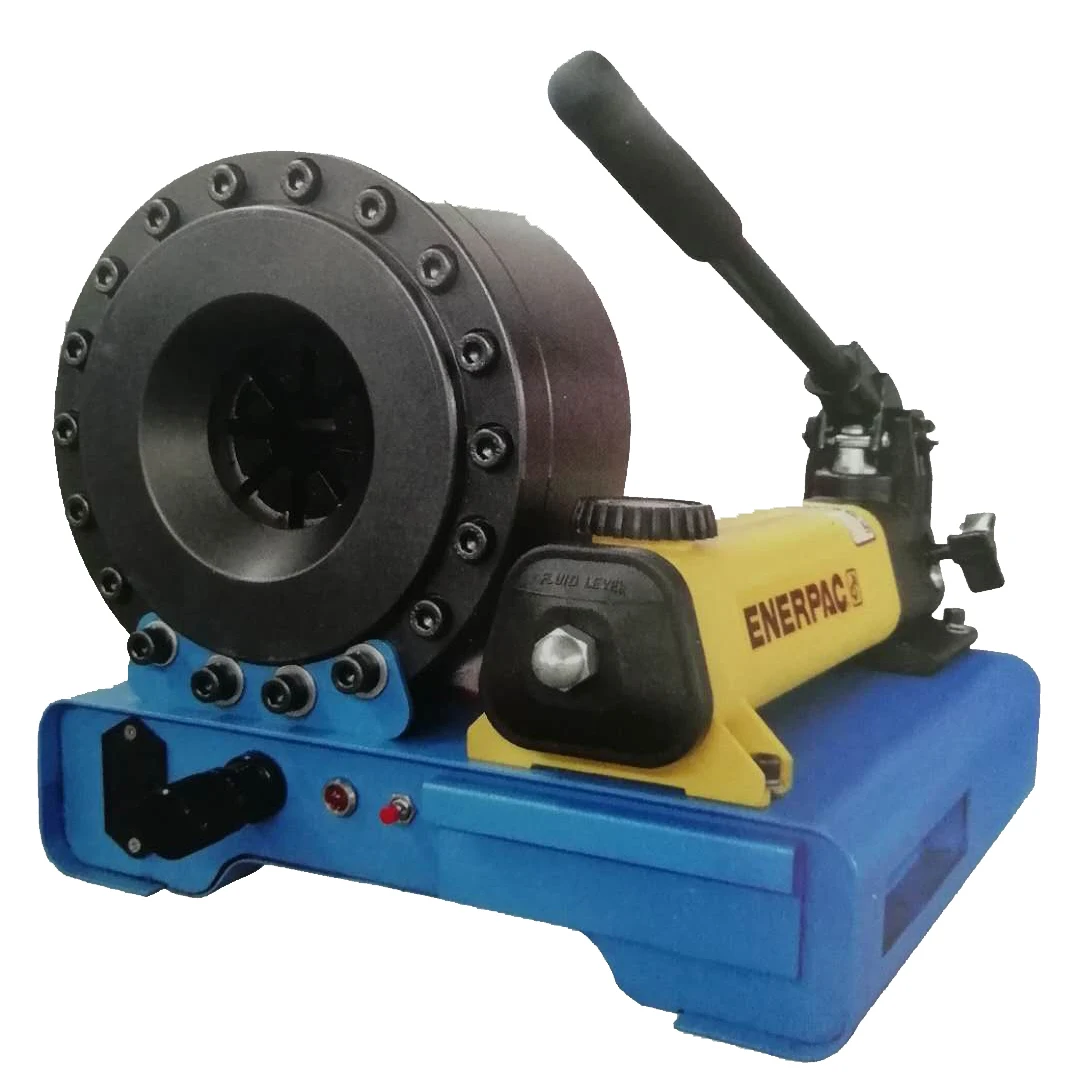

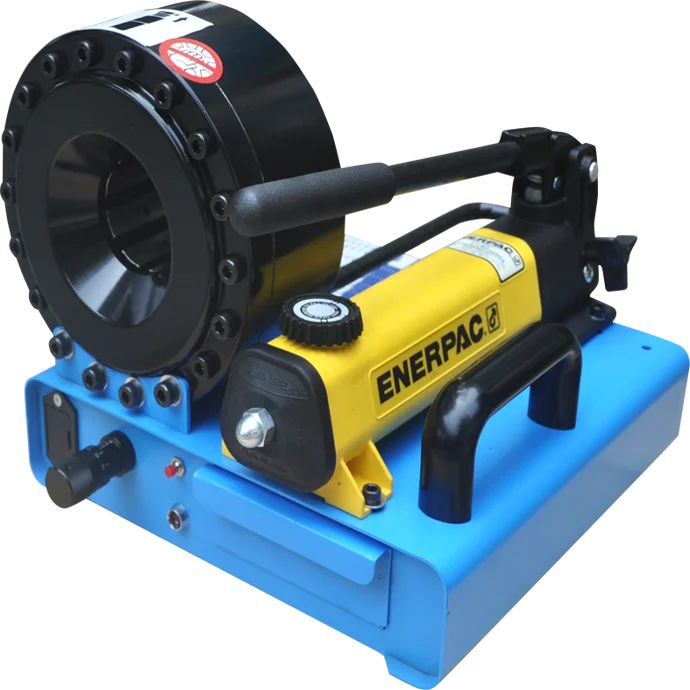

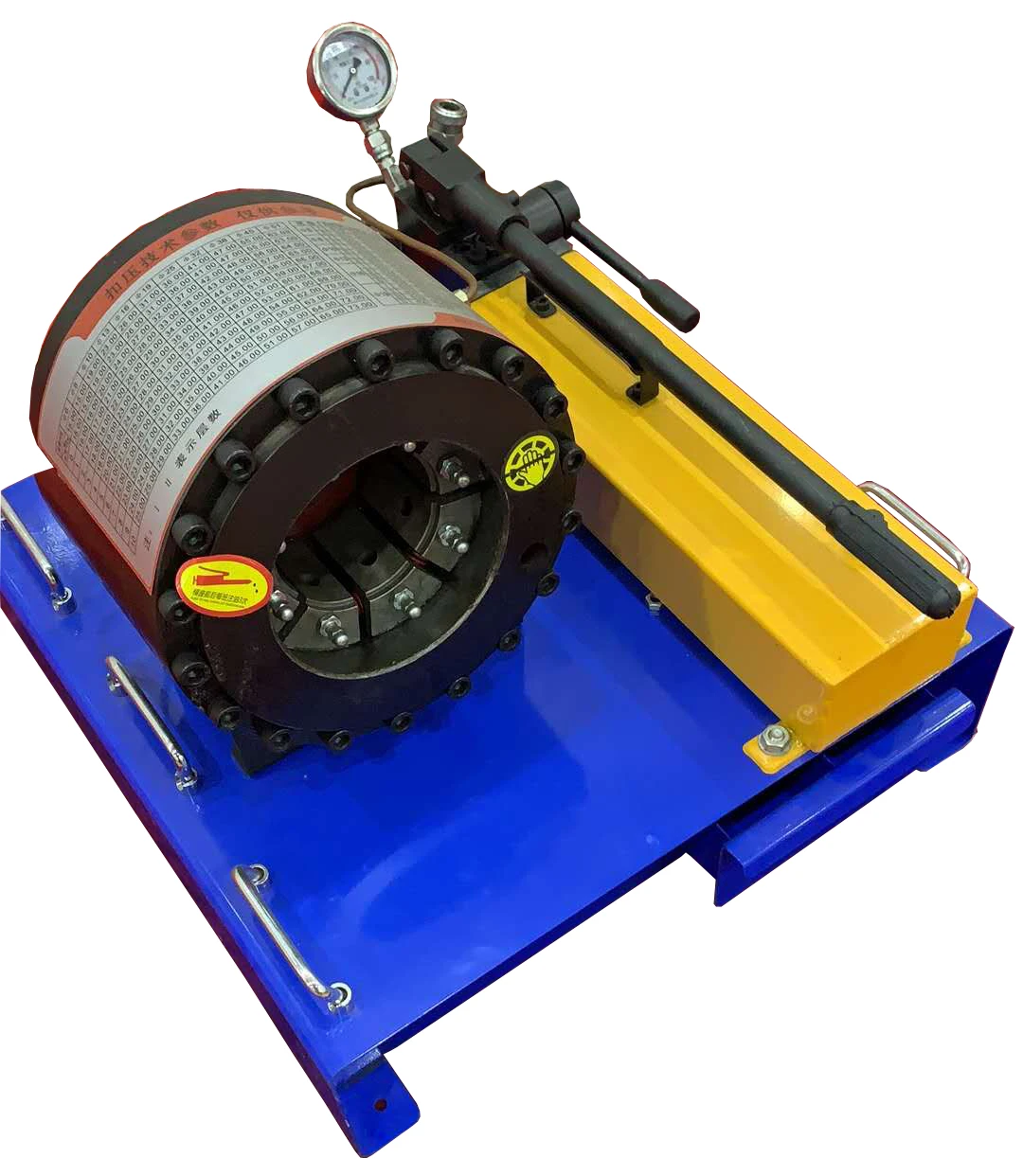

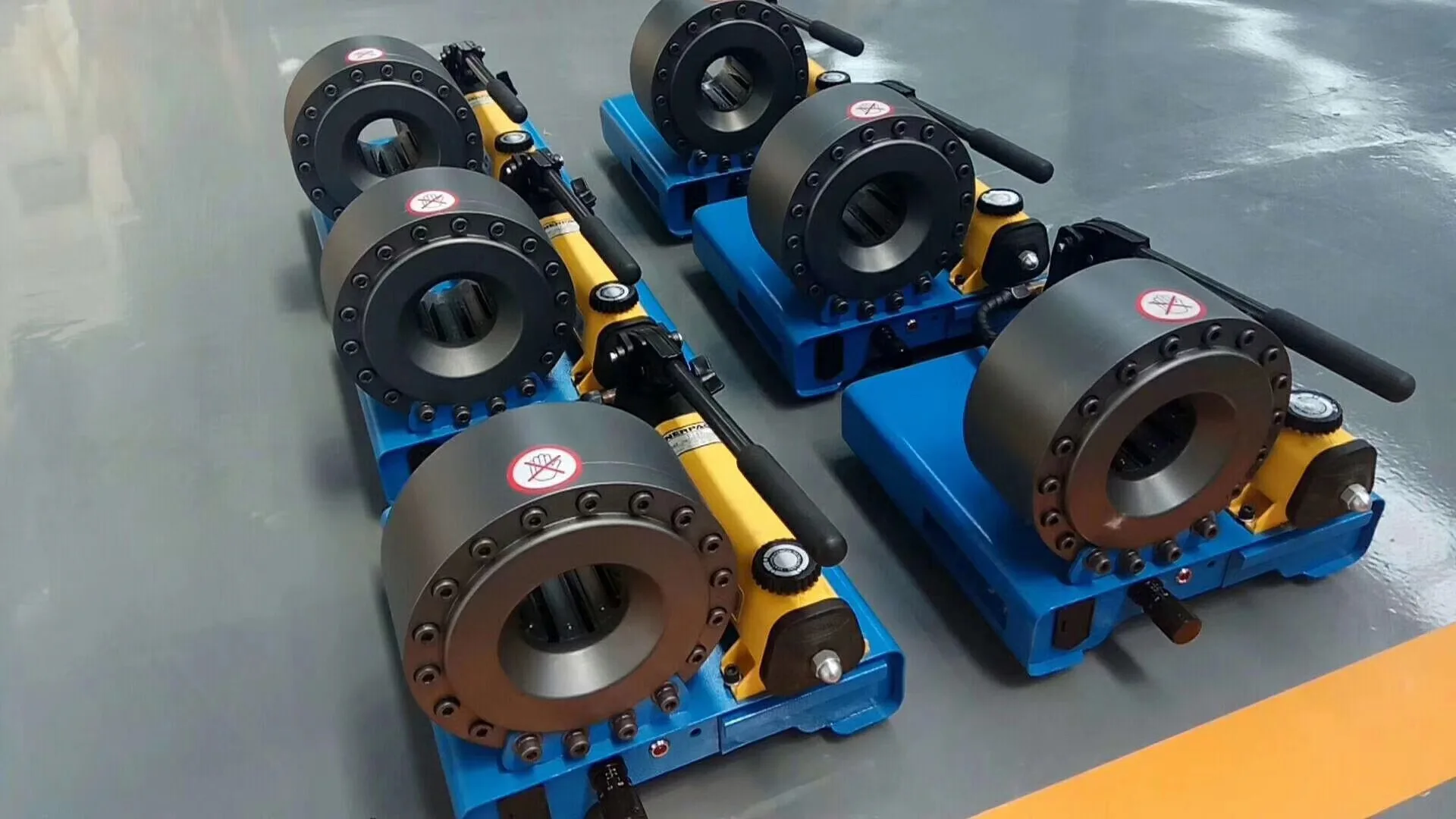

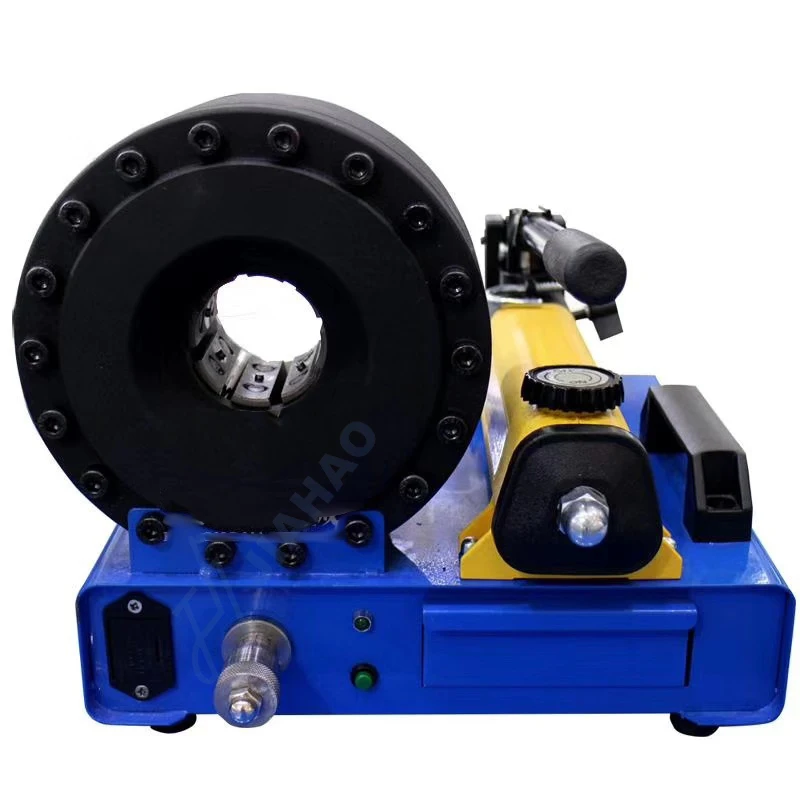

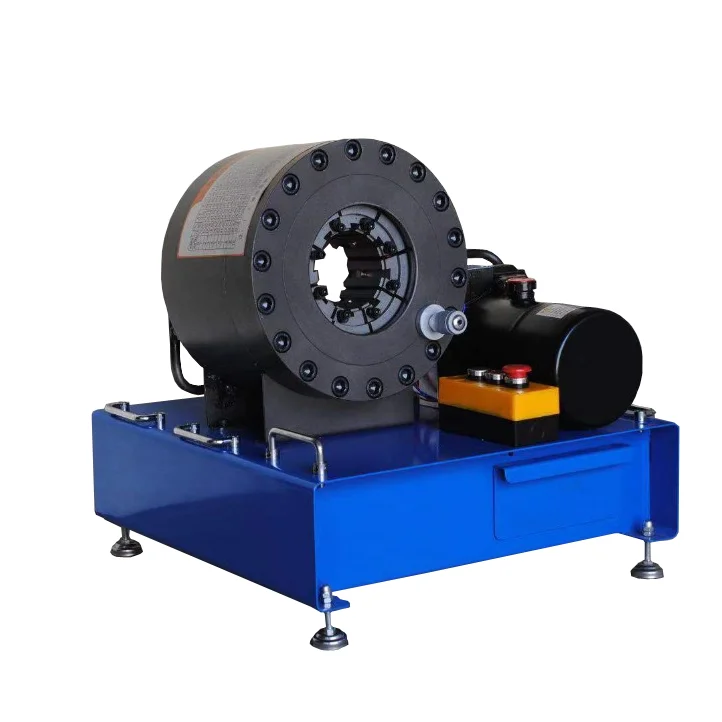

China 1/8"-1"JH-92S-A hydraulic hose crimper/flexible hose crimping machine/hose pressing machine






hydraulic hose crimping machine Specifications

hydraulic hose crimping machine appliction:
*hydraulic hose crimping machine Super light weight with stable performance.
*hydraulic hose crimping machine Imported brand-name oil pump with excellent accessories.
*hydraulic hose crimping machine The light is on when crimped to the pre-size.
*hydraulic hose crimping machine The hardness of the die base and die sets is high,to ensure the long service life.




hydraulic hose crimping machine techincal data:





Crimp range
1/8"-1"
For hydraulic hose
1 inch 4SP
Max opening without dies
53mm
Opening
≥18mm
Open
------
Close
------
Voltage & Power
------
Optional voltage
------
Noise level
------
Dies sets
7sets
System pressure
35MPa
Machine size
305*370*270mm
Weight without oil
26.5KG


hydraulic hose crimping machine just has two function: Hand &semi-auto.





Die information
Hose I. D.
Die bore
Die length
Ferrule length
1/4(6mm)
15mm
65mm
Less than 65mm
5/16(8mm)
5/16"(8mm)
18mm
65mm
Less than 65mm
3/8(10mm)
20mm
65mm
Less than 65mm
1/2(13mm)
1/2"(13mm)
23mm
65mm
Less than 65mm
5/8(16mm)
26mm
65mm
Less than 65mm
3/4(19mm)
3/4"(19mm)
29mm
65mm
Less than 65mm
1(25mm)
37mm
65mm
Less than 65mm
1 1/4(32mm)
1 1/4"(32mm)
46mm
78mm
Less than 78mm
1 1/2(38mm)
51mm
78mm
Less than 78mm
2(51mm)
2"(51mm)
63mm
78mm
Less than 78mm
NOTE: We can make speical dies as your HOSE AND FERRULE SIZE.




Packing & Delivery

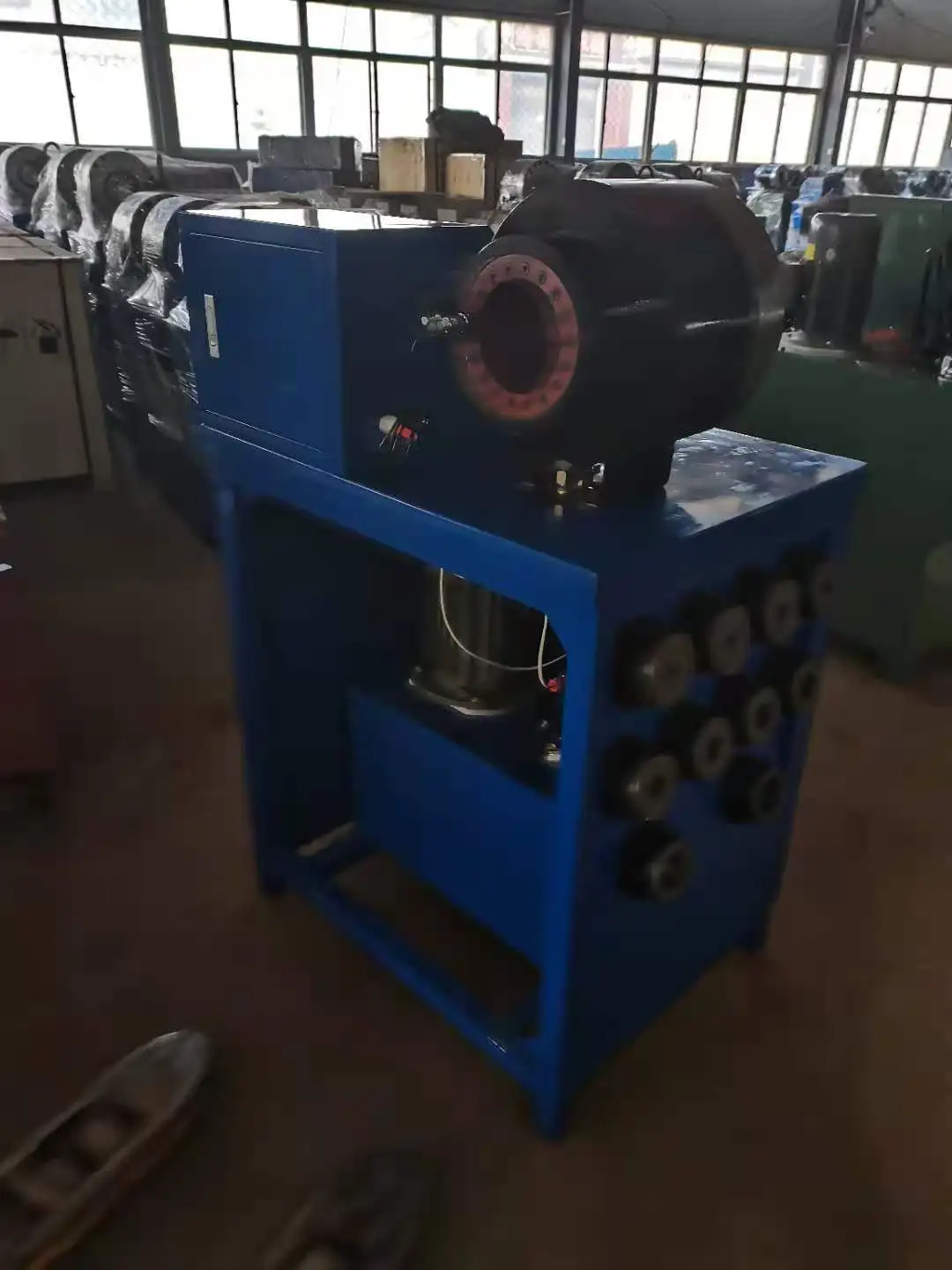

Our Company

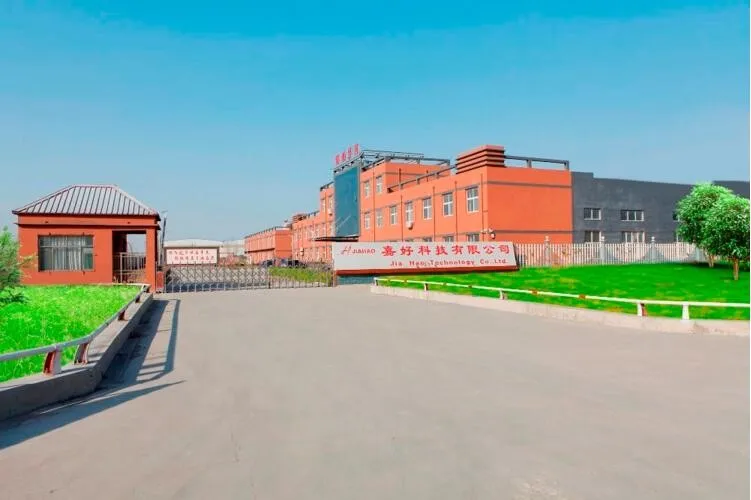

JIAHAO TECHNOLOGY Co., Ltd. is located in Hengshui City,Hebei Province. We are a professional manufacturer of hydraulic series products.set design, development, manufacturing as a professional manufacturer.We focus on a series of Low cost and high quality products.
a wide range of diversity, reasonable price and on-time delivery.



FAQ


Q1. How many usually testing for hose?
A: Aging resistant Test, Rubber Tensile Test, Curing Press, Pressure Test, Burst Test, Impulse Test.And as your request


Q2. How about your Main Raw Material?

A:Natural Rubber, Rutadiene Styrene Rubber(Styrene Butadiene Rubber), Neoprene Rubber, Nitrile Rubber, Ethylene Propylene Rubber, Butyl Rubber, Chlorosulfonated Polyethylene Rubber(chloroprene rubber), Polyurethane Rubber, Acrylic Rubber, Fluorous Rubber, ect.( steel wire sulphur, carbon-black, accelerator, etc)


Q3.How about your Payment Term?
A: T/T 30% in advance as deposit, and 70% before shipment. We'll show you the photos of the products and packages
before you pay the balance.

Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q5. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q7. What is your sample policy?
A: We can supply the free sample if we have in stock, but the customers have to pay the courier cost.And after you place an order,we will refund the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
