64 Ports GSM SMS Modem Voice Function 64 Multi SIMs Bulk SMS Gsm Modem

Product Description

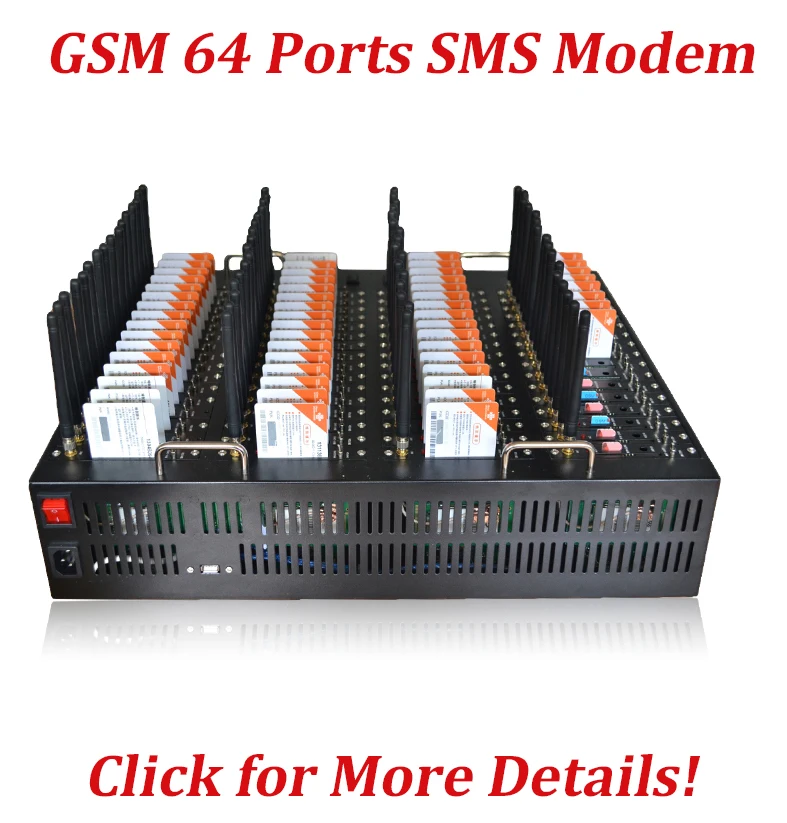

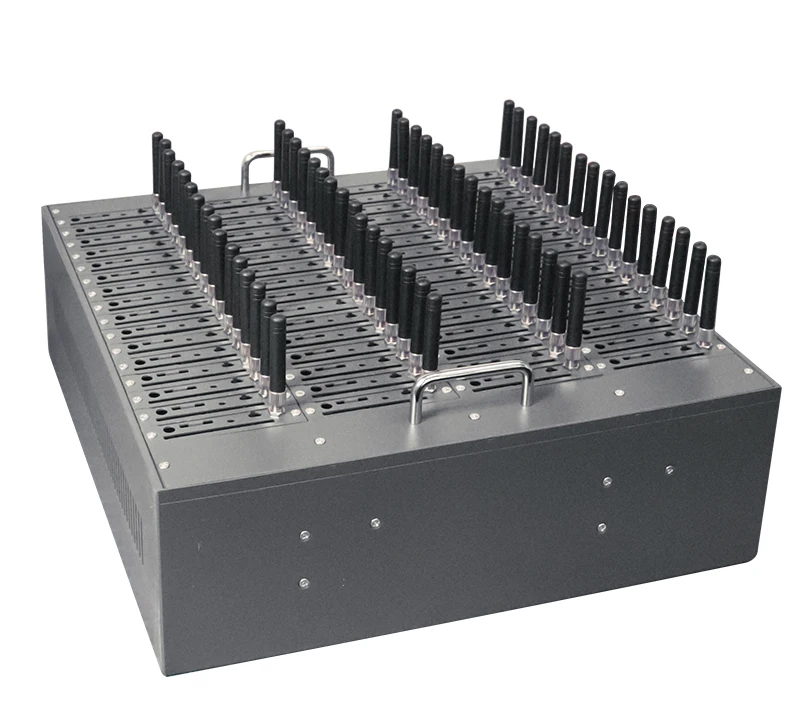

64 PORTS SMS MODEM POOL

GSM MODEM pool also known as "SMS cat pool" in China, USB 2.0 and USB 3.0 can be used directly into the computer usb port, for laptops, desktops can be used. Break the rule that multi-tech can only be used in desktop computers. Built-in wireless modules can be inserted 64 SIM cards, simultaneously to send text messages.

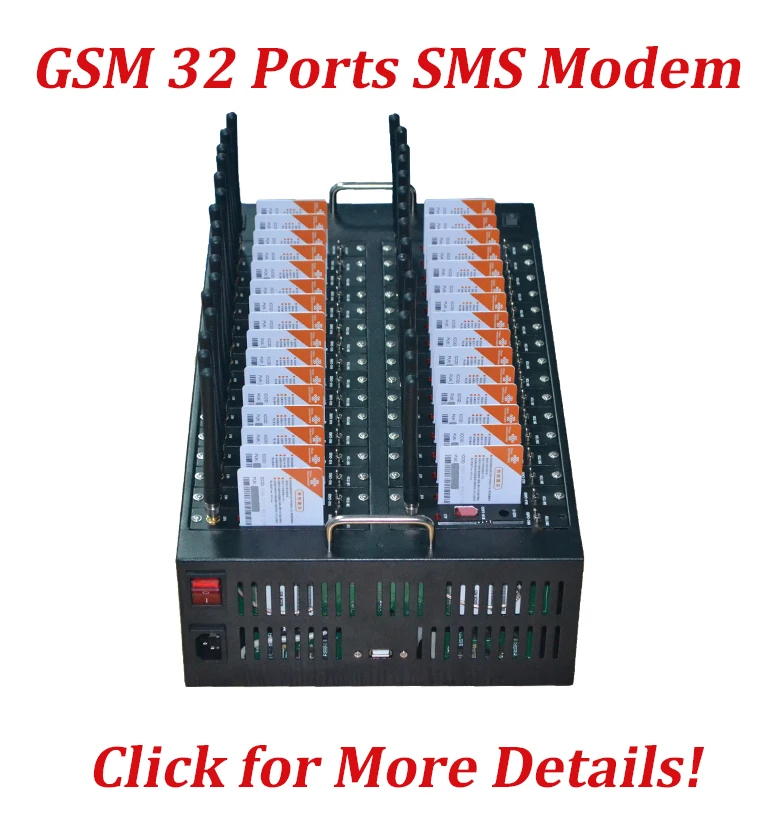

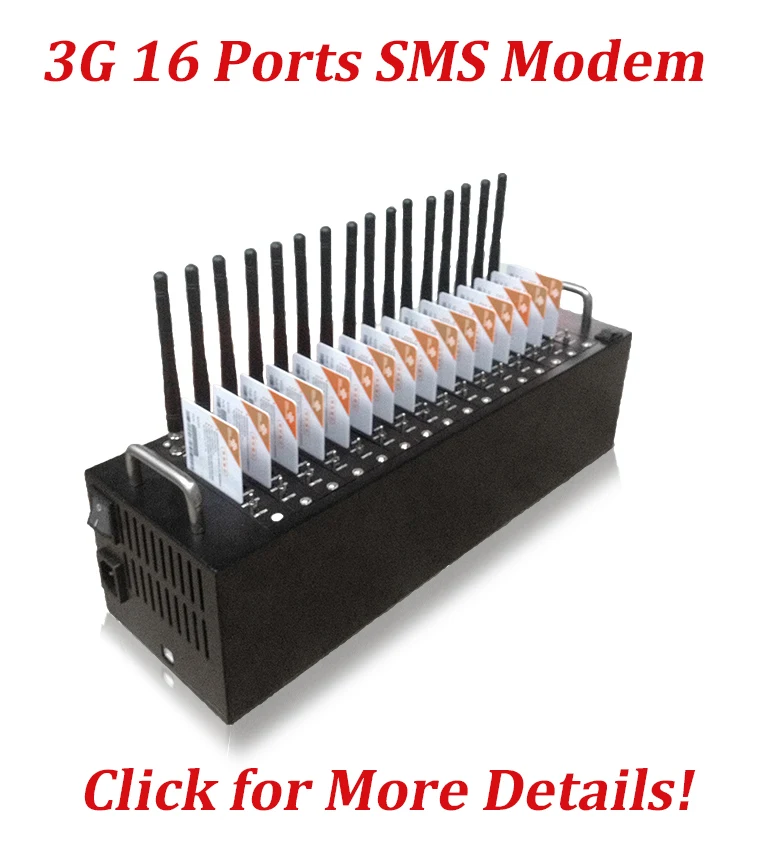

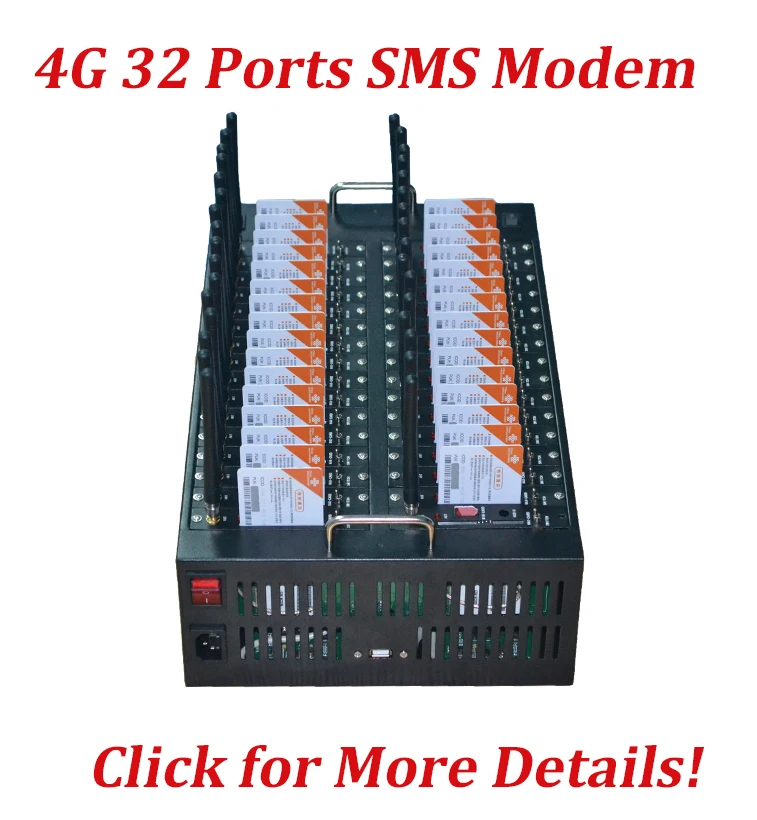

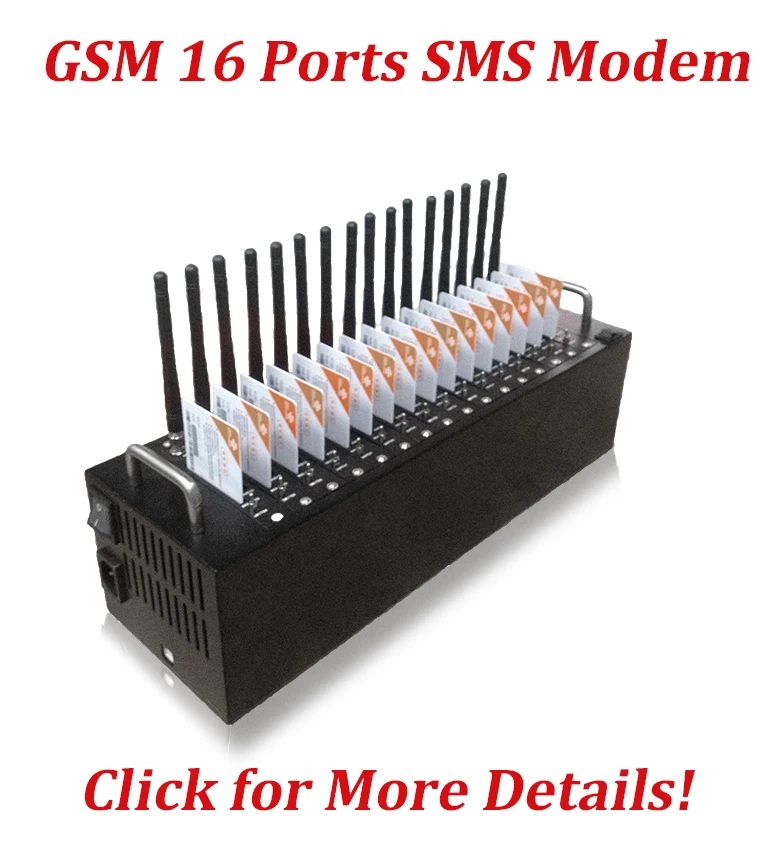

There are 1/8/16/32/64 (2G/3G/4G) ports models available.
Contact me for more! skype:live:alisa_1657 WhatsApp/wechat:008613542062020

Highlights

• 64 x SIM card (big/small) slots

• Receive/ Send Bulk SMS

• IMEI Changeable

• AT Command, Voice Call via AT Command

• 2G/3G/4G network Optional, 1/8/16/32/64 Ports Optional

• Free Bulk SMS Software (SMS Caster)

64 ports.jpg

Model	SIM Slots	Sending Speed	Module	Function
64 ports sms modem	64	64000 SMS/hour	M26	SMS/MMS/IMEI/VOICE

Specification

Product Name	Multi Ports SMS Modem Pool
Frequency	GSM: 850/9001800/1900Mhz
Function	Send SMS/MMS Receive SMS IMEI Change Voice call AT Command
SMS Software	SMS Caster (Free)
Port Choice	1 port, 8 port, 16 port, 32 port, 64 port
Hourly SMS Sending Speed	Bulk Send 1000 SMS Per Port Per Hour (1) 1 port= 1000 SMS (2) 8 port= 8000 SMS (3) 16 port= 16000 SMS (4) 32 port= 32000 SMS (5) 64 port= 64000 SMS
Optional Other Model	2G: M26, M35 3G: UG96, UC20 4G: EC25
Power Input	110~240VAC/ 50~60HZ
Interface	USB 2.0 & USB 3.0
Operation System	Windows/Vista/XP/Win7/Win8/Win9/Win10/Linux/Mac OS X

How To Use

(1) Insert SIM Cards in Modem

(2) Install the USB deriver and SMS Caster (we will send these two free softwares to you via online email)

(3) Following is the steps of sending message via SMS Caster

(Click here to check video of SMS caster user manual)

Firstly


1.Install SMS Caster like common software and close it after installing successfully
2.Connect the GSM MODEM to computer correctly, and then there will be a prompt from computer to install driver.
3.Select the driver path for every port, it will install automatically.
4.After completing the driver installation, starting SMSCaster program, all ports will be found.

Secondly

Open the smscaster, click the Phone, then update all, then you can check how many ports can work.
If some ports not shows proper, then you should check the simcards or change another simcards.

When you change simcards, you should shutdown the module, when insert simcards, then start it.

Thirdly

Compose for sending sms ,you can input receiver number in To Numbers if you just want to send few numbers,then input the content, when you finish, then press Send to Outbox, the sms will be sent to Outbox, press the Outbox ,then you can see the detail sms list, then press the Send.
They will be sent out (you should firstly choose the ports which you want to send sms ).

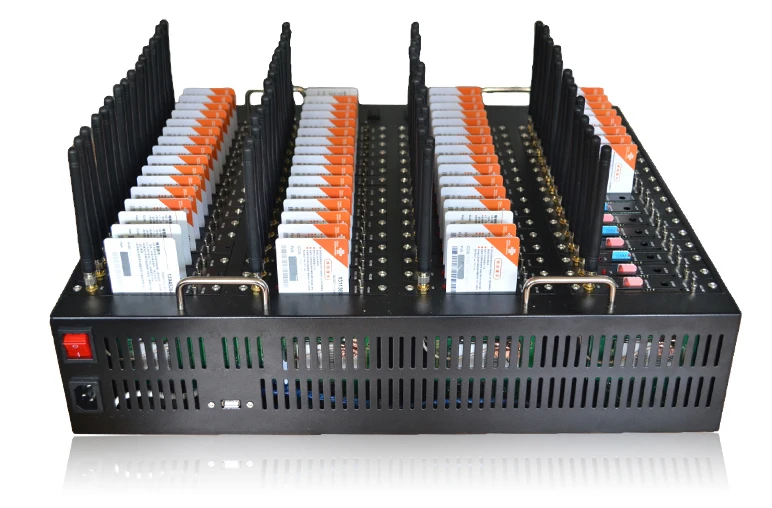

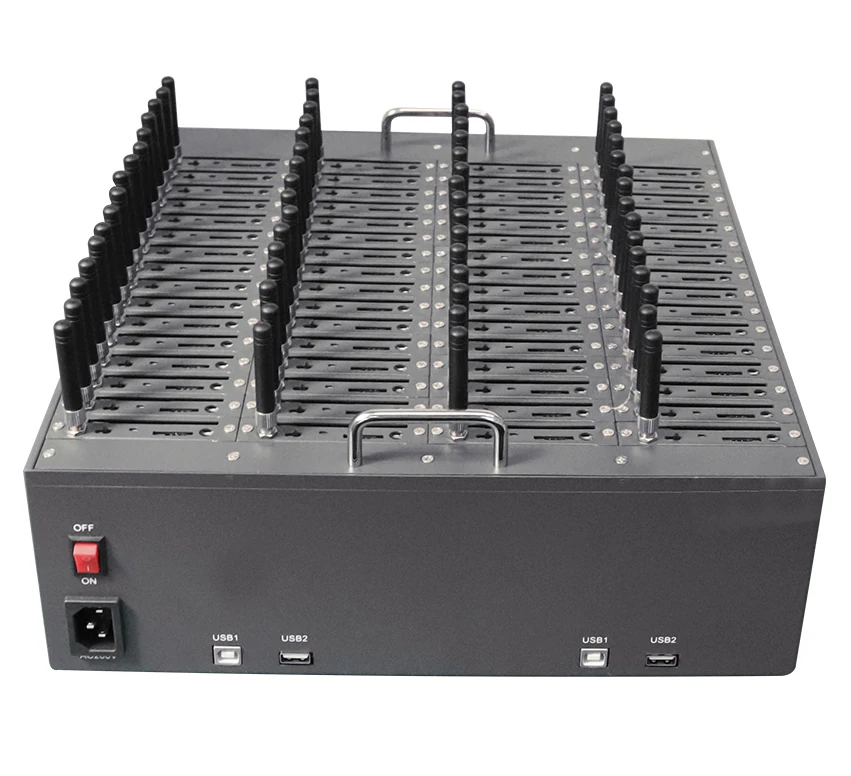

Detailed Pictures

Packaging & Shipping

Packing List:

(1) SMS Modem Pool x 1

(2) USB Cable x 2

(3) Power Supply Adapter x 1

(4) Antennas x 64

Trade Terms	FOB, CFR, EXW, DAP
Payment Terms	Alibaba via Credit Card, Payonner, Payonner link via Credit Card, T/T, Webmoney, Skrill, Western Union, Cash
Payment Condition	100% deposit in adavance
Delivery Time	1-3 days after full payment
Packing	Strong Carton Box with Water Proof
Shipping	DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require

FAQ

Q.1: How to change IMEI?

(1) Open Putty
(2) Click " Serial"
(3) Input the com port in "Serial line" such as COM 1
(4) PUT IN "at&f"
(5) Put in "at+cgsn"//check IMEI
(6) at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134"
if you put in imei is wrong ,it will reset or keep old IMEI
(7) put in "at+cgsn"//check new IMEI

Q.2: How to make call?

(1) Open Putty
(2) Click " Serial"
(3) Input the com port in "Serial line" such as COM 1
(4) PUT IN "at&f"
(5) Put in "ate1"
(6) Put in "atd number;" for example: atd 0976006161;
(7) Put in"ATH" hung off call

Q.3: How many kinds of modem for 2G GSM, 3G and 4G module?

M26/M35 for 2G GSM, UG96/UC20 for 3G, EC25 for 4G

Q.4: How is the sending speed of 2G, 3G and 4G modem?

2G: 1000 SMS per port per hour.

3G: 2800 SMS per port per hour.

4G: 3000 SMS per port per hour.

Q.5: How about our service?

We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.

Q.6: What is our main express shipment?

DHL,UPS,FEDEX,TNT,EMS,Aramex(can ship to anywhere all over the world)

Q.7: How long we're warranty ?

1 year.
