Bosesh-SD13W

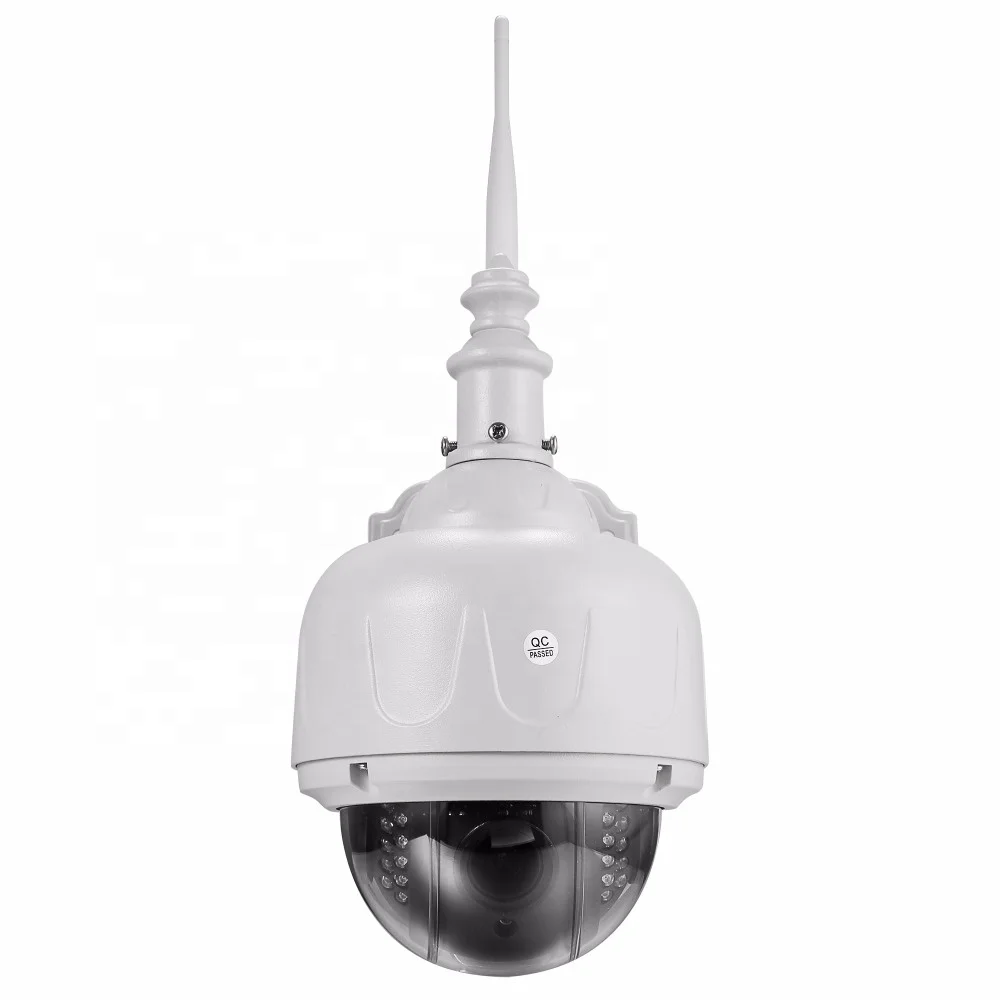

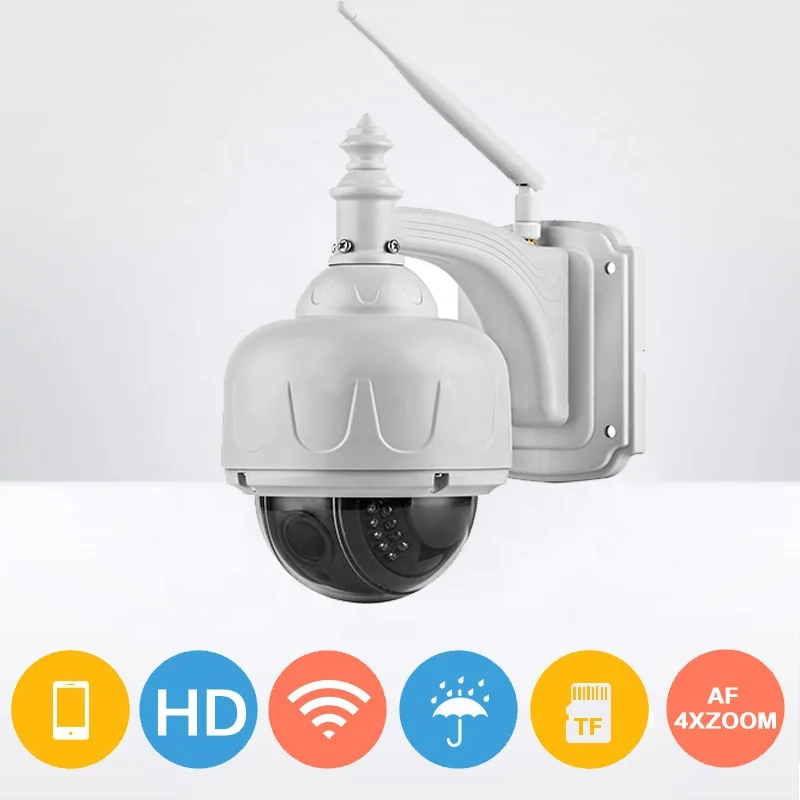

Outdoor ip ptz hd camera 960P 5X video hd full with TF card wifi ptz outdoor dome ip camera
1.Support WIFI
2.Support TF card. up to 128G
3.2.7-13.5mm 5X zoom auto focus module (optional 4X )
4.Pan tilt rotation. horizontal:355°&vertical:90°
5.Support P2P. view & anywhere & anytime
6.Waterproof IP66
76pcs infrared LEDs. 40m Night Vision
8.Elegant outline and easy installation
9.Provide android & ios APP and multi-channel CMS PC client software.
SPECIFICATION
Camera | Operating system | Embedded Linux OS |
Processor | HI3518EV200 | |
Sensor | 1/3'' SC1135 low lux CMOS | |
Lens interface type | M12 | |
Lens | 2.7-13.5mm 5X optical zoom auto focus lens | |
View angle | 89.9°-26.2° | |
Min.illumination | 0.01 Lux / 0 Lux (IR on) | |
Day&Night mode | Auto IR-CUT | |
Night vision distance | 22pcs 850nmΦ5mm IR LEDs. IR irradiation distance 20m | |
Video | Video compression standard | H.264 Main Profile/H.264 Baseline |
Video streaming | Dual streaming | |
Video resolution | First stream: 1280x960, 1280x720 Second stream: 640x480/640x352, 320x240/320x176 JPEG stream(Monitoring for mobile phones): 640x352, 320x176 | |
Video code rate | 32~6144Kbps, supports constant bitrate/variable bitrate | |
Video frame rate | 25fps | |
Image settings | Brightness, saturation, contrast, sharpness, exposure, flip, mirror | |
Image enhancement | Backlight compensation, Automatic white balance, Digital WDR, 3D digital noise reduction | |
Audio | Audio compression standard | G.726/G.711 |
Audio code rate | Rate adaptive | |
Function | Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) |
Alarm linkage | Alarm send pictures to the specified mailbox, alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm message push | |
Privacy mask | Maximum support 4 users to simultaneously browse | |
OSD | Support camera name, date and time information superimposed | |
User management | Supports user and rights management | |
Simultaneous viewers | Maximum support 4 users to simultaneously browse | |
Network protocol | TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc. | |
Connection protocol | Support ONVIF 2.1(backward compatible) | |
Wireless | Wireless standards | IEEE802.11b/802.11g/802.11n Draft |
Frequency range | 2.4 GHz ~ 2.4835 GHz | |
Wireless Security | 64/128-bit WEP/WPA/WPA2/WPA-PSK/WPA2-PSK/WPS | |
Transmission rate | 11b: 11Mbps/11g :54Mbps/11n :135Mbps | |
PTZ | Rotation angle | Horizon: 0°~355°. Vertical: 0°~90° |
Horizontal speed | 10°~ 30°/S | |
Vertical speed | 8°~ 25°/S | |
Preset | Support 8 preset points | |

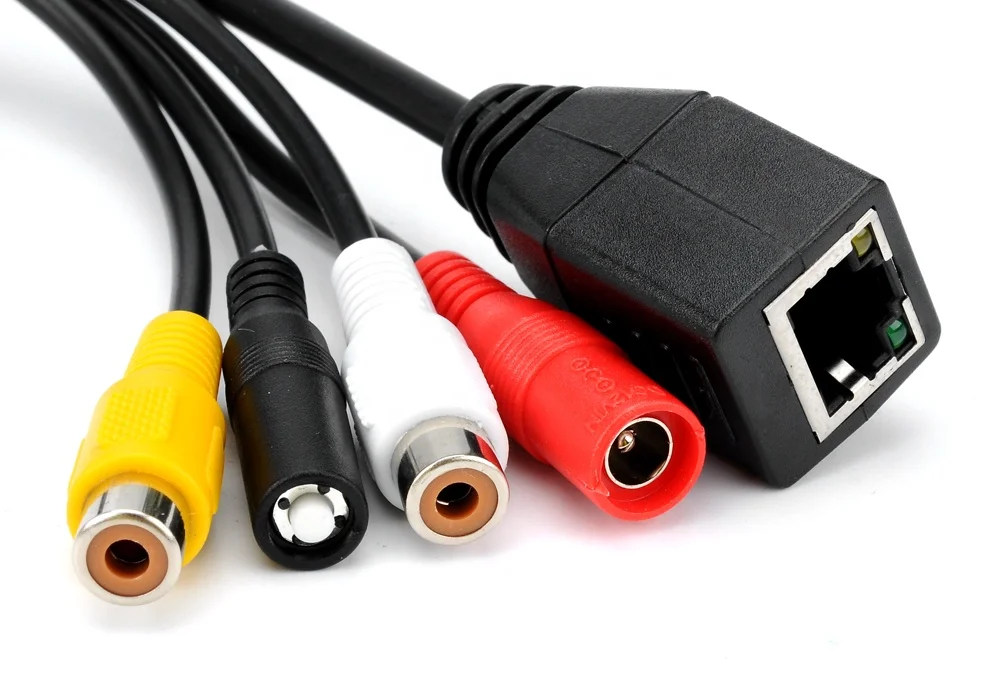

Interface | Power interface | 1 5.5mm power interface |
Ethernet | 1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | |
Audio Input | 1 input, Support MIC input / line input | |
Audio output | 1 output | |
TF card Slot | 1 TF card slot, up to 128G | |
Reset button | Support | |
General specification | Power supply | DC 12V 2A |
power | Day: <5W, Night: <12W | |
Operating temperature | -20℃~+60℃ | |
Operating humidity | 10%~95% | |
Waterproof level | IP66 | |
Material | Aluminum | |
Installation | Rack mounting | |
Size(W*D*H)(mm) | 230×125×215 | |
Weight(kg) | 1.0kg | |

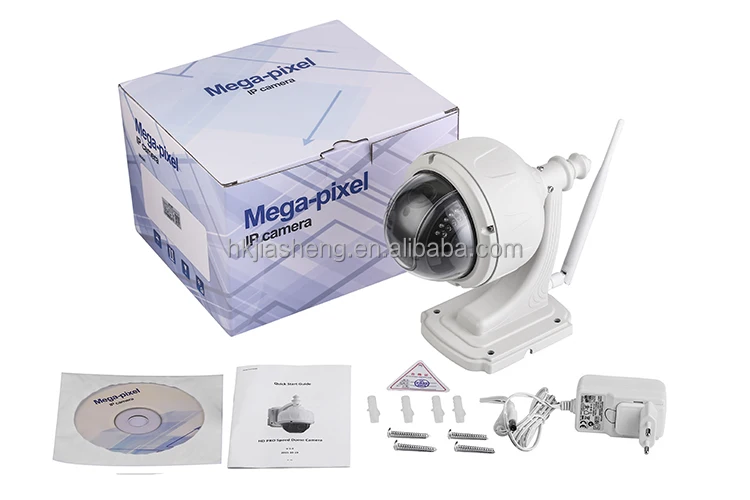

Accessories | 1*1.5M Power supply, 1*CD, 1bag*Screws, 1*antenna, 1*manual | |
Package Size(W*D*H)(mm) | 260*230*170 | |
Package Weight(kg) | 1.5kg |
Certificates
OEM:
Customer LOGO can be stuck / printed on goods / color box upon confirmed.
Customer service:
1. You inquiry via email will be replied within one business day.
2. Customer service hotline: 0086-0755-23057712
3. We will provide best pre-sale and after-sale service.
Shipping&Handing:
1. We support to ship via Sea, Air, Express(DHL, UPS, FedEx, TNT, EMS, China Post),
if you prefer other courier, please communicate with our sales consultant to customize for you.
2. All orders will be dispatched within 1 to 20 business days from the date we confirmed the order.
3. IMPORT duties, taxes or other custom charges may incur. The buyer is responsible for all import
duties and local taxes. Please verify with your local custom before any purchases.
Warranty&Returns:
1. We will replace a new item within 3 months. We will repair well within 1 year.
We provide lifetime maintenance.
2. We bear for our side shipping fee of returning back buyers; and buyers bear
for buyer side shipping fee of returning back seller.
3. We will re-ship back buyer within 10 days from the date we signed the returning
parcel from courier.
Payment:
We accept T/T, Western Union or Paypal before production.
