Product Description

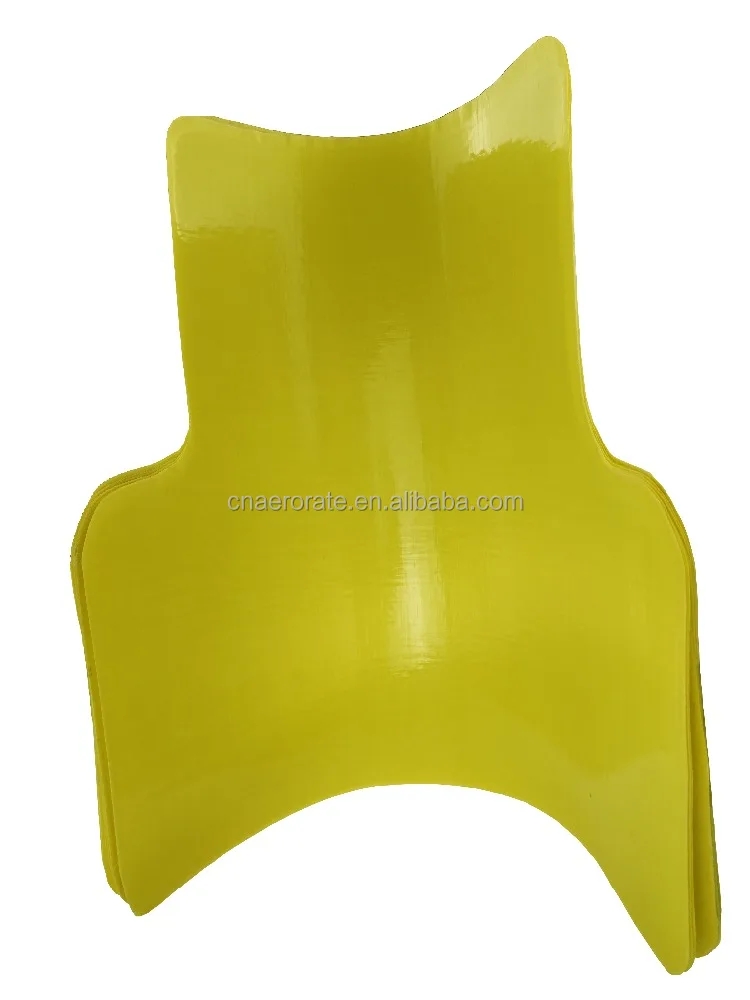

 Pure Aramid UD Soft Bullet&Stab Proof Vest

The soft bullet&stab proof vest of our company, Patent ZL 201610496066.3-Comfortable bullet and stab proof vest and its manufacturing method , is made of special Aramid UD fabric, it's raw materials is high strength and high modulus imported aramid fiber. It is produced through multi-channel accurate technology process with aerospace special  equipment technology and aerospace environmental protection substrate.As the first softest product of this generation, which made of pure Aramid UD fabric, it solves poor stab resistant performance of Aramid UD fabric by special technology, and overturns the concept that the Aramid UD fabric can’t be used as the stab resistant material,in the meantime,it shows the excellent bullet resistant performance of Aramid UD fabric.Our product bullet&stab proof vests has an excellent performance and high cost-effective,no matter on the protective performance or the softness and the comfort.In terms of various domestic authorities tests,it is conform to the middle protection level of NIJ0115.00 and the NIJ stab resistant level II,at the same time, it also meets the NIJ 0101.06 ballistic resistant level IIIA.

.jpg

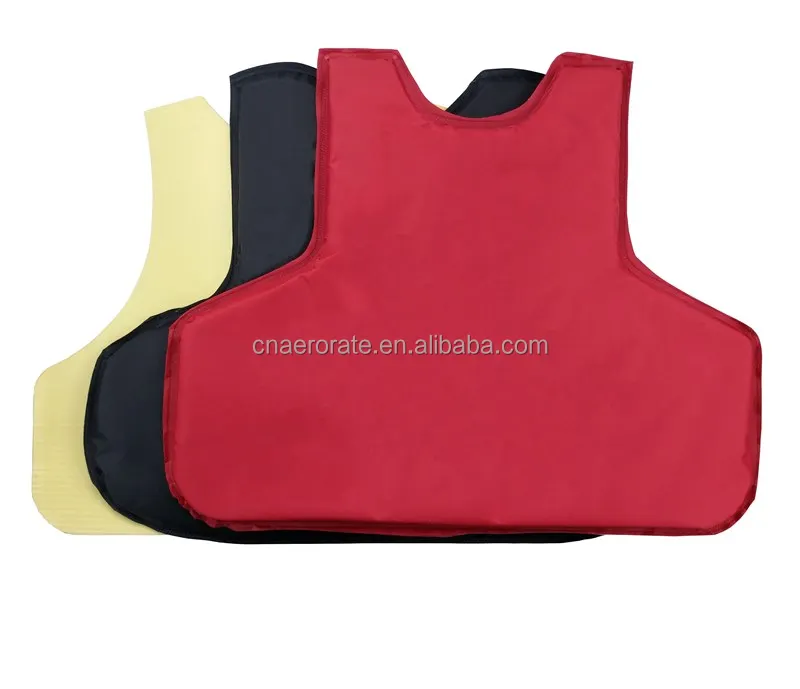

Each bullet&stab proof panel is engineered to provide unparalleled protective performance, while ergonomically designed to follow the body’s natural shape and movement for flexibility and enhanced range of motion. With maximum coverage, stopping power, and all-day comfort, performance is in every detail.



Protection level

(kg/m2)

Areal density

(mm)

Thickness

According to level

Stab resistant:NIJ level I

Bullet resistant: NIJ level ⅢA

7.2

12

NIJ0115.00/NIJ0101.06

Stab resistant:NIJ level II

Bullet resistant: NIJ level ⅢA

8.1

13

NIJ0115.00/NIJ0101.06

Properties

  • According to customer’s requirements, whether you need Polyethylene or Aramid, the same goes for level of stab resistant protection.

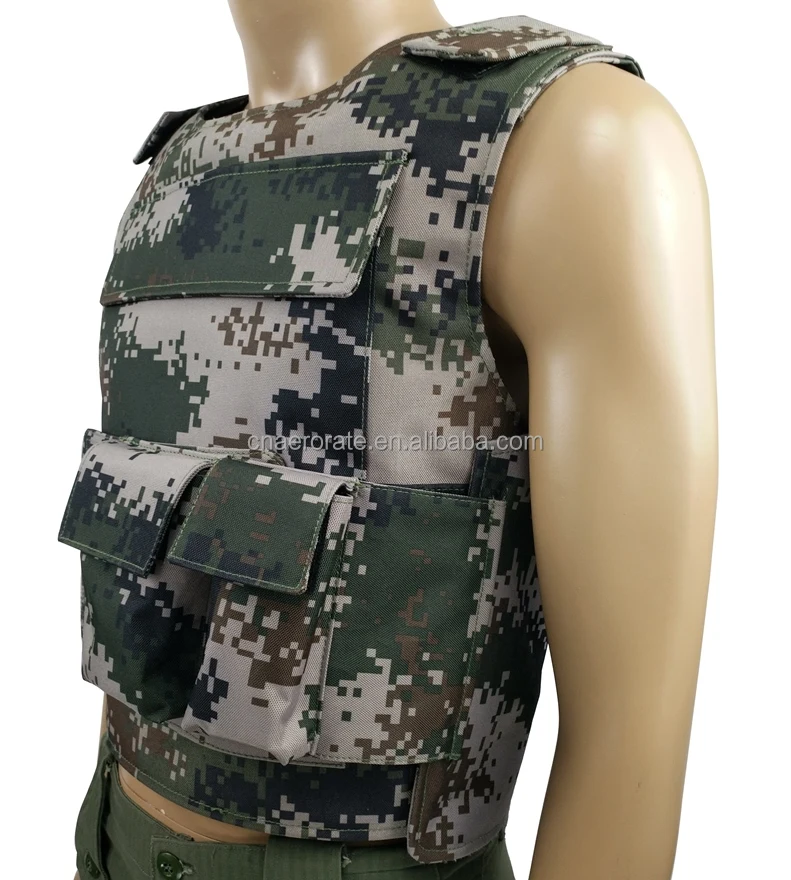

  • A kind of concealed stab resistant vest could be worn under the jacket.
  • According to customer’s requirements, we’d like to commend some products for choice or design the new one for you.

    .png

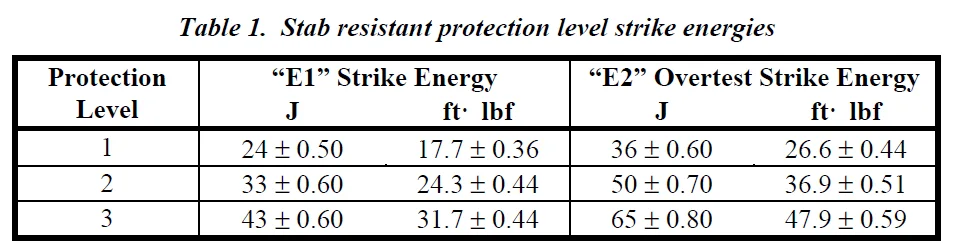

Different types

    Level 1

    This armor protects against low energy threats with a strike energy of 24 J (17.7 ft· lbf).

    The overtest condition for this level is 36 J (26.6 ft· lbf).

    Level 2

    This armor protects against medium energy threats with a strike energy of 33 J

    (24.3 ft· lbf). The overtest condition for this level is 50 J (36.9 ft· lbf).

    Level 3

    This armor protects against high energy threats with a strike energy of 43 J (31.7 ft· lbf).

    The overtest condition for this level is 65 J (47.9 ft· lbf).

Performance

Type IIIA (.357 SIG; .44 Magnum)
Type IIIA armor that is new and unworn shall be tested with .357 SIG FMJ Flat Nose
(FN) bullets with a specified mass of 8.1 g (125 gr) and a velocity of 448 m/s ± 9.1 m/s (1470
ft/s ± 30 ft/s) and with .44 Magnum Semi Jacketed Hollow Point (SJHP) bullets with a specified
mass of 15.6 g (240 gr) and a velocity of 436 m/s ± 9.1 m/s (1430 ft/s ± 30 ft/s).
Type IIIA armor that has been conditioned shall be tested with .357 SIG FMJ FN bullets
with a specified mass of 8.1 g (125 gr) and a velocity of 430 m/s ± 9.1 m/s (1410 ft/s ± 30 ft/s)
and with .44 Magnum SJHP bullets with a specified mass of 15.6 g (240 gr) and a velocity of
408 m/s ± 9.1 m/s (1340 ft/s ± 30 ft/s).


NIJ Standard 0101.06 performance test summary


 NIJ 0101.06 Testing Report

0101.06 testing report.jpg

Quality Assurance

This type of ballistic helmet use international superior fiber as material, supplemented by a special process technique. It can meet the level NIJ IIIA and GA-2, can defend .44Mag and Chinese 54 handgun bullet.


Packaging & Shipping

  The product external packing is carton packing.



  -1 .jpg



Our Services

To provide safe quality products, we always adhere to the goal.

Serve concept: Serve for honor, good faith is gold!

Led by the customer-oriented service soncept, Beijing Rate New Technology Corp. to beome the first class ballistic produts supplier.



Company Information



Beijing Rate New Technology Corp. was founded in 1992 and is owned by 101 institute of China Aerospace Science and Technology Corporation, as a high technology-oriented and new tech enterprise, we are professional in high-performance fabrics, fiber reinforced composites and individual protection equipments designing and processing. Moreover, we are the first modern scale production industrial manufacturer of Aramid UD fabrics in China, both of our production and sales are at the top of the individual protection market in Aramid applying area.

Our Aramid fabric and ballistic products have passed through the weapon and equipment quality system authentication of GJB9001B-2009, and already get the “Weapon equipment research and production licenses” awarded by the China's National Defense Science and Industry Bureau. Now we are the member of the Chinese people's Liberation Army General Armaments Department ”Equipment manufacturing unit catalog”, so we have the legitimate qualifications to produce and sell the military equipments.

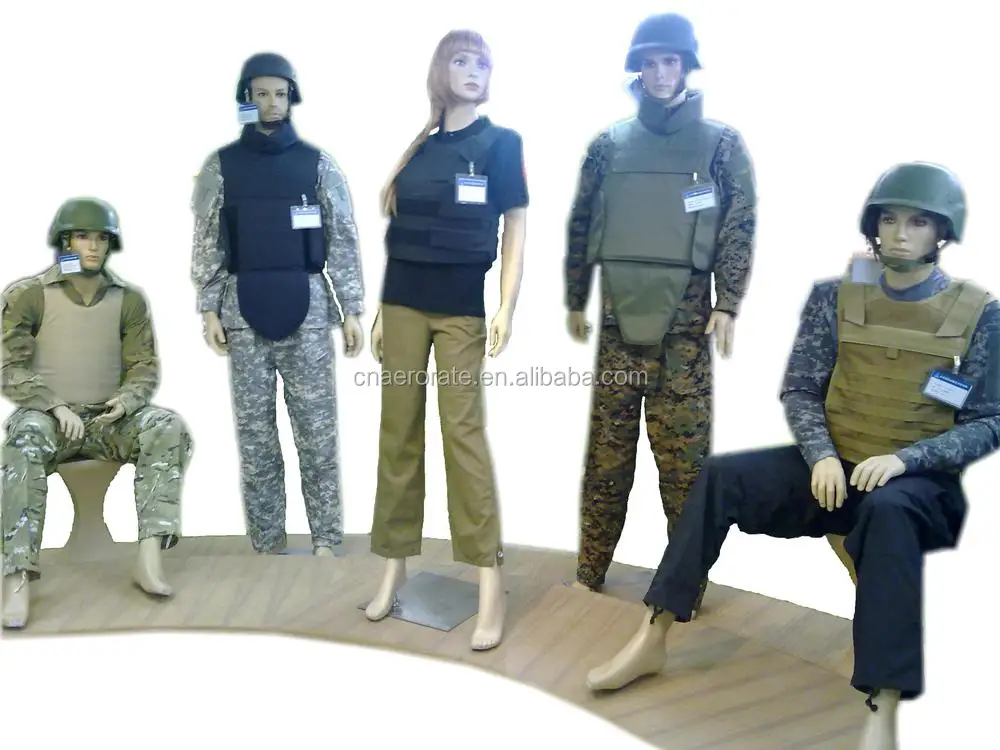

At present, the main products launched into the market are:Aramid UD Fabric, Aramid/ PE ceramic composite bulletproof plate, Aramid light bulletproof vest, Bulletproof and stab proof vest, Aramid composite bulletproof helmet, Bulletproof shield, Riot suits, Explosion-proof blanket and so on. They all passed the test of General specification for police body armor GA141-2001, the material quality standards of the relevant offices of the China Weaponry Industry Corp and the Ministry of Public Security. PR China. The Aramid bullet proof vest series products passed the NIJ test in international testing organizations---US White Laboratory, reached the international advanced level.
