Hot dipped galvanised metal W D pale palisade fencing/post and rail steel palisade fencing supplies fence post
Product Description

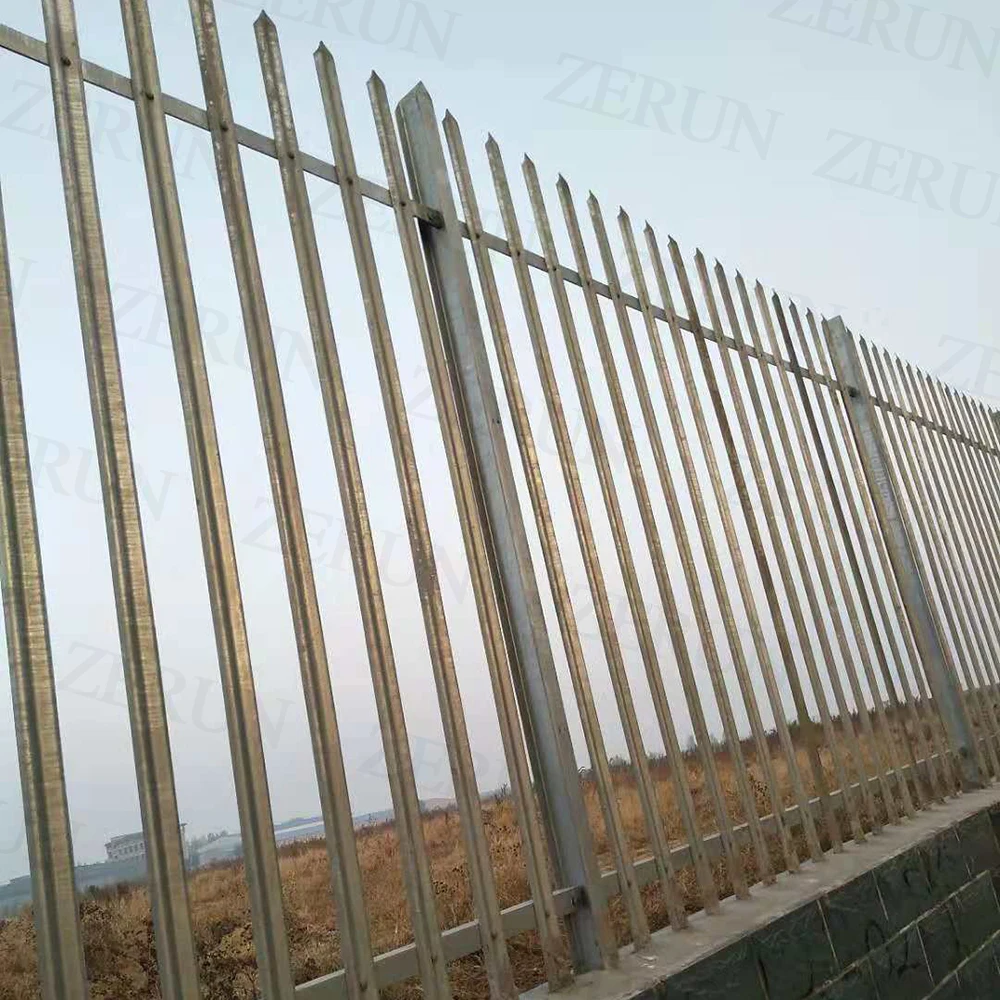

DESCRIPTION OF PALISADE FENCE
Palisade Fence widely accepted as the industry leader to protect and deter general attack from all types and
conditions of intrusion.The pales are made of hot formed and cold rolled steel belts.These belts offer both
strength and rigidity combined with a long life span. Palisade normally produce three types of pales,
"W" profile, "D" profile and angle iron.
PALE TYPE OF PALISADE FENCE
\u0081D section pales.
Working with long bolts, are designed for boundary delineation requiring low to medium security and damage resistance.

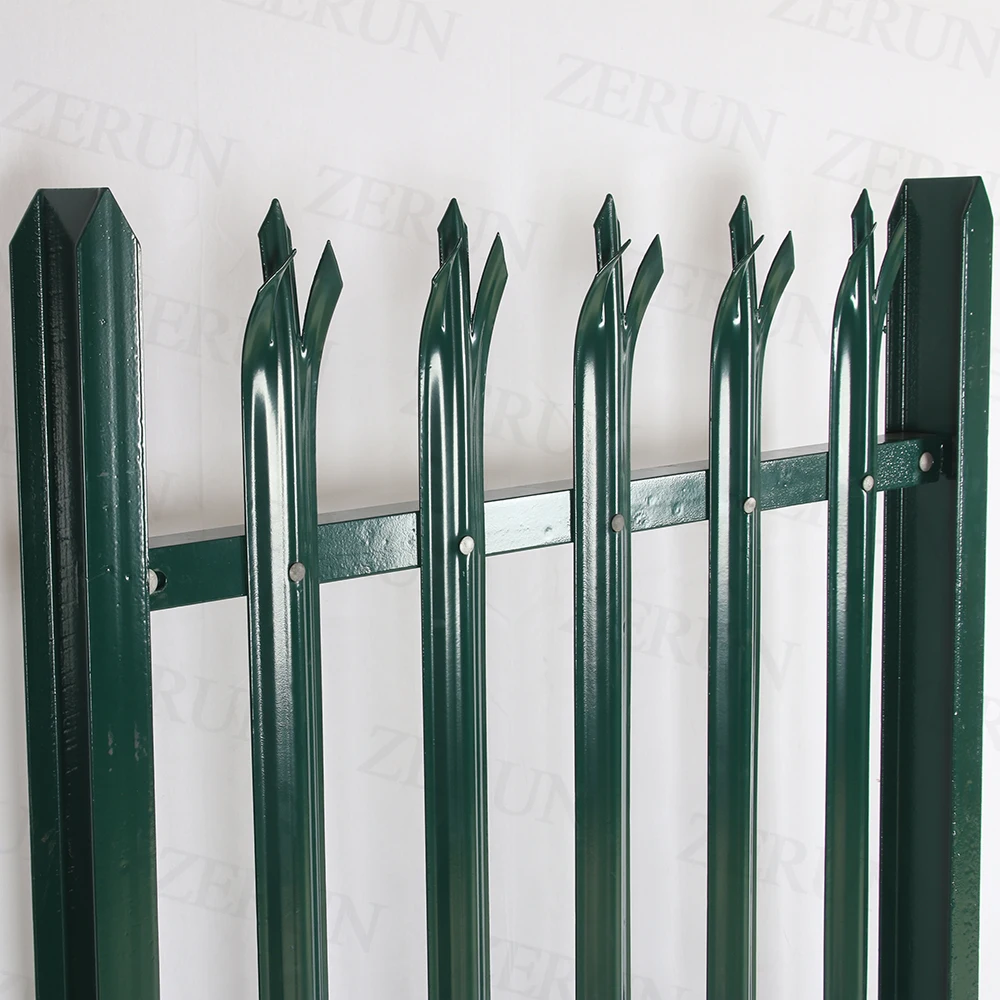

W section pales.
with higher inherent strength and better vandal resistance, are the most used type to provide effective high security and extra protection. Fastened by short bolts, the W type palisade pales are flush against the horizon rails without flexibility.
Angle steel pales.
Bolted or welded to horizon fence rails, are suitable for general purpose applications, such as residential estates protection.
SPECIFICATIONS OF PALISADE FENCE
Pales-"W" section
Most useful vertical type of pales for palisade fencing, which is always the customers' first choice for pales .
Width | Thickness | Surface Treatment | Head | Height |
68mm | 2.0mm | Galvanized and Electrostatic polyester coated or Hot dipped galvanized | Single point | 1200mm---3000mm |
Pales-"D" section
Compared with "W" profile pales, "D" profile is more economical.
Width | Thickness | Surface Treatment | Head | Height |
60mm | 2.0mm | Galvanized and Electrostatic polyester coated or Hot dipped galvanized | Single point | 1200mm---3000mm |
Pale-Angle iron
Its cost is similar with "D" profile ,but its structure is simpler than "D" profile.
Width | Thickness | Surface Treatment | Head | Height |
40x40 | 2.0mm | Galvanized and Electrostatic polyester coated or Hot dipped galvanized | Single point | 1200mm--3000mm |
Post- IPE Type
As a connection pipe between the fence panels, IPE type is the most useful way.
Size | Thickness | Surface Treatment | Head | Height |
100x55mm | 3.5mm | Galvanized and or Hot dipped galvanized | Cut sharp | On the fence height basis |
Rail- Angle Iron
It is the connection between pales and IPE post, which make the fence as a whole panel.
Size | Thickness | Surface Treatment | Holes | Length |
50x50 | 5.0mm | Galvanized and or Hot dipped galvanized | With19 holes drilled on one edge side | 2710mm |
DRAWING AND INSTALLATION
Colour of Palisade Fence
Customized is available
APPLICATION OF PALISADE FENCE
*Apartment buildings protection solutions;
*Industrial facilities protection solutions;
*Telecom & Mobile tower base station protection solutions;
*The airport port & harbor protection solutions;
*Roads and railways protection solutions;
*The border protection solutions;
*Defence and prison protection solutions.
BENEFITS OF PALISADE FENCE
Deter and Delay
The Palisade fence system presents an architecturally-pleasing security barrier design that deters potential attacks with pale designs to discourage scaling, and delays intrusion with highstrength steel construction designed to withstand impact.
Fast Installation
Because of its unique rail support, this security fence can be installed in as little as half the time required of conventional systems that are set between posts.
Security Integration
This barrier solution can be integrated with Intrusion Detection and other electronic security components, protecting cabling through a raceway of steel rails within the framework of the Palisade Fence System.
Long Service Life
High-quality galvanized steel is coated with our exclusive superdurable, Architectural Grade Powder Coating, providing the industry’s longest-lasting protection.
WORKSHOP
Company Information
Raoyang Zerun Metal Wire Mesh Co.,Ltd is located in Raoyang County, Hebei Province, China, which is the hometown of wire mesh. It found in2002, has two plants, covering 62000 square meters. It is a large scaled and modern production type enterprice engagedin research and development and producing and selling defensive barriers, gabion baskets, 3D fence, 358 high security fence,Chain link fence and temporary fence. 268 employees including 34 engineers guarantee good service, high quality, fine delivery time and best price all over the world.
Customer Photos
Customer Photos
The company's products cover 30 countries around the world. More than 75 companies worldwide have become our sales agents. Every year, more than 10 new companies around the world will become our partners.
CERTIFICATES
The company attaches great importance to the safety of protective nets. In addition to applying for ISO9000 certification of professional precision machinery, the company has also applied for CNAS, ILAC and other international certifications, so that the company's products will not be affected worldwide.
Our Advantages
All our sales personnel are not only familiar with the products, but also understand the basic knowledge of the safety protection of the infrastructure construction. With these skills, they can not only provide professional product introduction and use guidance before sales, but also provide various precise products for customers who buy our products in after-sales service.

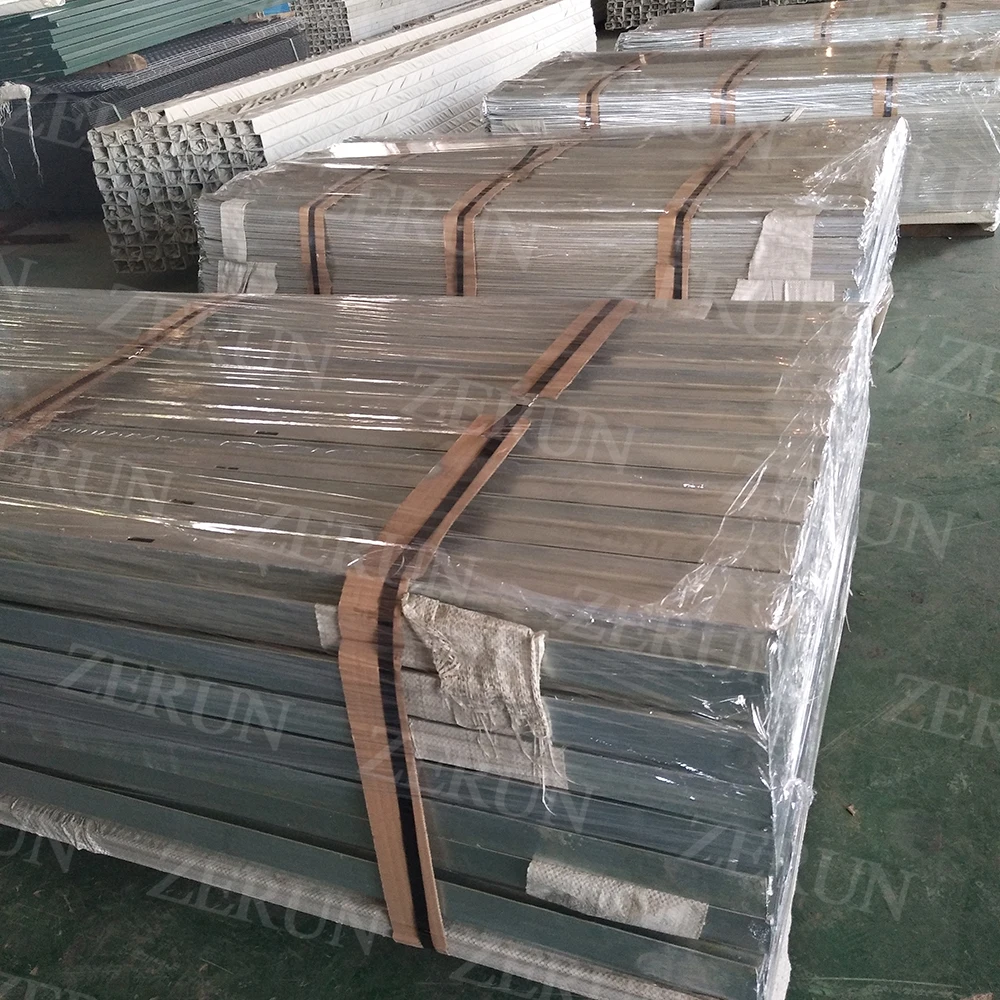

Packaging & Loadin
Packaging & Loadin
Logistics&Payment
Logistics&Payment
Packing offered | 1.fence panel:plastic film + metal pallet 2.fence post:each post pack with a plastic bag + metal pallet or according to customer requirement. |
Price term and validity | EXW,FOB and CIF price validity for 7 days |
Payment Term | CIF term: T/T, 30% deposit, 70% balance payment against the copy of B/L. FOB term: T/T, 30% deposit, 70% balance payment before shipping. EXW term: 100% T/T, or 30% deposit, 70% payed before loading in container.
|
Production time | About 15-30 days (based on order) after receiving deposit |
Shipment term | By Sea. Special situation is negotiated |
Nearest Port
| Xingang ,Tianjin port |
Samples | Samples are available but you need pay for the sample price and freight fee. |
WHY CHOOSE US
WHY CHOOSE US
1>Reply your enquiry in 24 working hours.
2>Experienced staffs answer all your question in professional and fluent English.
3>Samples are available free.
4>Exclusive and unique solution can be provided to our customer by your own well-trade and professional engineers and staffs.
5>Special discount and protection of sales area provided to your distributor.
FAQ
FAQ
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide service.
Похожие товары
DC 12 В Электрический забор трансформатор Забор электрический Energizer
118,00-125,00 $
Стальные ворота с двумя входными воротами 5 бар
Литые алюминиевые ворота китайская фабрика раздвижные наружные металлические smart Lane
150,00-180,00 $
Лидер продаж современные Железные Решетки дверные ворота с автоматическим Открывателем ворот
200,00-225,00 $
Индивидуальные наружные главные ворота современные частные металлические алюминиевые автоматические распашные для дома двойные открытые четыре двери
199,00-239,00 $

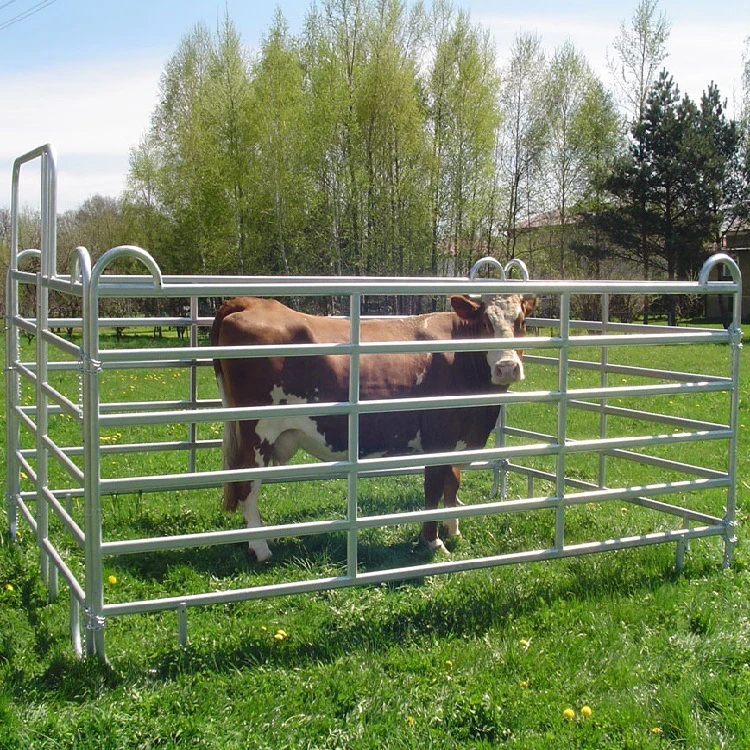

Дешевые Различные размеры популярные панели для скота продажи
30,50-63,00 $

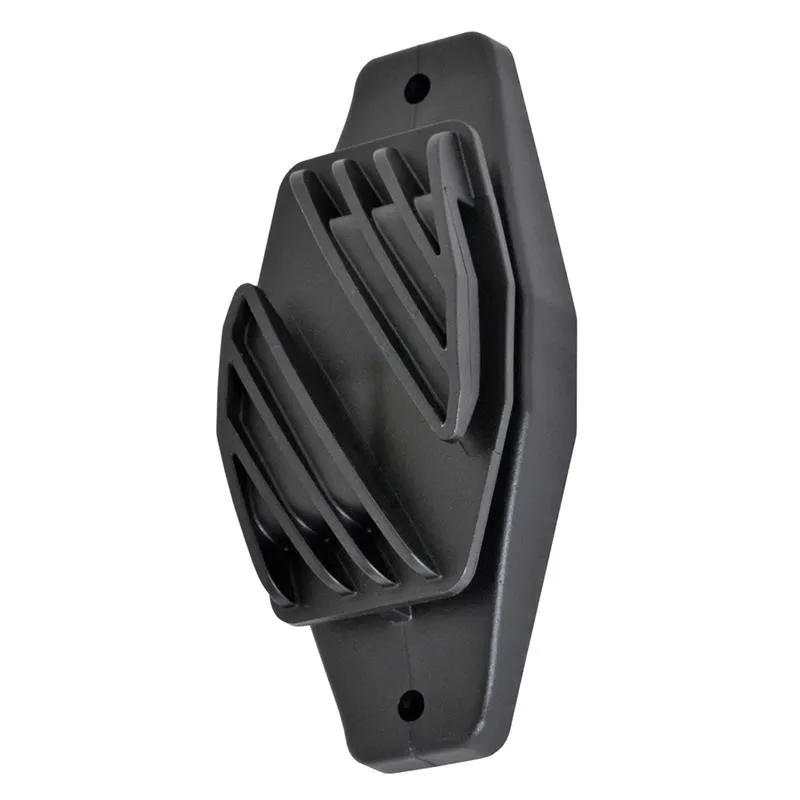

Лидер продаж ленточный изолятор с УФ-стойкостью для электрического забора лента до 40 мм
