Сохранить в закладки 60595759480:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


smd led

Dimension

\t
Model No.
\t
HYZM-SMD5050
\t
Power
\t
0.2W
\t
Voltage
\t
3V
\t
Current
\t
60mA
\t
Chip Brand
\t
Sanan
\t
Chip Size
\t
8*15
\t
Color
\t
white
\t
Lumens
\t
22-24LM
\t
Lifespan
\t
50,000 hours
\t
Warranty
\t
3 years

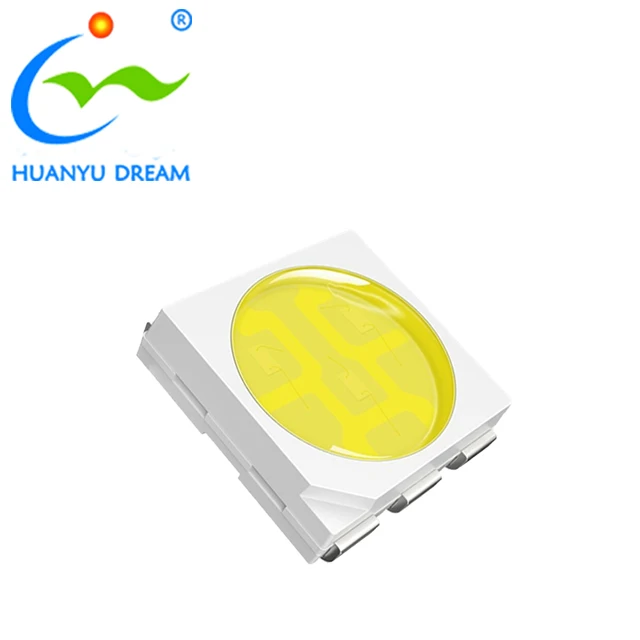

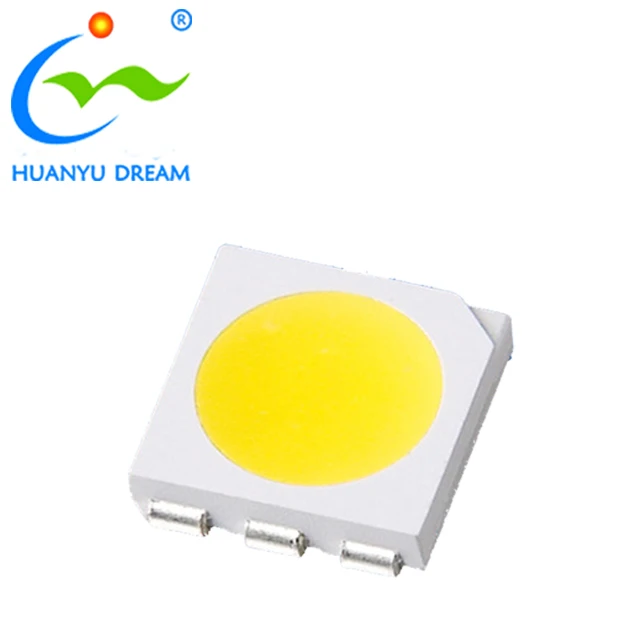

Huanyu Dream SMD LED Chip use Gold Wire and Copper Stand only !

epistar smd led chip 5050 0.2w 22-24lm smd led 5050 3v 3030 rgb led strip

epistar smd led chip 5050 0.2w 22-24lm smd led 5050 3v 3030 rgb led strip

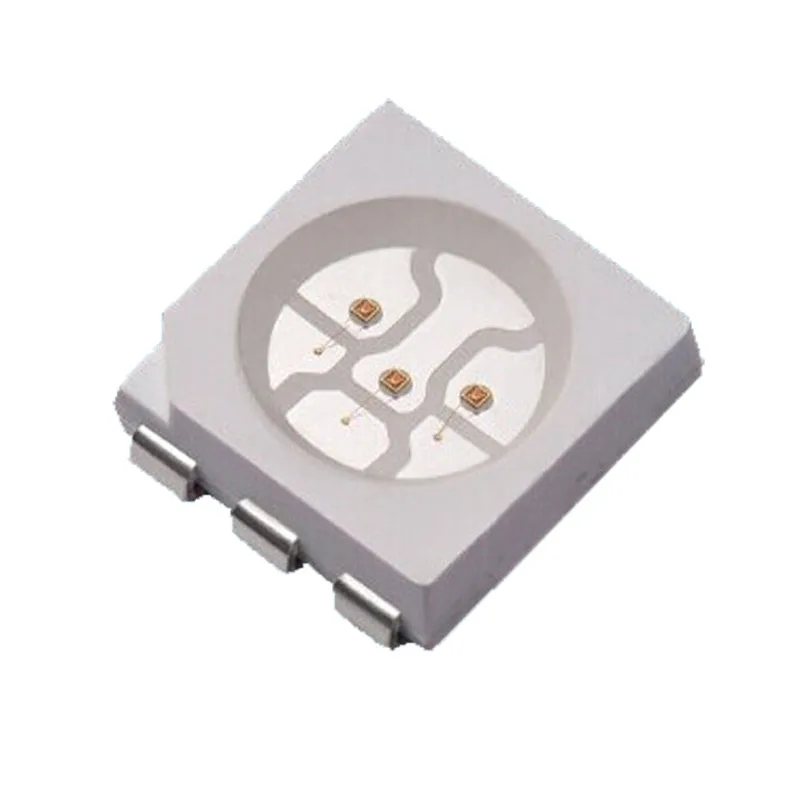

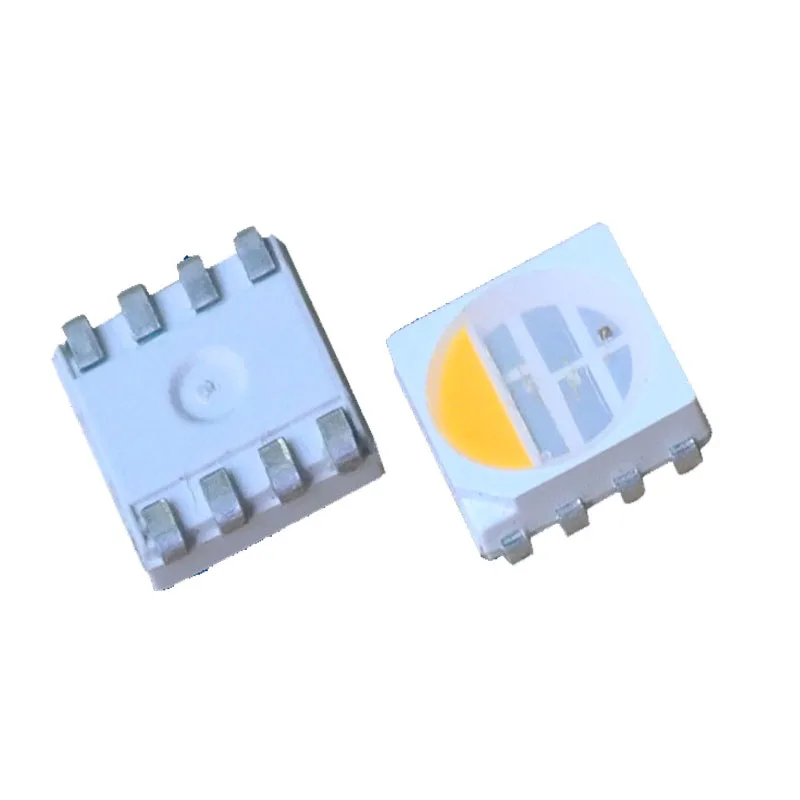

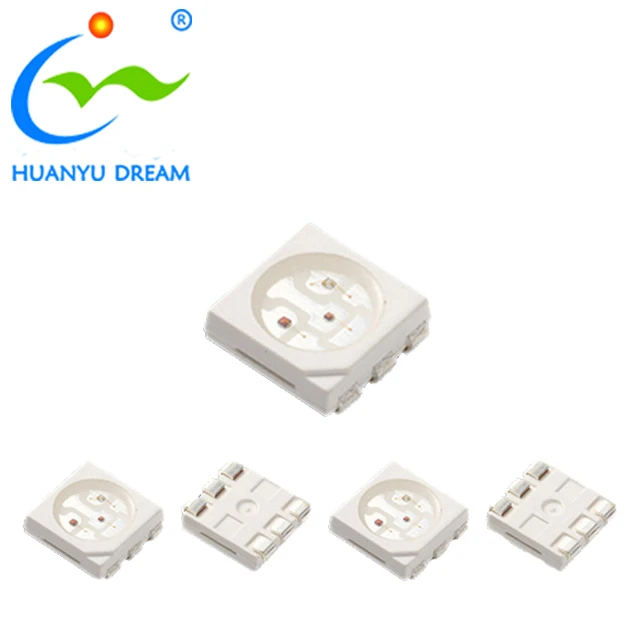

Huanyu can manufacture the 5050 0.2W,different color such as RGB, White, warm white, Red,Green,Blue,Yellow,UV purple colors single color,and ailailable chip Sanan, Epistar,Hualei,will have the one which you need.
More detail pls kindly contact us

Electrical / Optical characteristics epistar smd led chip 5050 0.2w 22-24lm smd led 5050 3v 3030 rgb led strip

Absolute Maximum Ratings (TA=25ºC) uv led diode, uv led chip, uv led light,smd uv led,uv smd led,uv led uv light

IFP Conditions : 1/10 Duty Cycle, 0.1 msec Pulse Width.

\t
Item
\t
Symbol
\t
Absolute Maximum Rating
\t
Unit
\t
Forward Current
\t
IF
\t
120
\t
mA
\t
Pulse Forward Current
\t
IFP
\t
150
\t
mA
\t
Reverse Voltage
\t
VR
\t
5
\t
V
\t
Power Dissipation
\t
PD
\t
1200
\t
mW
\t
Operating Temperature
\t
Topr
\t
-40ºC To +85ºC
\t
°C
\t
Storage Temperature
\t
Tstg
\t
-40ºC To +85ºC
\t
°C
\t
Soldering Temperature
\t
Tsld
\t
Reflow Soldering: 260ºC
Hand Soldering : 350ºC
\t
for 10sec.
for 3sec.

Initial Electrical/Optical Characteristics (TA=25±5ºC) epistar smd led chip 5050 0.2w 22-24lm smd led 5050 3v 3030 rgb led strip

\t
Symbol
\t
Item
\t
Units
\t
Min.
\t
Typ.
\t
Max.
\t

\t
VF
\t
Forward Voltage
\t
V
\t
3.0
\t
-
\t
3.4
\t
IF=60mA
\t
IR
\t
Reverse Current
\t
uA
\t
-
\t
-
\t
1
\t
VR=5V
\t
2θ
\t
Viewing Angle
\t
º
\t
-
\t
120º
\t
-
\t
IF=60mA
\t
ø
\t
Luminous flux
\t
lm
\t
22
\t
-
\t
24
\t
IF=60mA
\t
TC
\t
Colour Temperature
\t
k
\t
2800
\t
-
\t
3200
\t
IF=60mA
\t
RA
\t
Color Rendering Index
\t
Ra
\t
80
\t
-
\t
85
\t
IF=60mA

Cautions 1w 5730 smd led

1)Soldering Conditions

Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and Second soldering process.

2)Static Electricity

It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.All devices, equipment and machinery must be properly grounded.Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF > 2.0V at IF=0.5mA)

3)Moisture Proof Package

It is recommended that moisture proof package be used .

4)Storage

Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be
used within a year.

5)After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package.

Application of smd5050 led chip

sanan 60mA 3.0v led 55050 smd for 5050 strip light smd5050 led datesheet 0.2W

Main Material made in China factory HuanyuDream,150mA smd led chip,sanan smd led chip, 60lm smd led chip

We use the formal Epistar/Bridgelux/Epileds chip, 99.99% gold wire and copper base, Dow Corning glue,US Intermatix phosphors.

Color Standard/ Wavelenth

Different color with different Wavelength, we can supply the eccurate wavelength as your requiement

Except the SMD5050 LED, we also supply 2835smd 5730 smd  3030 smd with 6V, and 9V 18V can be support.

 welcome contact us to ask detail.



Our Advantage: own the LED special dust-free, anti-static workshop.
Formed a number of world-class United States ASM automatic machine crystalline solid,
ASM automatic soldering machines, H120 automatic LED light colour scanner

100% sure our quality is best.more detail pls check below.



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 3-7 days for order quantity more than

Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways paymant

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.



Huanyu Dream Technology is a professional manufacturer of SMD LED Chip, supply mainly products such as SMD5730, SMD 2835,SMD5050, SMD3528, SMD 3014,SMD4014, High power 1w 3w LED etc.

Our LOGO has been registered as a Trademake, please identified our Logo when you looking for the products,
and factory local in Shenzhen city Guangming district, welcome to visit us!

epistar smd led chip 5050 0.2w 22-24lm smd led 5050 3v 3030 rgb led strip


Contact person:Rose Lee
Moble:+86 18476655819
Wechat:+86 18476655819
Skype:roselee718
Email:rose(@)huanyudream.com

More info or any question welcome contact.
