Прямая поставка с завода Китайский ЧПУ роутер деревообрабатывающий для pdf
- Категория: Woodworking Machinery >>>
- Поставщик: Jinan Missile CNC Equipment Co. Ltd.
Сохранить в закладки 60598986930:
Описание и отзывы
Характеристики
Product Description

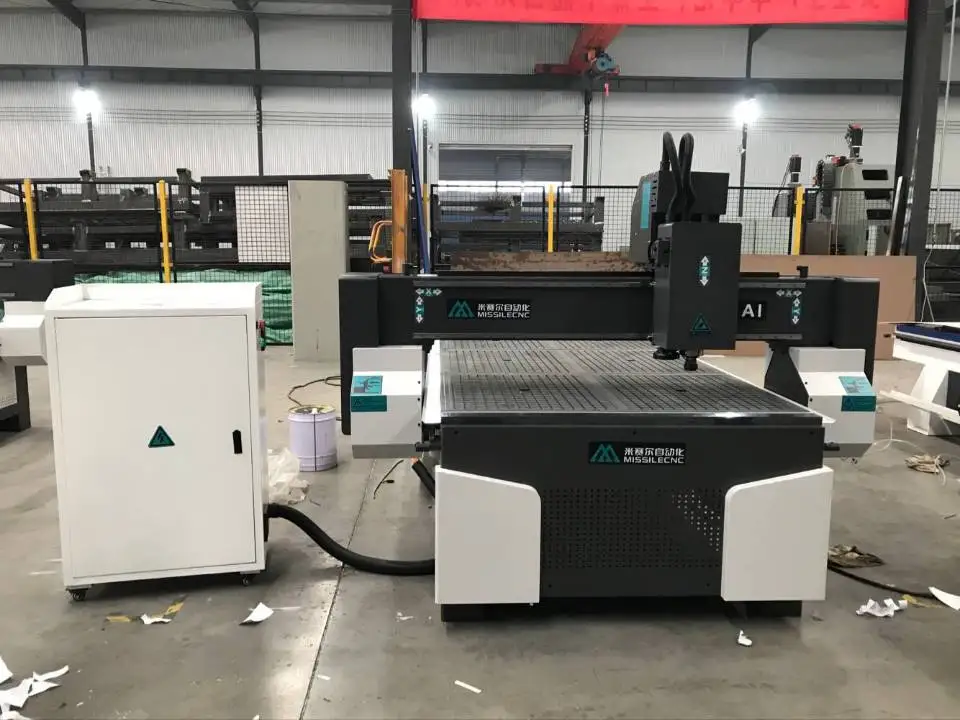

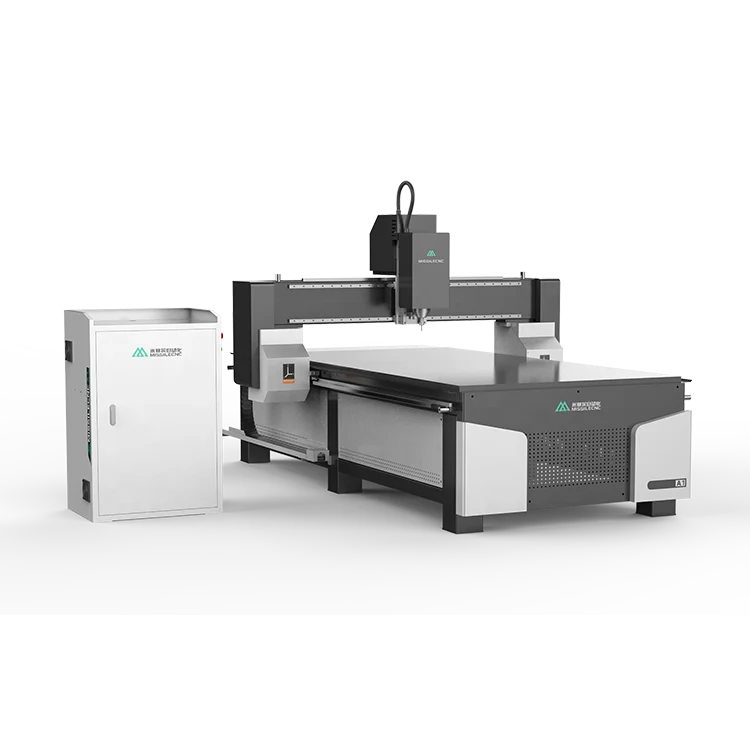

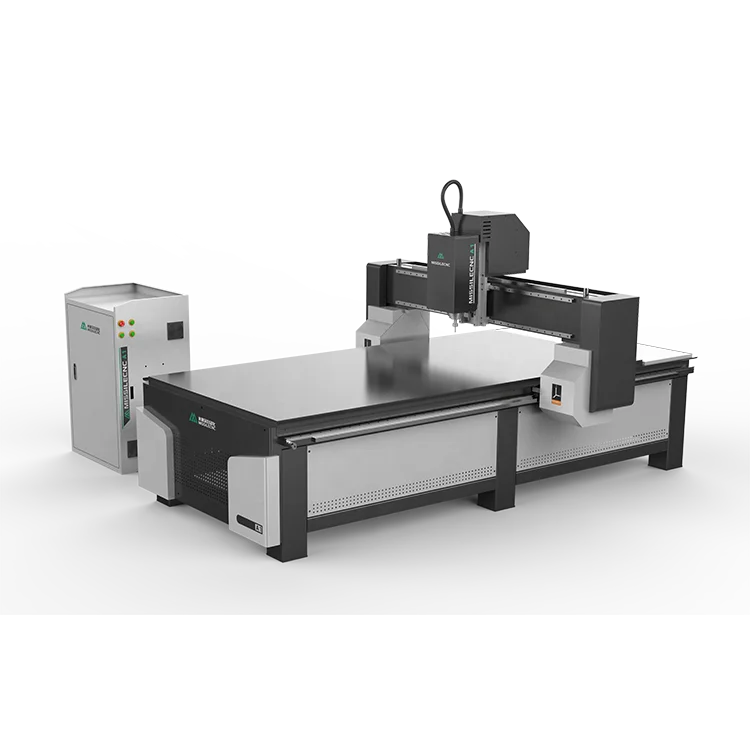

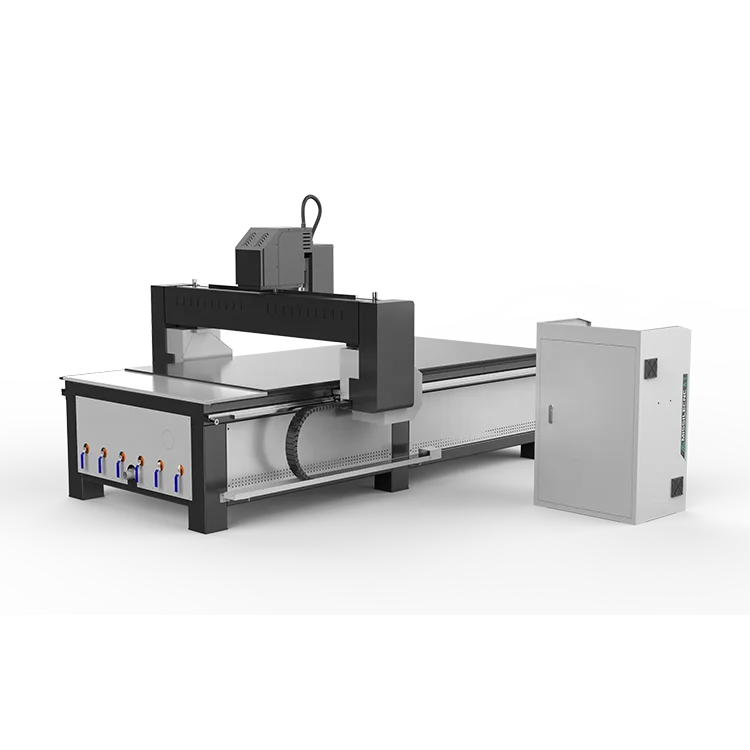

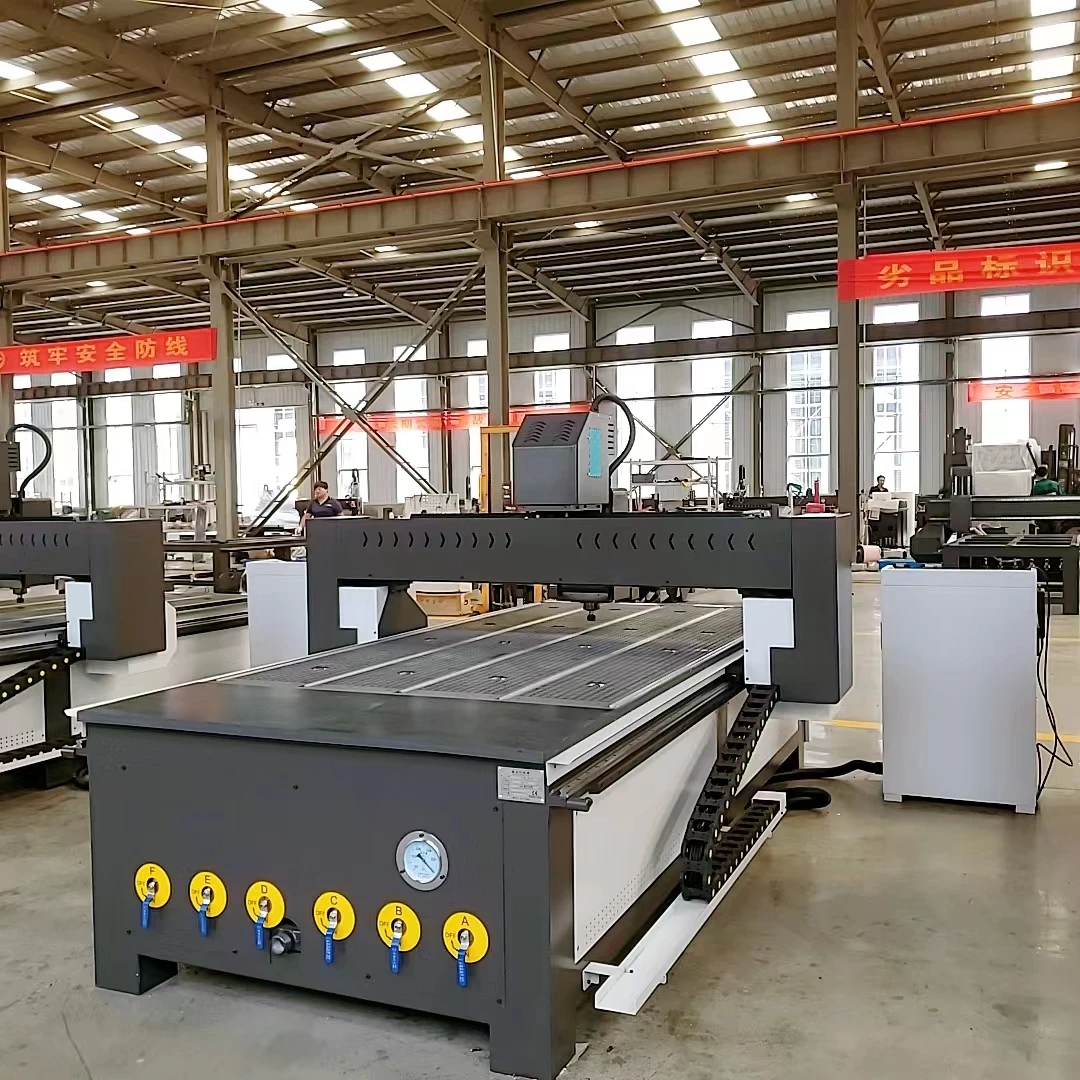

Economic cnc router A1
A1 model woodworking cnc router is made of high thickness square tube welded bed,imported square rail and high speeding stepper driver,It can do cutting and engraving many materials,such as MDF,Acrylic,wood,PVC,etc.And it is widely used in advertising and woodworking industries,It is an economic type CNC router.

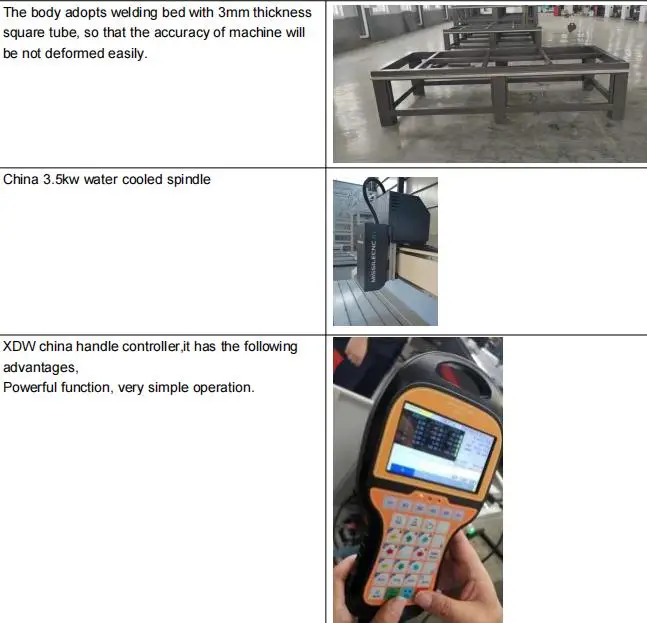

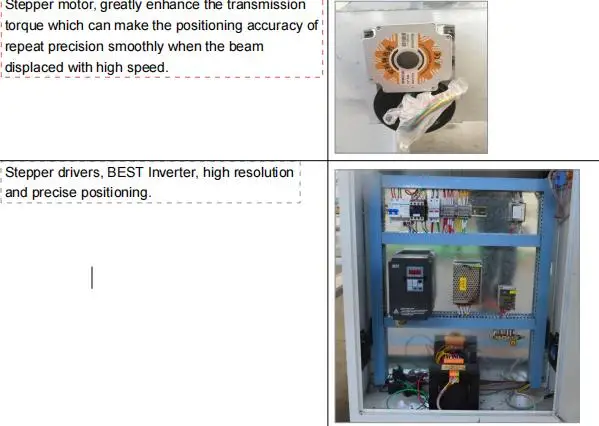

Details Images
Specification
Working area | 1300*2500mm |
Travelling positioning accuracy | 0.05mm |
Repositioning accuracy | 0.05mm |
Max.Travelling speed | 30000mm/min |
Max.working speed | 20000mm/min |
Spindle power | 3.5KW |
Drive&Motor | Stepper |
Working voltage | AC220V 1PH/380V PH |
Operating system | NC Studio |
Spindle rotating speed | 24000RPM |
Spindle | Water cooled spindle |
Control system | NC studio/DSP |
Transmission XY axis | Gear rack |
Transmission Z axis | Ball screw |
Guide rail | Square rail |
Drive system | Stepper motor and driver |
Inverter | Best inverter |
Table surface | Aluminum T-slot table |
Applications
Advertising products industry:sign making,acrylic cutting and engraving.Wood industry:wood furniture making,3d wood relief carving,wooden craftwork production speakers,game consoles cabinets,computer tables,sewing machine table etc.
Board processing industry:insulation piece,acrylic board,plastic chemical products,PCB,compact grade laminate,ABS,PP,PE and other cementitious mixture's milling process.
Decoration industry:folding screen,wave plates,advertising boards,sign making and logo's processing,
Art&craft industries:engrave on artificial stones,woods,bamboos,marbles.
Board processing industry:insulation piece,acrylic board,plastic chemical products,PCB,compact grade laminate,ABS,PP,PE and other cementitious mixture's milling process.
Decoration industry:folding screen,wave plates,advertising boards,sign making and logo's processing,
Art&craft industries:engrave on artificial stones,woods,bamboos,marbles.
Company Profile
MISSILE CNC is a research and development manufacturer specializing in high precision, high quality and high standard CNC router machine.
The main product line includes:
M series: aluminum& acrylic high-gloss processing cnc router, CCD automaticedge cutting
cnc router, vibrating knife cutting machine
cnc router, vibrating knife cutting machine
i series: low and medium power fiber laser cutting machine

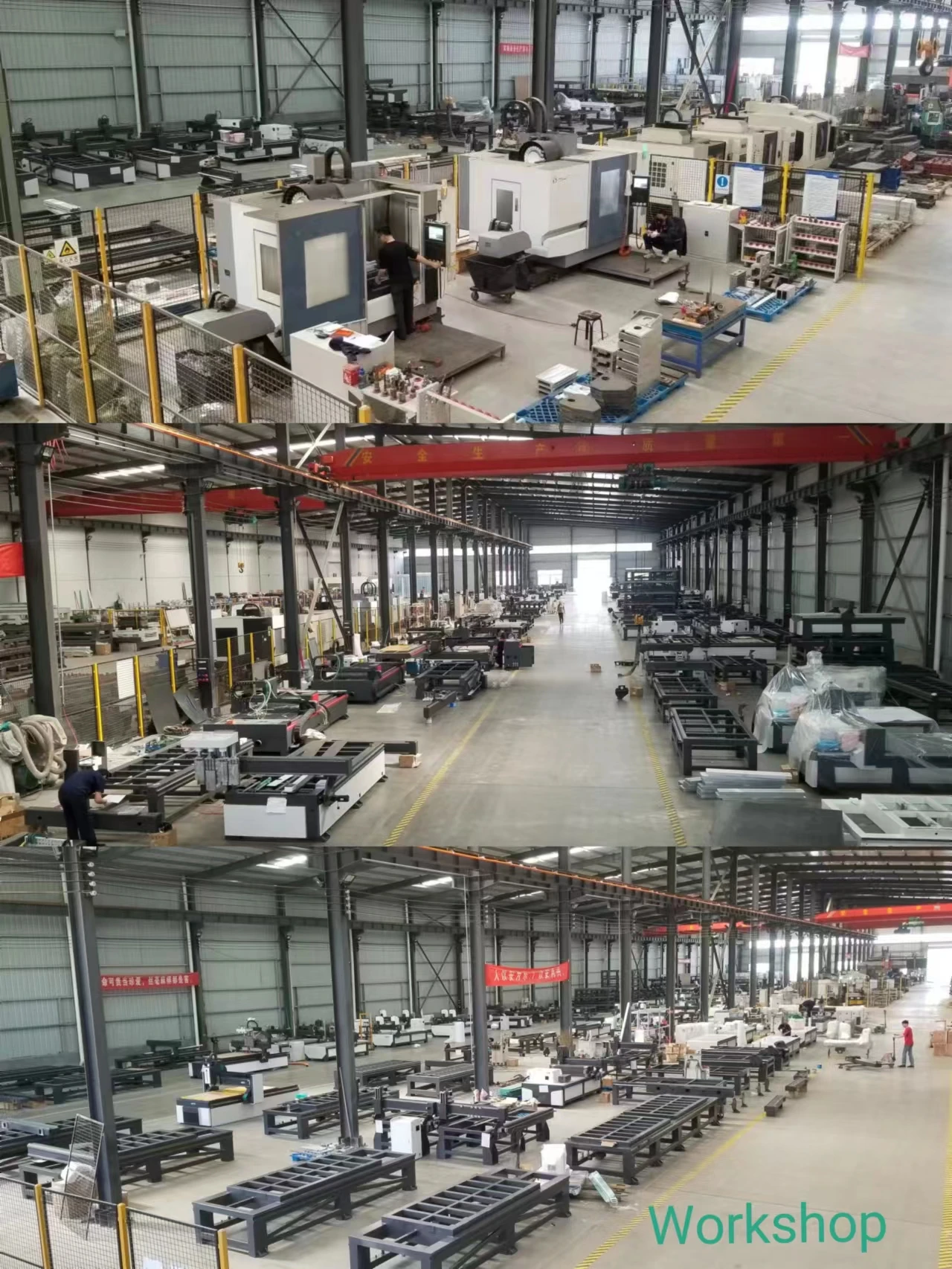

S series: panel furniture production line, nesting cnc machine solution E series: door&cabinet door cnc router machine, five-sided drilling mahine,six-sided drilling machine and other composite cnc machining centers MISSILE CNC production area is nearly 20000 square meters,and we own three gantry moving machining centers ; five vertical machining centers ; one 150-meter semi-automatic welding spray production line and one 80-meter sandblasting tempering processing line . That's all ensuring every parts procession of the CNC router with higher standard requirements.
Our advantages
We keep most machines in stock and can typically dispatch equipment in 72 hours or less,so you can get working as soon as possible.We can provide on-site training and service for customers,All around the world,all around the clock,we are always here for you.
Recommend Products
CNC router for Acrylic 3D letters M5S
M5S Mini words cnc router is one of the "flagship"model in our company.Adopted with grantry moving designs,with high precision German Herion gear rack,high precision processed machine frame&machined parts.That makes the machine working effects stand out in the industries by advanced and precise assembly process.Linear type four tools changing,it is not only applies to the advertising industry,also widely used for high precision woodworking industries or other industries.
Standard industrial engraving machine M2
M2 modle -a standard industrial cnc machine,the high-precision rack and reducer,can be used for high-intensity processing in
various industries,and can be used for mini-word processing in sign making.M2 is designed with a manual tool change and is a cost
effective machine.M series can also add CCD automatic edge cutting function,vibration knife cutting function.
various industries,and can be used for mini-word processing in sign making.M2 is designed with a manual tool change and is a cost
effective machine.M series can also add CCD automatic edge cutting function,vibration knife cutting function.
Cnc nested based router S9/S9+
S9 is professional machine for panel furniture production.It is equipped with 9KW ATC Spindle(12 carousel magazine);Italy FAM 5+4
boring heads which can meet all kind vetical holes drilling's requirements.S9 has multifunction:routing,drilling,cutting,edge chamfering etc.Automatic Front Conveyor Belt,unloading table system,Automatic Rear pre-labelling device,safety fence
boring heads which can meet all kind vetical holes drilling's requirements.S9 has multifunction:routing,drilling,cutting,edge chamfering etc.Automatic Front Conveyor Belt,unloading table system,Automatic Rear pre-labelling device,safety fence
enclousure,Laser safety light curtains,also can be optional.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
The machine control cabinet and other machine accessories are put on the machine bed,Then,the machine will be wrapped with PE stretch film in case of damage in transit.All cnc machines are packaged with the plywood case and the wooden case will be fix on the pallet,the shipping mark will be labeled on the surface of the wooden case.
If the machine is customized even the size is bigger,the machine needs disassembling.
If the machine is customized even the size is bigger,the machine needs disassembling.
Customer feedback
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to North America(30.00%),Western Europe(30.00%),Southeast Asia(20.00%),Mid
East(5.00%),Eastern Asia(5.00%),Eastern Europe(3.00%),Africa(3.00%),South America(2.00%),Oceania(2.00%). There are total about
11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Router,Wood Router,CNC Nesting Machine,CNC Router for Sign Making,CNC Router With CCD Camera and Knife,Fiber Laser Cutting
Machine
4. why should you buy from us not from other suppliers?
MISSILECNC own three gantry moving machining centers ; five vertical machining centers ; one 150-meter welding spray production
line and one 80-meter sandblasting tempering processing line .Missilecnc is a chinese fanous cnc router manufacturer
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2015,sell to North America(30.00%),Western Europe(30.00%),Southeast Asia(20.00%),Mid
East(5.00%),Eastern Asia(5.00%),Eastern Europe(3.00%),Africa(3.00%),South America(2.00%),Oceania(2.00%). There are total about
11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Router,Wood Router,CNC Nesting Machine,CNC Router for Sign Making,CNC Router With CCD Camera and Knife,Fiber Laser Cutting
Machine
4. why should you buy from us not from other suppliers?
MISSILECNC own three gantry moving machining centers ; five vertical machining centers ; one 150-meter welding spray production
line and one 80-meter sandblasting tempering processing line .Missilecnc is a chinese fanous cnc router manufacturer
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Похожие товары

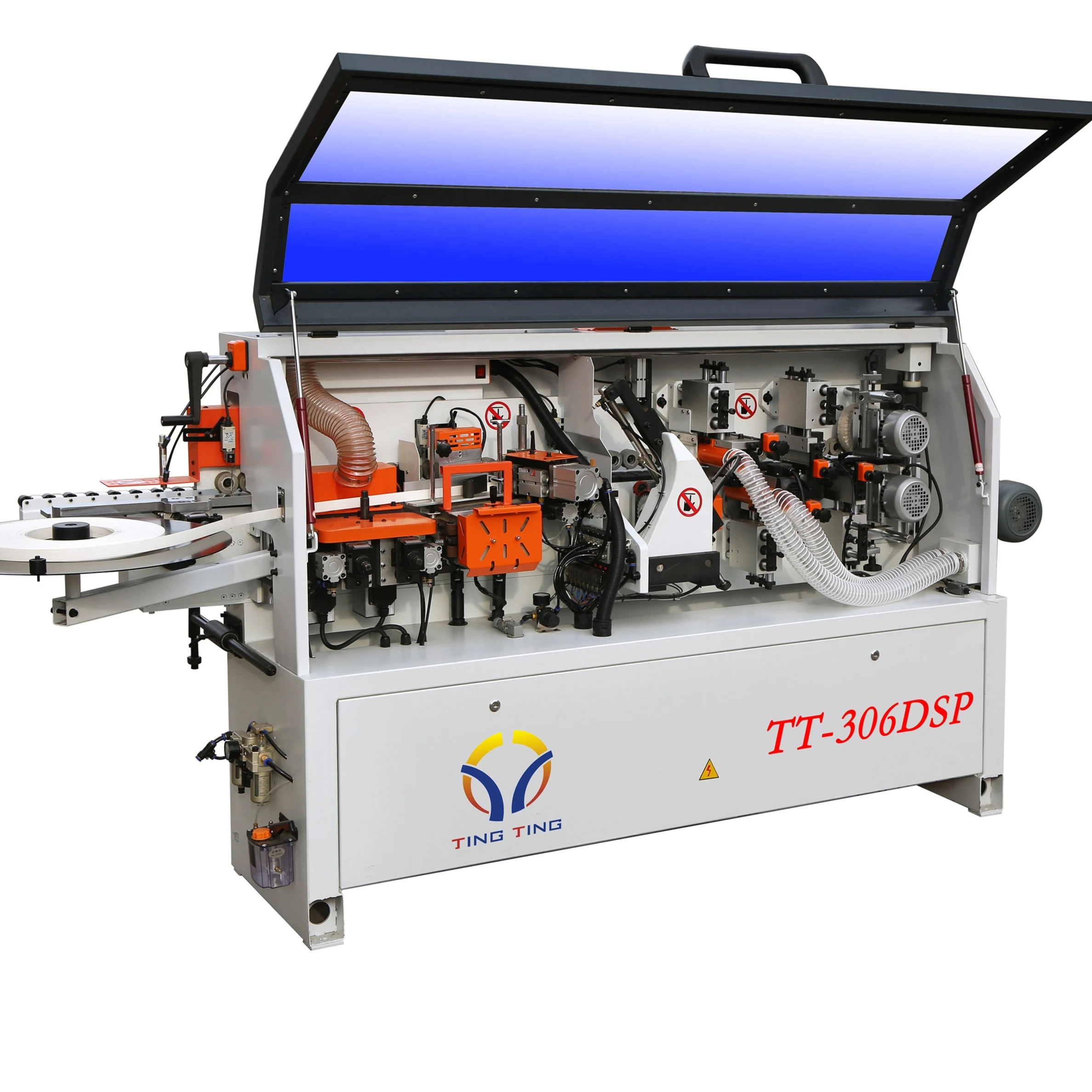

TT-306DSP мебель автоматический станок для облицовывания кромок деревянная доска
