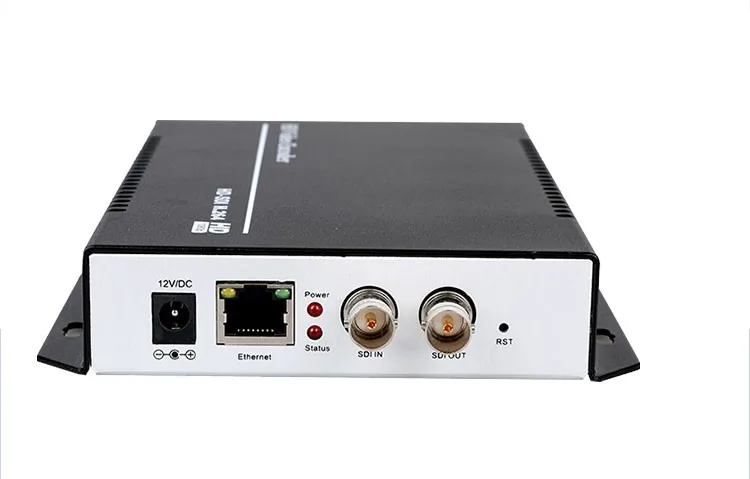

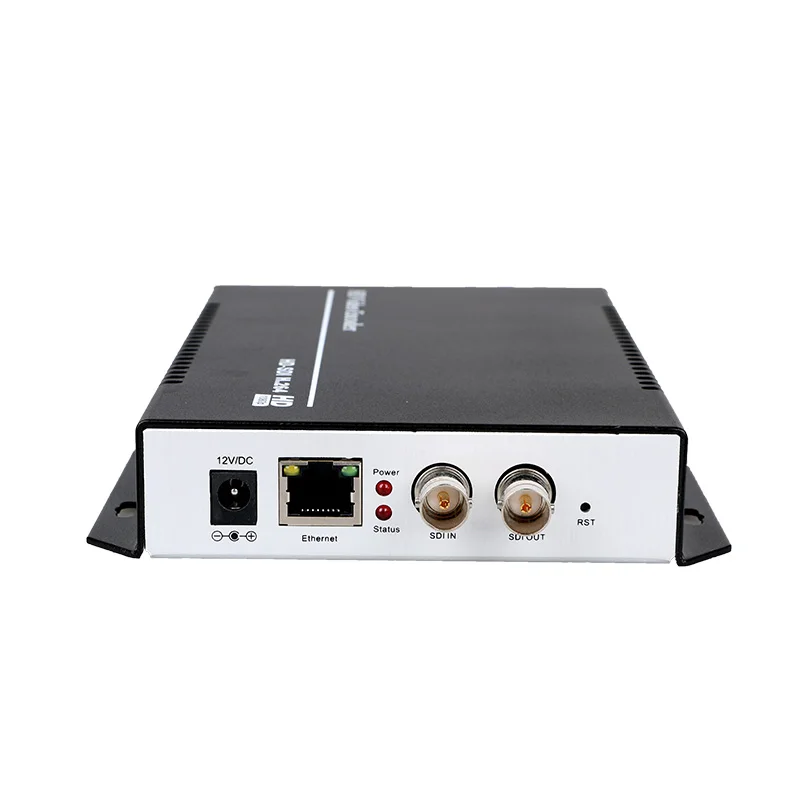

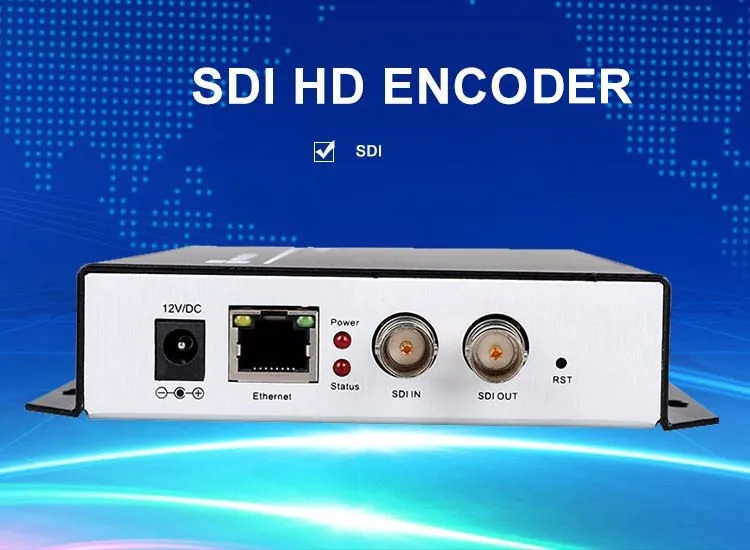

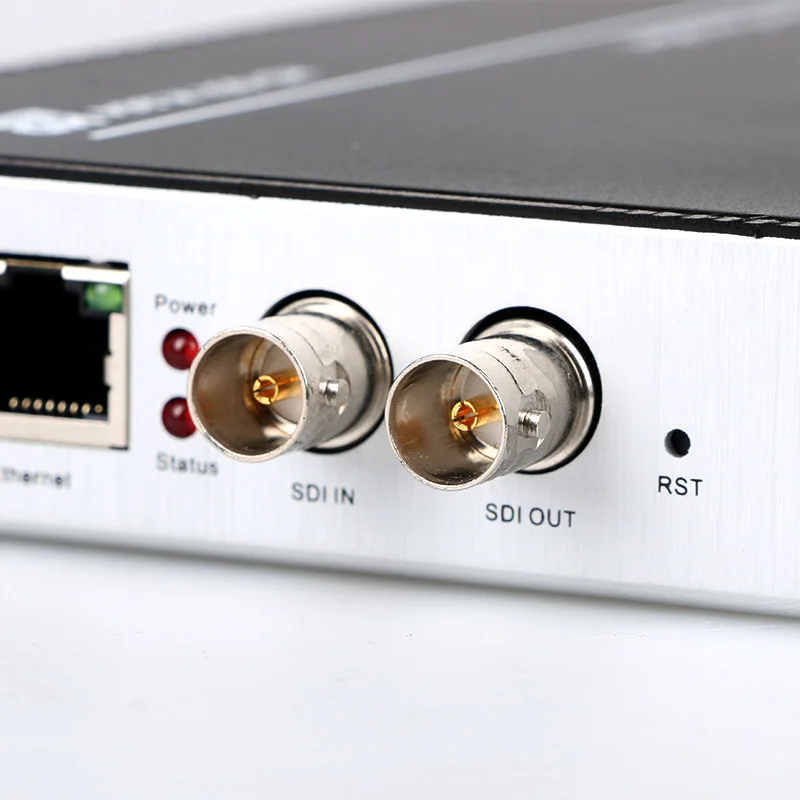

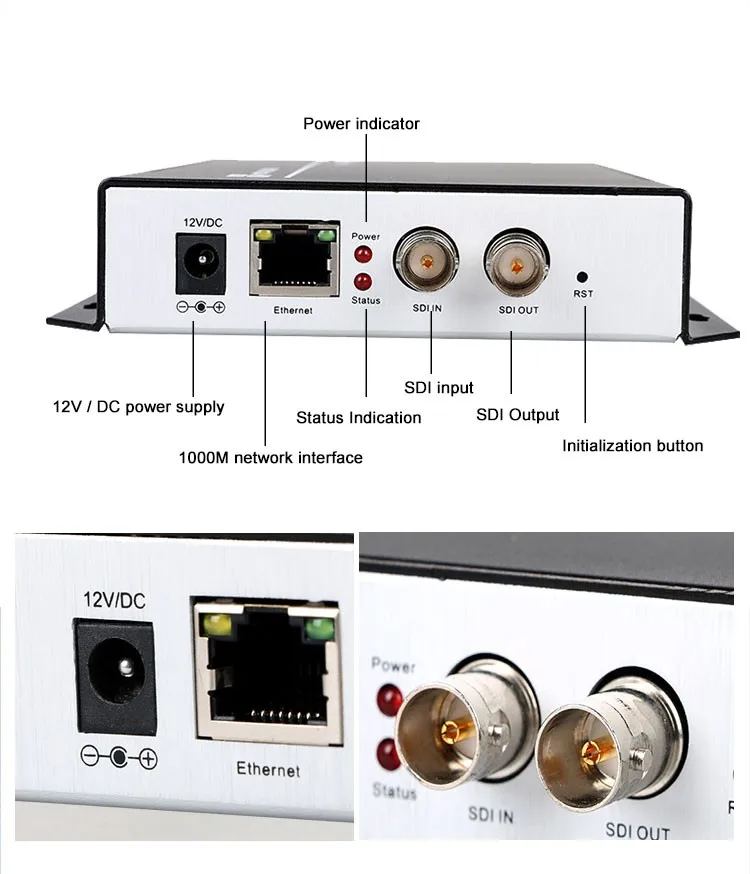

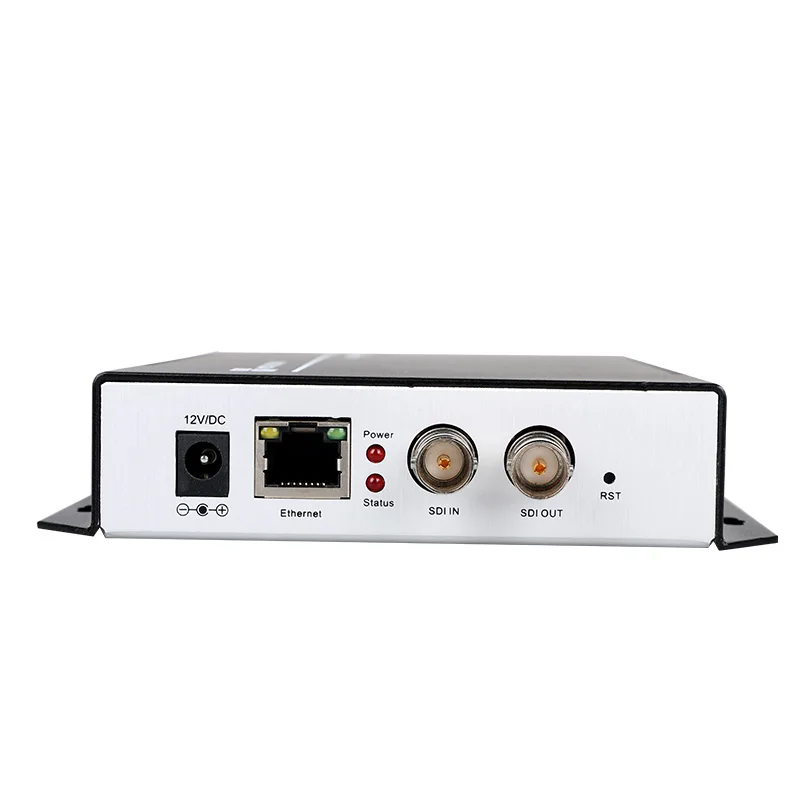

| input | Interface | Video Input 1 * BNC SD / HD-SDI |
| Signal | Video loop out 1 * BNC SD / HD-SDI | |
| SDI signal amplitude 0.8Vp-p | ||
| SDI impedance 75 ohms | ||
| Resolution | 720p24 720p25 720p30 720p60 | |
| 1080i50,1080i60,1080p24,1080p25 | ||
| 1080p30,1080p50 1080p60 | ||
| Output signal type | SD-SDI(270Mbps),HD-SDI(1.485Gbps) | |
| Coding | H.264/AVC High Profile Level 4.0(HD) | |
| Rate | 0.8Mbps~12Mbps | |
| Rate Control | CBR/VBR | |
| GOP type | adjustable | |
| Video preprocessing | De-interlacing, noise reduction, sharpening | |
| Encoding format | AAC,MP3 | |
| Sampling rate | Adaptive, output sample rate optional | |
| Bit rate | 32K,44.1K,48K,64K,96K,128K,160K,192K | |
| Sampling accuracy | 24 bit | |
| code Rate | 64Kb/s~384Kb/s | |

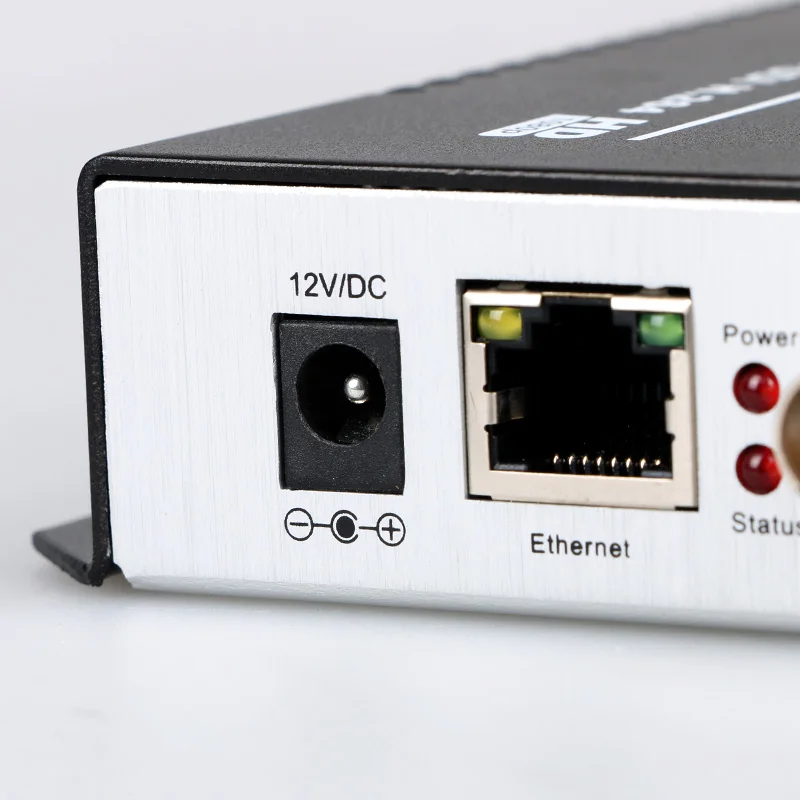

| system | RJ45 | (width x length x heigth) 170*130*30mm |
| Head stream | HTTP,UTP,RTSP,RTMP,ONVIF protocol | |
| Configuration interface | WEB operation interface | |
| Upgrade | Software upgrade through internet | |
| General | Size | (width x length x heigth) 170*130*30mm |
| Weight | Single set 0.5KG | |
| Temperature Range | -20~60℃(working),-20~80℃(storage) | |
| Power supply | Single case:12V/1ADC | |
| Power consumption | 5W/1 channel |












Q1: Where is your Factory located? How can I visit your company?
A1: Our factory is located in Shanghai, All our clients, from home or abroad, are warmly welcome to take a visit here!
Q2: How does your factory do regarding Quality Control?
A2: Quality is very important and always be put at the first place. HENIAO team members always pay great att -ention to quality controlling from the very beginning to the end.Inspections of each step will be done during the production process.
Q3: Can I get some Samples?
A3: Yes, sure, we are honored to offer you samples, moreover we offer free demo online.
Q4: What is your method of Transportation?
A4: We deliver goods via International Express like FedEx, UPS, DHL, TNT, EMS etc.
Q5: Could you please make OEM for us?
A5: Surely yes.We provide the service of replacing your logo and company name on box and software interface of the device .
Q6: What's your Payment method supported?
A6: We accept T/T, Paypal, Western Union, MoneyGram etc.
Q7: What about your Warranty?
A7: It's 3 years warranty with free shipping for free repair or replacement
