Product Description

S52 is a solid and durable industry grade mobile intelligent terminal with advanced function of data collection and real-time communication. In terms of structural design, high strength overall magnalium stand is adopted to fix to main board and LCD screen in full direction. Gaskets at structural joints are capable to guarantee excellent waterproof and dustproof performance. We are the first company in the industry to adopt TPU double color encapsulation to protect the frame which is comfortable to hold and it supports high-strength mobile usage under sever environment in whole year. This IP65 industry grade device has passed leading three-proofing test, it can not only work in the environment of dirt, dust and splash, but also can bear multiple dropping from an elevation of 2.5 meter and 500 tumbles within a range of 1 meter to guarantee reliable usage for years.



Use the foreign third-generation short-range / long-range two-dimensional scanning engine, perfect support One-dimensional code/Two-dimensional code barcode scanning, fit the latest industry standards, at the same time it has strong ability to decode and read fast, and it can perfectly read the barcode which has poor printing quality, damage, and low resolution is less than 3 mil. Its comprehensive reading function matches with clear laser aiming point, which enable user to has seamless transition while scan the target between nearby and 15 metres (50 ft) , without moving the location to the user even if there are different lightings conditions and angles in the place, which can make your mobile operations more efficient and convenient.

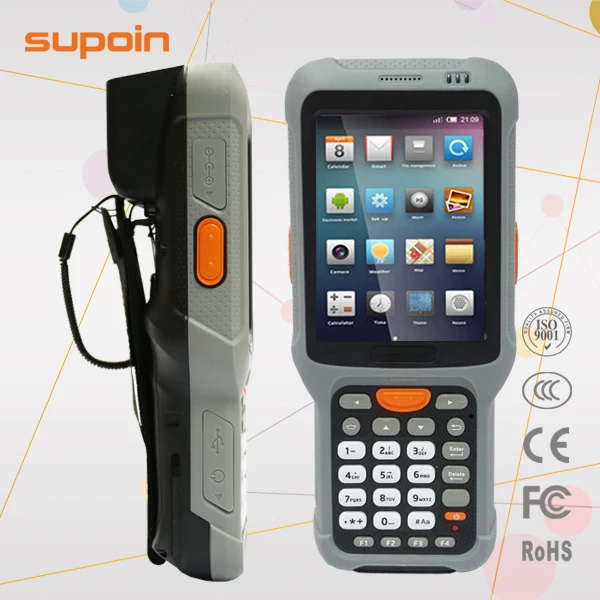

Supoin S52 Mobile intelligent terminal

Product features
 > High-speed operation performance: with Android4.3 and WinCE6.0 operating system, matching Qualcomm M8X12 quad core 1.2GHz and PXA310 806MHz high-speed processor with perfect compatibility and mobility and advanced computing capability and high-speed operating efficiency which is suitable for application scenarios of strict performance requirement.

> Powerful cruising ability: adopts 3.7V 4000mAh dual-core high capacity anti-explosion battery to persistently provide above 10 working hours with double charging stand available to charge device and battery so as to ensure normal operation during shift and to enhance work efficiency.


> Resourceful configuration: adapts all kinds of identify engines, supports multiple communication transmission methods as WIFI/Bluetooth/WCDMA/EVDO/GPRS/GPS to meet special requirement for client under different circumstances by mixing and matching device.

> Industry-grade durability: adopts whole TPU double color encapsulation and high strength whole magaluma stand which leads in the industry, adopts durable laser etching design for keyboard to meet IP65 grade so as to ensure water-proof, dust-proof and fall-off performance under any severe environment.



 > Excellent radio performance: supports 802.11 a/b/g/n full-band wireless communication, with WIFI technology specially designed for meeting large storage and other complex environment, supports automatic switchover between multiple wireless networks, processes excellent anti-disturbance performance, extremely short date transmission delay in order to provide you more stable and efficient wireless support.

> Accurate and high-efficient identification: fully supports one and two dimensional code scanning with ultra-strong decoding capability and quick identification ability, and identifies damaged and bend low-quality code in a perfect way.


Supoin S52 Mobile intelligent terminal

Specifications
Performance Characteristics
CPUQualcomm M8X12 quad core 1.2GHz
Operating SystemAndroid 4.3
Memory1GB ROM,4GB RAM
Physical Characteristics
Display screen3.5' 480*640 capacitance touch HD LCD
External dimensionL179.50mm x W78.18mm x T31.02mm
Weight370g(standard battery included)
BatteryUnloadable 3.7V 3800mAH polymer lithium battery
Camera8 mega-pixel camera, autofocus, LED light
Keyboard30 keys (1 reset key, 2 side scanning keys, 26 regular keys and 1 on-off key)
InterfaceIndustry grade Micro USB charge, USB2.0, serial port, MicroSD/TF slot,SIM card slot and PSAM card slot
Power adapterinput: AC 100-220V 50/60HZ; Output: DC 1.5A
Input methodChinese handwriting / keyboard full pinyin input
AudioBuilt-in microphone, built-in speaker and 3.5mm stereo headphone jack
NotificationLoudspeaker, indicator light and vibration
Expected working hourAbove 8 hours in regular use
Standby hour>200 hours
Environmental parameter
Working temperature-10℃-50℃
Storage temperature-30℃-60℃
Electrostatic protection±15kV air discharge, ±8kV direct discharge
Relative humidity5%RH-90%RH
Height of anti-dropping2.5 m (on concrete ground)
Strength of anti-rolling1m (more than 500 rolling by impact force)
Protection gradeIP65 grade
Communication data parameter
WIFIIEEE 802.11 a/b/g/n
WWANGPRS/WCDMA/EVDO
BluetoothBluetooth 4.0
GPSPrecision 10m(open sky)
Identification mode parameter
Sign
DensityMinimum distanceMaximum distance
Code39
10mil15cm135cm
20mil16cm280cm
100mil 1200cm
DataMatrix
10mil15cm90cm
30mil25cm310cm
100mil 1100cm
300mil20cm1524cm
Others
CertificationCCC, Rohs, IP65 grade, CE, FCC and ISO9001
Standard configurationCharger, lithium battery, USB cable, stylus, sling

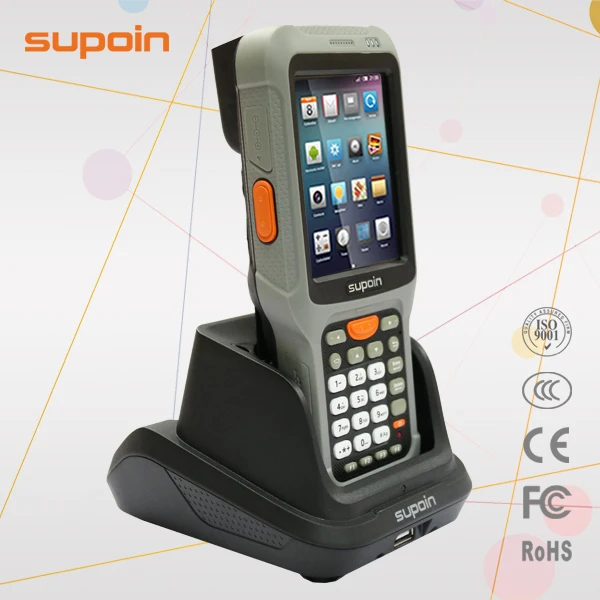

Optional configurationTwo-charger stand
Applications

Factory

Certifications

Company Information



Established in 2006 and headquartered in Futian District, Shenzhen, Shenzhen Supoin Technology Corp., is an industrially leading company engaged in provision of automatic identification products, IOT mobile products and enterprise mobile application service.



We focus our business on automatic barcode identification devices (mobile intelligent terminal, wired/wireless barcode scanner) and solutions of industrial application software. Supoin has obtained over 70 patents and software copyrights? to date . In addition, the Company has been given the titles of National Hi-Tech Enterprise, National Software Enterprise and TF50, etc. Six business systems have been developed by Supoin at present, including design and manufacture of mobile intelligent terminal, development of mobile terminal and software, installation and configuration of wireless network, implementation and training of mobile information system, management and maintenance of mobile information system, R&D and manufacture of wired/wireless scanners.



Supoin aims to provide customers with high performing and quality products. The terminal products of the Company has been certified by China Compulsory Certification, IP65 Industrial Waterproof and Dustproof Standard Certification, EU CE certification, International ROHS System and American FCC Certification, ISO9001:2008 Quality Management System and ISO14001:2004 Environmental Management System.



The years of effects made by SUPOIN pays off with increasing market share. The products of SUPOIN have been widely applied to garment industry, medical industry, retailing, logistics, manufacturing, finance, tobacco, book and food, as well as public affair initiated by government and other sectors. The recognition and good reputation obtained by SUPOIN from users allow it to get a strong foothold in IOT industry.
