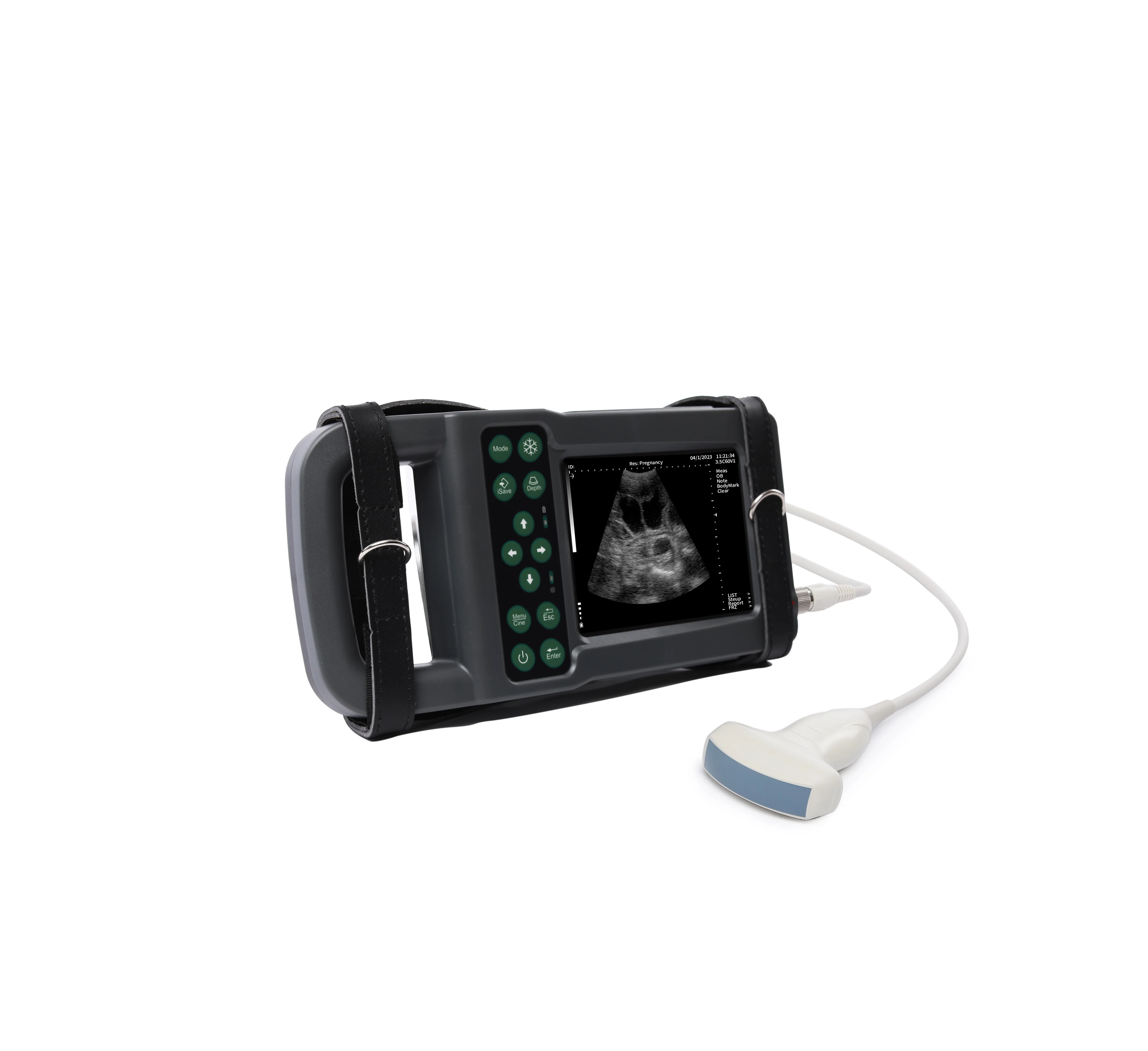

Портативный ультразвуковой сканер YSB5600V ветеринарный ультразвук для беременных

Описание и отзывы

Характеристики

Portable Ultrasound Scanner Pregnancy veterinary ultrasound

Parameter:

10.4' high resolution color LED backlight display, with high contrast and wide viewing angle

Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable

Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese

Two probe sockets, auto-identify different optional probe

Body marks:total 64 kinds body marks indicating probe position

Display mode:B,2B,4B ,B/M,M

Adjustable depth: 10 grades, max depth to 236mm

Contrast:27~90dB

Gray scale:256

8 steps intelligent TGC

Frame frequency: 30 frames /second

8 kinds pseudo colors

Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off

Cine loop:256 frames

Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)

The gravel software package with real-time position line measurement

Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement

OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report

Urology measurement and analysis: residual urine volumem, prostate volume, and urology report

Dual TV output: PAL/NTSC, can connect video printer when necessary

Power supply:100-240V~ 1.2-0.6A frequency:50-60Hz

Power supply adaptor output: DC12.8V 3.0A

Main unit weight:4.5kg(without accessories)

Main unit dimension:256×150×326mm(L×W×H)

Main basic configuration:

1. Main unit
2. 3.5MHz convex probe

Optional parts:

1. 6.5MHz multi-frequency trans-vaginal probe
2. 7.5MHz multi-frequency linear probe
3. Li-battery
4. Trolley
5. Charger

Multi-language medical portable veterinary ultrasound scanner

 Product Feature
1. Digital image technology
2. Ingenious outline and multifunction
3. Different probes can be used optionally
4. Very light for using
5. USB disk function make the images easily transfered into computer.
6. Rechargeable battery could last at least 2 hours
Product Specification/Models
1. Technology: Alldigital imaging technology, full digital beam forming, excellent image quality with high resolution and high penetration
2. Scanning methods: Electronic convex/electronic linear/electronic micro-convex
3. Scanning technology: Real-time dynamic imaging, harmonic imaging
4. Probe: Multi-frequency probe series
5. No. Of probe connectors: 1
6. Monitor: 6.4''high resolution non-interlaced SVGA display
7. Keyboard: Ergonomic keyboard
8. Gray scale: 256 levels
9. Display modes: B, B/B, B/M, M, or 4B
10. Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s
11. Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4 and*3.0
12. Focusing methods: Single-poin, multi-stage transmitting, dynamic focusing
13. CINE loop: 256-frame
14. Zoom: Intelligent local zoom in real-time and frozen mode
15. Image storage and transfter: Builtin 100frame image storage, USB Image transfer, Ultrasound working station

16. Image Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical,

horizontal flip and B/W conversion, Angle change, Image freeze/unfreeze, Gamma correction,

EDGE enhancement for image afterprocessing, gray transformation, gray rejection etc, Frame

correlation function, Adjustment and display of near field, far field, total gain and dynamic range, Preprocessing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging,

scanning angle selection, line density selection etc

17. Measurements: B mode: Distance, circumference, area, volume, ratio, angle, % stenosis,

histogram, profile etc, M mode: Distance, time, velocity, heart rate etc, General software

packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc, Obstetric package

including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 64 body marks
18. Report: Obstetric report
19. Documentation: Full screen documentation, hospital name, Patient name, date/time
20. Power Supply: AC 100-240V, 50-60Hz
21. Power consumption: ≤ 40VA
22. Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable

Application
Extensive clinical applications: Abdominal, urology, GYN, OB, small parts, pediatric, cardiology, biopsy

Other Information
Standard Parts
1. main unit
2.6.4''high resolution non-interlaced LCD display
3.1 probe connector
4.256-frame CINE loop
5.100-frame image storage
6. USB disk port
7. Measurement & calculation software packages
8.3.5MHz convex abdomen probe (for abdomen, GYN, OB, urology)
9.64 body marks

Optional Probes
1.5.0MHz micro-convex cardio probe (for cardio)
2.5.0MHz convex paediatric probe (for pediatrics)
3.6.5MHz convex transvaginal probe (for endovaginal, endorectal)
4.7.5MHz high frequency linear probe (for small parts, orthopedics, breast, musculoskeletal)

Optional Parts
1. Belt
2. Biopsy needle-guided brackets
3. Ultrasound working station
4. USB software with connection cable
5. Ultrasound goggles
6. Rechargeable power supply
7. Rechargeable power supply in car
8. Thermal printer(brand: Mitsubishi, model: P93W-S)
9. Pinter paper(cheap)
10. Pinter paper(expensive)
