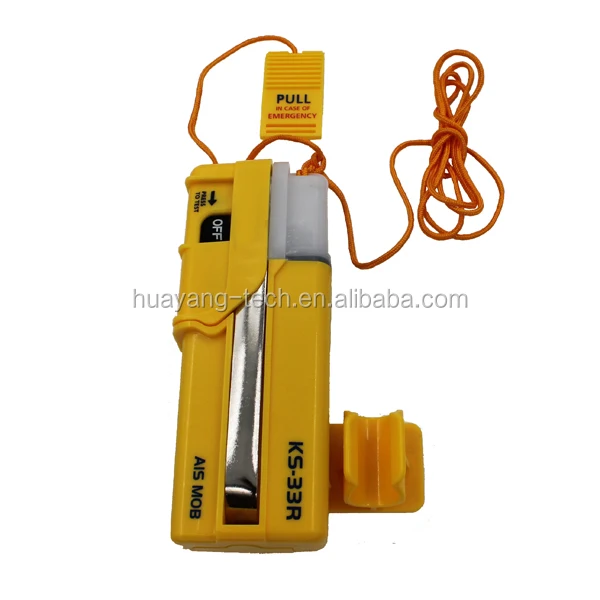

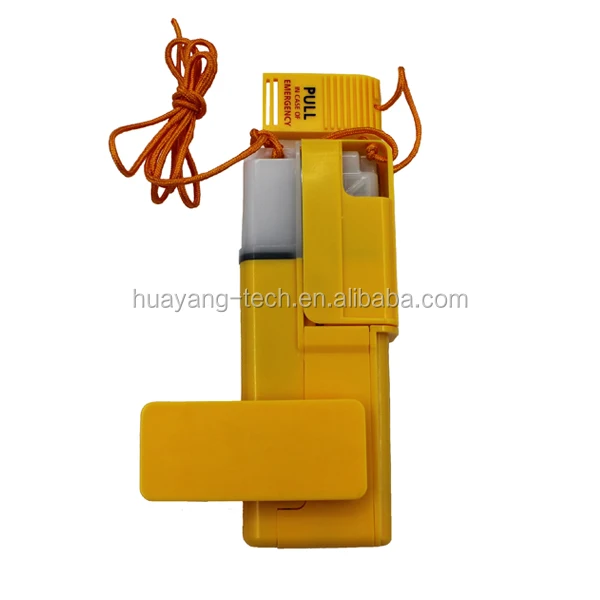

KS-33R Personal Locator Beacons (AIS MOB)

Features:

• Transmits GPS target tracking information over AIS
• Compatible with plotters and onboard navigation systems to assist fast location and retrieval
• Small and lightweight for mounting on life jacket
• Unique serialized ID
• LED flashing indicator
• Buzzer
• Minimum 24hour continuous operation
• 7 year battery life

Specifications

Standards:                                    EC 61097 -14, 60945 (environmental /EMC),

                                                   61108 part 1, ITU –RM, 1371

Sealing depth:                              Immersion to 5m (16.4ft)

Operating temperature:                 -20 to +55oC (-4 to +131oF)

Storage temperature:                    -30 to +70oC (-22 to +158oF)

Battery type:                                Lithium Manganese

Transmit duration:                         24 hours

Battery life (storage):                    7 years

Frequency:                                   161.975 &162.025MHz

Power:                                         2W nominal

AlS Messages transmitted:                 Message 1 (UID, GPS position, SOG ,COG ,UTC )

                                                                Message 14 (MOB ACTIVE or MOB TEST)

First Transmission:                        After 15 seconds (No GPS)

Range:                                          4nm typical, with AIS receiver antenna >5m above sea level

Unique ID Number:                        Factory Programmed

GPS Type:                                    50 channel, ceramic patch antenna

GPS Position Update;                    Every minute

Size (D x W x L):                          24 x 50 x 130mm (0.93 x 1.96 x 5.08in)

Weight:                                                  120g (4.23oz)

Standard Compass Safe Distance: 0.1-10 at 30cm (1ft)
