Auto Roll-up Cable Reel for Gantry Crane

Product Description

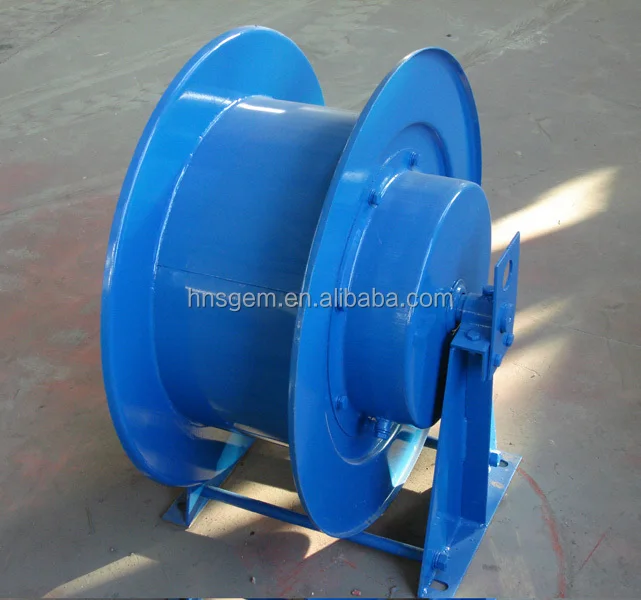

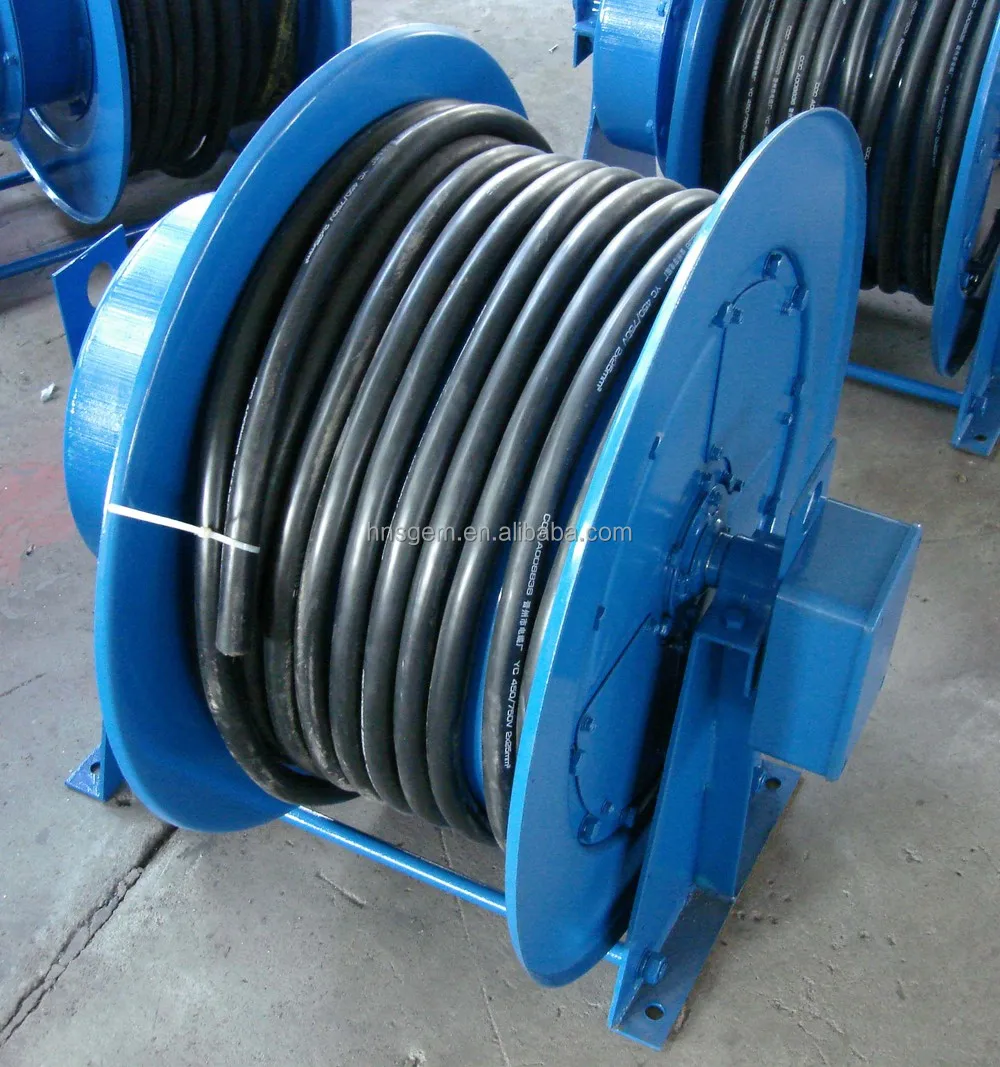

Physical Product Photo :

JTA .jpg JTA 1.jpg

JTA 2.jpg JTA Cable Reel 11

Brief Introduction:

We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.

Features:

Using spiral springs as power without electric energy consumption to keep reliable in operation

Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously

Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs

Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.

Benifits:

Easy installation and start of operation

Corrosion and water proof

Silver brush would prevent and reduce the noise by conductors friction

Technical Data:

Series	item	A	B	C	D1	D2	d	E	F	W	Weight(kg)
15m,20m Series	1	300	360	400	500	700	15	440	600	250	95
	2							490	650	300	100
	3							560	720	250	115
	4							610	770	300	120
	5							720	880	300	150

Cable Model	Enabled Current		15m Series	item	20m Series	item	25m Series	item
Core No.*Cross Section	Continuously	1 min on/off
YC2*10	58	75	JTA75-15-2	1	JTA75-20-2	1	JTA75-25-2	2
			JTB75-15-2		JTB75-20-2		JTB75-25-2
YC2*16	77	100	JTA100-15-2	1	JTA100-20-2	3	JTA100-25-2	2
			JTB100-15-2		JTB100-20-2		JTB100-25-2
YC2*25	106	135	JTA135-15-2	4	JTA135-20-2	4	JTA135-25-2	3
			JTB135-15-2		JTB135-20-2		JTB135-25-2
YC36+14	35	50	JTA50-15-4	2	JTA50-20-4	4	JTA50-25-4	2
			JTB50-15-4		JTB50-20-4		JTB50-25-4
