Products Description

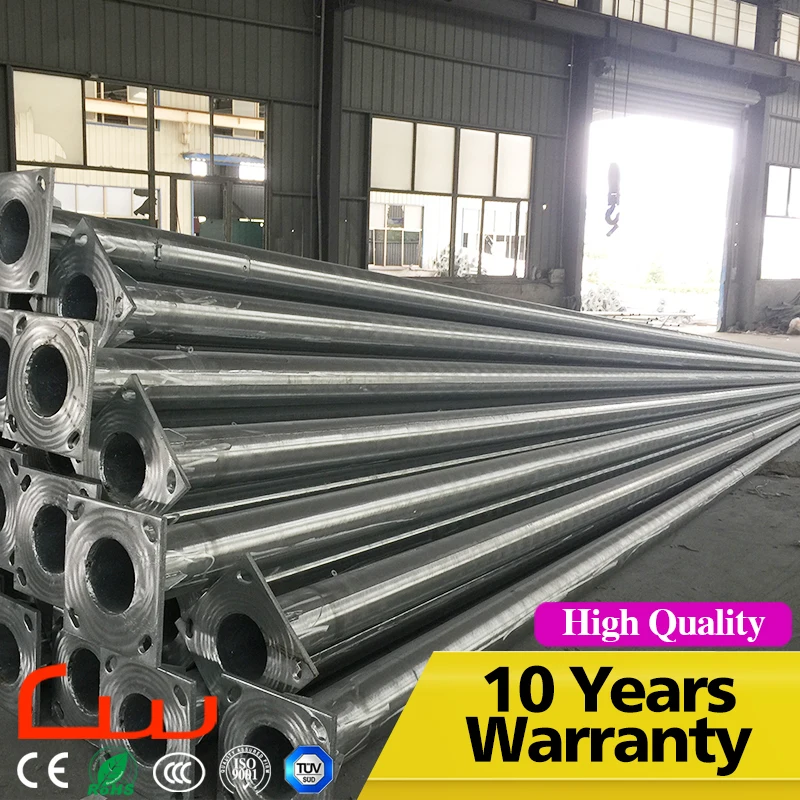

5M galvanized lamp post steel pole price

Type	Product	Upper/Bottom（MM）	THK(MM)	Flange(MM)	Basic(MM)
1	6M Pole	70/135	2.75	260*12	60MM*18
2	6M Bent Arm Pole	58/145	2.75	260*12	60MM*18
3	7M Pole	70/150	2.75	260*12	70MM*18
4	7M Bent Arm Pole	58/160	2.75	300*12	70MM*18
5	8M Pole	70/158	3	300*12	75MM*18
6	8M Bent Arm Pole	58/160	3	300*12	75MM*18
7	9M Pole	80/185	3.25	320*14	80MM*20
8	9M Bent Arm Pole	58/170	3.25	320*14	80MM*20
9	10M Pole	78/185	3.5	350*16	85MM*22
10	10M Bent Arm Pole	58/190	3.5	350*16	85MM*22
11	11M Pole	80/200	3.5	400*18	95MM*22
12	11M Bent Arm Pole	58/190	3.5	400*18	95MM*22
13	12M Pole	80/215	3.5	400*18	95MM*22
14	12M Bent Arm Pole	60/205	3.5	400*18	95MM*22
Street Pole Description: Components surface is sprayed with the powder after hot galvanized anti-corrosion treatment, smooth surface, non-discolouring , no pinhole hang, no flow, no peeling phenomenon ; Galvanized layer thickness is not less than 85 microns, the coating thickness is not less than 100 microns.

Raw material

The raw material is made of Q235 steel palte, which ensures the strength of each lamp pole.

Technology

Hot dip galvanized + electrostatic spraying.

Key Process

Coating process spraying plastic is the key process to ensure the anti-corrosion of the lamp pole. The plastic powder adopts outdoor professional powder to ensure the lamp pole's long-term luster as new.

Click me now!!!!

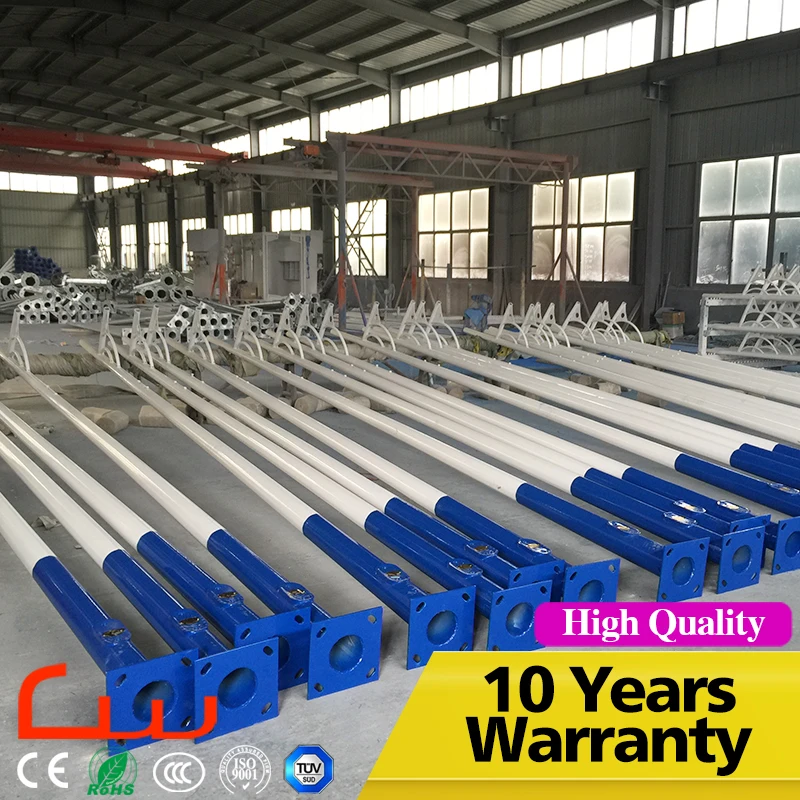

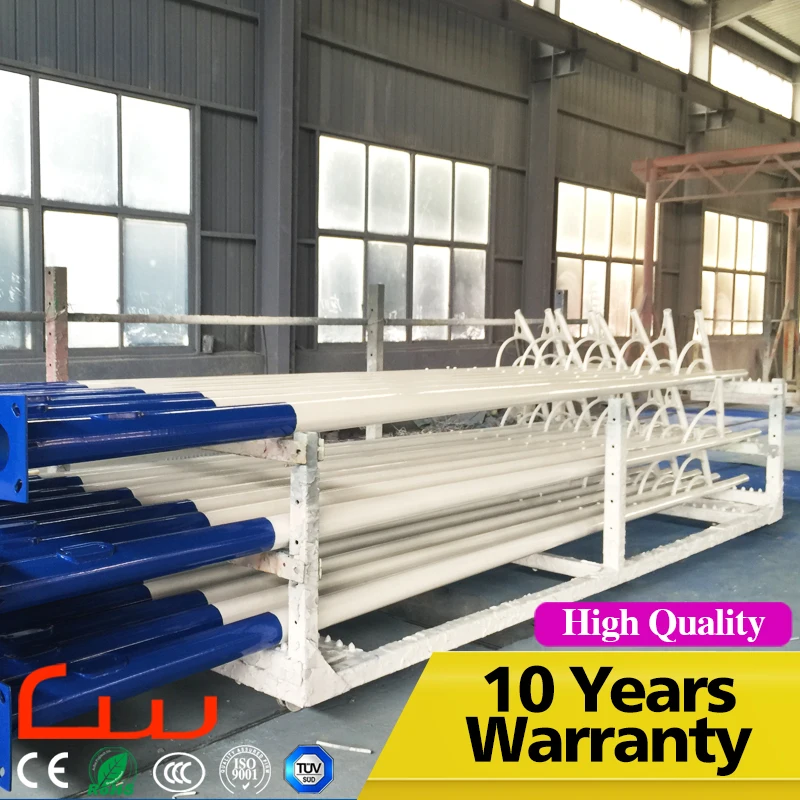

Production Process
