Считыватель карт с магнитной полосой MSR605 для чтения/записи/стирания

Сохранить в закладки 60615775718:


Цена:93,00 $ - 100,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description

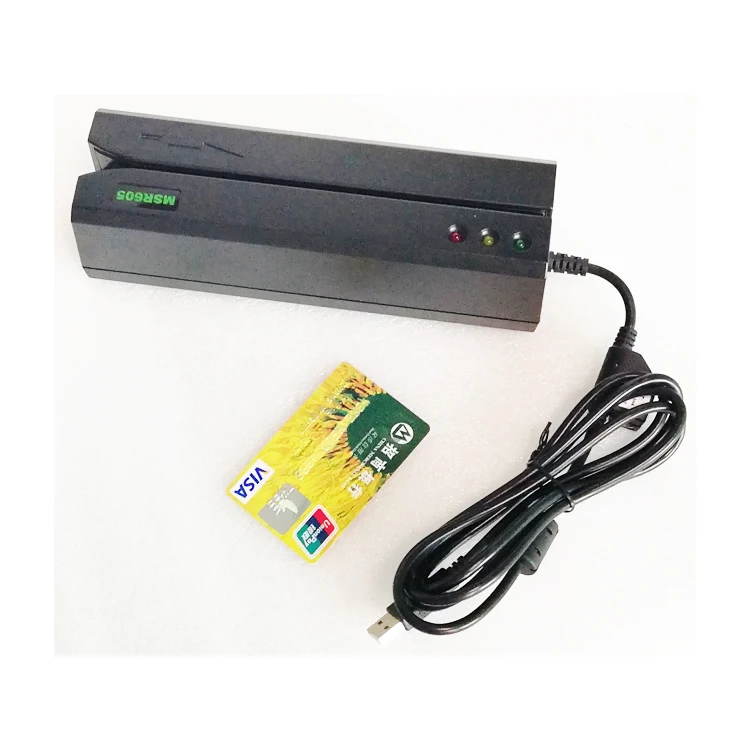

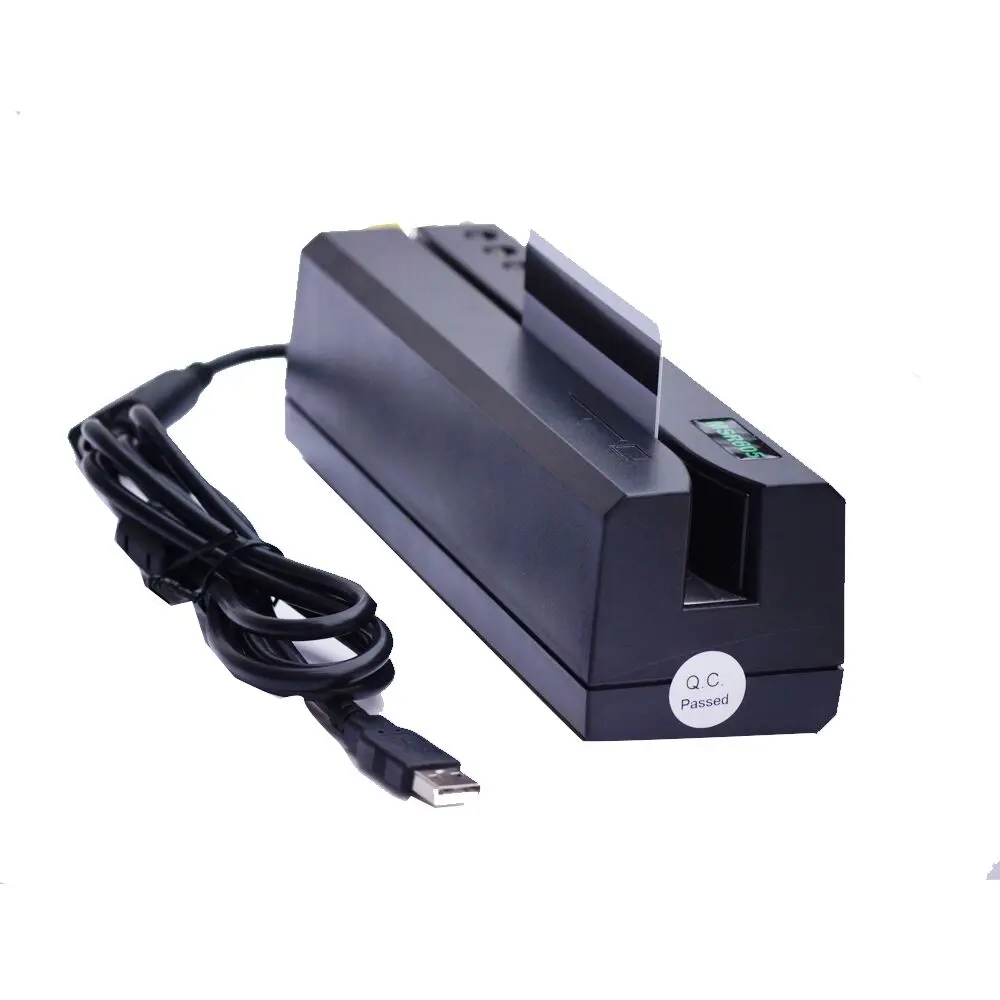

 Read/Write/Erase High & Low Coercivity MSR605 Magnetic Stripe Card Reader



MSR605, compatible with MSR206 completely. It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR605 reader/writer.

The MSR605 is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system. The MSR605 series is designed to read and/or write high or low coercivity magnetic cards. It can encode and verify up to 3 tracks of data simultaneously. It communicates with a host computer or other terminal using a usb interface.

· Read/Write/Erase High & Low Coercivity (300~4000 Oe)

· Read/Write/Erase 3 Tracks (Track 1, 2 & 3)

· USB Interface

· Updated from MSR606

· Compatible with MSR206

· with Programming Software for Windows 95/98/Me/2000/XP/Vista/Windows 7







ITEM

SPECIFICATION

Standard

ISO7811

Electrical

Consumption

Current/operating Typical 350mA Max

600mA plus for each writing track

Communication

Standard RS232 signal voltage levels. Default, 9600 Baud, None Parity, 8 bits

Power supply

External switching Power 9V/2A regulated

Interconnection

Cable

USB

Pin Assignment

USB

1,VBUS

2. D-

3.D+

4. GND

Mechanical

Body

ABS 94V-0 / Metal housing optional

Swipe

Manual, single direction

Dimension

212Lx64Wx63H mm

Weight

1.4Kg approx.

Environment

Operation

- 10C to 60C



10 to 85% humidity, non condensing

Storage

-30C to 70C



10 to 90% humidity, non condensing

Performance

Read Circuit

Track 1&3 210bpi

Track 2,75 or 210 bpi

Bit per Char

5-7 bit per char.

Media Speed

Read, 5-50 ips (read speed 5-40 ips for track 2 at 210bpi)

Write, 5-30

Media Coercivity

Read 300-4000 Oe Mag. Card

Write 300-4000 Oe Mag. Card

Media Thickness

0.76-1.2mm

Jitter Card

Read bit to bit interval <+/-1 5% card

Write bit to bit interval <+/-10%,Sub interval<+/-12% at 30ips







Related Products
Detailed Images

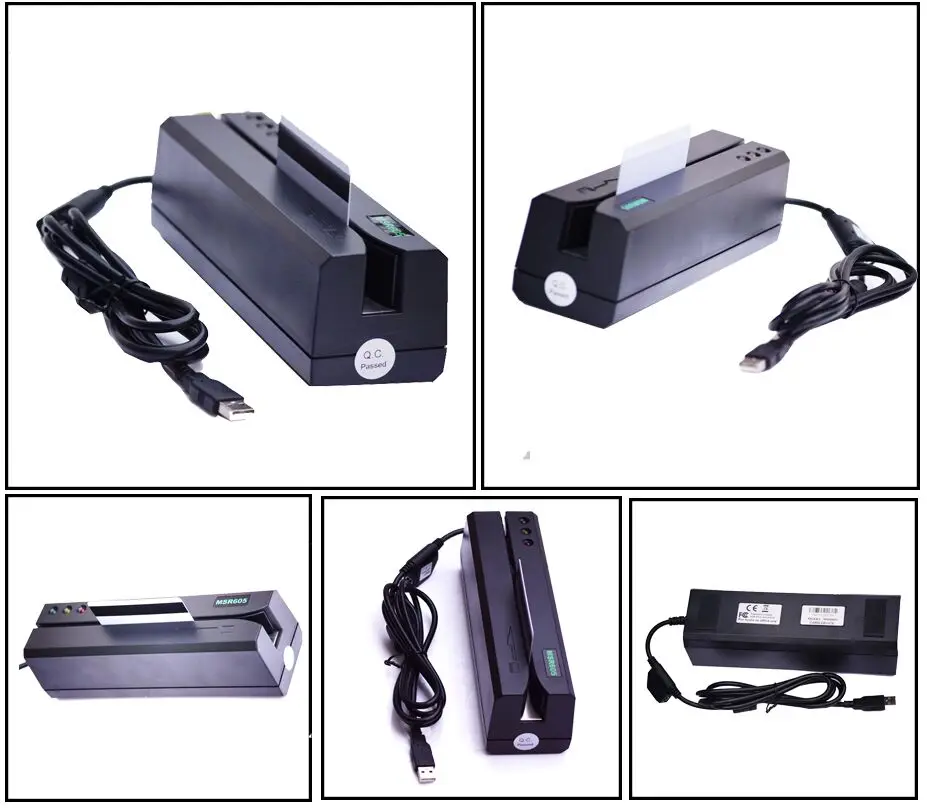

 MSR605-13

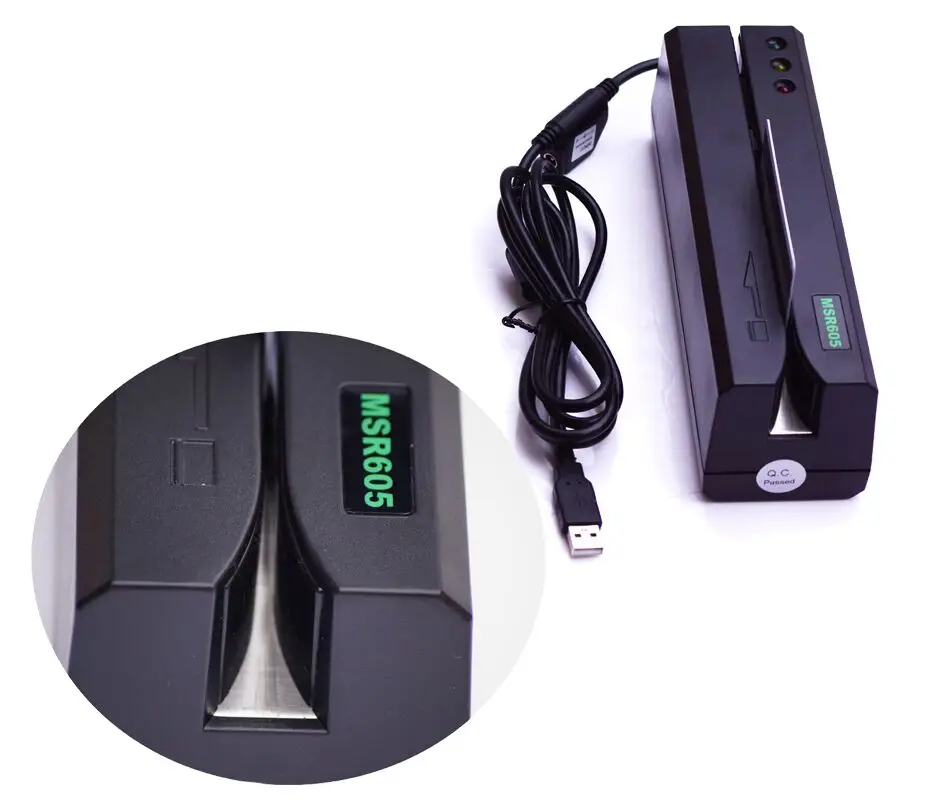

MSR605-14


Packaging & Shipping

Read/Write/Erase High & Low Coercivity MSR605 Magnetic Stripe Card Reader

MSR605-mag-card-encoder-MINIDX3-portable-mag-card-reader

shipping and payment.jpg

Company Information


Our Services

1.We welcome EDM and OEM business ,because we have powerful technical team .

2.In order to provide our customers with the best services, all of our products have all been tested, approved (ISO, CCC and CE etc.), and passed stringent quality control before shipment.

3.We can provide customers with complete sets of equipment ,you do not need to purchase printer,scanner and software separately.

4.We have profeesional after-sale-service team for your received package.guarantee have 12-36 month warranty for cheap pos system

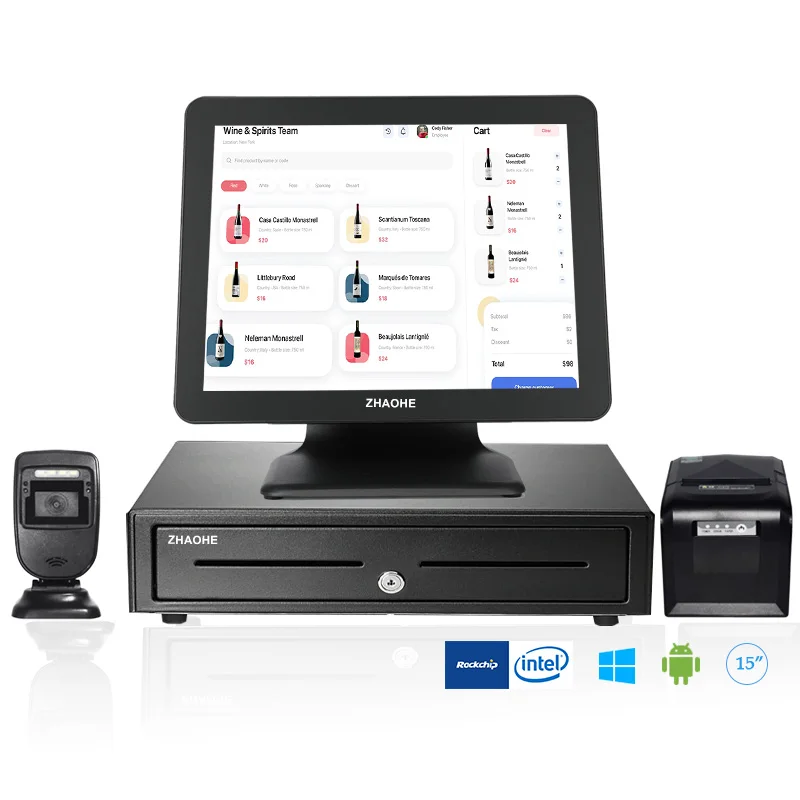

5.this products item including electronic all in one cash register with printer, cash drawer, scanner, VFD customer display

Contact US

Contact us.jpg
