Product Description

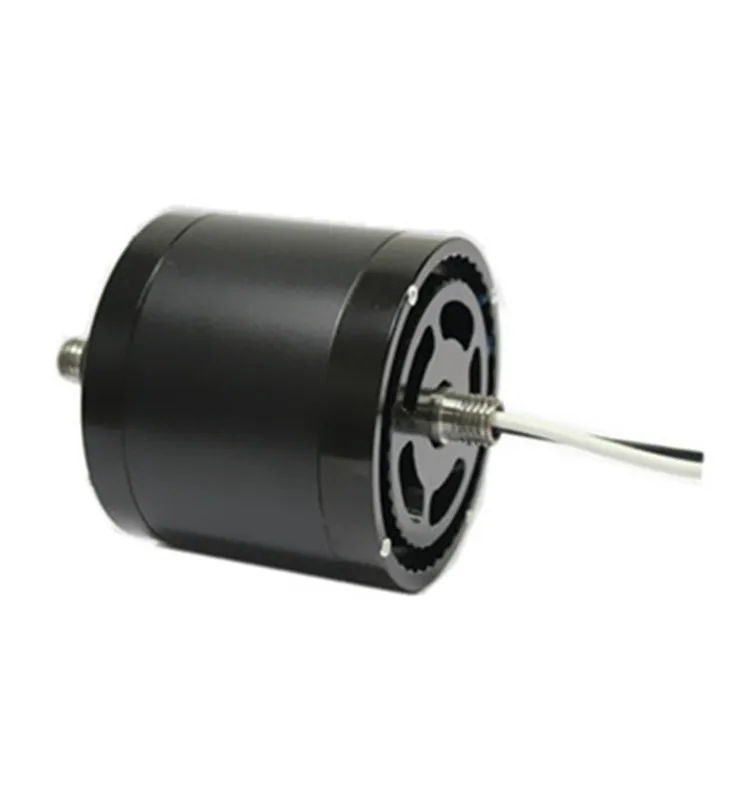

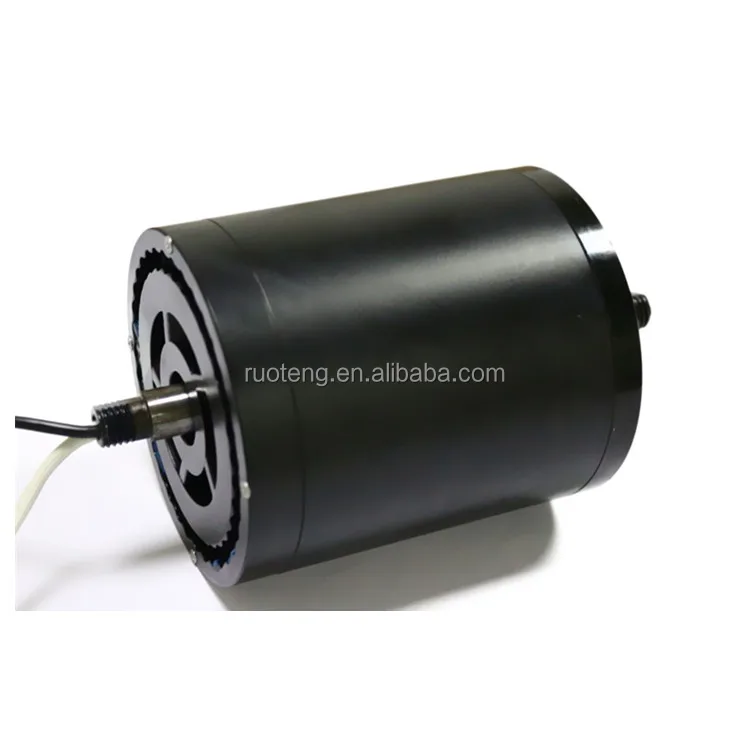

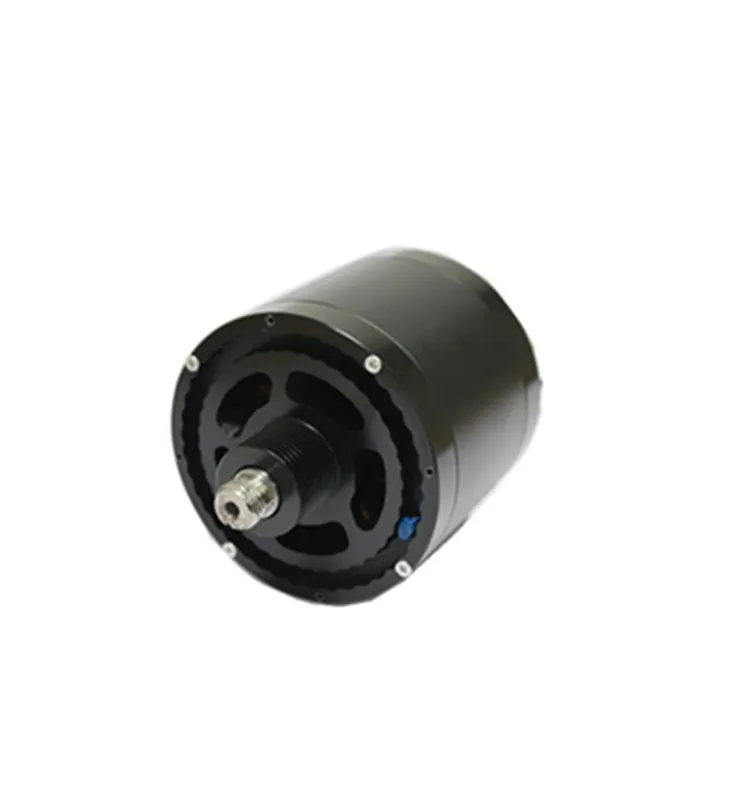

220v 1470w 2.0HP BLDC Motor for electric treadmill

220v 1470w 2.0HP BLDC Motor for electric treadmill
| Project | Main Specification |
| Rated Voltage | 220VAC |
| Input Voltage | 220~240VAC |
| Electric Current (A) | 10A MAX |
| RPM | 3800± 5% |
| Steering | CCW (View From the Outlet) |
| Phase Resitance | 1.3±0.13Ω |
| Efficiency | >60%. 230Vac |
| Phase Protection | Automatic Shutdown To Protect When Any Signal Phase is Missing |
| Rotation-Clogging Protection | At the Lowest Speed, The Motor Could be Protected if Turn Off Over 3S |
Please Note that All the specification can be customized

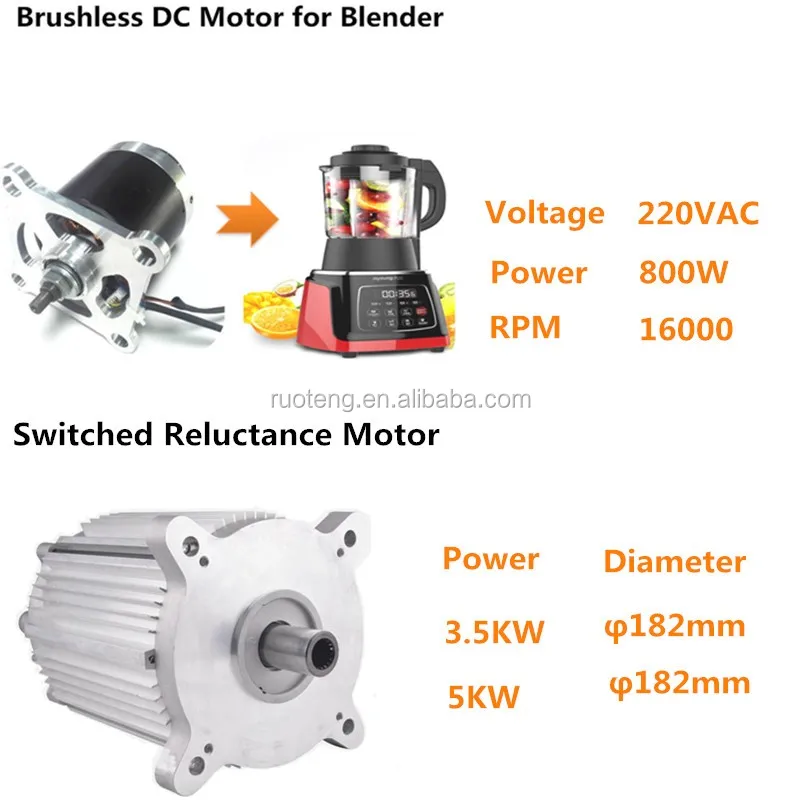

Other Main Products

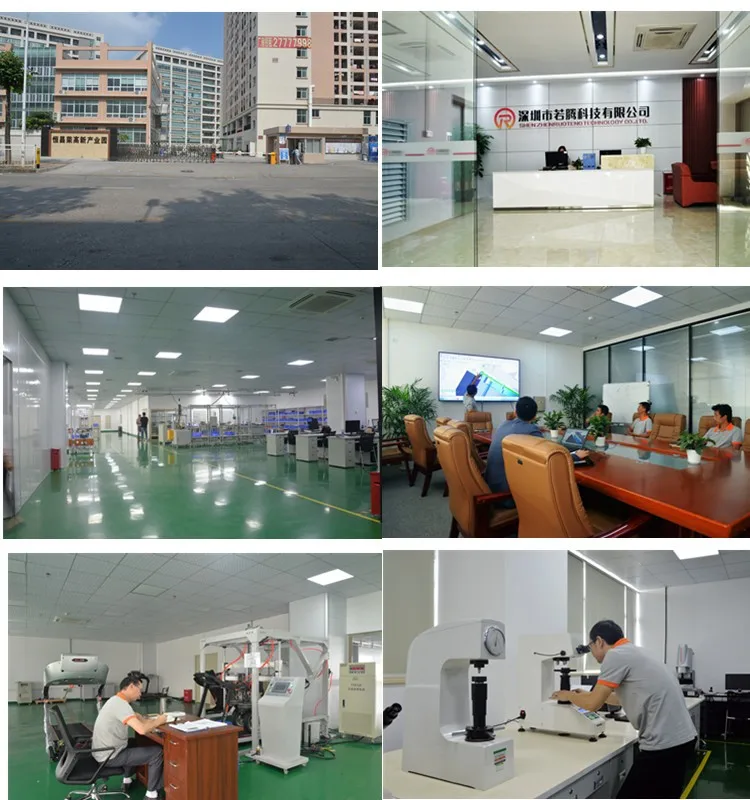

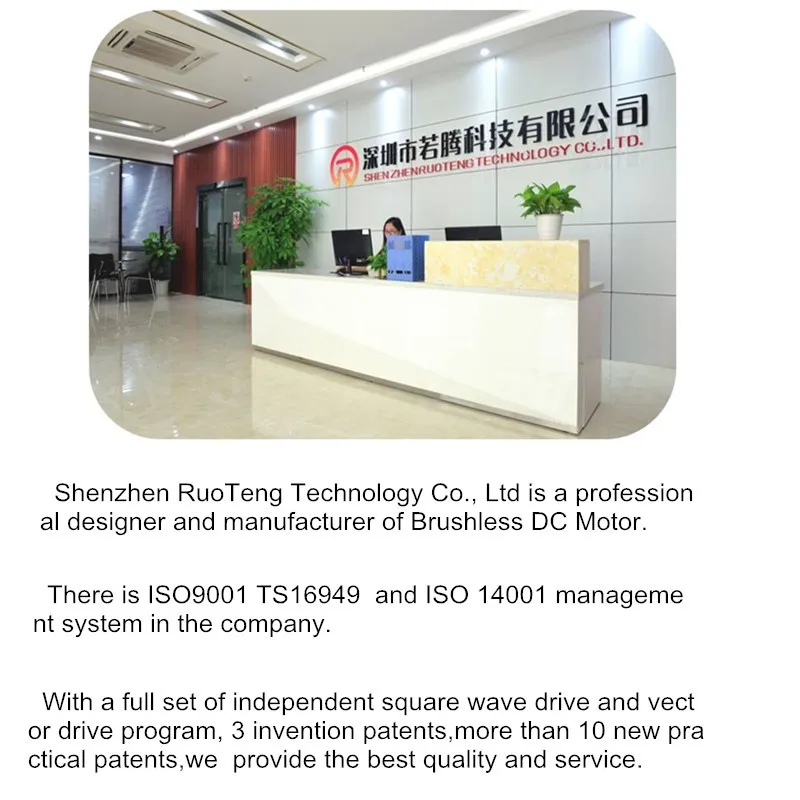

Company Introduction

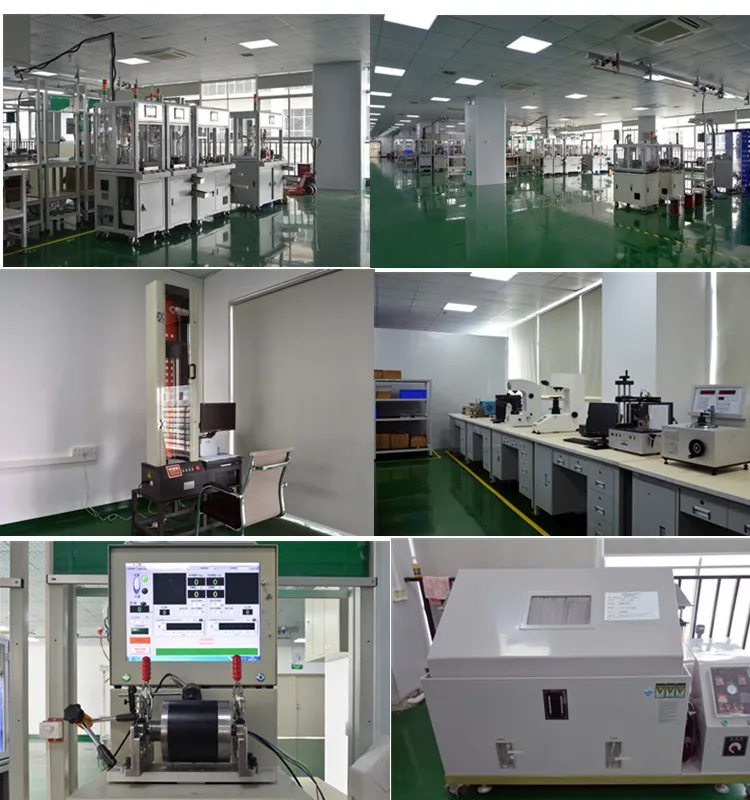

The High-Precision Inspection Equipment

The Invention Patents

Shipping


Why Choose Brushless DC Motor (BLDC)?
1. Responsiveness & Quick Acceleration- Inner roteor brushless DC motor have low rotor inertia, allowing them to accelerate, decelerate, and reverse direction quickly.
2 .High Power Density-BLDC Motors have the highest running torque per cubic inch of any DC motor.
3 .High Reliability-BLDC motors do not have brushes, meaning they are more reliable and have life expectancies of over 10,000 hours. This results in fewer instances of replacement or repair and less overall down time for your project.

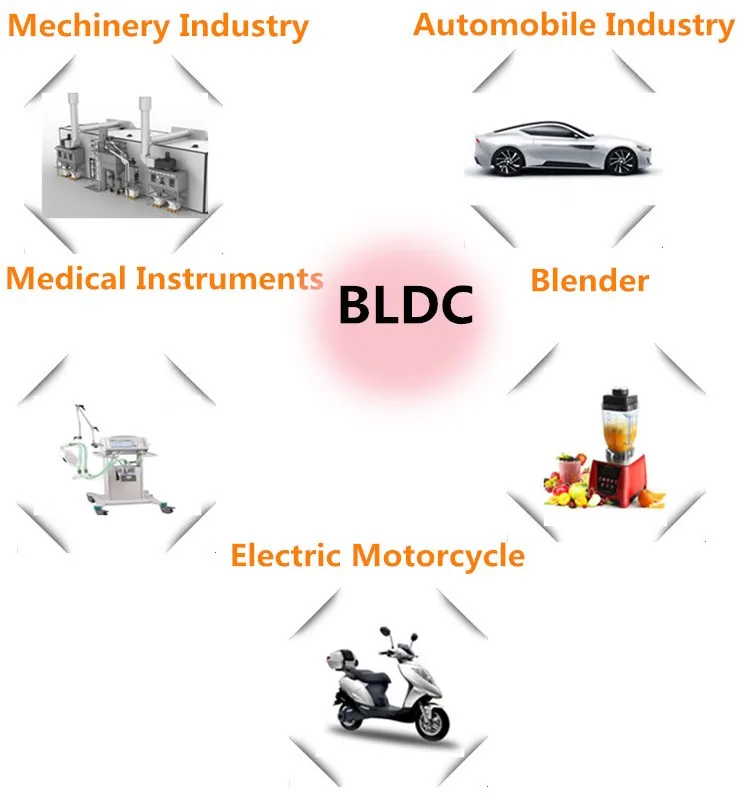

The BLDC Application Range
