65 дюймов ture плоский PCAP емкостный сенсорный все в одном ПК с RK3188/RK3288/ J1900/i3/i5i7 опционально

Сохранить в закладки 60618728302:


Цена:2 950,00 $ - 3 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики






Product Description


ITD New Series multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PCs specifically suited for various interactive digital signage and kiosk applications.







Specification


65" ture flat PCAP capacitive touch all in one pc with RK3188/RK3288/ J1900/i3/i5i7 optional



































































































































System



CPU



 2.0GHz Processor/1037U,J1900,I3,I5,I7 optional



BIOS



Award BIOS 4/8Mbit SPI Flash ROM



Chipset



Inter Valley View SSA Cunit



Memory



1*SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB



Graphic Chipset



CPU integrated graphics HD and support 1080p



Storage



16GB SSD or 320GB HDD



LAN



1 x 10/100/1000Mbps Ethernet



Input/Output



Serial Ports



1 x COM



USB Ports



4 X USB



VGA Port



1 x VGA



HDMI Port



1x HDMI Port



Audio Card



with Realtek ALC662


Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN



Panel



Cell Type/Glass Surface



TFT LCD



Aspect Ratio/Size



32” 16:9



Active Area/Pixel Pitch



698.4 (H)*392.85 (V)/0.484



Native Resolution/Colors



1920 x 1080/16.7M



Brightness/Contrast



350nits/1000:1



Viewing Angle(Typical)



UP/Down 89-89 Deg/ - Left/Right 89-89 Deg



Light Source



LED with 50000hours’ lifetime



Convenient Features



Power button



Power



Input Voltage



AC100~240V 4A



Operation/Power Saving



90W



Environment Considerations



Operating Temperature



0~60 deg.C



Storage Temperature



10~60 deg.C



Relative Humidity



30%~90%



OS Support



Windows 7/ Windows XP/ Windows 8/ Linux



Touch Panel/Interface



Dual IR Touch screen with vandal proof, water proof, dust proof



Mounting Method



VESA



Accessories



Power cable, Motherboard CD driver, Screws



Carton Dimension



815*570*160(W*H*D)mm

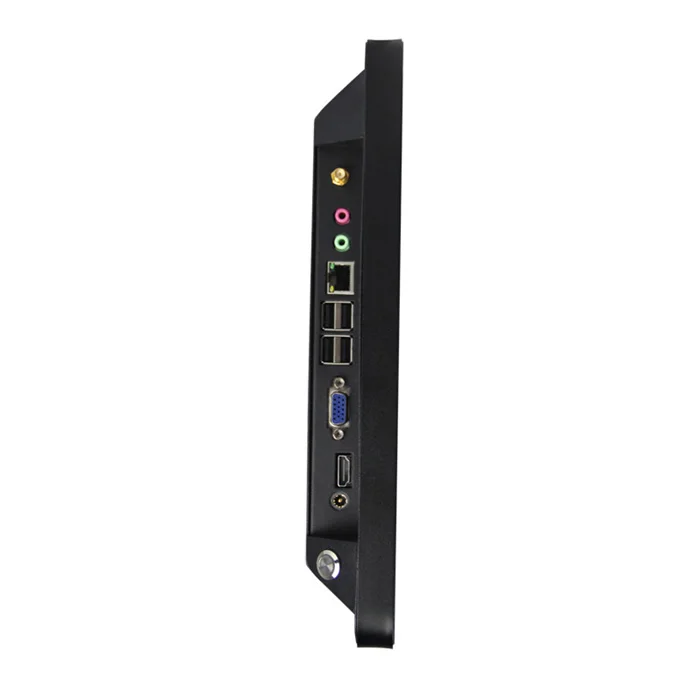

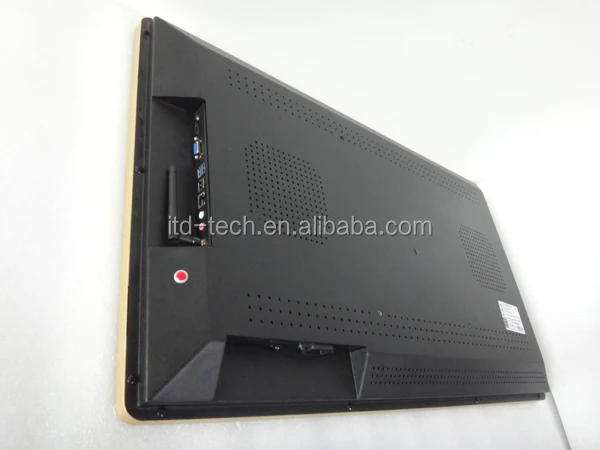

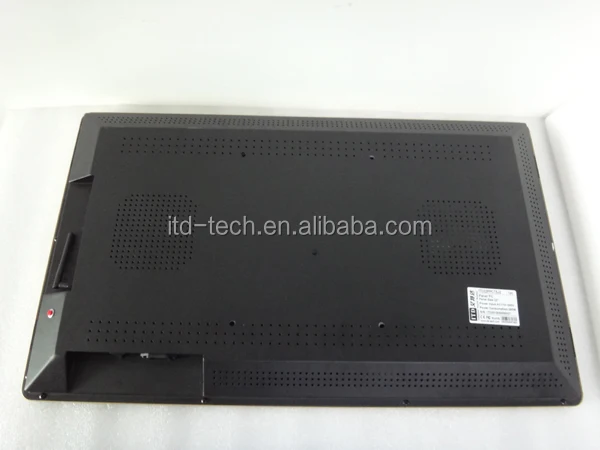

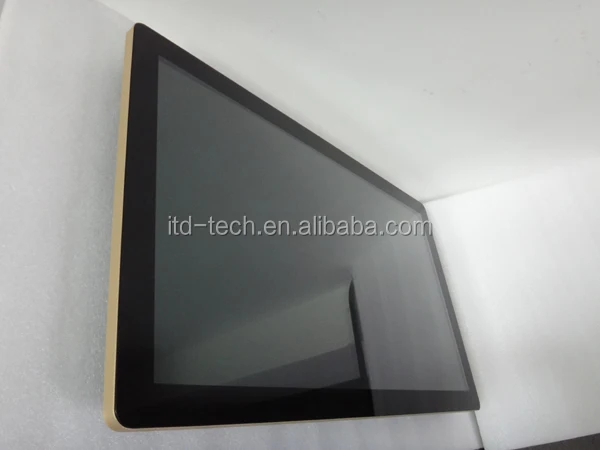

 product picture


65" ture flat PCAP capacitive touch all in one pc with RK3188/RK3288/ J1900/i3/i5i7 optional

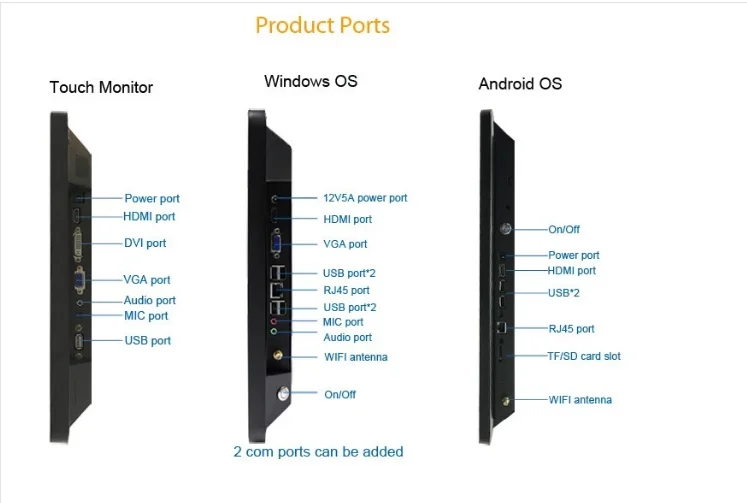

OFE[GQAD{7)}`E`33KN95G





ITD Tailor-Made ServiceCUSTOMIZED AND FLEXIBLE MECHANICAL DESIGN


ITD2_02ITD2_03





















Packaging & Shipping







 Firm, safe, standard cartons with foams


Wooden Shelf or box for big sizes and big quanity










Our Services





AFTER-SALES SERVICE





1-3 years’ warranty with DOA, RMA and Paid Service











Company Information


 ITD2_03ITD2_04ITD2_05ITD2_06ITD2_07ITD2_08ITD2_09
