YZ20T4 зум хирургический микроскоп для офтальмологии
- Категория: >>>
- Поставщик: Suzhou New Vision Meditec Co. Ltd.
Сохранить в закладки 60619712465:
Описание и отзывы
Характеристики

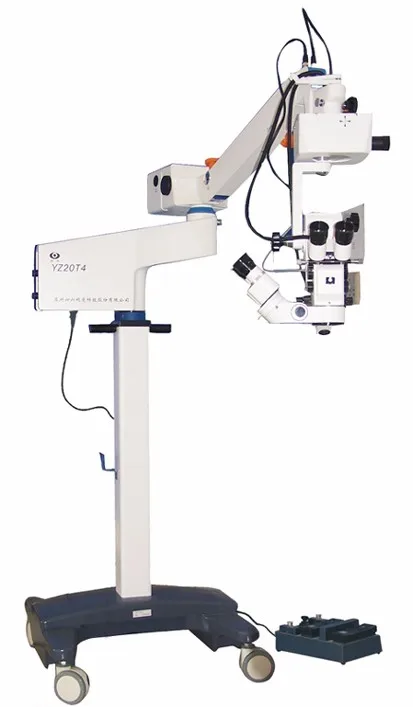

Operation Microscope for Ophthalmology
YZ20T4
Product Description
The product is an advanced double binocular operation microscope designed for two men, ZOOM magnification and foot switch.
Characteristics:
1. Assistant microscope can be rotated to opponent microscope.
2. Optional beam splitter can be connected with teaching tube, Camera and CCD system.
3. Equipped with three different objective lenses(f200/f250/f300)and applicable in ophthalmic surgery, orthopedic surgery and hand surgery.
4. Oblique illumination can also be used as slit illumination and slit width is adjustable.
2. Optional beam splitter can be connected with teaching tube, Camera and CCD system.
3. Equipped with three different objective lenses(f200/f250/f300)and applicable in ophthalmic surgery, orthopedic surgery and hand surgery.
4. Oblique illumination can also be used as slit illumination and slit width is adjustable.
Assistant Microscope can be rotated to opponent microscope
Internal beam splitter can be connected with teaching tube and CCD system
Equiped with three different objective lenses (f200/f250/f300) and aplicable in ophthalmic surgery, orthopedic surgery and hand surgery
Oblique illumination can also be used as slit illumination and slit width is adjustable.
Available for digital /video recording during surgery
It can be upgrade to digital by attaching a video recording system: beam splitter, video adapter, video camera, imaging capture card and professional software.
It can be upgrade to digital by attaching a video recording system: beam splitter, video adapter, video camera, imaging capture card and professional software.
and can use surgery trolley to mount monitor in an operating zoom
Specifications:
| Eyepiece Magnifications | 12.5x/18B |
| Diopter Adjustment | ±7D |
| Pupil Distance | 50mm~75mm |
| Magnifications for Main Microscope | f200: 4x 6x 10x 16x 25x |
| f250: 3.2x 5x 8x 12.8x 20x | |
| f300: 2.7x 4.2x 6.7x 11x 17x | |
| Magnifications for Assitant Microscope | f200: 6x 10x 16x |
| f250: 5x 8x 12.8x | |
| f300: 4.2x 6.7x 11x | |
| Maximal Resolution | 112 LP/mm |
| Illumination Source | 12V/100W, Cold Reflection Halogen Bulb for Medical Use |
| Illumination Type | 6°+0°coaxial illumination of cold light source and 25°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable, and its angle is 360°rotation. |
| Coaxial Illumination | ≥50000lx |
| Oblique Illumination | ≥45000lx |
| Reaching Radius of Arm | 1040mm |
| Adjustable Vertical Range | 850mm~1350mm |
| Fine Focusing Speed and Range | ≤2mm/s, ≥50mm |
| Speed for X/Y and Range | ≤2mm/s, 50mmx50mm |
| Input Voltage | AC220V±22V/50Hz±1Hz, or AC110V±11V/60Hz±1Hz |
| Power | 330VA |
| Fuse | AC250V T4.0A, or AC125V T8.0A |
| Electrical Safety Standard | Executive Standard: GB9706.1-2007, type I |
| Packing Volume | 0.727 CBM, 5cartons |
| Total Weight | 210kg |
Our Services
Terms and Conditions:
a. Payment: T/T, Paypal, Western Union, L/C, Trade Assurance, etc.
b. Lead time: within 2 weeks after receipt of payment
c. Warranty: 1 year
e. Packing: Standard export air worthy package.
f. Shipment: International express (door to door delivery) or international aircargo (to the nearest airport)
Our Products:
a.Ophthalmic Instruments: Operation Microscope, Slit Lamp, Retinal Lens, Fundus Camera, Ultrasound Scan, Ophthalmoscope, Retinoscope, Ophthalmic Stand, Instrument Table, etc.
b.Optometry Instruments: Auto Refractometer, Keratometer, PD Meter, Lensmeter, Phoropter, Vision Chart, Trail Lens Set, Lens Edger, Lens Drilling Machine, Frame Heater, etc.
c.Ophthalmic Surgical Instruments: Sapphire Knives, black diamond knives, disposable knives, Microsurgery Instruments, ect
d.Digital and Video Solutions: Beam Splitter, Digital Adaptor, Digital and Video Solutions, HD Video Recording System for operation microscope, ect.
Company Information
NEW VISION dedicates to developing and manufacturing High Quality Ophthalmic and Optometry Equipment and offering digital imaging solutions to Slit lamp, Operation Microscope, Fundus Camera, AB Scan, as well as live/ video recording systems for surgery processing in the operation room.
Certifications
Exhibitions
Honored Customers
Contact us
FAQ
Q: What's the payment terms ?
A: Normally T/T in advance. Western Union, Paypal, L/C, Trade Assurance is also available.
Q: How long is your delivery time?
A: If in stock, the order will be dispatched within 3 working days after the payment receipt. If the products are not in stock, around 7 days after the payment receipt. For some special products, delivery time need to be confirmed with the sales person.
Q: What's the warranty Policy?
A: We offer 1 year warranty and life time maintenance.
Похожие товары
Лидер продаж 2022, разноцветный мягкий силиконовый ремень для бедер, спортивные Эспандеры для фитнеса, эластичная лента-петля
1,08 $ - 1,28 $

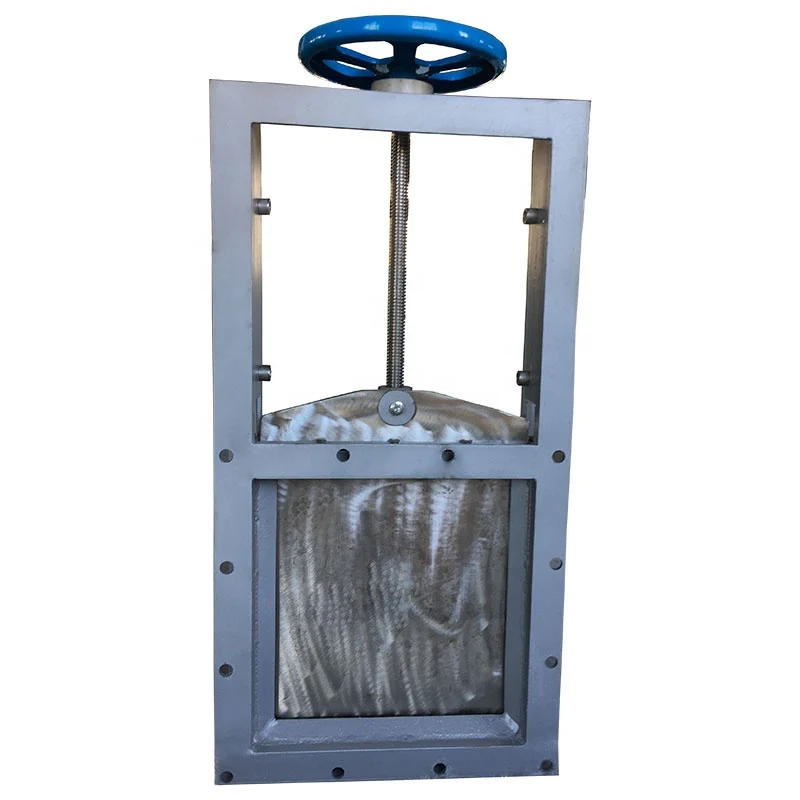

Для удаления пыли гибкие электрические плиты задвижки моторизованный ворота золотника
460,00 $ - 500,00 $

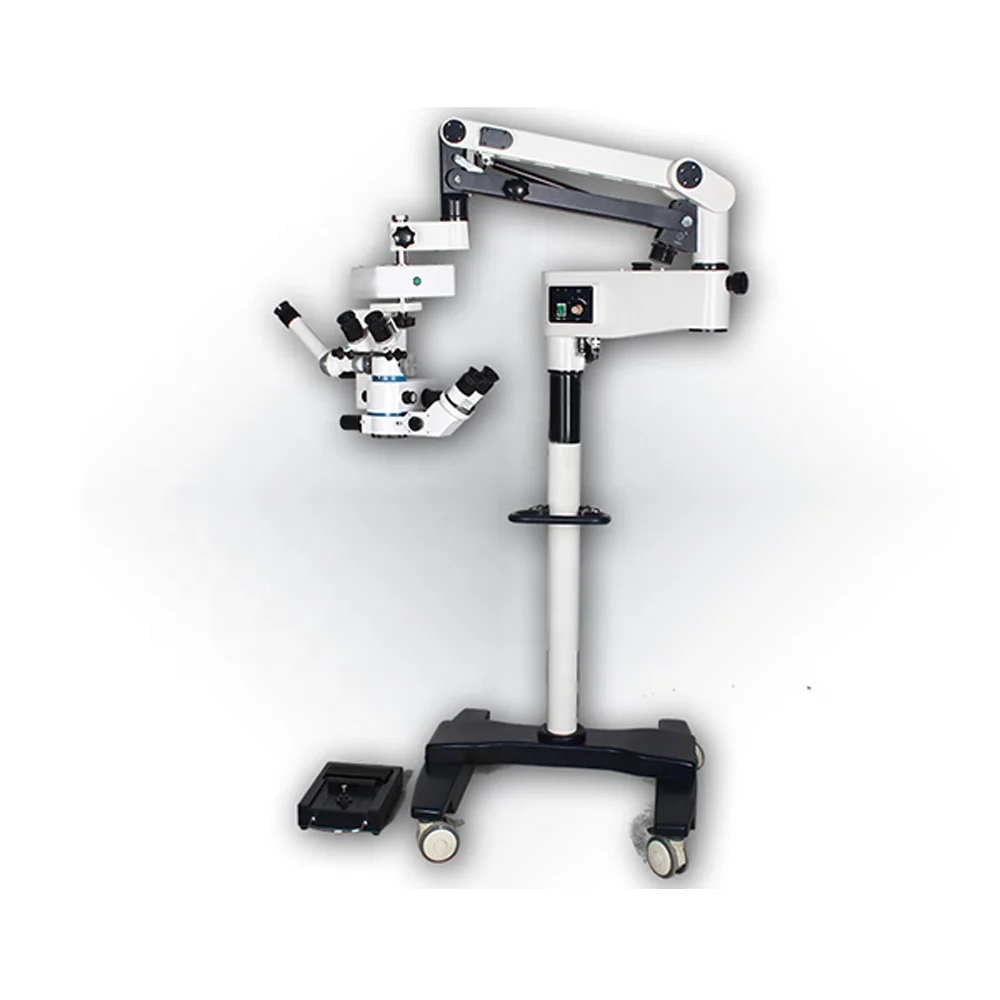

Клинический офтальмологический операционный микроскоп с лучевым сплиттером

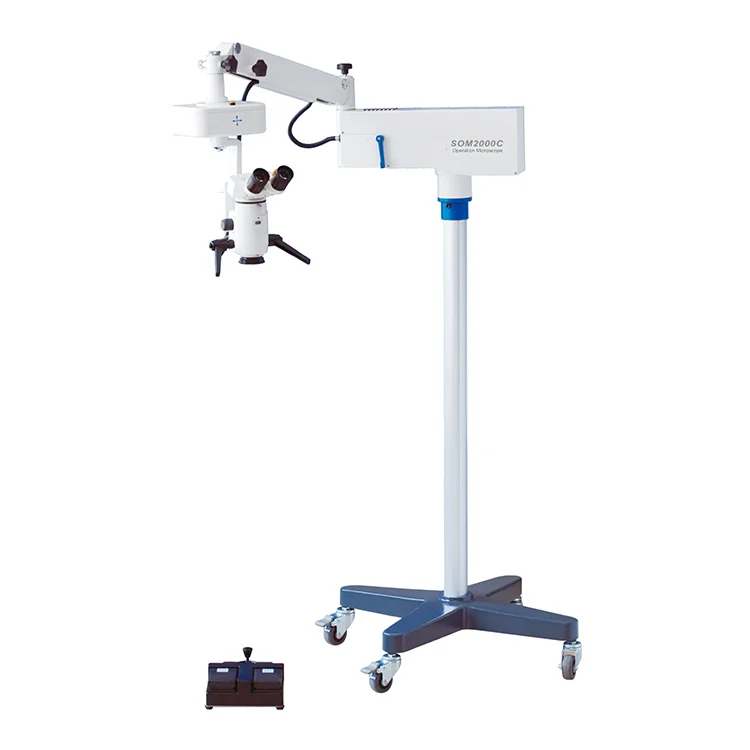

Офтальмологическая Хирургическая машина, операционный микроскоп с управлением ногами

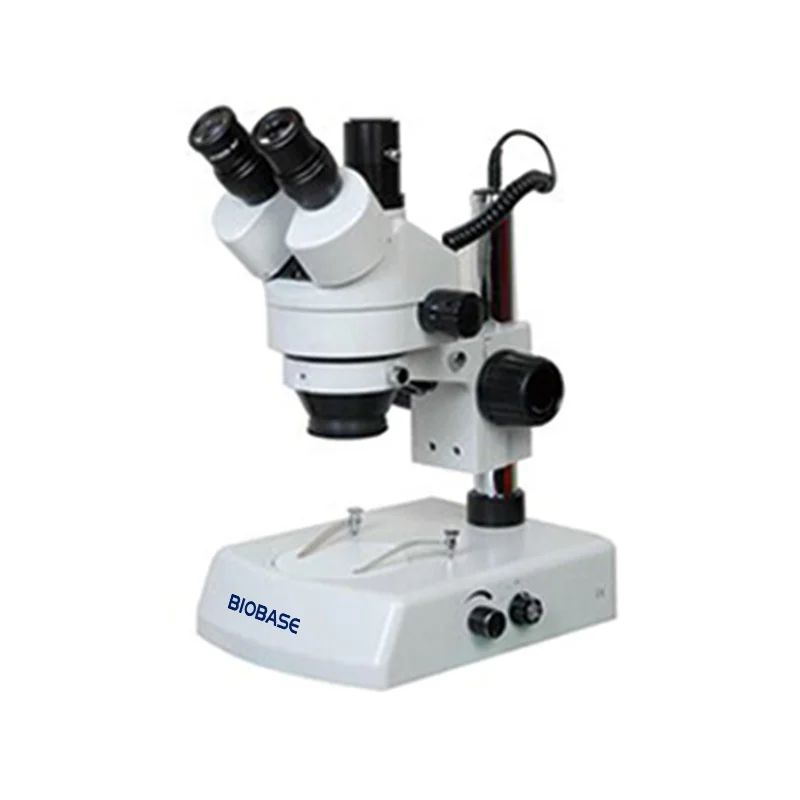

Biobase Китай в наличии портативный зум стерео глаз офтальмология хирургический операционный микроскоп цена ретинальная хирургия
Низкая цена, All Lat, роликовая система Ricambi для тренажерного зала

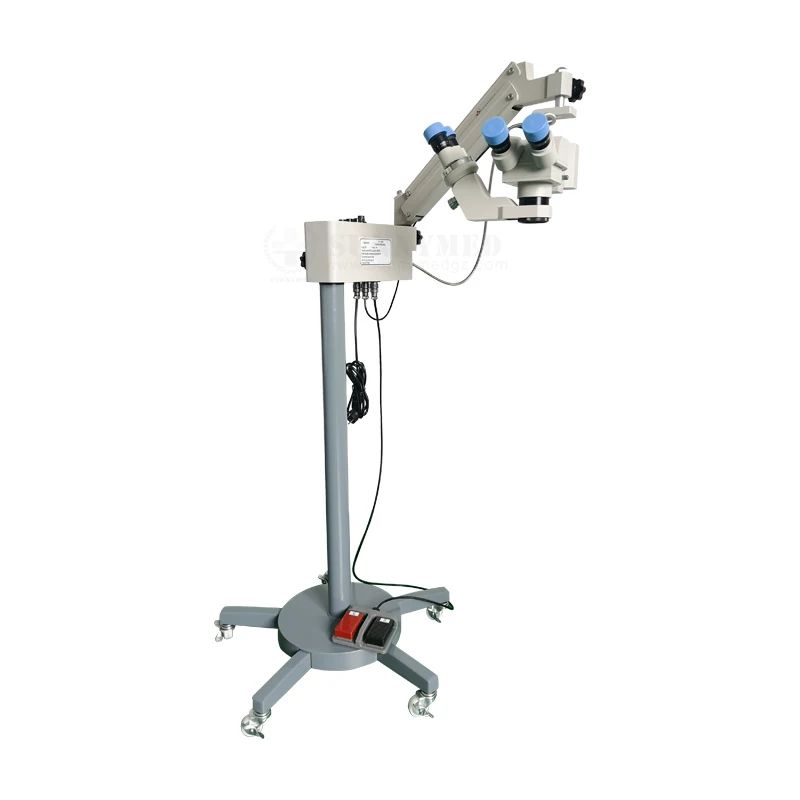

SY-I064 дешевые офтальмологическое оборудование глаза микрохирургии оптический микроскоп медицинский хирургический операционный микроскоп
