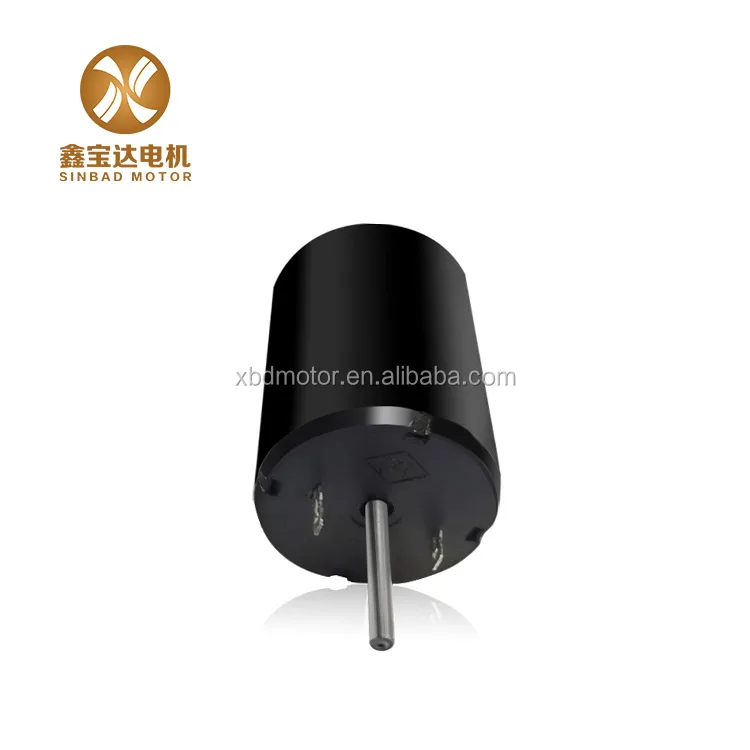

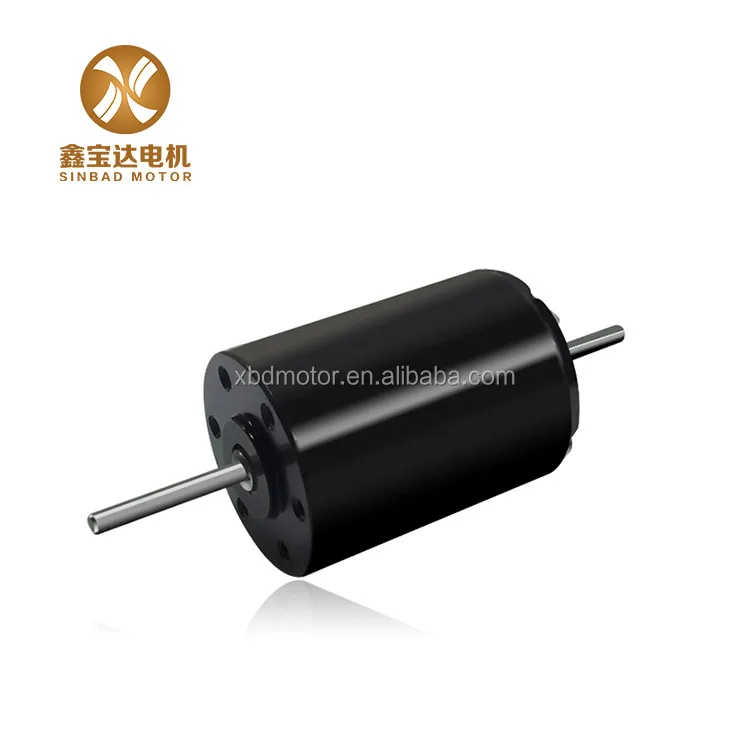

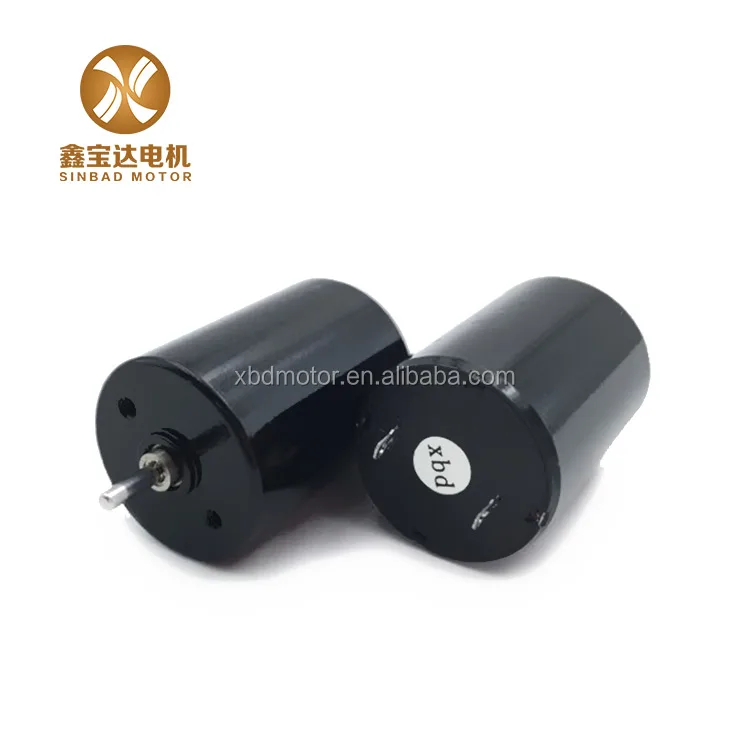

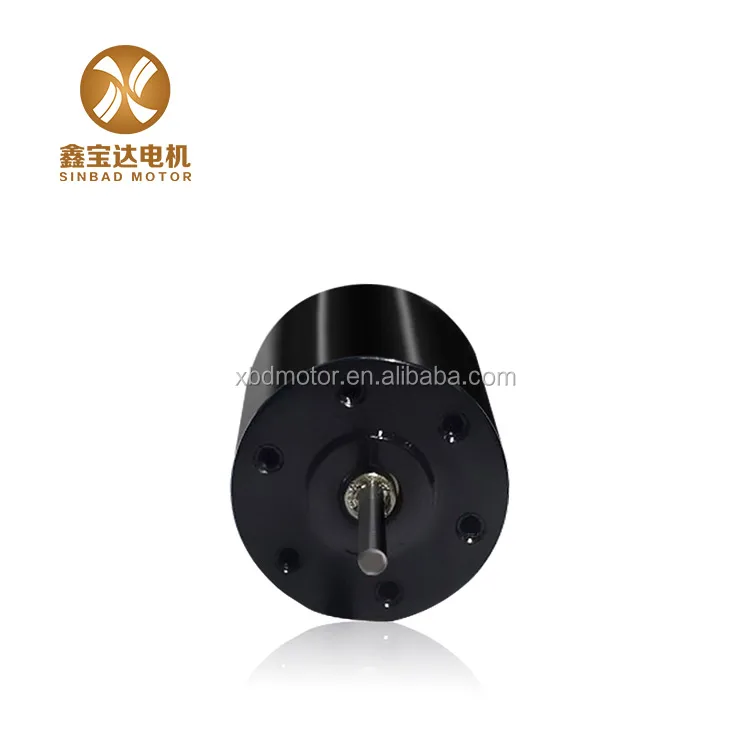

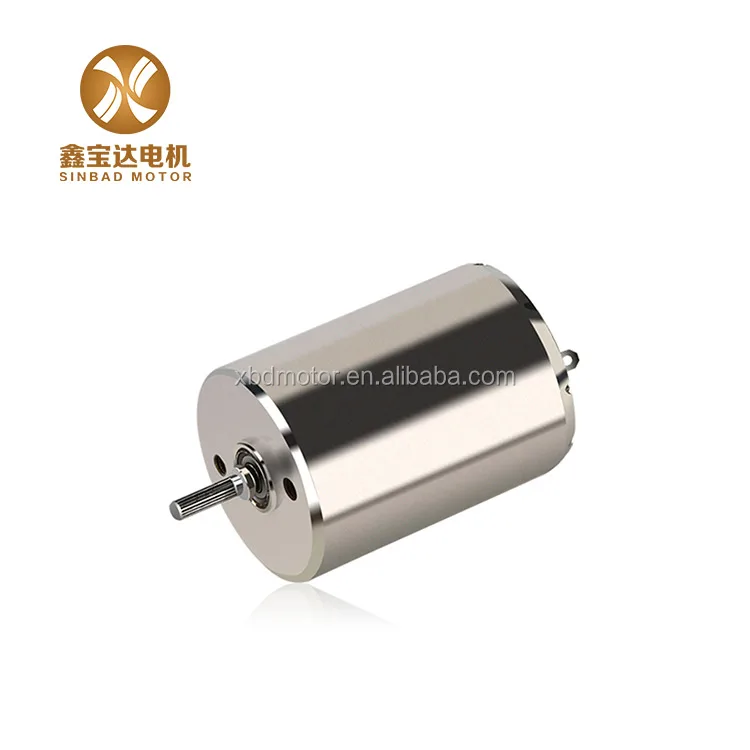

Sindbad Coreless DC Motor Features:
-Small compact size and Light weight
-Customized Specifications are welcome!
-We can accept OEM/ODM service.
-Option Gearbox or Encoder as per your request.
Drawing:
Standard Parameters:
2230 Series | ||||||||
3 | 6 | 12 | 15 | 24 | 40 | |||
Rated Voltage | 3 | 6 | 12 | 15 | 24 | 40 | V | |
Armature Resistance | 0.6 | 3 | 10.8 | 21 | 50 | 193 | Ω | |
Max Output | 3.69 | 2.94 | 3.27 | 2.63 | 2.82 | 2.01 | W | |
Max Effect | 79 | 78 | 79 | 78 | 77 | 74 | % | |
No-load Speed | 9600 | 9300 | 9500 | 8400 | 9000 | 8200 | RPM | |
No-load Current | 0.09 | 0.069 | 0.06 | 0.057 | 0.055 | 0.053 | A | |
Locked-rotor Torque | 14.7 | 12.1 | 13.2 | 11.9 | 12 | 9.37 | mNm | |
Friction Torque | 0.12 | 0.12 | 0.12 | 0.12 | 0.13 | 0.14 | mNm | |
Speed Constant | 3230 | 1560 | 799 | 566 | 379 | 208 | rpm/V | |
Back Electromotive Force Constant | 0.31 | 0.639 | 1.25 | 1.77 | 2.64 | 4.81 | mV/rpm | |
Torque Constant | 2.96 | 6.1 | 12 | 16.9 | 25.2 | 45.9 | mNm/A | |
Current Constant | 0.338 | 0.164 | 0.084 | 0.059 | 0.04 | 0.022 | A/mNm | |
Speed/Torque Slope | 653 | 769 | 720 | 706 | 750 | 875 | rpm/mNm | |
Rotor Inductance | 35 | 150 | 420 | 900 | 2200 | 8000 | μH | |
Mechanical Time Constant | 25 | 20 | 20 | 20 | 19 | 22 | ms | |
Rotor Moment Of Inertia | 3.7 | 2.5 | 2.7 | 2.7 | 2.4 | 2.4 | gcm2 | |
Angular Acceleration | 40 | 49 | 50 | 44 | 50 | 39 | .103rad/s2 |
(Remarks:Above the specifications just for your review only,customized according to your need.)
Typical Application:
From automation to household hand tools,E-Drive coreless motors are widely used in Golfcaddy,Tattoo Eyebrow Machine,Beauty Apparatus,Medical Equipment,Robot,Electric-dribe curtain,Model Toys,Power Tools,Factory Automation & Robitics,Beatuty Massage products,Safety Engineering,Tatto Machine,Dental Instruments,Massage Instrument,Adult Product ect.
Sinbad Motor Advantages:
1.ISO9001:2008 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4.We could provide customers with comprehensive one-stop solution
5. Strong R&D team, Model complete:Dia.6~44mm DC Coreless Motor
6. SGS,CCC,CE Certificated, 100% RoHS compliance
Sinbad Motor Production Equipment and Production Line
Certificates
Exhibition and Customer Visiting
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in Coreless DC Motor since 2011.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us samples?
A:Yes, free samples could be provided within 7-15 days.
Q5. What 's the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 50 thousand pieces per month for coreless micro motor series.
Over 10 thousand pieces per month for moreless dc motor series.
Q7. Where is your plant?
A: Located in Shenzhen city, Guangdong province, China.
About 30minutes by car from Shenzhen airport and about 1 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
Please kindly contact us for more the detailed information.
We accept customized products!Thank you so much.
