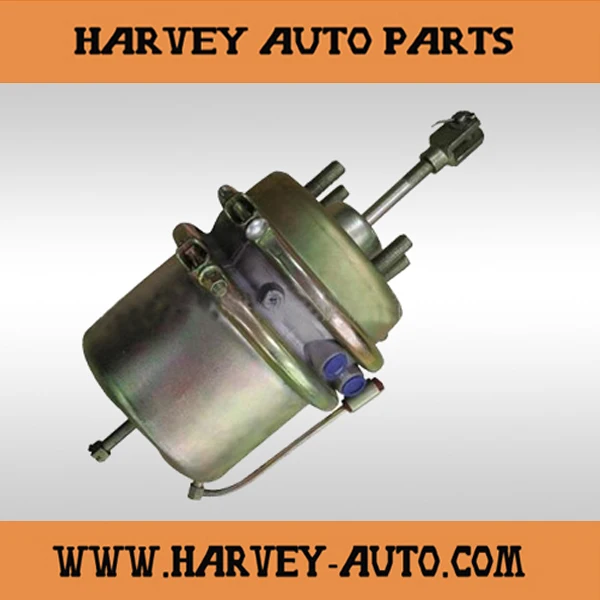

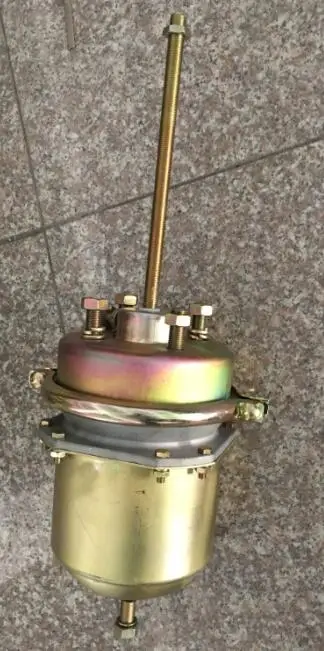

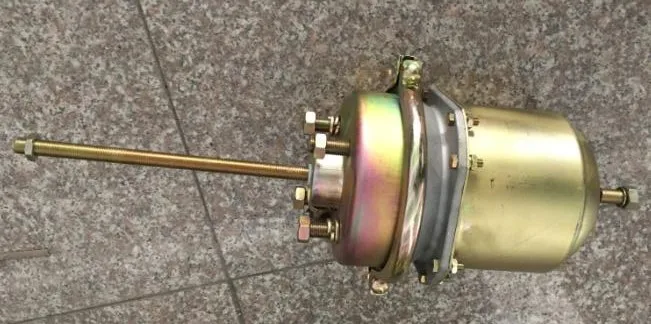

Isuzu Air Brake Chamber
HV-S23  T30/24DP


Original No.:FA1046A











Stroke:64/64mm    Bolt Center: 120.7mm
Port thread: M16*1.5
Bolt Thread: 4-M16*1.5
Push Rod:  M16*1.5
Total Push Rod Length: 390mm




Maximum operating pressure: 1mPa


Operating temperature range:-40 to 80 degrees Celsius


Operating pressure: 800kpa



  HV-S01 Type 30/30 Spring Brake Chamber (925 302 0020 )-2.5" stroke





HV-S01 Type 30/30 Spring Brake Chamber (925 302 0020 )-2.5" stroke



   HV-S01 Type 30/30 Spring Brake Chamber (925 302 0020 )-2.5" stroke


1. we have around 20 years' experiences in the air brake system for heavy duty truck,trailers and semi-trailers.
2. we are an audited supplier by SGS and Golden Supplier member of Alibaba and made-in-China, we have strict quality control.
3. we are the supplier of spring brake chamber, and manual slack adjuster for Daimler and Kenworth in South America.
4. we offer one year's guarantee after the shipment, if any defective items, we promise to replace them free of charge in the next shipment.




Our Parts range includes:


  • Spring Brake Chamber/Service brake chamber/accessories

  • Manual/Automatic Slack Adjuster/ S-cam/U-Joint

  • Hand/Foot brake valve/unloader Valve/Relay valves/control valve

  • Brake shoe/ Brake drum/ Air dryer/Repair kit

  • LED tail light/warning light/Work Lamp/Auto bulbs

  • Air hose/brake hose/electrical coil/ Turbo hose/silicone hose


HV-S01 Type 30/30 Spring Brake Chamber (925 302 0020 )-2.5" stroke



.
