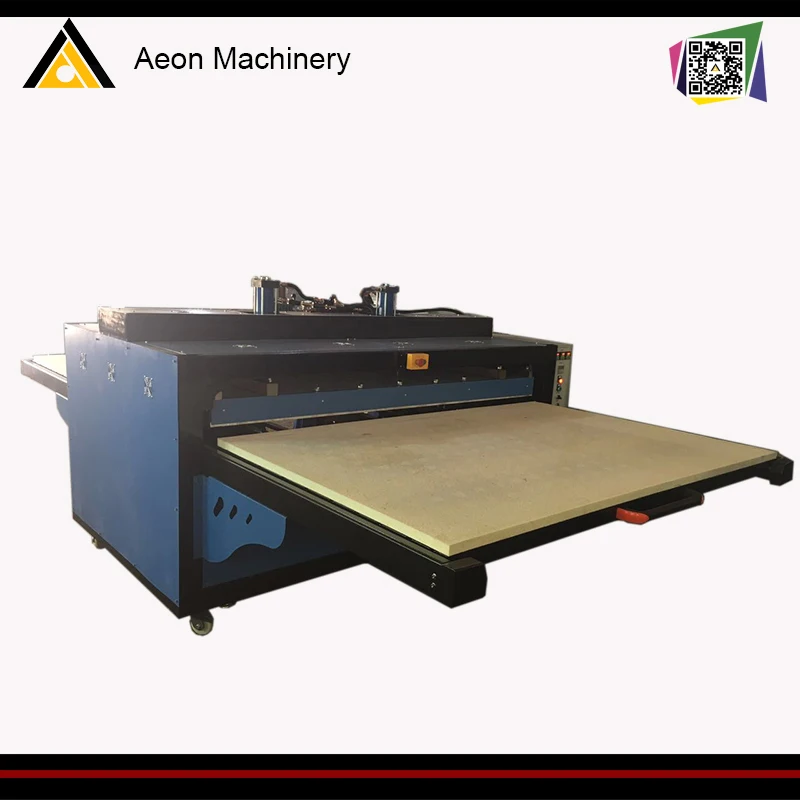

Широкоформатный плоский пневматический/гидравлический тепловой пресс сублимационная машина

         Large format plain flatbed pneumatic/hydraulic heat press transfer machine sublimation

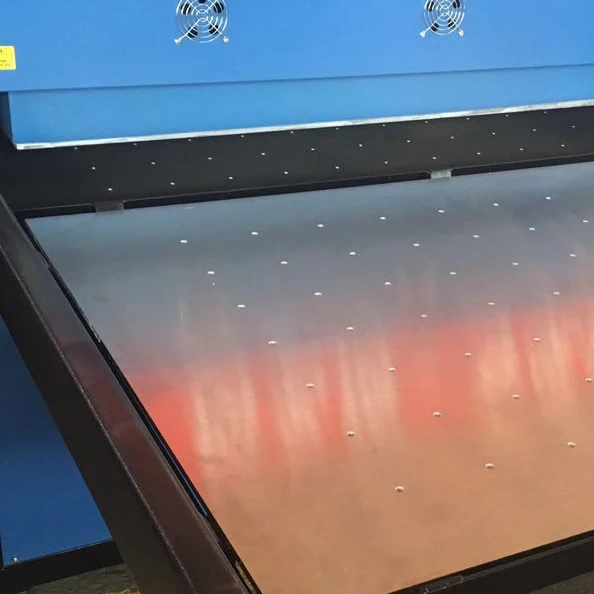

For the large format flatbed heat transfer press machine, the first issue you may worry about is uneven heating plate temperature because the large format size like 1300mm*2000mm. Most heating plate is supported by frame. But the iron made frame absorb and emitting heat quickly in the printing process. It will cause the phenomenon like the picture showing below.

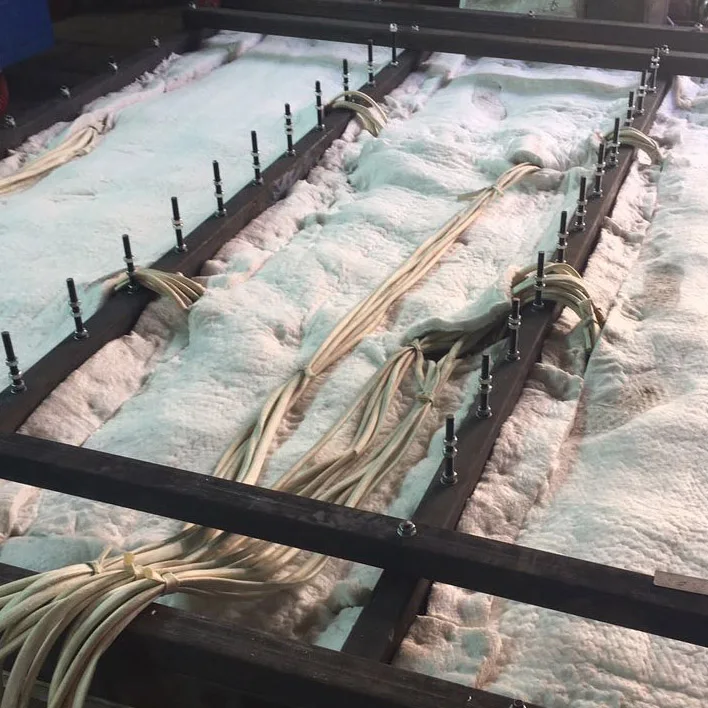

The heating plate frame structure is as below picture showing.

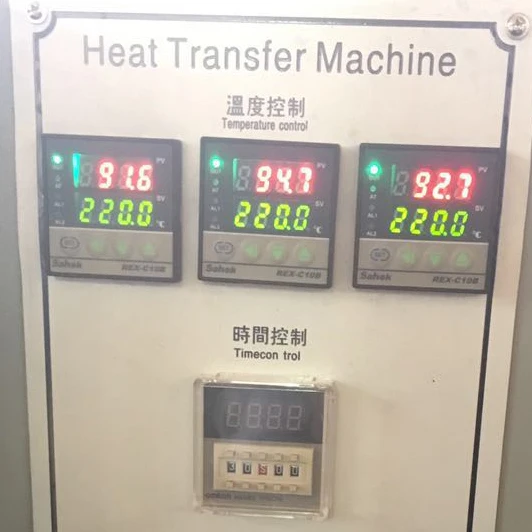

The way to solve above mentioned problem. You can buy larger size machine so that you can avoid to use the frame edge part. The other way is to buy a machine which equipped many temperature sensors. In this case, you can increase the edge temperature 15 centigrade degree higher than the middle part to solve the uneven temperature problem. Reference picture is showing below.

Of course, you will also need more temperature controllers.

OK. You can receive no color difference product now.

Machine parameters:

You may like the sublimation roll to roll heat press calender machine. Click picture to show details.

 The machine will be packed into fumigation-free wooden case. Size is 2650*1600*1650mm. Gross weight is 2100KGS.

 Project consultant service is offered freely. Sample testing service is provided, but the buyer need to cover the courier charge for the sample delivery.

1. We need other size. Is it possible to customize for us?

Yes. Customization size machine is offered.

2. Can we send you a fabric sample for performance testing?

Yes. Sample testing service is provided. But you need to cover the courier charge for the sample delivery.

3. How about the warranty? How can we receive the warranty when we are overseas?

Machine warranty is one year calculated from shipping date except the consuming parts like the cushion sponges. Other parts will be sent by courier and buyers replace it themselves in case any parts damage.
