Product Description

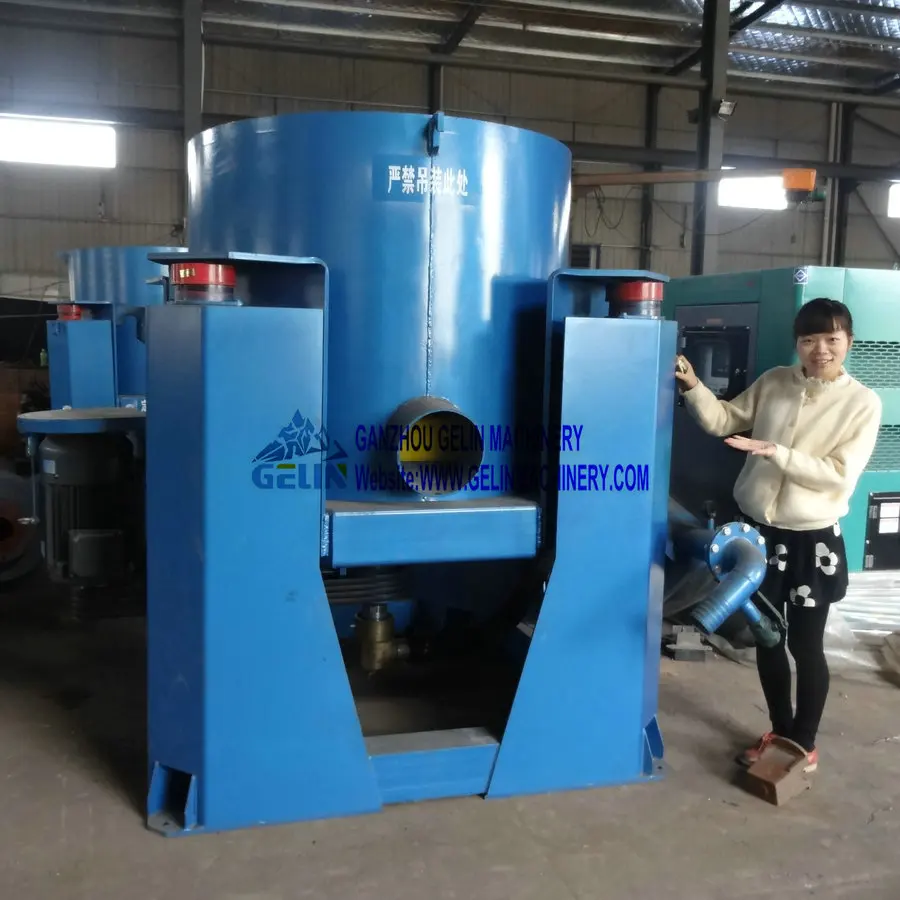

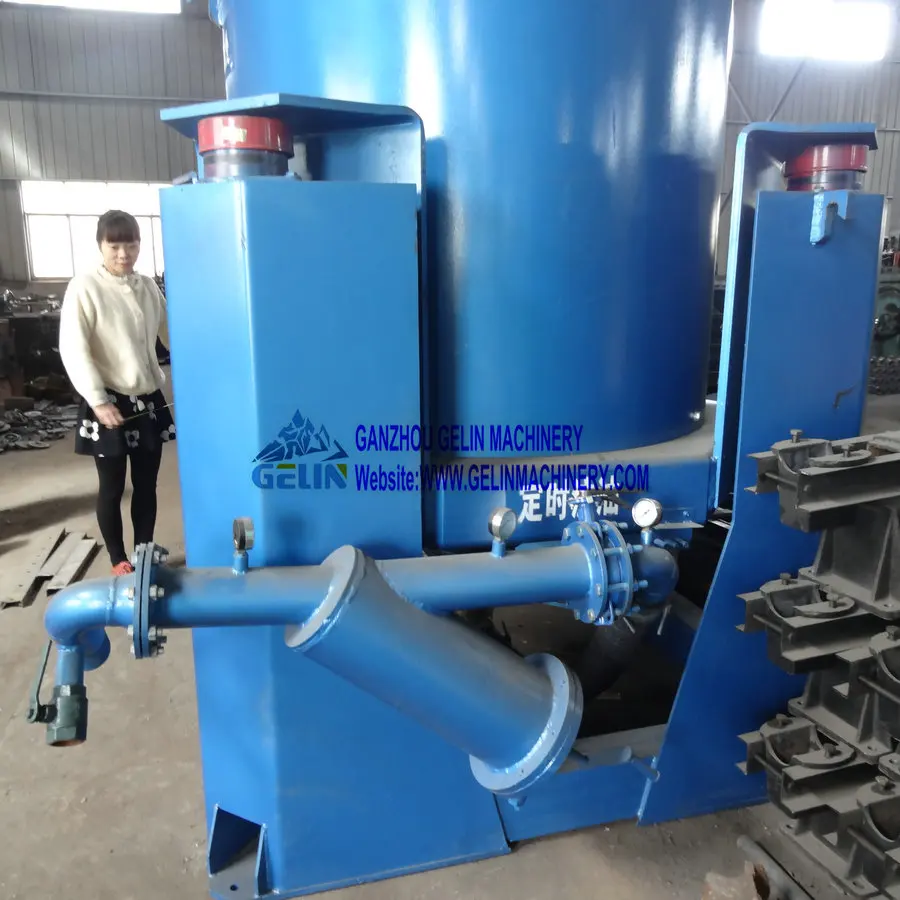

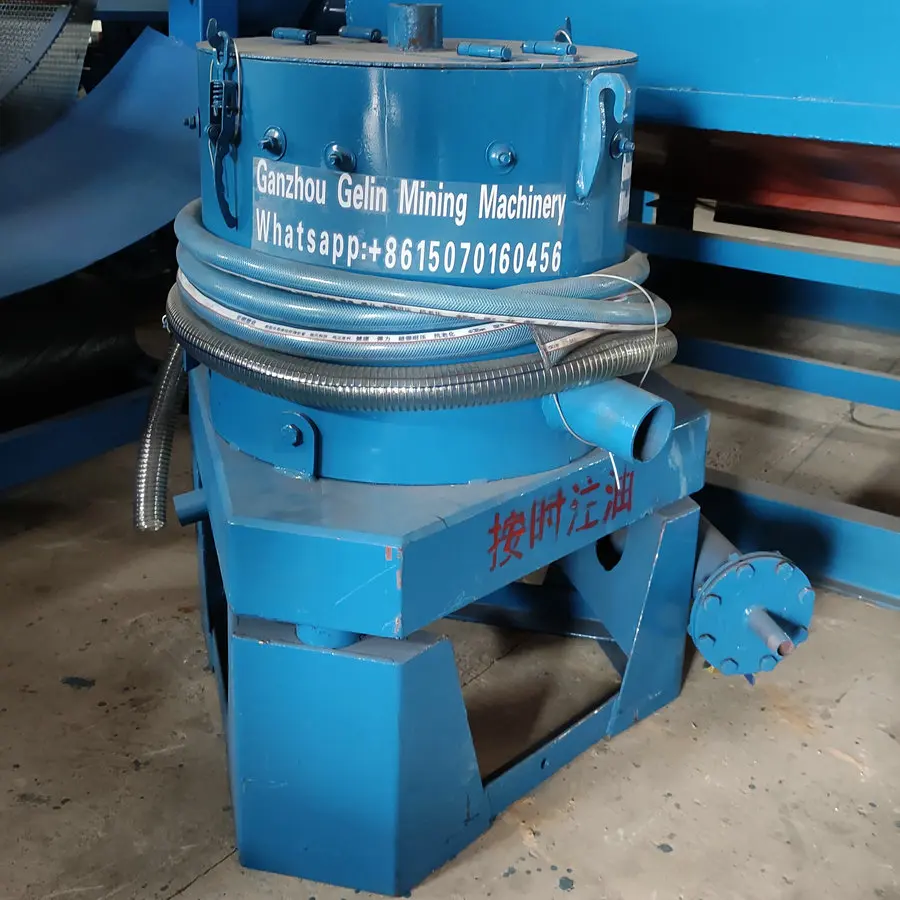

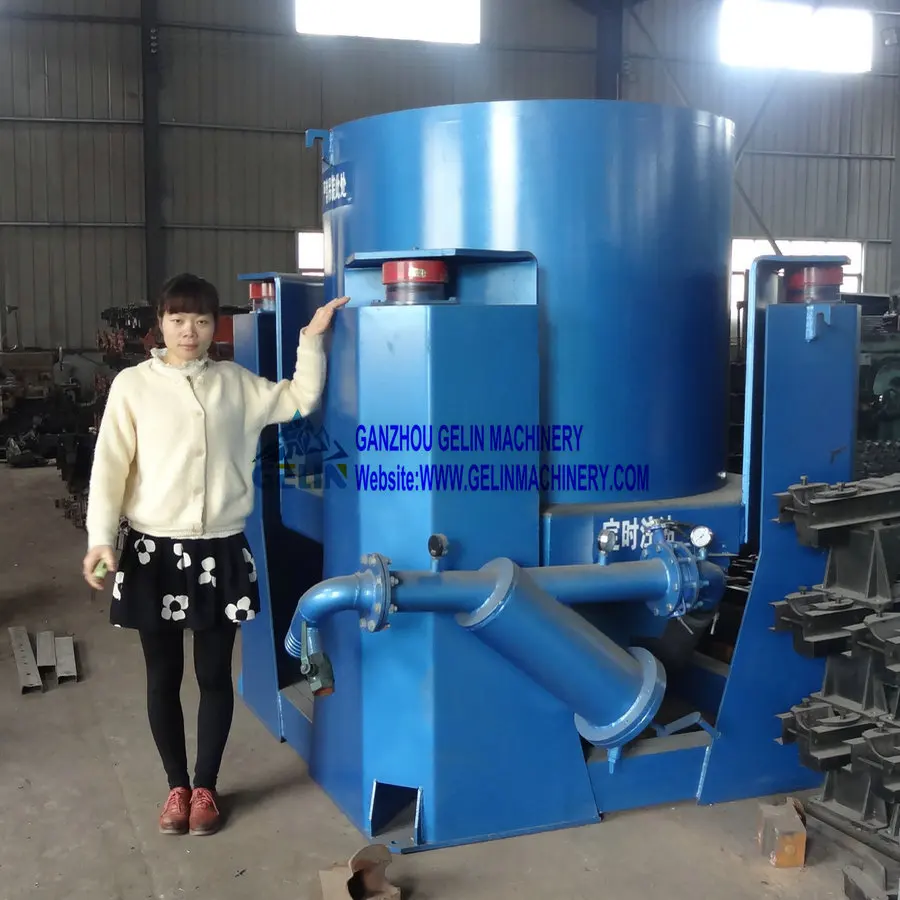

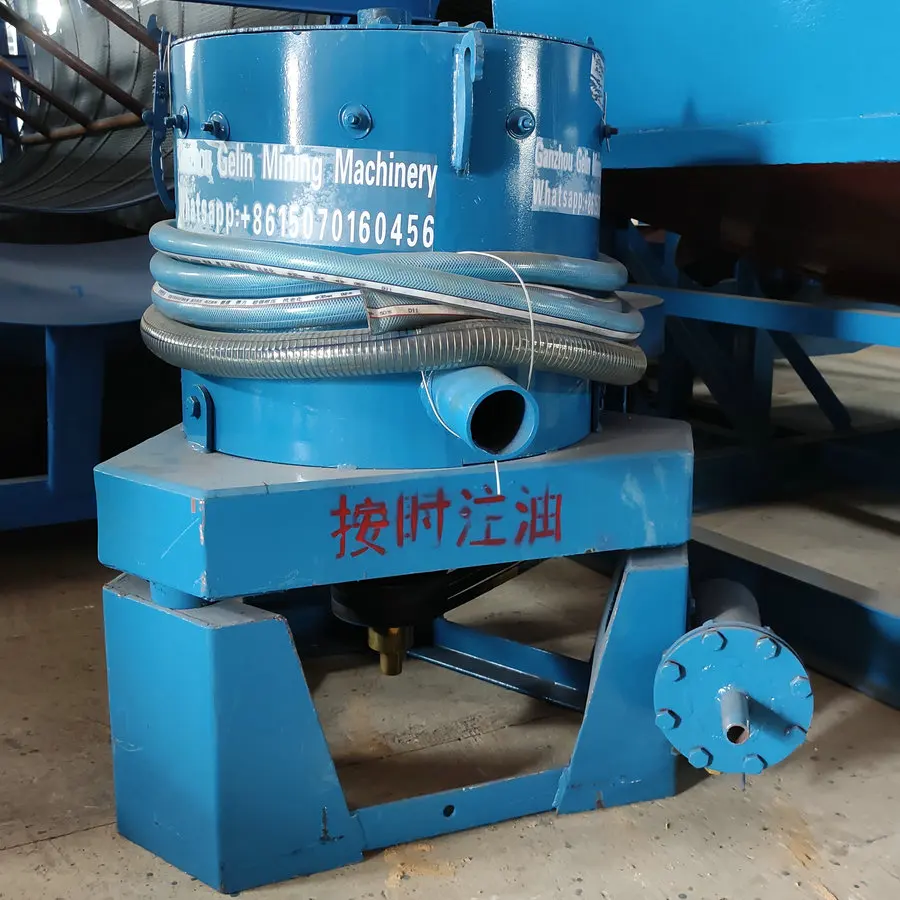

Placer Sand Gold Centrifuge Concentrator High Gold Recovery Centrifuge Mineral Separator
Application
Centrifugal concentrator is widely used for the recovery of gold, tungsten, lead, manganese, iron, etc.
Features
1.High recovery rate: For placer gold,it will be 98% or more; for rock gold, it could reach 97% when the feeding size is below 0.04mm.
2.Large capacity and high efficiency.
3.Easy to install and adjust,the machine has Characteristics of integrity and simpleness utility,which makes it convinient to operate and change spare parts.
4.Eco-Friendly and low noise and no chemical agent involved.
5.Small occupied area benifits to be a part of ore benificiation plant.
1. Access Door
2.Feeding Pipe
3. Drain Pan
4.Liner
5.Shell
6.Tailing Discharge Opening
7.Supporting Leg
8. Rack
9.Bearing Seat
10.Main Shaft
11.Rubber Seat
12.Spring
13.Motor
14.Belt
Working Principle
During operation, the lighter material flows upward over the grooves and heavy mineral particles (usually of economic value) become trapped within them.Pressurized water is injected through a series of tangential water inlets along the perimeter of each groove to maintain a fluidized bed of particles in which heavy mineral particles can be efficiently concentrated.
Customer Visiting
Technical Data
TYPE | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 | ||||
Capacity (T/H) | 0.2-0.3 | 2-3 | 10-15 | 35-45 | 60-120 | ||||
Feeding Size (mm) | 0-3 | 0-4 | 0-6 | 0-6 | 0-6 | ||||
Feeding Density(%) | 0-50% | ||||||||
Water Required (T/H) | 1.5-2 | 4-6 | 10-15 | 17-25 | 40-60 | ||||
Output (kg/time) | 2-3 | 10-20 | 30-40 | 60-70 | 70-80 | ||||
Discharge Cycle (H) | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 | ||||
Power (kw) | 0.75 | 1.5 | 5.5 | 11 | 18.5 | ||||
Rotary Speed (r/min) | 800 | 600 | 460 | 400 | 360 | ||||
Pressure Water | 20 | 120 | 400 | 1200 | 1500 | ||||
Weight (T) | 0.25 | 0.5 | 1.2 | 1.5 | 2 | ||||
Approximately Dimension (mm) | 790x785x790 | 1180x1140x1250 | 1970x1670x1750 | 2300x1800x2200 | 2500x2000x2400 | ||||
Packing & Delivery
Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or Carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or Carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Related Products
Gold Trommel Screen
This machine is designed for processing alluvial gold mine, river and sand gold, placer gold, ect.
About Company
Ganzhou Gelin Mining Machinery Co., Ltd is an professional manufacturer of mining machines and mining engineering service provider in China.Gelin has a strong production capacity and full range of equipments for beneficiation engineering such as feeding&conveying,crushing,screening,grinding,flotation,separation etc.. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile etc.
Sincerely welcome customers to visit our factory.
Our Services
One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
FAQ
For accurate equipment selection and quotation, better learn below info:
2). If rock stone, what is particle size(mm) of the raw ore?
Q:
1).What type is the mining? Is it rock stone? or it is sand?2). If rock stone, what is particle size(mm) of the raw ore?
3).What is the elements of the raw ore? How much percent % of each minerals?
4). How about the handling capacity(T/H) you plan to work with?
Q: How long is the guarantee period of your products?
Q: If I need the complete mineral processing line, will you be able to help me build it?
4). How about the handling capacity(T/H) you plan to work with?
Others:
Q: Are you a trading company or a factory?
A: We are a factory with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡.\t
A: We are a factory with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡.\t
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
Q: How long is the guarantee period of your products?
A: The guarantee period of Gelin equipments is 1-2 years, pls ask staff for more details, And we will supply the spare parts for you for life-long time at lowest cost.
Q: If I need the complete mineral processing line, will you be able to help me build it?
A: Yes, we have strong and skilled R&D team,we can provide even mineral beneficiation experiment, engineering design,scheme of plant construction an working drawings,necessary equipment delivery,installation and commissioning until the full mineral processing line completed.You can believe our quality and service.
Welcome to our factory at any time.
For more details, please refer to our website: www.gelinmachinery.com
