Product Description

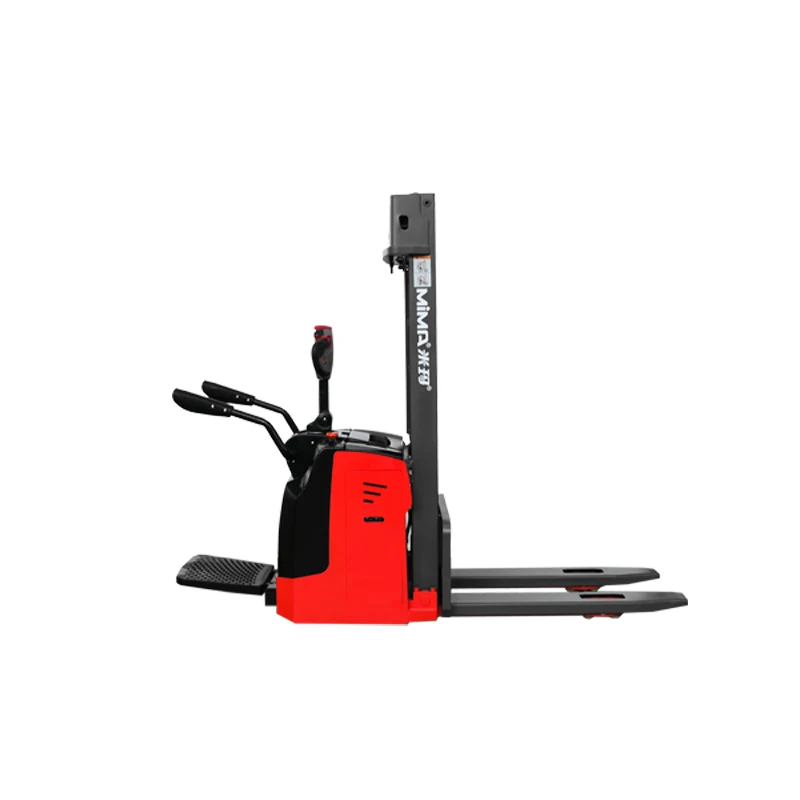

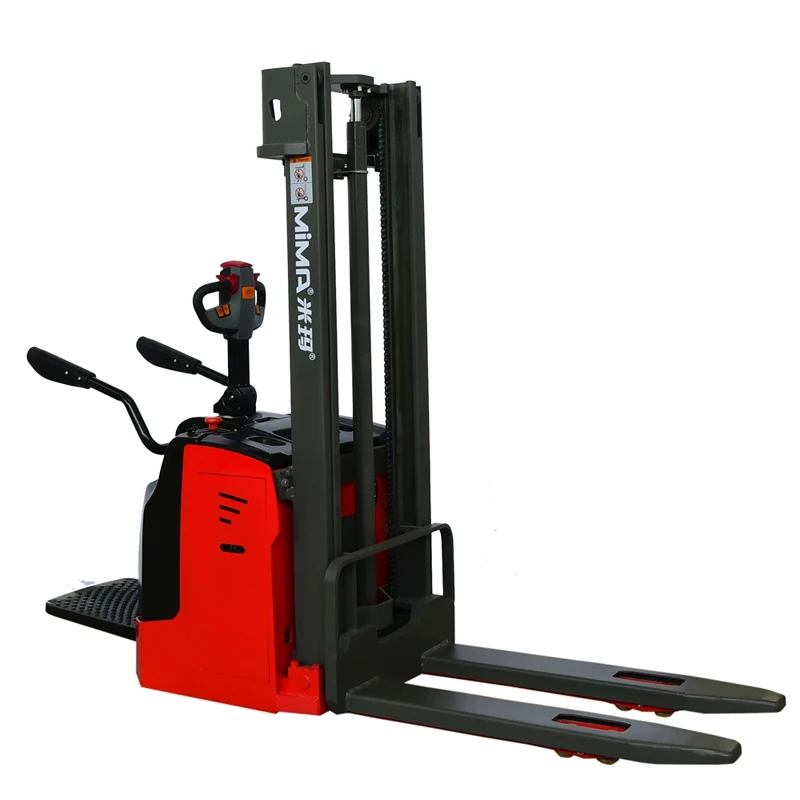

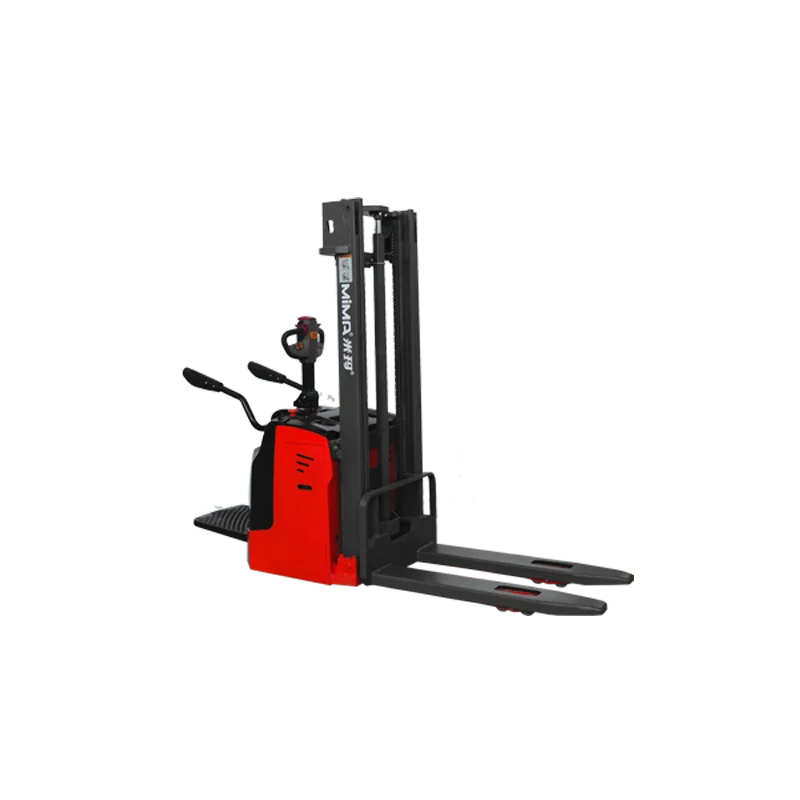

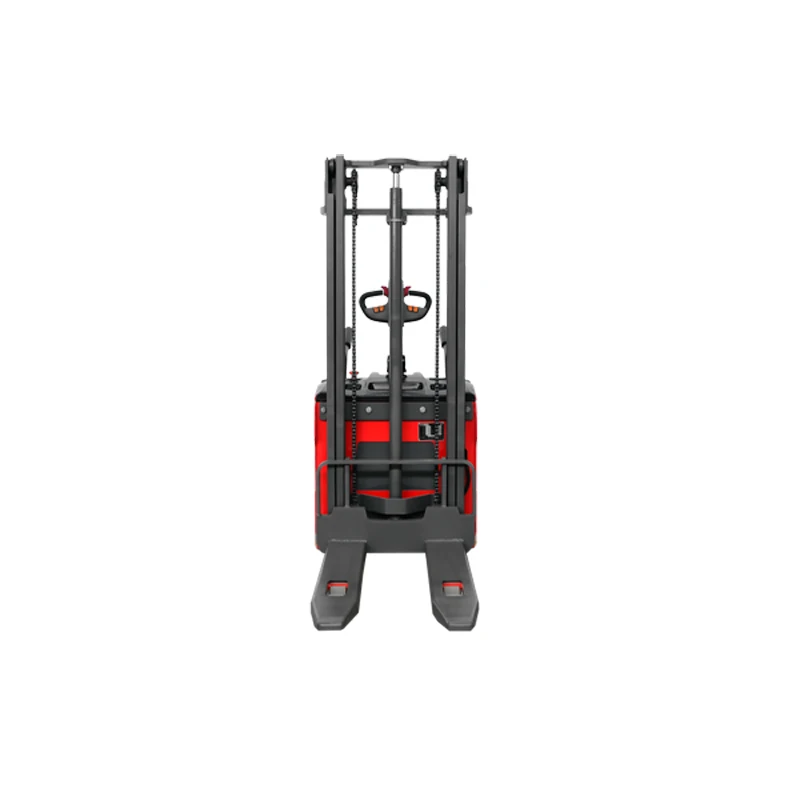

2500mm 1.5 ton Electric Steering Pallet Stacker
Main Features:
1. The advanced Curtis controller is more stable and safer.
2. Multi-function digital instrument, which is convenient for the operator to know the status of the forklift in time.
3, electric power steering, steering is lighter, lower energy consumption.
4. Wide-view gantry design to improve work efficiency.
5, maintenance-free dual AC front drive system, so that the vehicle reaction is more rapid and accurate, and the power is stronger.
Standard | ||||||||||||||||
1.1 | Brand | MiMA | MiMA | MiMA | MiMA | MiMA | MiMA | |||||||||
1.2 | Model | MB1530F01 | MB2030F01 | MB1530 | MB2030 | MB1545S | MB2045S | |||||||||
1.3 | Power Type | Battery | Battery | Battery | Battery | Battery | Battery | |||||||||
1.4 | Operation Type | Seated | Seated | Seated | Seated | Seated | Seated | |||||||||
1.5 | Rated Capacity | Q(kg) | 1500 | 2000 | 1500 | 2000 | 1500 | 2000 | ||||||||
1.6 | Load Center | C(mm) | 600 | 600 | 600 | 600 | 600 | 600 | ||||||||
1.8 | Front Overhang | x(mm) | 413 | 413 | 428 | 428 | 428 | 428 | ||||||||
1.9 | Wheelbase | y(mm) | 1390 | 1390 | 1390 | 1390 | 1390 | 1390 | ||||||||
Weight | ||||||||||||||||
2.1 | Service weight(incl. battery) | kg | 1100 | 1115 | 1270 | 1300 | 1450 | 1550 | ||||||||
Tyre | ||||||||||||||||
3.1 | Wheel type | Pneumatic tyre | Pneumatic tyre | Pneumatic tyre | Pneumatic tyre | Pneumatic tyre | Pneumatic tyre | |||||||||
3.2 | Loading wheel | mm | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | ||||||||
3.3 | Driving wheel | mm | Φ230×75 | Φ230×75 | Φ230×75 | Φ230×75 | Φ230×75 | Φ230×75 | ||||||||
3.5 | Tyres,front/rear | 4/1x+2 | 4/1x+2 | 4/1x+2 | 4/1x+2 | 4/1x+2 | 4/1x+2 | |||||||||
3.6 | Tread,drive | b10(mm) | 630 | 630 | 630 | 630 | 630 | 630 | ||||||||
3.7 | Tread,load | b11(mm) | 490 | 490 | 490 | 490 | 490 | 490 | ||||||||
Dimension | ||||||||||||||||
4.2 | Height of mast closed | h1(mm) | 2025 | 2025 | 2025 | 2025 | 2025 | 2025 | ||||||||
4.3 | Full free lifting height | h2(mm) | / | / | / | / | / | / | ||||||||
4.4 | Lifting height | h3(mm) | 3000 | 3000 | 3000 | 3000 | 4500 | 4500 | ||||||||
4.5 | Height of mast open | h4(mm) | 3506 | 3506 | 3490 | 3490 | 5097 | 5097 | ||||||||
4.19 | Overall length Step up/down | L1(mm) | 2518/2145[2] | 2518/2145[2] | 2533/2160[2] | 2533/2160[2] | 2533/2160[2] | 2533/2160[2] | ||||||||
4.21 | Overall width | b1(mm) | 850 | 850 | 850 | 850 | 850 | 850 | ||||||||
4.22 | Forks size | l/e/s(mm) | 1150/190/56 | 1150/190/56 | 1150/190/56 | 1150/190/56 | 1150/190/56 | 1150/190/56 | ||||||||
4.23 | Fork spread | b5(mm) | 680 | 680 | 680 | 680 | 680 | 680 | ||||||||
4.31 | Mast clearance | m1(mm) | 30 | 30 | 30 | 30 | 30 | 30 | ||||||||
4.32.1 | AST(pallet 1000*1200mm) | Ast(mm) | 2956/2610 | 2956/2610 | 2962/2616 | 2962/2616 | 2962/2616 | 2962/2616 | ||||||||
4.32.2 | AST(pallet 800*1200mm) | Ast(mm) | 2913/2567 | 2913/2567 | 2924/2578 | 2924/2578 | 2924/2578 | 2924/2578 | ||||||||
4.35 | Turning radius Step up/down | Wa(mm) | 2101/1755[2] | 2101/1755[2] | 2101/1755[2] | 2101/1755[2] | 2101/1755[2] | 2101/1755[2] | ||||||||
Function | ||||||||||||||||
5.1 | Driving speed(load/unload) | km/h | 5.0/6.0 | 5.0/6.0 | 5.0/6.0 | 5.0/6.0 | 5.0/6.0 | 5.0/6.0 | ||||||||
5.2 | Lifting speed(load/unload) | mm/s | 90/130 | 65/115 | 125/175 | 65/100 | 90/130 | 85/130 | ||||||||
5.3 | Lowering speed(load/unload) | mm/s | 110/130 | 85/115 | 115/135 | 95/100 | 95/100 | 95/100 | ||||||||
5.8 | Max. climbing ability | %(tanθ ) | ≤8/≤10 | ≤6/≤8 | ≤8/≤10 | ≤6/≤8 | ≤8/≤10 | ≤6/≤8 | ||||||||
5.10 | Brake type | electromagnetic | electromagnetic | electromagnetic | electromagnetic | electromagnetic | electromagnetic | |||||||||
Power | ||||||||||||||||
6.1 | Driving motor | kw | AC1.5 | AC1.5 | AC1.5 | AC1.5 | AC1.5 | AC1.5 | ||||||||
6.2 | Lifting motor | kw | DC2 | DC2 | DC2 | DC2 | DC2 | DC2 | ||||||||
6.4 | Battery | V/Ah | 24/210 | 24/210 | 24/210 | 24/210 | 24/280 | 24/280 | ||||||||
6.5 | Battery weight | kg | 200 | 200 | 200 | 200 | 230 | 230 | ||||||||
6.6 | Steering system | Electric | Electric | Electric | Electric | Electric | Electric | |||||||||
Detailed Images
\t\t\t\t\t\t\t\t\tCompany Profile \t\t\t\t\t\t\t
Bangyitong Science & Technology Developing Co., Ltd
Founded in 1994, Bangyitong Science & Technology Developing Co., Ltd is located in Hefei. As the leading manufacturer of Chinese electric forklift, we are specialized in its R & D, design, production with all-around logistics handling solutions. Meanwhile, our company has passed not only ISO9001:2008 and CE authentications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise" in Hefei.
MiMA can offer you electric pallet truck, pallet stacker, reach truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Owing to our 100 national service networks and exporting over 120 countries successfully, MiMA has won a high brand reputation from domestic and overseas markets.
"Safety, Quality, Innovation, Service" is the remained business philosophy of the MIMA brand for more than 20 years. We are committed to creating the ideal of "the best use of everything and the smooth flow of goods" for our customers. The industry prospect of small space with big action" is the driving force of unremitting efforts and hard work for all MIMA employees.
If you want to know more about our factory Click here to contact us.
Exhibition
FAQ
1.Are you factory or trading company?
We are the factory which have been manufacture electric forklift for more than 20 years.
2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.
3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.
4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.
5.Can you provide training for the customer?
Yeah. We can provide training for our customer.
6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.
7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
We are the factory which have been manufacture electric forklift for more than 20 years.
2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.
3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.
4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.
5.Can you provide training for the customer?
Yeah. We can provide training for our customer.
6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.
7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
