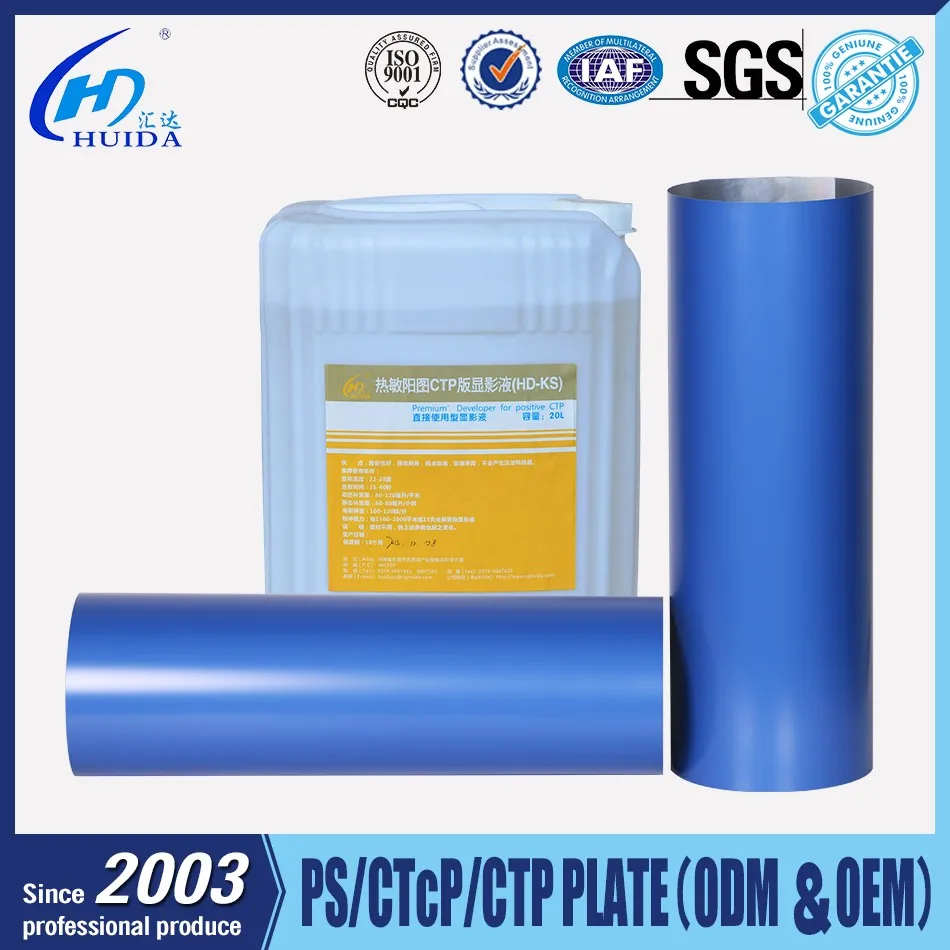

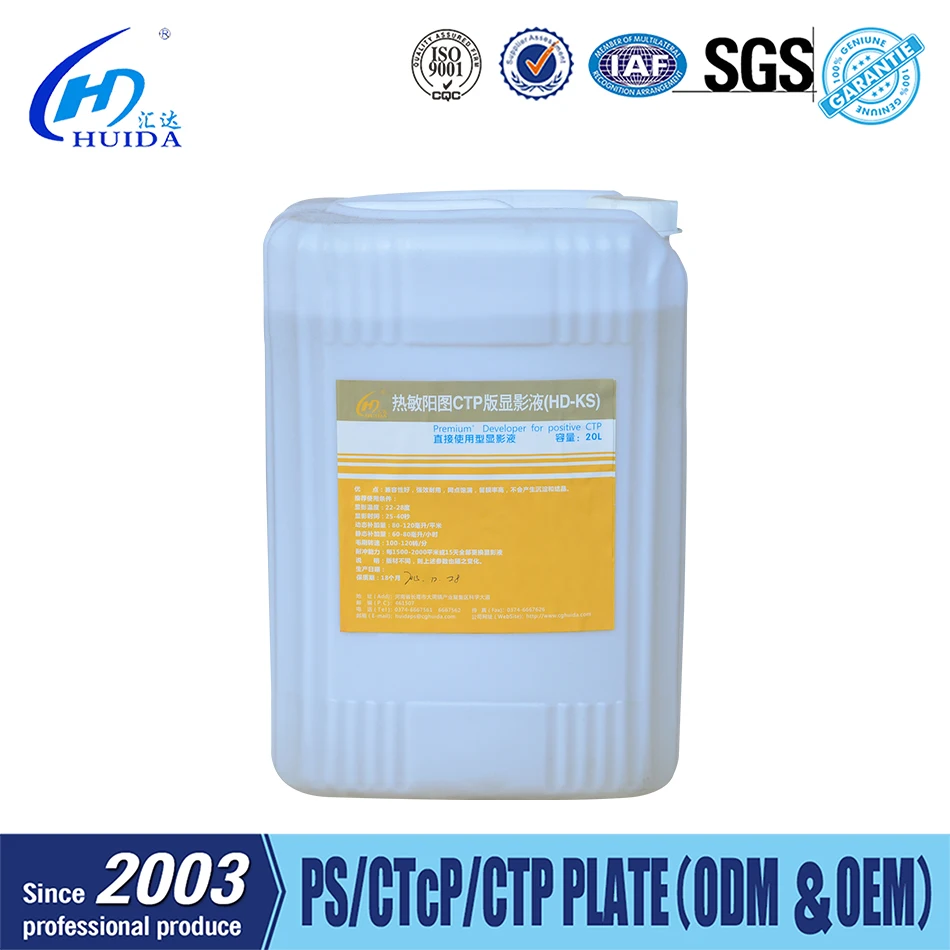

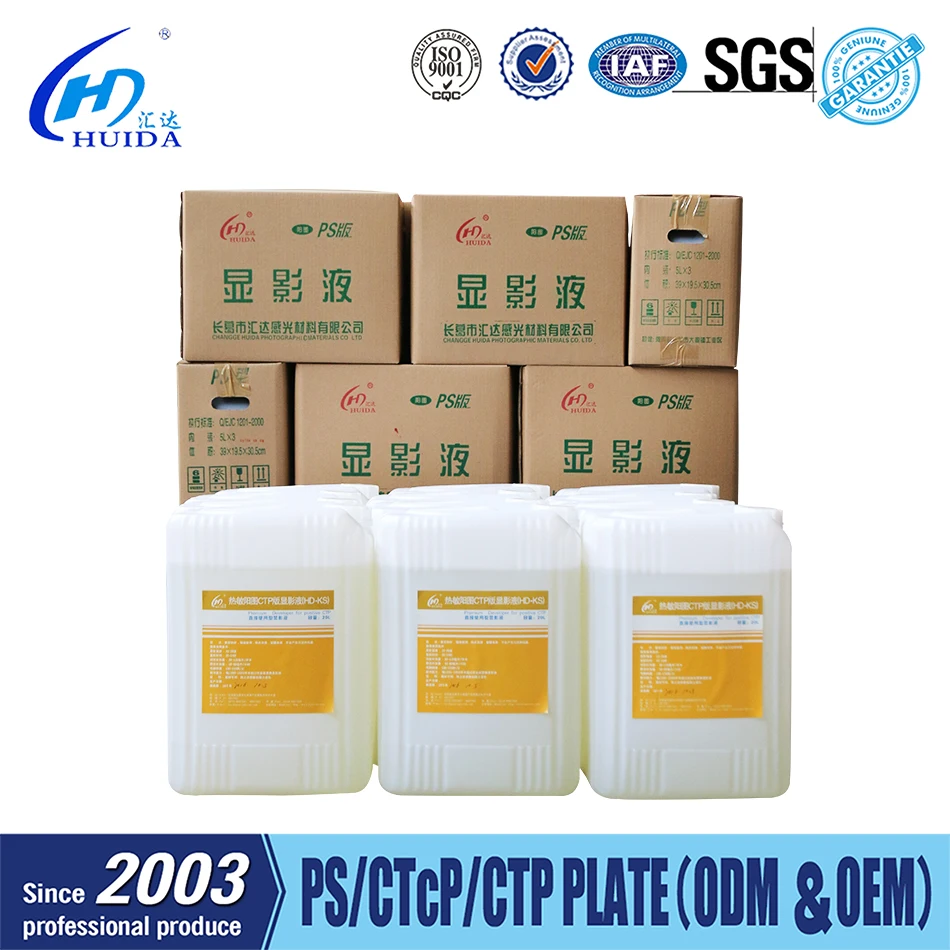

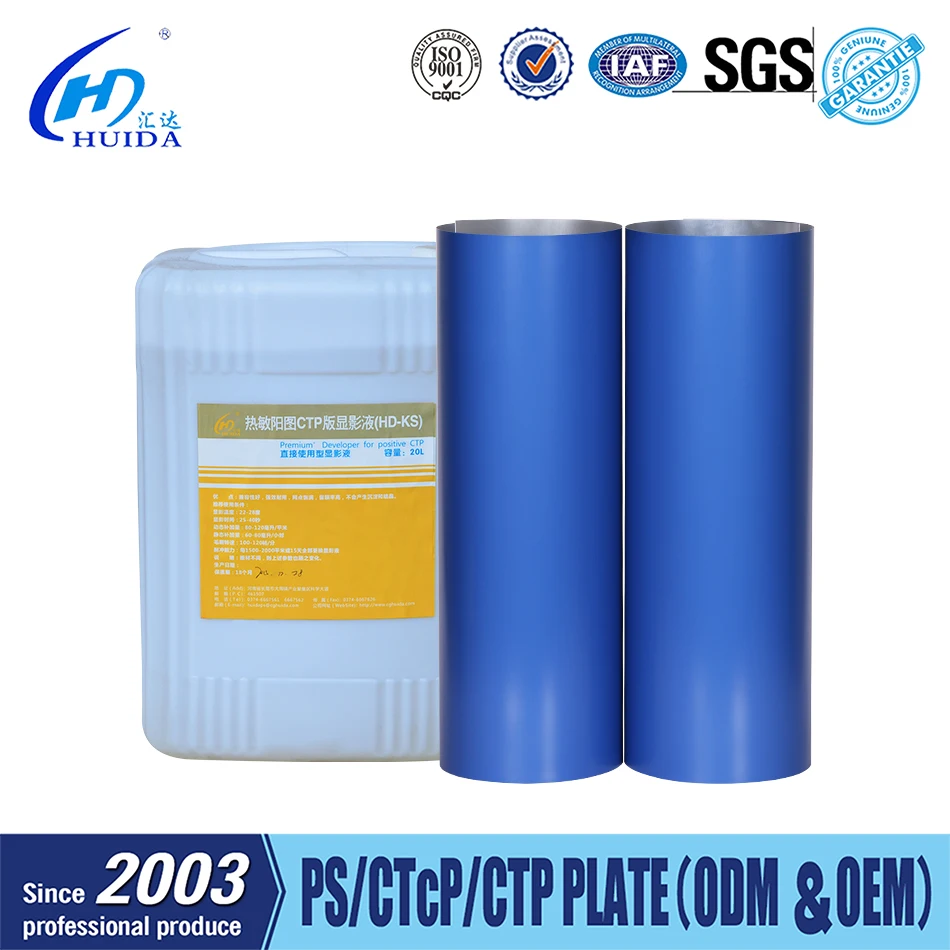

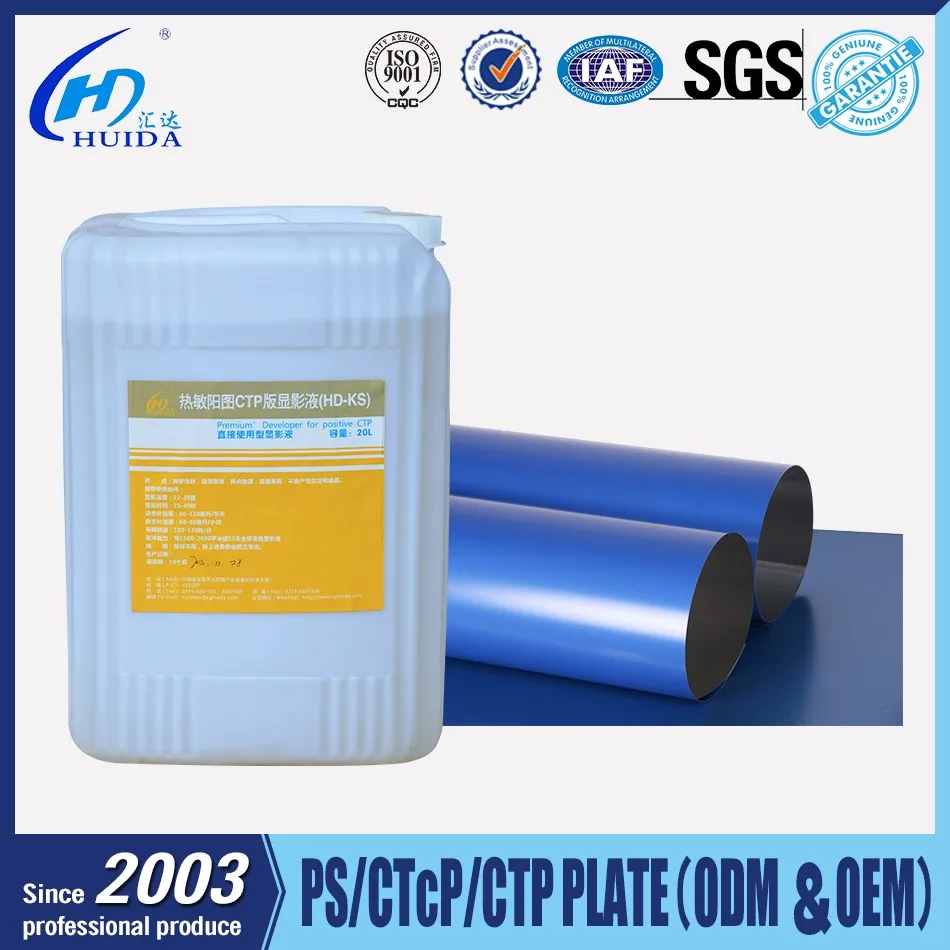

Разработчик термических пластин CTP разработчик позитивных изображений для офсетного пресса 20 л/бочка

Разработчик термических пластин CTP разработчик позитивных изображений для офсетного пресса 20 л/бочка

Категория: Printing Plates >>>
Поставщик: Henan Huida Print-All Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Company production and sales of products are printed with ordinary PS plate (conventional), high-end CTP plate (UV-CTP, thermal -CTP). Which UV-CTP and thermal -CTP plate of the product performance to meet international standards, the domestic market share of 8%, while exports to Eastern Europe, ASEAN and other countries.

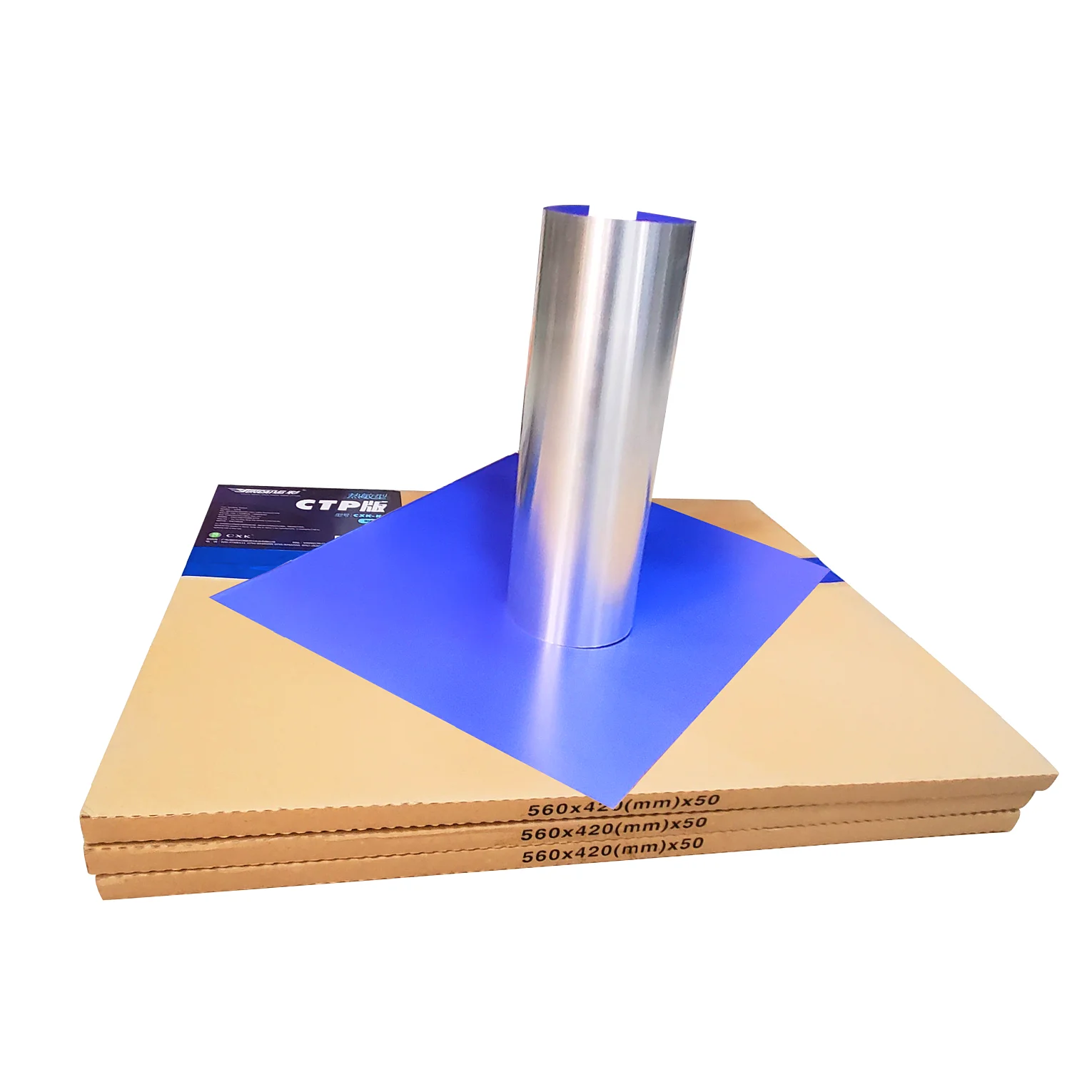

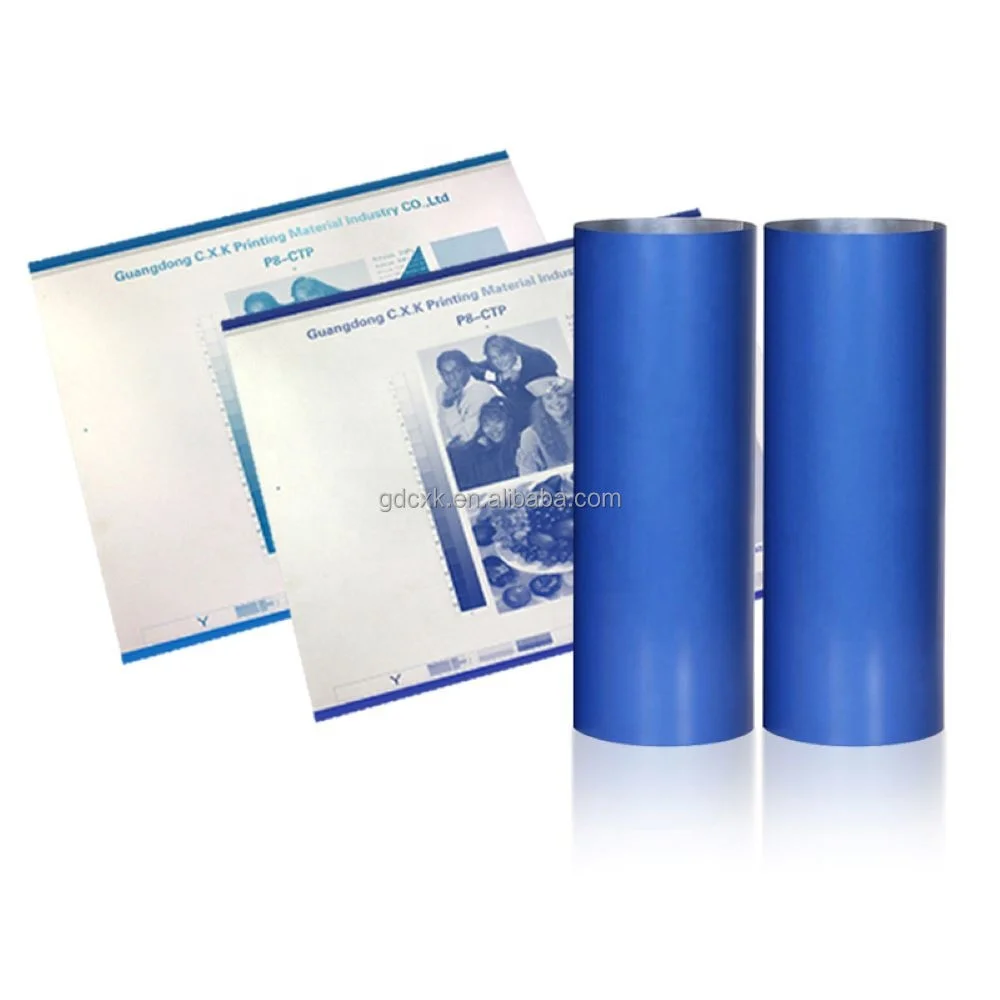

Positive Thermal CTP Plate

HUIDA HYD-3 thermal CTP plate have high sensitivity,good hydrophilic,well ink-water

balance,Long Run-length,best market compatibility,so it is extensively usedcommercial printing

and newspaper printing.Whether conventional or alcohol wet plate can output the,clear,

excellently,perfectly colorful prints.

Unbaked: Normal Ink 100,000-250,000 copies, UV Ink 20,000 to 50,000 copies

Baked: Normal Ink 300, 000-500,000 copies, UV Ink 100,000 to 150,000 copies

(Actual run length may vary according machine,ink,paper conditions)

\t Product Type	\t HYD-3 Type Positive Thermal CTP Plate
\t Application Type	\t Commercial Printing, Newspaper Printing and Light Printing
\t Plate Features	\t 1.Easy-to-use. Able to work under white light and no need to pre-heating. 2.Steady Quality, Good Compatibility, Fast sensitive speed, Excellent dot reappearance, Long Run-length 3. Close-grained Oxidation Layer –Outstanding dot reproduction, high resolution and long run length 4.Excellent Hydrophilicity- keep ink-water balance optimally 5.Unique Photosensitive Coating-High and fast Sensitivity 6.Steady Quality and Extensive Adaptability
\t Compatible Plate setter	\t Compatible with all the common thermal plate setter
\t Aluminium Coil width	\t Aluminium Group Alloy 1050/1060 CTP aluminium coil
\t Plate Thickness	\t 0.15mm ,0.25mm，0.30mm
\t Maximum Coil Width	\t 1350mm
\t Spectral Sensitivity	\t 830nm
\t Exposure Energy	\t 110-130mj/C㎡
\t Developing Temperature	\t 23-26℃
\t Developing Time	\t 25-30 Sec
\t Safe-light	\t 2 hours under white light
\t Resolution	\t 1-99% at 200lpi
\t Run-Length	\t Normal lnk:100000 to 250000 and UV lnk:20000 to50000 copies(Actual run length may vary according machine,ink,paper conditions)
\t Shelf Life	\t 18 Months
\t Storage Conditions	\t The recommended storage conditions are 10-25℃,with 40%-60% humidity Away from sunlight radiation ＆ direct sunlight, Anti-humidity ,Anti-acid ＆ alkali, Pack height no more than 1.5 meters

1.Easy-to-use. Able to work under white light and no need to pre-heating.
2.Steady Quality, Good Compatibility, Fast sensitive speed, Excellent dot reappearance, Long Run-length.
3.Close-grained Oxidation Layer –Outstanding dot reproduction,high resolution and long run length.

4.Excellent Hydrophilicity- keep ink-water balance optimally.
5.Unique Photosensitive Coating-High and fast Sensitivity.
6.Steady Quality and Extensive Adaptability .

\t Exposing
\t Plate setters	\t Kodak:Trendsetter/Lotem/Magnus Fuji:Javelin T9000HS, Heidelberg:Top setter/ Supra setter Luscher: Xpose Plate setter Screen :PT-R Creo :Scitex
\t Exposure energy	\t 110-130mJ/cm²
\t Spectral Sensitivity	\t 830nm -Peaks
\t Resolution	\t 1-99% at 200 LPI
\t FM capability	\t 20 micron stochastic
\t Image color	\t Blue

\t Developing
\t Processor	\t All the kind Brands
\t Developer	\t Kodak Gold Star or our own developer
\t Processing temperature	\t 23-26℃

About us

Henan Huida Print-All Digital Material Technology Co.,Ltd.founded in 2003,the registered capital of 36 million yuan,investment 170 million yuan.Our company is Iocated in Changge Dazhou Town industrial concentration area,factory area is 103 acres,and has 180 employees,complete supportingfacilities, management production environment is superior,regional obvious advantages,is set research anddevelopment,production and comprehensive inspection of the specialization,scale of print
materials manufacturing enterprises.

1. Samples available, we can send 8 pieces plates to customer for testing.
2. All sizes of plates can be produced according to customers' demand.
3. Online technical support supplied . If there is any problem, you can feel free to contact us at any time, we will help you solve the problem in time.

HUIDA has a strong professional R & D team. Besides that, we have advanced production equipment and sophisticated testing instruments. 24 hours online testing to ensure product quality.

HUIDA has more than 30 patent products and all of our products meet a series of national standards including

HG\\T26 94-95 Standard and ISO-9001

Quality Control System Certificate.

Certifications

Exhibition

Trade Flow

FAQ

1. When can I get the price?
We will reply you within 24 hours after we get your inquiry. Or you can directly call us if you are very urgent.
2.If we can get the samples for testing the quality?
After price confirmation, if you need we will send you samples to check the quality, normally you need pay the freight charges.
3.What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, we can delivery the goods in 15 days to 20 days after receive your deposit.
