Product Description

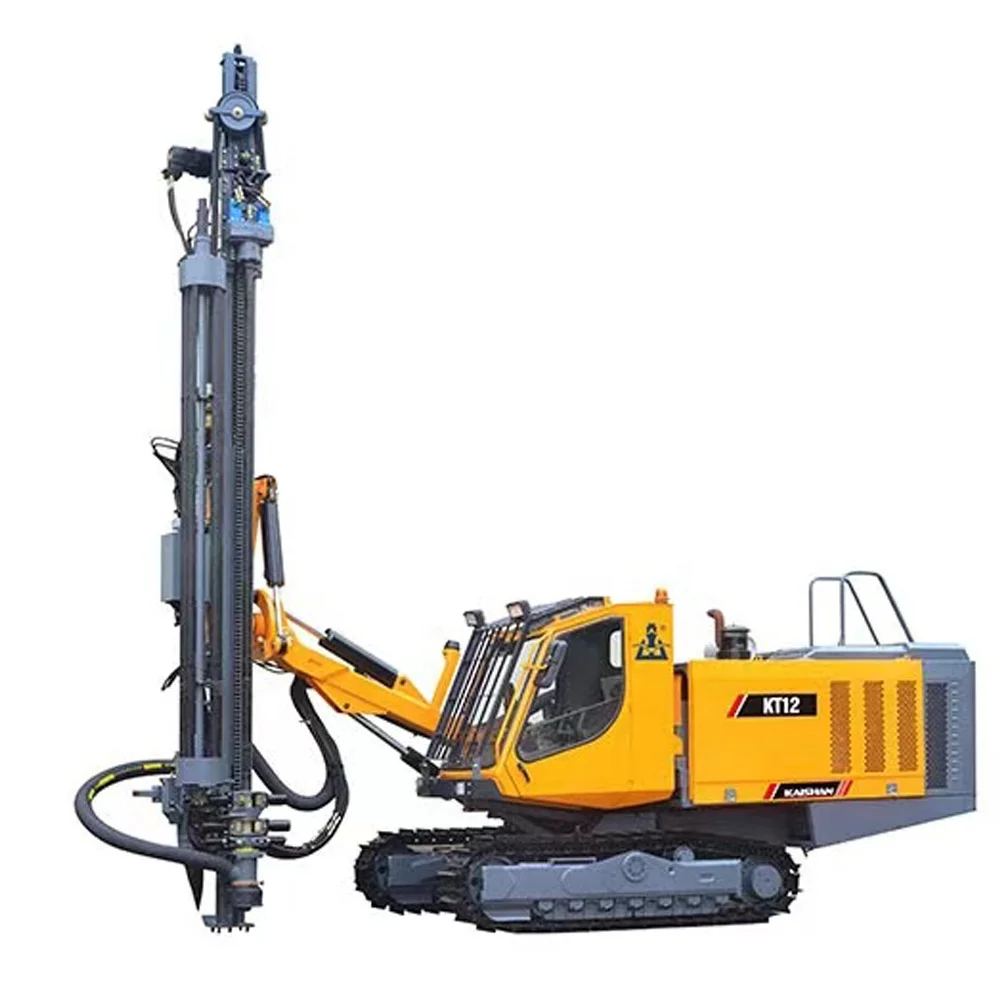

Kaishan KT12 integrated surface DTH drilling rig is a new drilling device which is carefully designed for large open-pit mine based on our development and production of DTH drilling rigs for many years.
The drilling rig is hydraulically driven to complete walking, propelling, rotation and angle adjustment with strong power.
The drilling rig is equipped with high pressure screw compressor head and high pressure pneumatic hammer to generate high drilling efficiency; it is also equipped with hydraulic dry type dust collector to collect dust, so as to reduce pollution to the environment.
The drilling rig features good integrity, high level of automation, high drilling performance, environmental protection and energy saving, easy operation, flexibility and safe driving, etc.
The drilling rig is hydraulically driven to complete walking, propelling, rotation and angle adjustment with strong power.
The drilling rig is equipped with high pressure screw compressor head and high pressure pneumatic hammer to generate high drilling efficiency; it is also equipped with hydraulic dry type dust collector to collect dust, so as to reduce pollution to the environment.
The drilling rig features good integrity, high level of automation, high drilling performance, environmental protection and energy saving, easy operation, flexibility and safe driving, etc.
Technical Parameters of KT12 Integrated Surface DTH Drilling Rig | ||
Rock rigidity | f=6-20 | |
Drilling diametermm | 115-152 | |
Economic drilling depth(Auto Post Depth)m | 28 | |
Travel speed Km/h | 0-3 | |
Climbing capacity° | 25° | |
Ground clearancemm | 420 | |
Total Power Kw | 265 | |
Diesel | QSL8.9-C360-30 | |
Capacity of screw compressor m3/min | 19 | |
Max. Working pressure of screw compressor bar | 19.5 | |
Working pressure of screw compressor bar | 19.5 | |
Dimensions (long×width×high)mm | 9100×2450×3200 | |
Weight Kg | 15000 | |
Rotation speed r/min | 0-100 | |
Rotary torque N*m | 3200 | |
Max. feed force N | 65000 | |
Guide tilt | 125° | |
Guide swing | Right97°Right33° | |
Boom swing | Right42° left15° | |
Frame balance angle | Up10° down10° | |
Feed length at a timemm | 5000 | |
Compensation lengthmm | 1800 | |
Hammer | 55A | |
Drill rod(φDiameter×Drill rod length )mm | φ89×5000/φ102×5000 | |
Dust catching method | Dry-type (hydraulically driven whirlwind layer flow type) /Wet (optional) | |
Rod loading method | Auto rod-loading | |
Automatic anti-sticking method | Electro-hydraulic control to prevent sticking | |
Lubrication method of drill rod | Automatic splash lubrication | |
Drill rod thread protection | Equipped with float joint to protect the drill rod thread | |
Drilling display | Real-time display of drilling angle and depth | |
