Различные спецификации API 5L пустые масляные трубки с резьбой
- Категория: >>>
- Поставщик: Tianjin Xinyue Industrial And Trade Co. Ltd.
Сохранить в закладки 60639197181:
Описание и отзывы
Характеристики

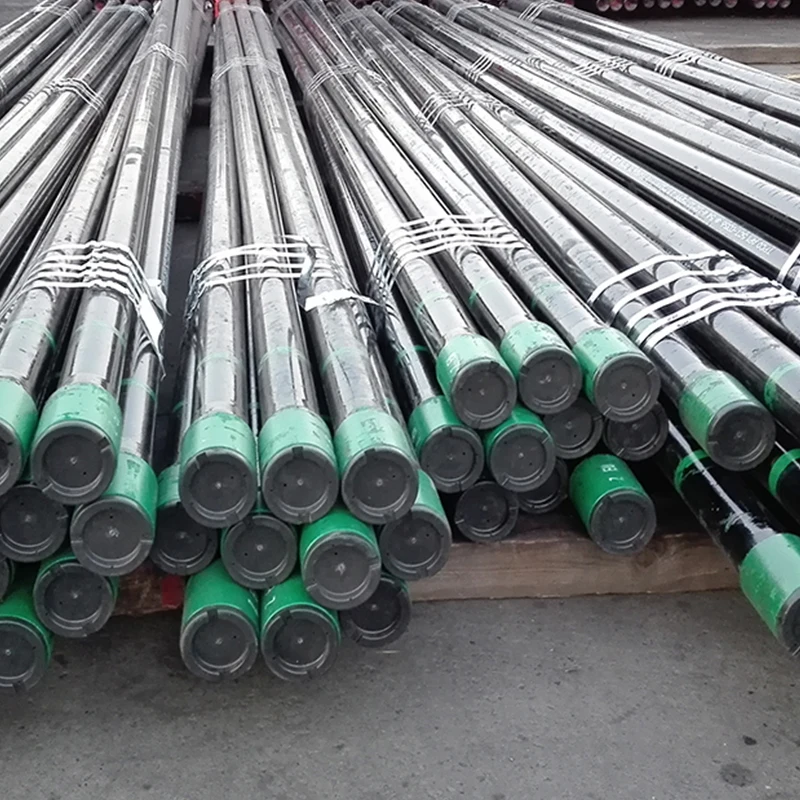

Various specification API 5L blank oil casing pipes with threaded
Tianjin Xinyue Steel Group ,located in Daqiuzhuang Industrial Area, Tianjin,China, is one of the most famous enterprise of steel pipe in China.consolidating steel pipe production, stocking, domestic & international marketing. Our aim is creating the best corporation visualization for customer with “ Best Price , High Quality , Fast Delivery, First-Class Service”.
Product Description
Process: Seamless Steel Pipe (SMLS Steel Pipe)
Usage: Applicable to the general structure, mechanical structure, water wall panel, economizer, super heater, boiler and heat exchanger with seamless steel tubes, and to transport liquid, gas, oil etc.
Standard: API 5L, API 5CT, ASTM A106/A53, ASTM A519, JIS G 3441, JIS G3444, JIS G3445 DIN 2391, EN10305, EN10210, ASME SA106, SA192, SA210, SA213,
SA335, DIN17175, ASTM A179…
Certificate: API 5L PSL1 / PSL2, API 5CT, ISO 9001-2008
Out Diameter: 1/8 – 36inch (10.3-914.4mm)
Wall Thickness: 1.73-40mm
Length: Random Length, Fixed Length, SRL, DRL
Steel Grade:
API 5L :API 5L: GR B, X42, X46, X56, X60, X65, X70
ASTM A53/A106: GR A, GR B, GR CASME SA106: GR.A, GR.B, GR.C
ASME SA192: SA192ASME SA209M: T1, T1a
ASTM A335:P1, P2, P5, P9, P11, P22, P23
ASTM A333:Gr.1, Gr.3, Gr.4, Gr.6, Gr.7, Gr.8, Gr.9, Gr.10, Gr.11
Mill Test Certificate: EN 10204
API 5L Line Pipe
API 5L Line Pipe
STEEL GRADE
API 5L PSL1/PSL2 GR B , X42, X46, X52, X60, X65, X70
STEEL CHEMICAL COMPOSITION
STEEL GRADE | % by mass, Maximum | ||||
C | Si | Mn | P | S | |
GR B | 0.26 | 0.40 | 1.20 | 0.030 | 0.030 |
X42 | 0.26 | 0.40 | 1.30 | 0.030 | 0.030 |
X46 | 0.26 | 0.40 | 1.40 | 0.030 | 0.030 |
X52 | 0.26 | 0.40 | 1.40 | 0.030 | 0.030 |
X56 | 0.26 | 0.40 | 1.40 | 0.030 | 0.030 |
X60 | 0.26 | 0.40 | 1.40 | 0.030 | 0.030 |
X65 | 0.26 | 0.40 | 1.45 | 0.030 | 0.030 |
X70 | 0.26 | 0.40 | 1.65 | 0.030 | 0.030 |
MECHANICAL PROPERTIES
STEEL GRADE | Yield strength, min. psi (MPa) | Tensil strength, min. psi (MPa) | Elongation in 2 in., min. % | |||
GR B | 245 | 415 | ||||
X42 | 290 | 415 | ||||
X46 | 320 | 435 | ||||
X52 | 360 | 460 | ||||
X56 | 390 | 490 | ||||
X60 | 415 | 520 | ||||
X65 | 450 | 535 | ||||
X70 | 485 | 570 | ||||
TEST REQUIRED
Chemical Analysis, Mechanical Test, Visusal Inspection , Tension Test, Dimension Check
Bend Test , Flattenting Test, Impact Test, DWT Test, NDT Test
Hydrostatic Test, Hardness Test.....
ASTM A53 Steel Pipe
ASTM A53 GR B Steel Pipe
STEEL CHEMICAL COMPOSITION
The steel shall conform to the following requirements as to chemical composition:
STEEL GRADE | Composition Max, % | ||||||||
C | Mn | P | S | Cu | Ni | Cr | Mo | V | |
GR B | 0.30 | 1.20 | 0.05 | 0.05 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
MECHANICAL PROPERTIES
STEEL GRADE | Tensile Strength ,min, Psi ( MPA) | Yield Strength , min, psi, ( MPA) | ||||
GR B | 60 000 (415) | 350 000 (240) | ||||
Company Information
Xinyue set up several production bases in Tianjin & Hebei Provice, manufacturing ERW Steel Pipe, SSAW Steel Pipe, LSAW Steel Pipe, Seamless Steel Pipe, Scaffolding system and couplers.
Equip with domestic & international advance technology, production and inspection facilities, our factory is strictly following up ISO quality management system and international standard & regulation under the leadership of professional engineers and production team.
Xinyue Steel Group always insist on the principle of ” Credit-Based , Customer First , High Quality , High efficiency “ , pursuing 100% customer satisfaction.
Tianjin Xinyue Industrial and Trade Co.,Ltd, as a subsidiary under the group, is mainly responsible of the exporting business of the group. Xinyue’s steel pipe is widely applied in petroleum&gas pipeline, water pipeline, construction & building, dredging and piling projects.
Xinyue Steel Group has successfully supplied steel pipes for many international projects, engaging in petroleum&gas pipeline, dredging , piling and bridge building projects. Our sales market is spreading all over the world, such as Southeast Asia, Mid-east, Europe, South America, Africa and so on, obtaining a good reputation among customers.
FAQ
Main Products Range:
1. ERW Steel Pipe: OD 1/2 – 26 inch (21.3-660mm)
2. SSAW Steel Pipe: OD 8 – 120 inch (219.1-3048mm)
3. LSAW Steel Pipe: OD 14 – 64 inch (219.1-1626mm)
4. Seamless Steel Pipe: OD 1/8 – 36 inch (10.3-914.4mm)
5. Scaffolding Tube and Couplers
6. Anti-Corrosion Steel Pipe: Like hot dipped galvanized, FBE, 2PE, 3PE, 2PP, 3PP, Epoxy, etc…..
Q: Are you a trading company or steel manufacturer?
A: Xinyue is a steel pipe manufacturer. Xinyue Steel Group is a steel mills with 3 production area (Tianjin, Tangshang, Cangzhou) in China.
Q: Can I have a trial order first?
A: Of course! We can ship the cargo for you via Fedex.
Q: How long is your delivery time?
A: Generally it is 7 days we have stock. Or it is 15-30 days if the cargo is not in stock, it is according to your quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, We could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: TT, L/C, etc.
Q: Are you gold supplier and do trade assurance?
A: Definitely!
Q: What’s the most common seen standard and steel grade for casing and tubing?
A: API 5CT.
Q: What kinds of steel pipes can be used as casing and tubing?
A: Both seamless steel pipe and welded steel pipe can be used as casing and tubing.
Q: What’s your product range for casing and tubing?
A:
Xinyue’s product range of OD for casing is 4 1/2 inches to 20 inches.
For tubing is from 1.66 inches to 4 1/2 inches.
Q: What kinds of steel grade can you provide for casing?
A: Xinyue steel can provide steel grade of API 5CT H40, J55, K55, M65, L80-1/Q, C90, T95, C110, P110, Q125,etc,

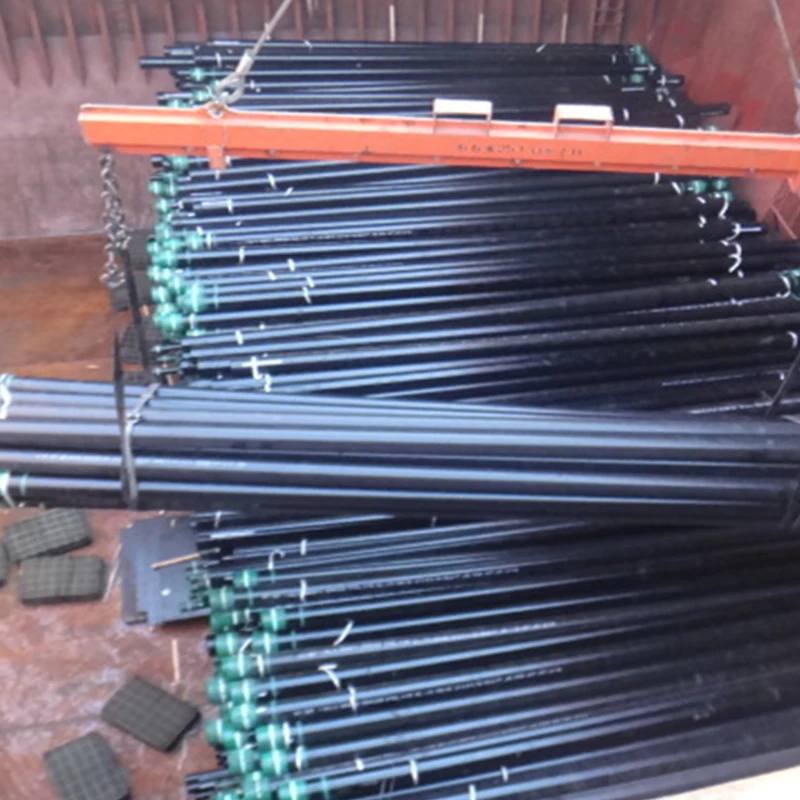

Packaging & Shipping
Похожие товары
Ведро для льда Bacardi 10L, пластиковое ведро, ведро для льда bacardi
Оптовая продажа от производителя, 500 мл, 750 мл, 1000 мл, бутылка для бренди, бутылка для рома, стеклянная бутылка с винтом/пробкой
Пустой 187 мл 750 с зажимом медной проволоки бутылки разного размера свадебное украшение CY-486
0,14 $ - 0,16 $

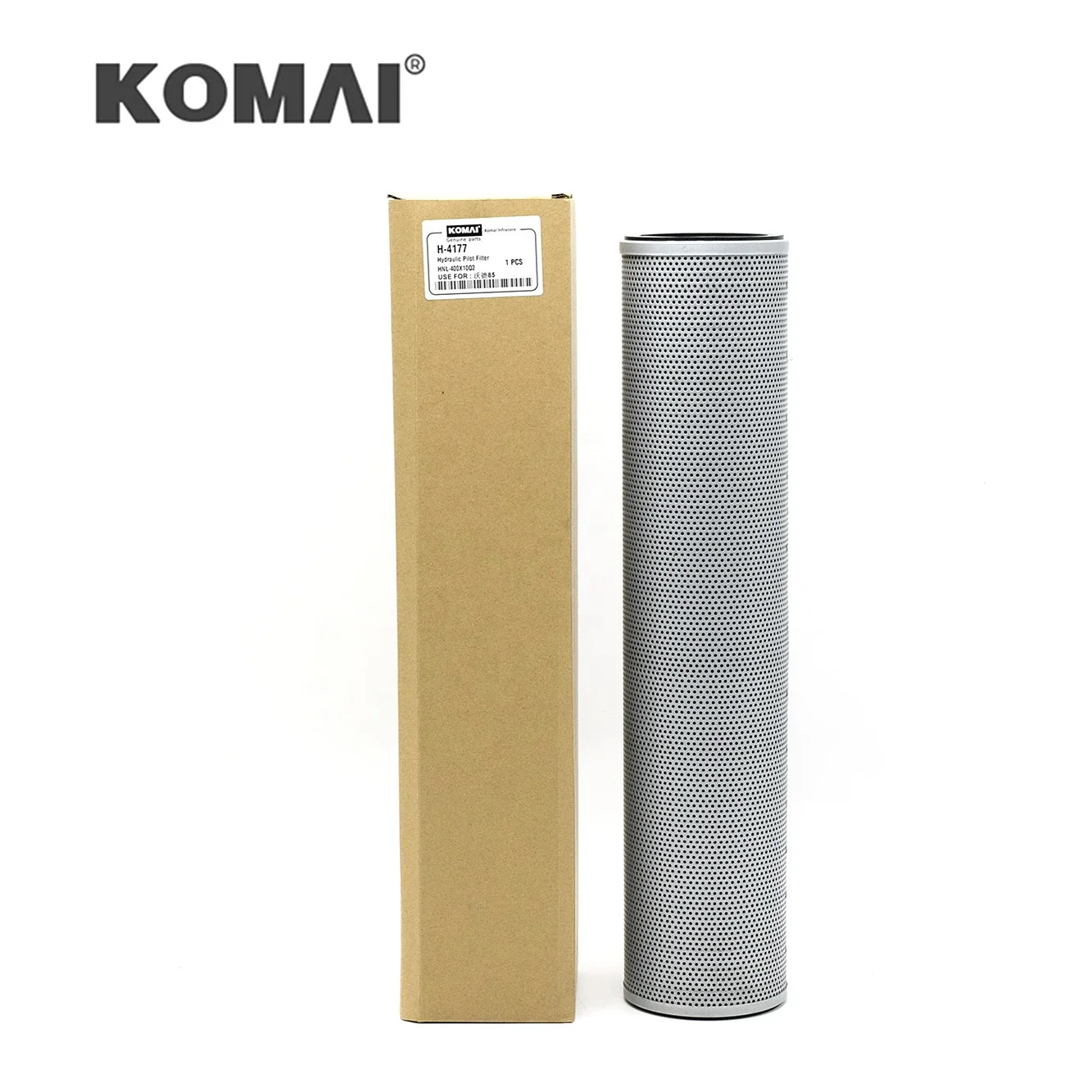

Используйте во всем мире 85 экскаватор CH1053 гидравлического масляного фильтра возврата HNL-400X10Q2
22,40 $ - 24,00 $

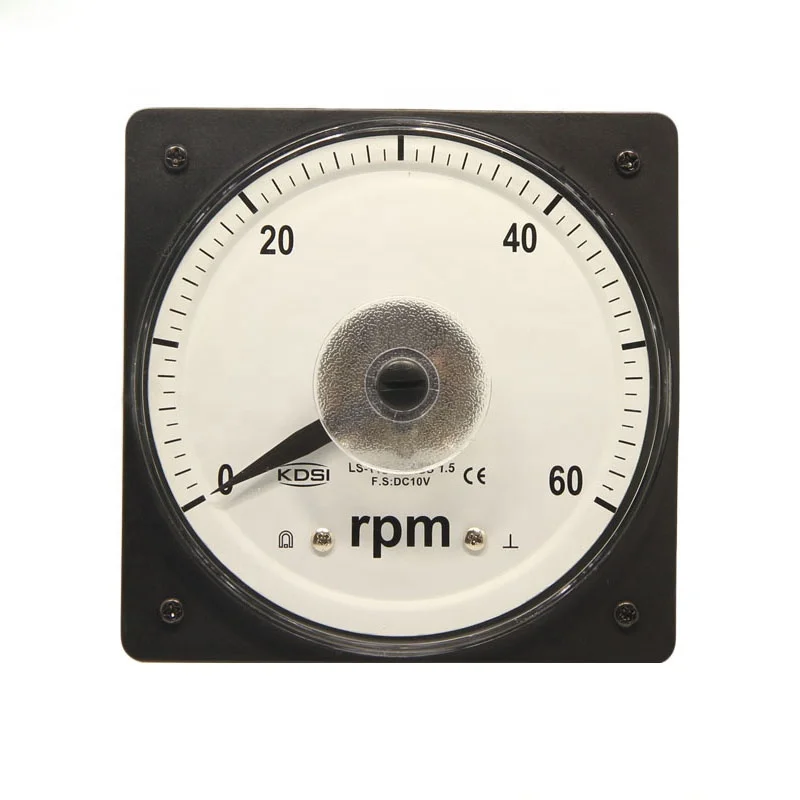

Широкоугольный объектив морской метр LS-110 DC10V 60 оборотов в минуту аналоговая панель об/мин измеритель скорости
