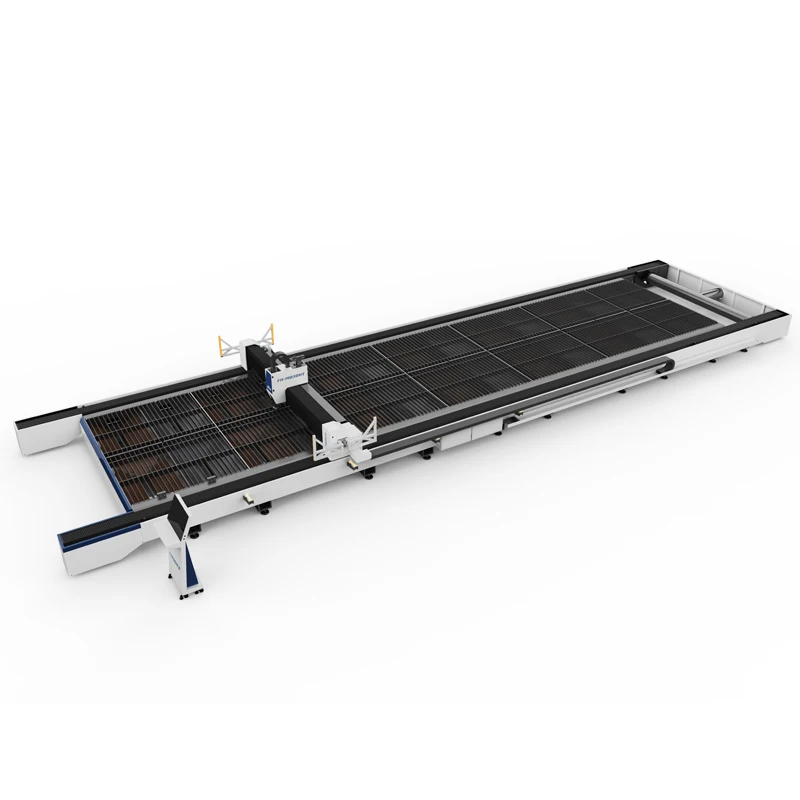

Станок для лазерной резки с наземным рельсовым волокном большим рабочим форматом CS SS AL оцинкованные CO металлические листы
8 097 534,34 ₽
Rexine PU синтетическая кожа CO2 80 Вт Лазерная резка для ткани текстиль с автоматической подачей
- Категория: >>>
- Поставщик: Wuhan Golden Laser Co. Ltd.
Сохранить в закладки 60639777408:
Описание и отзывы
Характеристики
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.;-)
Product Description

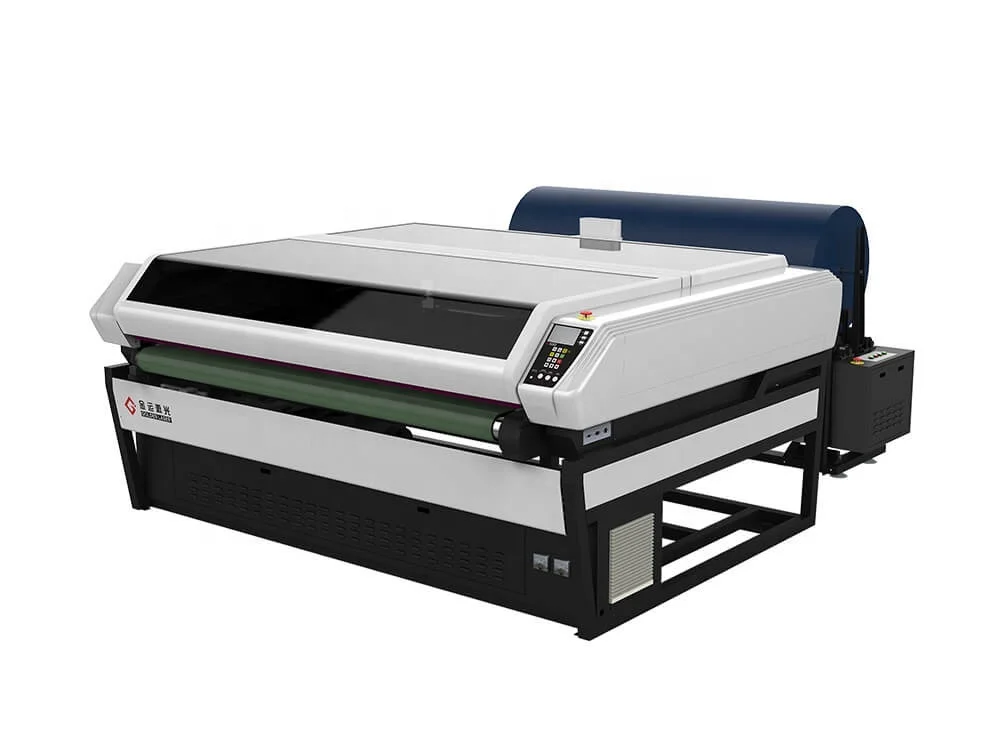

Leather Laser Cutter with Conveyor Belt
__
The CO2 laser cutter has a 1600mm x 1000mm (63″ x 39″) work area and accommodates roll materials up to 1600mm (63”) wide. This machine features a conveyor bed that is synchronized with the powered roll feeder in order to bring your material forward as needed. Although designed for roll materials, this laser machine is versatile enough to laser cut flat materials in sheet.Specification
MJG-160100LD Technical Parameters | ||
Laser Type | CO2 DC glass laser tube | |
Laser Power | 80W / 110W / 130W / 150W | |
Working Area | 1600mm×1000mm | |
Working Table | Conveyor working table | |
Motion System | Step motor / Servo motor | |
Positioning Accuracy | ±0.1mm | |
Cooling System | Constant temperature water chiller | |
Exhaust System | 550W / 1.1KW Exhaust fan | |
Air Blowing System | Mini air compressor | |
Power Supply | AC220V ± 5% 50/60Hz | |
Graphic Format Supported | AI, BMP, PLT, DXF, DST | |
External Dimensions | 2480mm (L)×2080mm (W)×1200mm (H) | |
Features
__
* Dual Laser Heads - To maximize the production of your laser cutter, MARS Series Laser conveyor machines have an option for dual lasers which will allow for two parts to be cut simultaneously.
* Conveyor Belts - The conveyor bed automatically feeds material forward as needed. Various types of conveyor belts (stainless steel mesh belt, flat flex belt and iron wire mesh belt) are available.
* Work Area Options - MARS Series Laser Machines come in a variety of table sizes, ranging from 1400mmx900mm, 1600mmx1000mm to 1800mmx1000mm.
* Available Wattages - CO2 Lasers Tubes with 80 Watts, 110 Watts, 130 Watts or 150 Watts.
Options
__
* Table Extension - Increase productivity - While the laser machine is cutting, the operator can remove the finished work pieces from the unloading table.
* Auto Feeder - Automatic material feed directly from the roll. Automatic correction function of the feeding unit ensures a constant material alignment.
* Red Dot Pointer - Preview the engraving or cutting position on the material.
* CCD Camera - CCD camera detection enables embroidered, woven or printed materials to be cut out precisely along the outline.
* Projector - Using projection technology for positioning and cutting.
Highlights
__
Golden Laser patented dual head laser control technology can not only ensure the uniform energy configuration of each laser head, but also automatically adjust the distance between two laser heads according to the width of the processing material data.
The two laser heads are used to cut the same pattern simultaneously, doubling the efficiency without taking up extra space or
labor. If you always need to cut a lot of repeating patterns, this will be a good choice for your production.
The two laser heads are used to cut the same pattern simultaneously, doubling the efficiency without taking up extra space or
labor. If you always need to cut a lot of repeating patterns, this will be a good choice for your production.
If you want to cut a lot of different designs in a roll and save material to the greatest extent, nesting software is a good choice. Select all the patterns you want to cut in one roll, set the numbers of each piece you want to cut, and then the software will nest these pieces with the most usage rate to save your cutting time and materials. You can send the whole nesting marker to the laser cutter and the machine will cut it without any human intervention
The Fifth Generation Software
Goldenlaser patented software has more powerful functions, stronger applicability and higher reliability, bringing users a full range of super experience.
Intelligent interface, 4.3-inch color touch screen
The storage capacity is 128M and can store up to 80 files
The use of net cable or USB communication
1. Path optimization enables manual and intelligent options. Manual optimization can arbitrarily set the processing path and direction.
2. The process can achieve the function of memory suspension, power-off continuous cutting and real-time speed regulation.
3. Unique dual laser head system intermittent work, independent work and motion trajectory compensation control function.
4. Remote assistance feature, use the Internet to solve technical issues and training remotely.
Applications

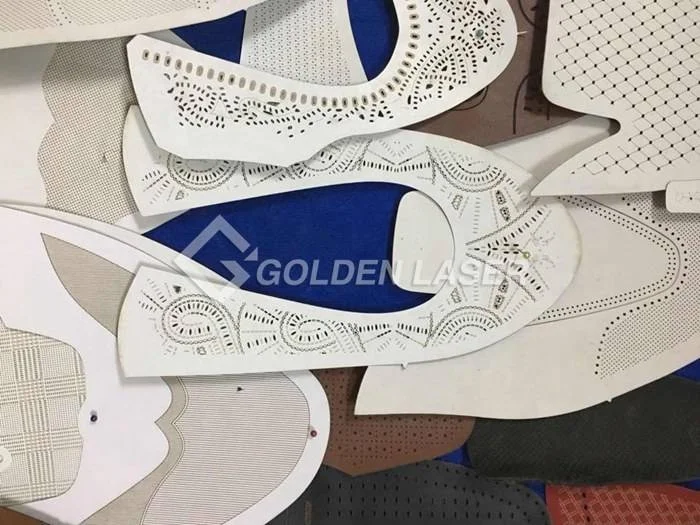

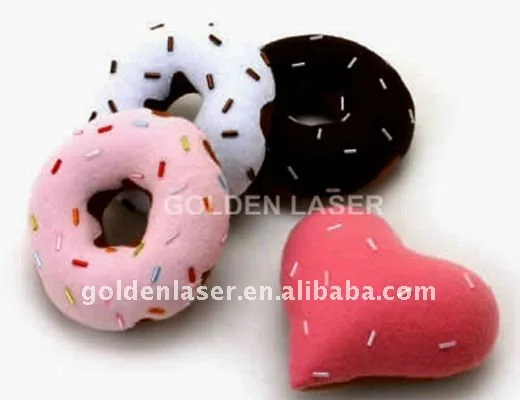

Process Materials: Fabric, leather, foam, paper, microfiber, PU, film, plastic, etc.
Application: Textile, garment, shoes, fashion, soft toys, applique, automotive interiors, upholstery, advertising, printing and packaging, etc.
Application: Textile, garment, shoes, fashion, soft toys, applique, automotive interiors, upholstery, advertising, printing and packaging, etc.
Company Profile
GOLDEN LASER, China's first GEM listed company (stock code: 300220)! Accumulated 20 years of experience in laser equipment manufacturing and exporting. Providing the best cost-effective laser solutions!
► Laser innovative application service platform
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally
Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warrenty is 1 year. We offer flexible extended warranties if needed.
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally
Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warrenty is 1 year. We offer flexible extended warranties if needed.
Our Team
Packing & Delivery
Ⅰ. Whole Film Packaging Machine
Ⅱ. Plywood Wooden Box With Metal Belt
Ⅲ. Loading
Ⅳ. Shipping
FAQ
Q1: Do you have CE document and other documents for customs clearance?
A1: Yes, we have Original. At first, we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q2: I don’t know which one is suitable for me?
A2: Just click "chat now", our team will clear up your confusion one by one.
Q3: I don’t know how to use after I receive or I have problem during use, how to do?
A3: We can provide onlineservice till all of your problems finished. And in some countries, our team can provide local service.
Q2: I don’t know which one is suitable for me?
A2: Just click "chat now", our team will clear up your confusion one by one.
Q3: I don’t know how to use after I receive or I have problem during use, how to do?
A3: We can provide onlineservice till all of your problems finished. And in some countries, our team can provide local service.
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.
Contact
Please contact Golden Laser for more info. Your response of following questions will help us recommend the most suitable machine.
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA)?
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA)?
Contact Info
Name: Cary
Email Address: laser@goldenlaser.com
Tel: (86)15872363763
Name: Cary
Email Address: laser@goldenlaser.com
Tel: (86)15872363763
Похожие товары
Лазерный резак МДФ 1300*900 машина для лазерной резки одежды кожи/текстиля/ткани co2
230 261,64 ₽ - 241 226,48 ₽

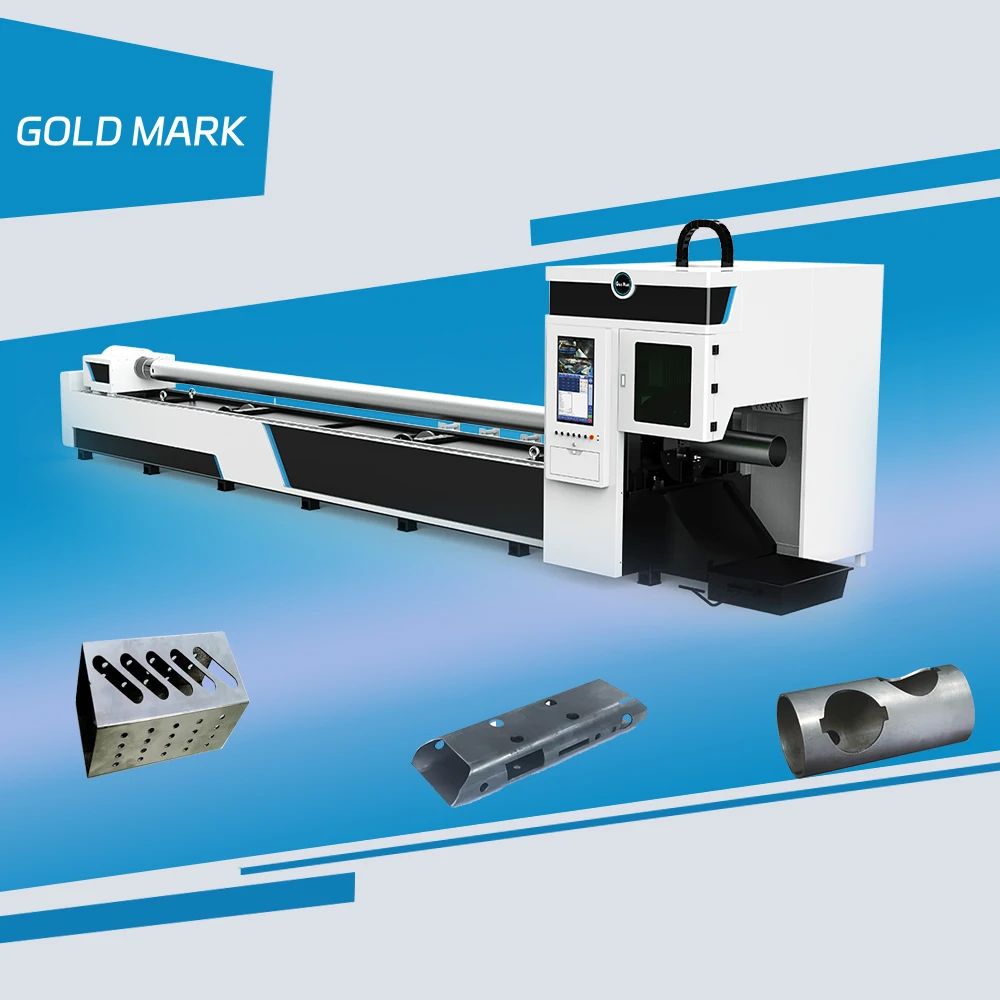

Волоконно-лазерная машина для резки труб 6000 мм 9000 углеродистая сталь из нержавеющей стали H-лучевой луч с углом луча
767 538,80 ₽ - 986 835,60 ₽
Горячая Распродажа FS3015GCR волоконно-лазерная машина для резки стали
Custom Laser cutting for electronic connectors using fiber technology assemblies
1 973 671,20 ₽
LF-3015H 1000 w машина для лазерной резки металла волокна нержавеющей стали углеродистой
Высокомощный 120000*25000 мм для углеродистой стали нержавеющей алюминиевого волокна лазерной резки
13 157 808,00 ₽ - 13 486 753,20 ₽

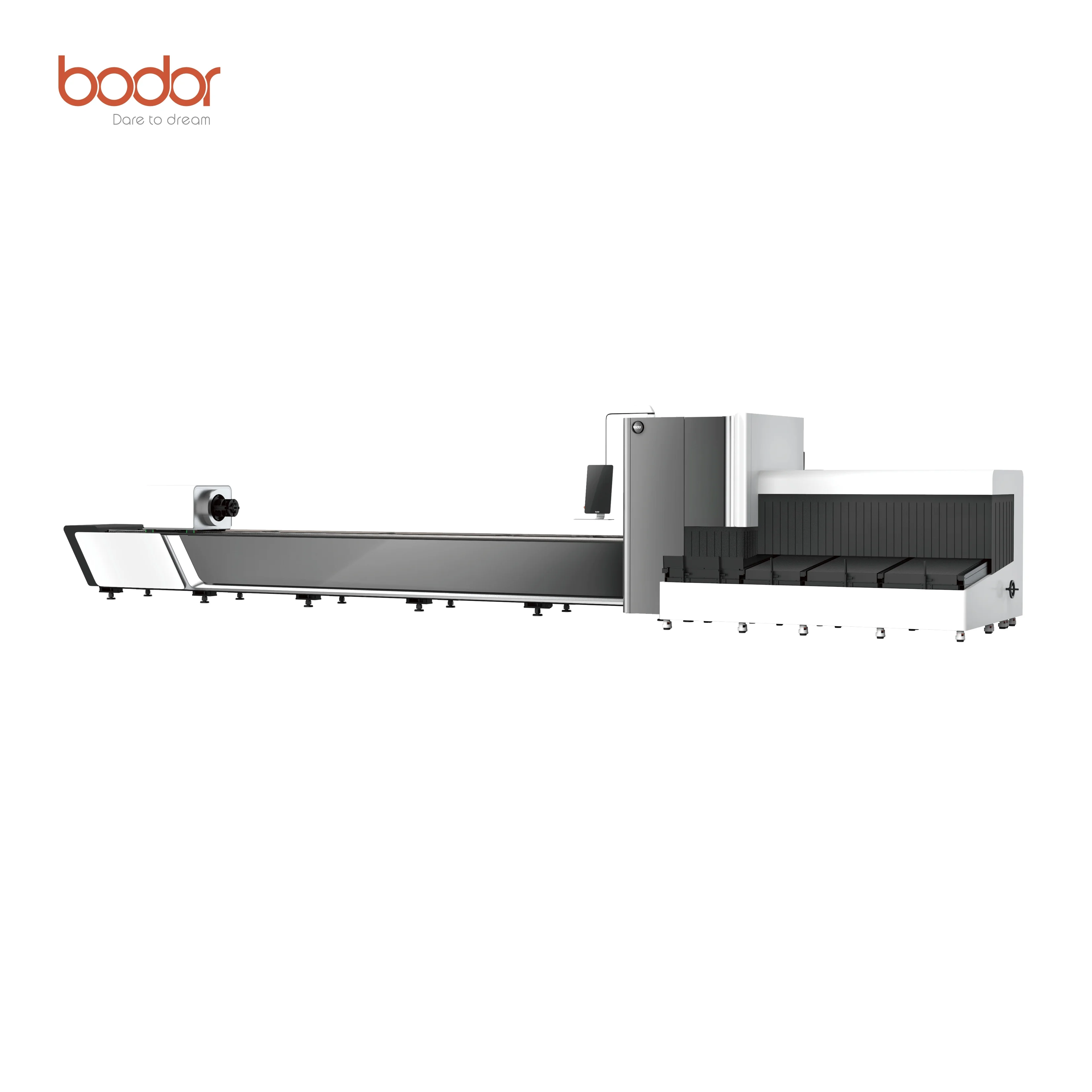

Bodor высокопроизводительная Серия T 6000 Вт эффективная лазерная обработка для металлических трубок-Новая высокоскоростная машина
