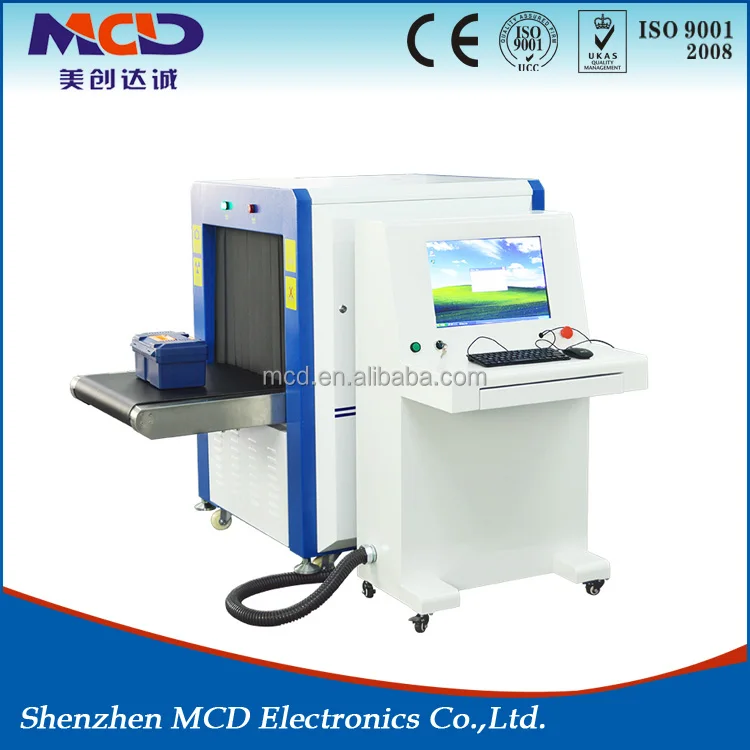

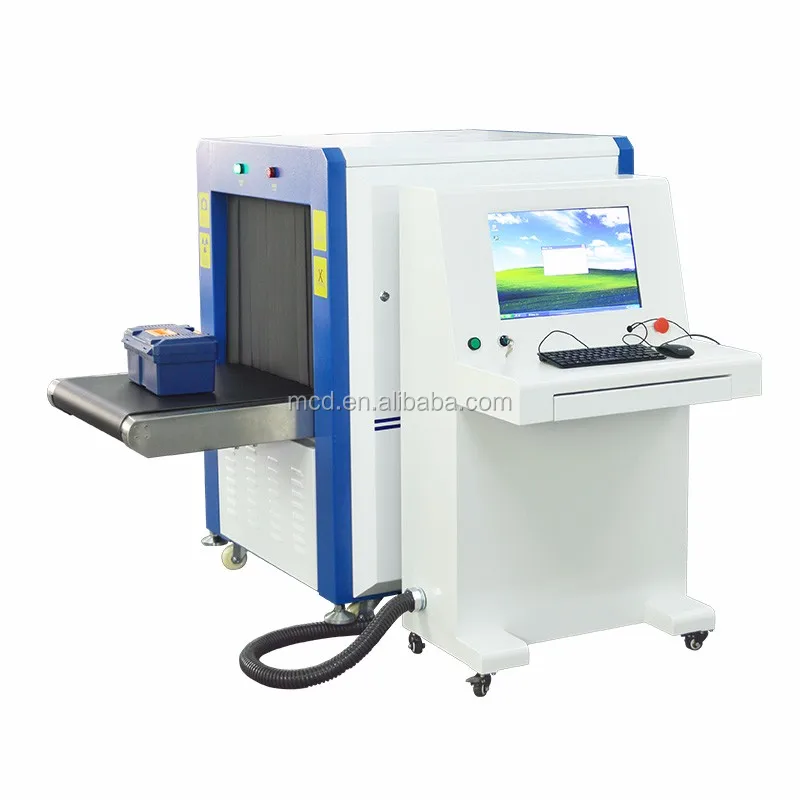

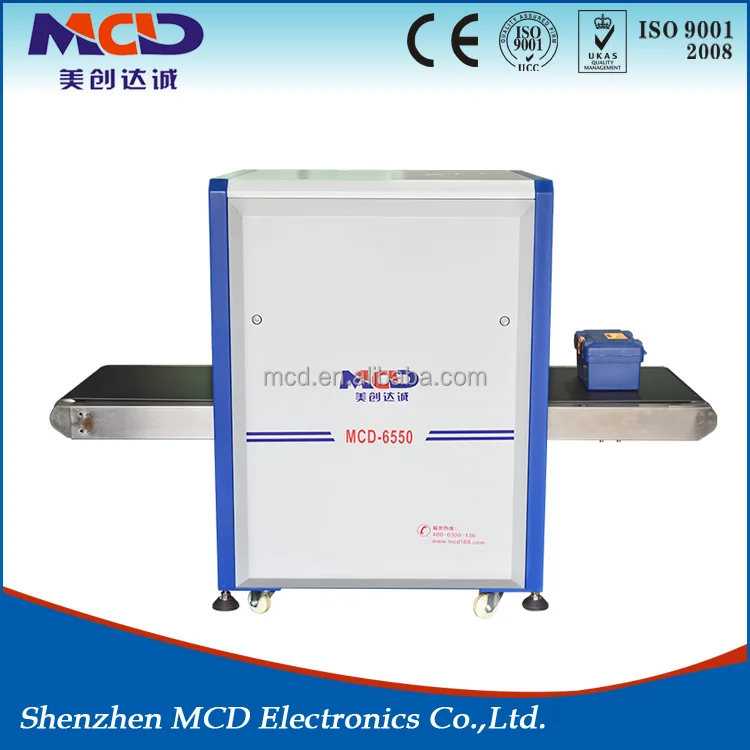

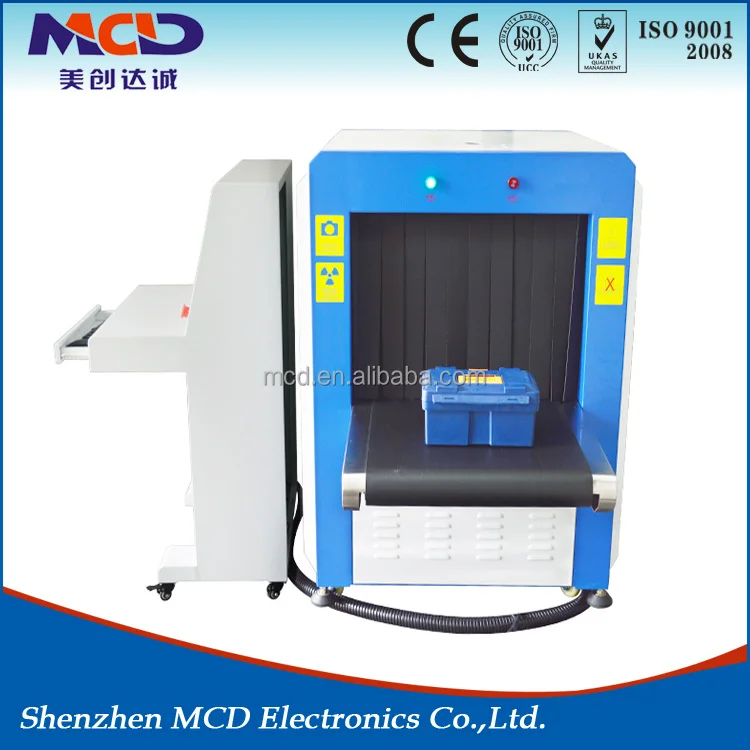

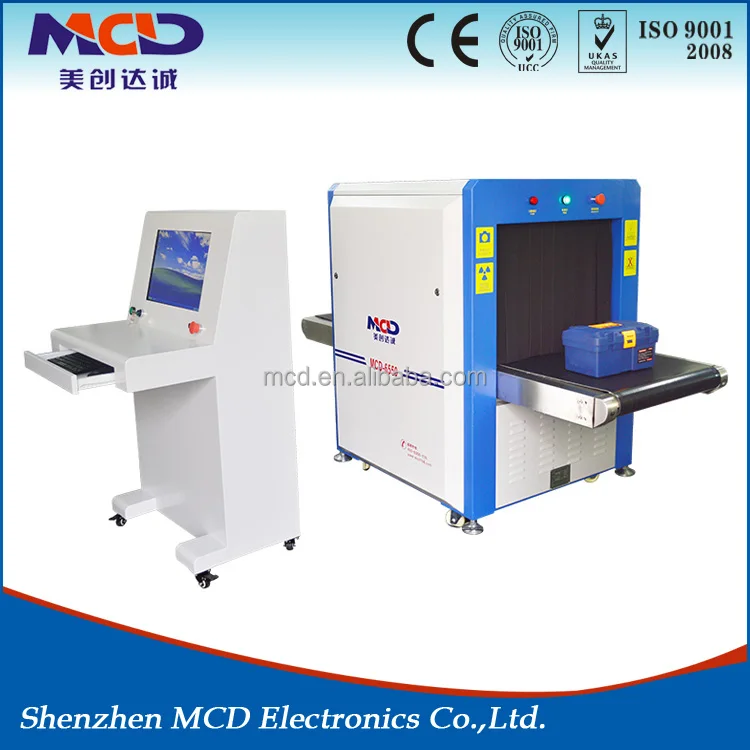

Competitive X Ray Baggage Scanner Price, Weapons Drugs Explosives Detection Systems MCD-6550

Feature

1. Alarm by sounds & light: Alarm by sounds and light when conform to condition.
2. Network interface: Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray: Transmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendly: The monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
5. Simple operation by mouse: Without keyboard and work table, control by mouse, save space.
6. Turn off by a key control: Turn off the machine only need one step: Revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
7. Eagle-eye: Could be expediently observing enlargement area.
8. Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for the maintenance.

Technical parameter

Tunnel size: 650(w)*500(h)mm
Conveyor speed: 0.22 m/s
Conveyor max load: 50kg
Single inspection dosage < 1.5 gy
Wire resolution: 0.1mm metal line
Steel penetration: 8mm armor plate
Film safety: For ISO 1600
Maximum leakage radiation < 0.3 gy/h

X-ray generator

Orientation: Vertically upward
Tube current: 0.4~0.5ma(adjustable)
Anode voltage: 80 kv(adjustable)
Angle: 60
Generator cooling/working periods sealed oil bath with forced air/100%

Storage temperature: -20 degree to 60 degree

Application

X-ray penetrate inspection, the object can be found within the metal structure, can display

the naked eye can not see where the liquid is also very obvious object display.

Used in the factory testing of security products and business units such as: electronic factories,

shoe factories, toy factories, courts, railway stations, and event bag, line security management
