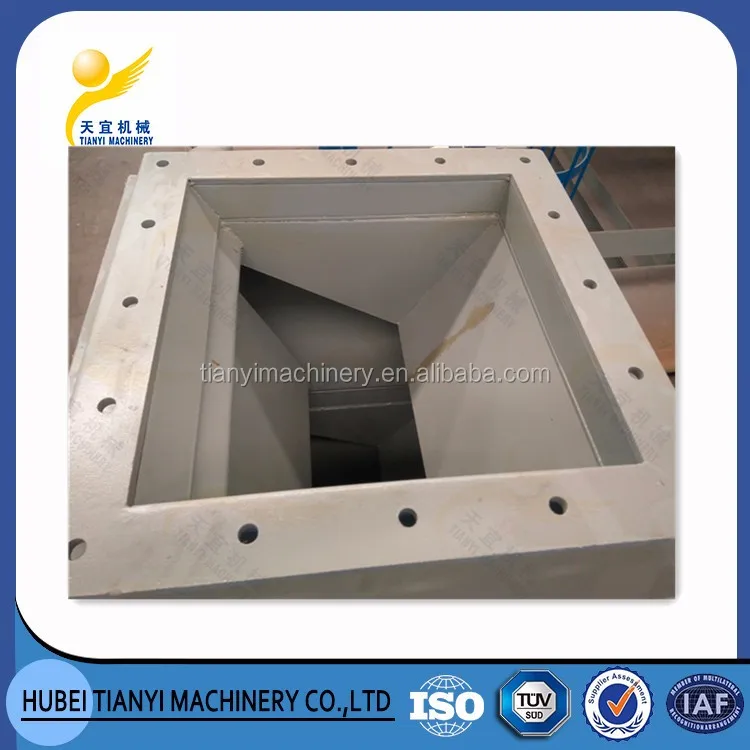

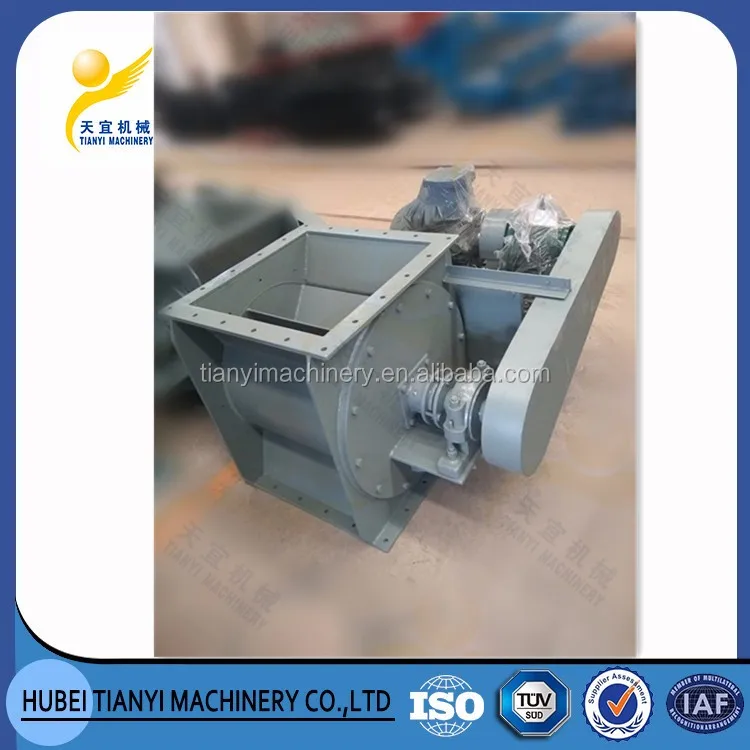

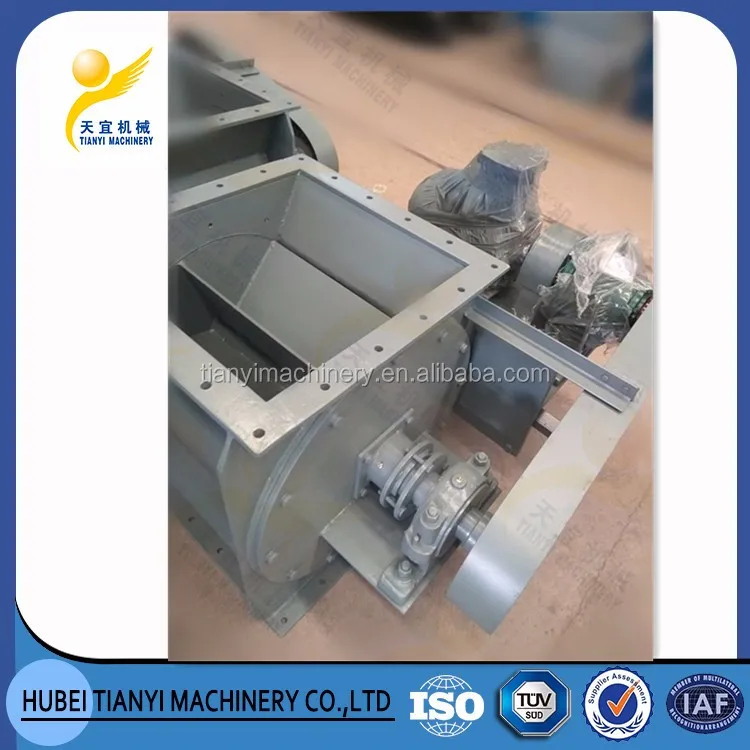

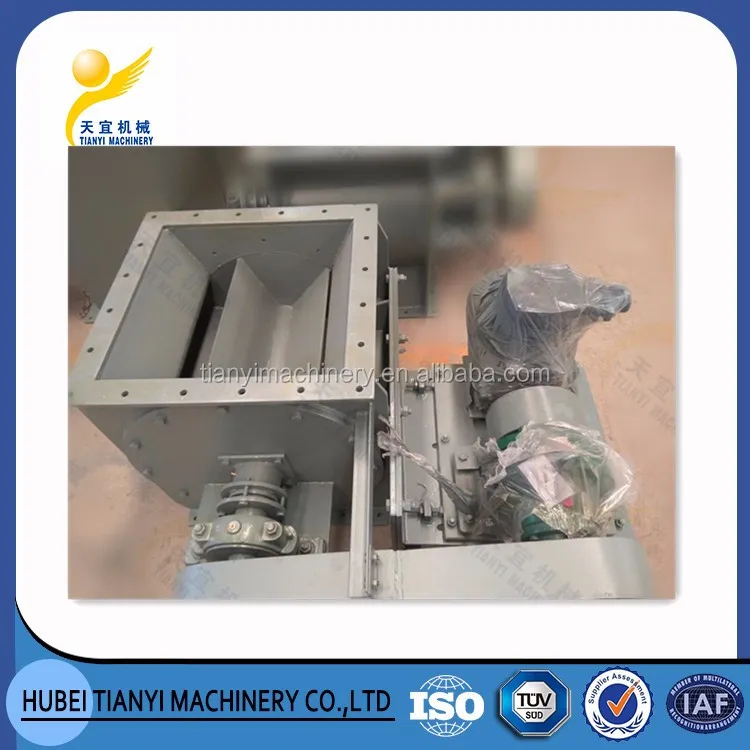

China supplier cheap industrial square flanged electric air lock rotary valve for boiler

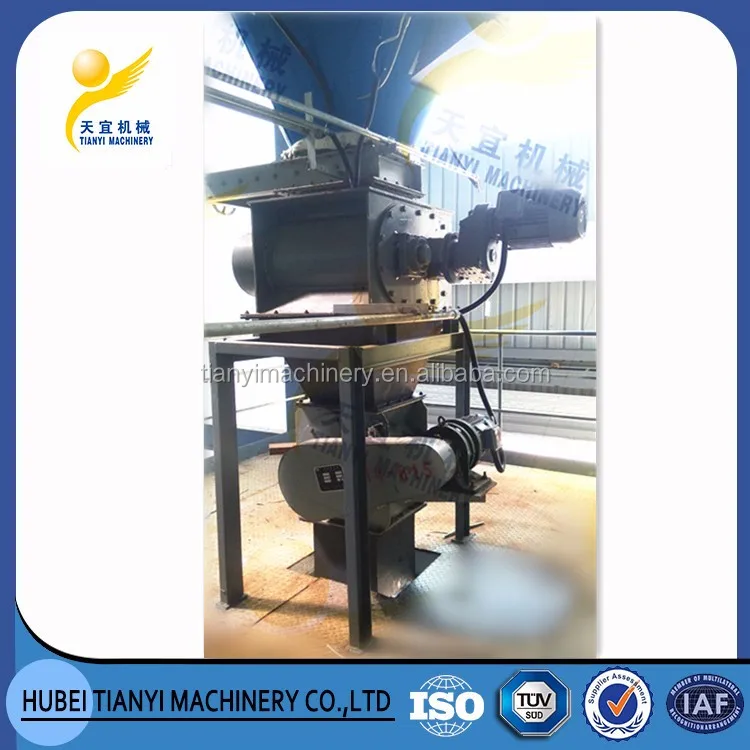

Electric air lock rotary valve is widely used in cement building materials, chemicals, metallurgy and light industry and other industries, generally installed in the hopper bottom, as the feeding equipment.

1) Drive parts consists of the planetary cycloid pin wheel reducer, large and small sprocket, drive chain, sprocket guard cover and other components, it is the power part to the star feeder.
2)Impeller has six blades, body cavity will be evenly divided into six fan-shaped cavity grid by blade. When it works, the drive part make the wheel rotate, the material in the upper silo or hopper will flow into the body from the grid positions in the central sector, with the impeller run to the bottom position, put the material evenly transmitted to the next conveyor. In addition, the star feeder has a good sealing performance, when it stop, it also can be used a sealing gates, lock the material of the upper silo, not to leak.
3)Star feeder before installation should be preceded by running the wheel , to see whether the rotation is flexible, otherwise it should be checked whether there is other debris and demolition, and after cleaning and adjustment , it only can be started.

Pre-Sales Service

* Inquiry and consulting support.

* Technical drawing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

HU BEI TIANYI MACHINERY CO.,LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprises, which specialize in designing & producing & installing some specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province, it is only 50 kilometers far from the Three Gorges Dam & 20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital assets reaches nearly about 89 millions and we have 200 staffs, including 65 professional engineers.
Our main fields: smelting, thermal power industry, waste disposal, building materials industry.
Our main products: conveying equipment, crushing equipment, screening equipment, dust removal equipment.
Integrated system: material conveyor system, dust removal system.
Tianyi Machinery have strong technical force, with research and development center, technical department, and we have got 25 national patent technologies
