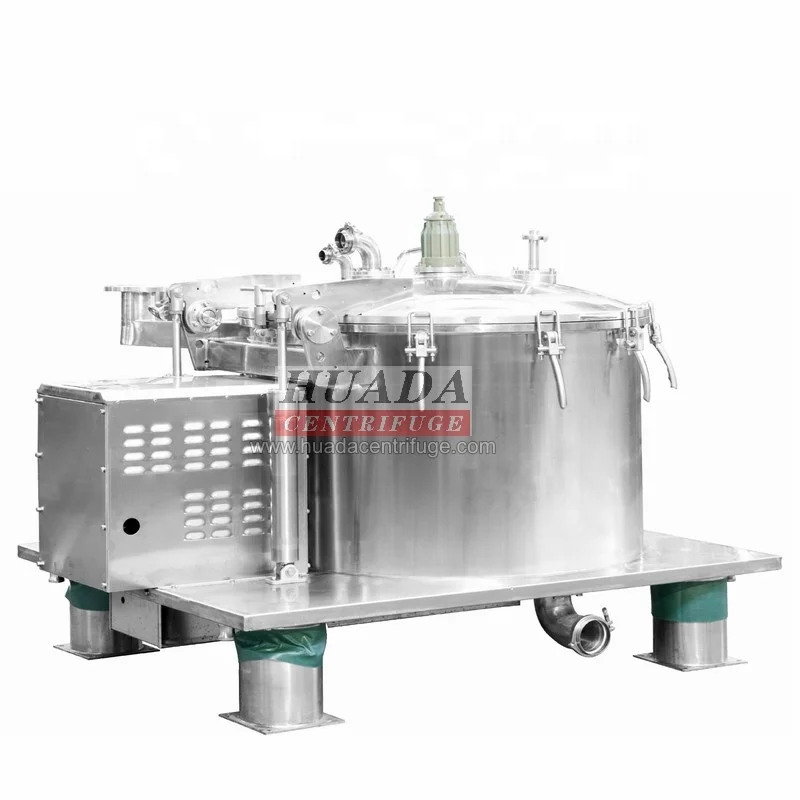

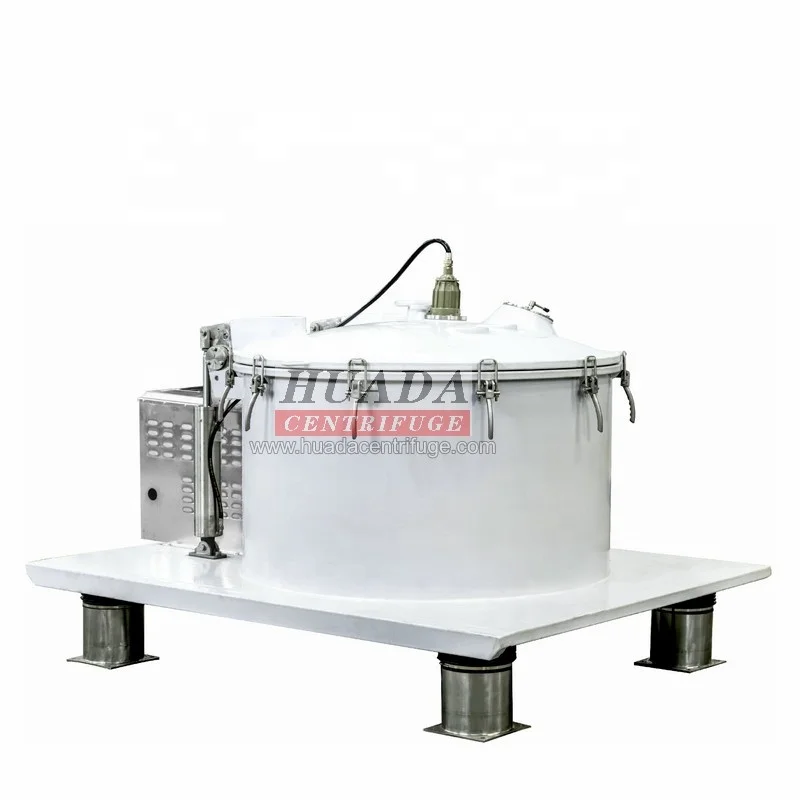

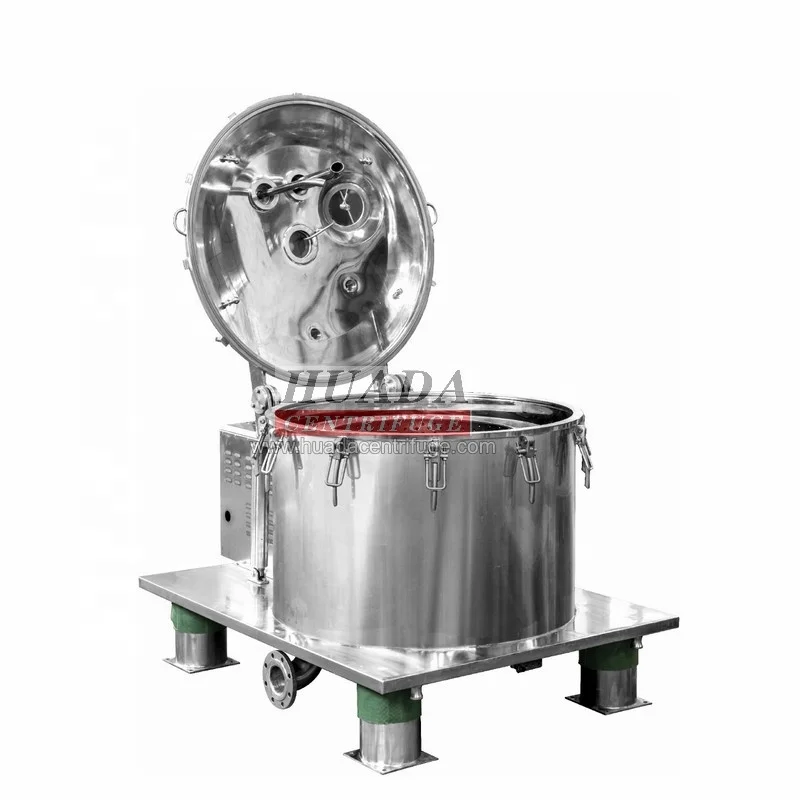

PSB Model Small Manual Waste Oil Purification Basket Centrifugal Machines

Сохранить в закладки 60647565555:


Цена:6 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description

Manual Top Discharge Centrifuge in Production Video:

//www.huada-video.com/PSD-Series

Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket. Once the solid cake reaches the rate capacity, feeding stops. Wash the solids cake, and then drain out the washing water. Finally stop the machine. The solid cake is discharged manually and move to next batch.
Certifications
Main features
\t

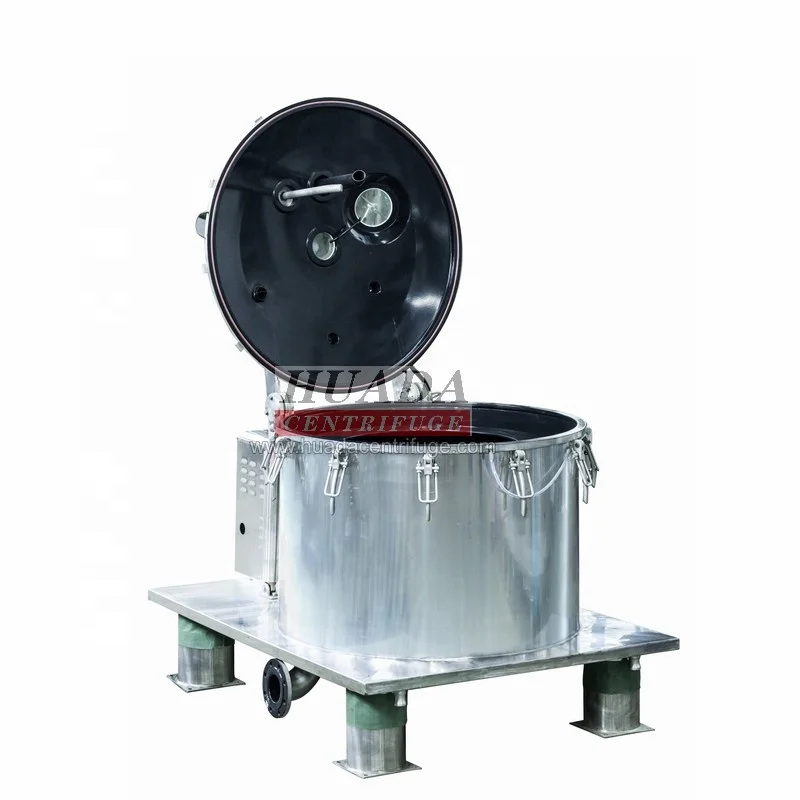

Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.
\t
Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
\t
Big hinged cover, feeding pipe, washing pipe, observation glass and light.
\t
Automatic CIP system cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.
\t
Wide range of applications. No damage to the particle shape.
\t
Inverter start-up, smooth starting, adjustable relative centrifugal force.
\t
Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system (optional) is for anti-explosion applied to poisonous, flammable and explosive environment.
\t
Model PBZ centrifuge has applied direct shaft connected motor, which eliminates frictional dust from belt drive. In the meantime, the motor is installed at the bottom of the machine, which requires minimum installation space.
Parameters
\t
Items
\t
Models
\t
PSB600
\t
PSB800
\t
PSB1000
\t
PSB1200
\t
PSB1250
\t
PSB1500
\t
Basket Dia (mm)
\t
600
\t
800
\t
1000
\t
1200
\t
1250
\t
1500
\t
Basket Volume (L)
\t
45
\t
120
\t
200
\t
330
\t
400
\t
600
\t
Max. Load (kg)
\t
60
\t
150
\t
250
\t
410
\t
500
\t
800
\t
Max. Rotating speed (r/min)
\t
1500
\t
1200/1500
\t
1100/1200
\t
1100/1200
\t
1000/1200
\t
850
\t
Centrifuge Force
\t
755
\t
645/1006
\t
680/806
\t
670/968
\t
700/1008
\t
607
\t
Motor (kW)
\t
3
\t
7.5
\t
11
\t
18.5
\t
18.5/22
\t
30
\t
Dimension (L*W*H) (mm)
\t
1300*1050*1150
\t
1720*1200*1300
\t
2000*1400*1500
\t
2550*1800*1780
\t
2550*1800*1780
\t
2600*2300*1800
\t
Weight (kg)
\t
1100
\t
1500
\t
2500
\t
3800
\t
4000
\t
6000
Production site
About us

Found in 1993, Jiangsu Huada Centrifuge Co., Ltd. is located at Zhangjiagang City, an emerging port city in China, which is situated in China’s most economically advanced Yangtze River Delta region, with convenient traffic and beautiful environment.

Over 20 years. Huada had always been being devoted to research and development, production and marketing of filtration and separation machinery. With technical innovation as driving force of the enterprise to participate in market competition, we have developed series of centrifuges with high technical content, to meet the market demand; to gain the market by serving customers, we have accumulated extensive experience in application through years of technical research and development and sales application and can provide perfect pre-sale, sale and after-sale service; we ensure product quality with lean management and improve product reliability.

Huada is a member of Technical Committee for Standardization of Chinese Separation Machinery, a vice president of Separation Machinery Branch of China General Machinery Association, a drafter of national and industrial standards on centrifuges, a high-tech enterprise in Jiangsu Province and a key high-tech enterprise for national torch plan. In 1998, our centrifuges acquired national safety certification. Huada is one of enterprises in domestic filtration and separation machinery industry which is the largest in scale, the most complete in product varieties and series, the most competitive and the most influential.

Huada has a large number of engineers and technical personnel who account for over one third of total number of employee. It owns an engineering technology research center of Jiangsu Province and establishes multiple professional teams of technical research and development, technical application, process design, inspection and testing, lean production management, etc. and we have made great achievements. We have successfully developed multiple new products and technologies having proprietary intellectual property rights and, national invention patent which include vertical pull-bag automatic discharge centrifuges, horizontal preconcentration filtering centrifuge, intelligent remote control system technology and so on, as well as obtained good market application; we have resolved difficult problems on filtration and separation for users.

Huada currently has two production bases, covers floor area of 100000 square meters and plan area of 45000 square meters, as well as owns more than 500 sets of various mechanical processing equipment among which there are over 50 sets of numerical control equipment and more than 100 sets of various testing equipment.

Our business philosophy is scientific and reasonable design, more perfect manufacturing, professional and standard service. We will provide service to our customers with constant technical innovation, perfect products and professional experience in application.
