Products Description

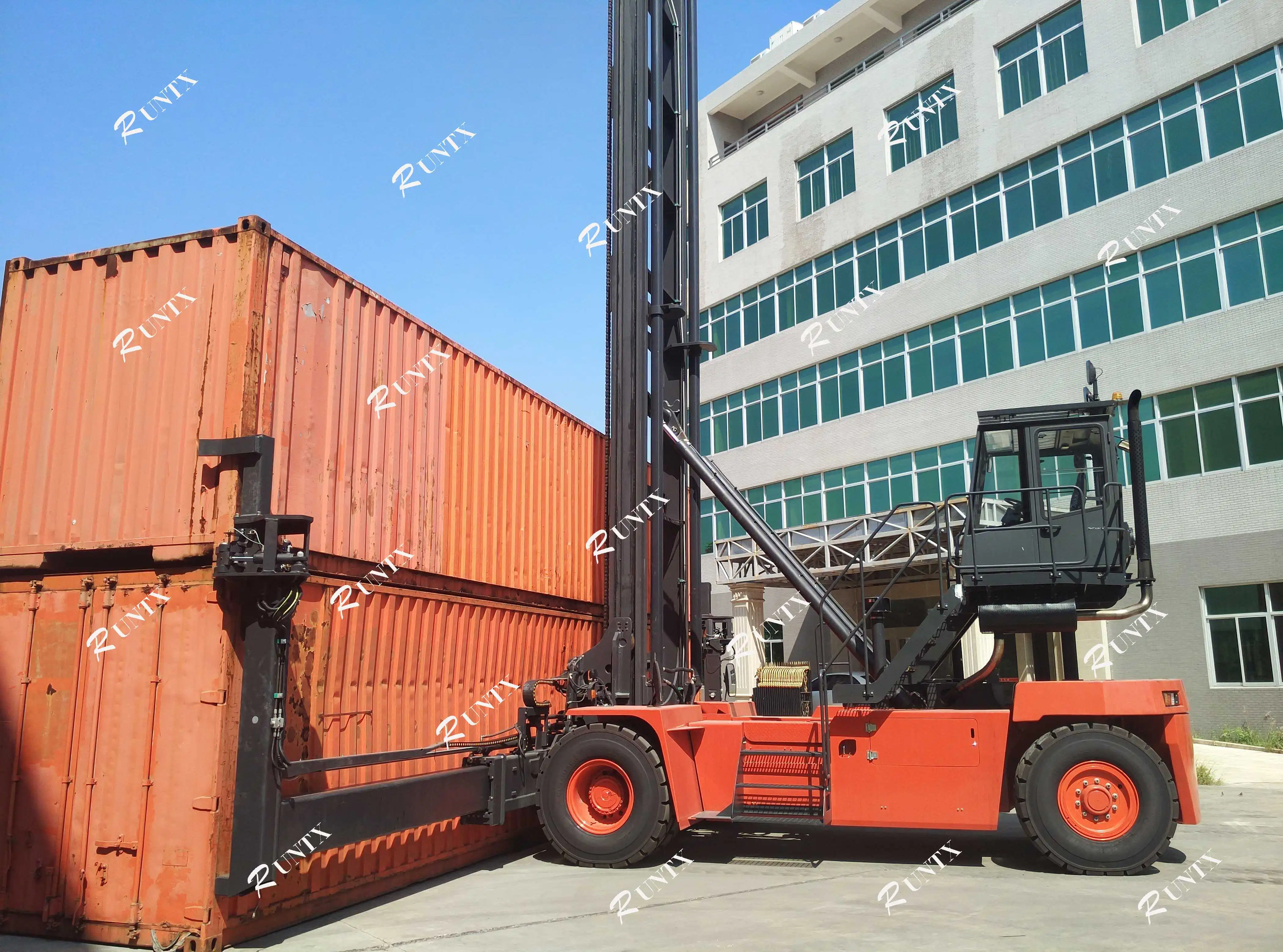

9000kg empty container handler
Model | DG90/8 | DG90/7 | DG80/7 | DG80/6 | ||||||
Load capapcity | kg | 9000 | 9000 | 8000 | 8000 | |||||
Max stacking layer | 8 | 7 | 7 | 6 | ||||||
Lift speed.laden/unladen | m/s | 0.55/0.60 | 0.55/0.60 | 0.55/0.60 | 0.55/0.60 | |||||
Lowering speed load/unload | m/s | 0.60/0.60 | 0.60/0.60 | 0.60/0.60 | 0.60/0.60 | |||||
Travelspeed laden/unladen | km/h | 26/28 | 26/28 | 25/27 | 25/27 | |||||
Climbing abilty,load/unload | km/h | 38/- | 38/- | 30/- | 30/- | |||||
Tractive force | KN | 157.5 | 157.5 | 107.5 | 107.5 | |||||
Dimension | ||||||||||
Wheelbase | y(mm) | 4520 | 4520 | 4020 | 4020 | |||||
Height of mast,lowered | h1(mm) | 12399 | 11111 | 11091 | 9600 | |||||
Tilt angle(forward/backward) | a/b(/。) | 3/4 | 3/4 | 3/4 | 3/4 | |||||
Height of mast,extended | h4(mm) | 21818 | 192444 | 19204 | 16660 | |||||
Height of cabin | h6(mm) | 4326 | 4326 | 4326 | 4326 | |||||
Height operator's seat | h7(mm) | 3226 | 3226 | 3206 | 3206 | |||||
Twistlock height,lowered | h13(mm) | 2290 | 2290 | 2290 | 2290 | |||||
Lift height | h3(mm) | 21216 | 18642 | 18600 | 16290 | |||||
Overall length | l1(mm) | 6850 | 6850 | 6450 | 6450 | |||||
Length to spreader face | l2(mm) | 6682 | 6682 | 6277 | 6277 | |||||
Overall width | b1/b2(mm) | 4120/2570 | 4120/2570 | 3267/2398 | 3627/2398 | |||||
Width of spreader 20'/40' | b3(mm) | 6050/12150 | 6050/12150 | 6050/12150 | 6050/12150 | |||||
Turning radius | Wa(mm) | 6300 | 6300 | 5700 | 5700 | |||||
Wheelspan,Front wheels | b10(mm) | 3280 | 3280 | 2880 | 2880 | |||||
Wheelspan,Rear wheels | b11(mm) | 2171 | 2171 | 2068 | 2068 | |||||
Weight | ||||||||||
Services weight | kg | 38680 | 38280 | 33800 | 32800 | |||||
Alex load with load,front/rear | kg | 37220/10450 | 36610/10670 | 29050/10750 | 28650/10150 | |||||
Alex load without laod,front/rear | kg | 22660/16020 | 22480/15800 | 20100/13700 | 19700/13100 | |||||
Engine | ||||||||||
Model | DG90 | DG80 | ||||||||
Engine manufacture/type | Cimmins/QSB6.7 | Cimmins/QSB6.7 | ||||||||
Cylinder number/displancement | 6/6700cm3 | 6/6700cm3 | ||||||||
Rated power | 164kw@2200rpm | 129kw@2200rpm | ||||||||
Maximum torque | 949nm@1500rpm | 800nm@1500rpm | ||||||||
Rated current of altemator | 100A | 70A | ||||||||
Battery | 24V(2x12/110) | 24V(2x12/110) | ||||||||
Transmission | ||||||||||
Model | DG90 | DG80 | ||||||||
Manufacturer/type | ZF/3WG211 AUTO | ZF/3WG211 AUTO | ||||||||
Clutch-type | Torque Converter | Torque Converter | ||||||||
Transmission | Auto-shift/Interlock | Auto-shift/Interlock | ||||||||
Gear number | 3F/3R | 3F/3R | ||||||||
Brake system | ||||||||||
Service brake:Wet-disc | ||||||||||
Packing brake:Brake enabled when power of | ||||||||||
Drive Axle | ||||||||||
Model | DG90 | DG90 | ||||||||
Driver axle manufacturer | KESSLER/Germany | KESSLER/Germany | ||||||||
Type | D81PL488-NLB | D81PL478-NLB | ||||||||
Steer Axle | ||||||||||
Model | DG90 | DG80 | ||||||||
Steering axle Manufacture | OMCI/Italy | OMCI/Italy | ||||||||
Type | ASF | Z16A1 | ||||||||
Steering type-Single cylinder | Double action cylinder | Double action cylinder | ||||||||
Tyres | ||||||||||
Drive wheels | 14.00-24 28PR | 14.00-24 28PR | ||||||||
Steering wheels | 14.00-24PR | 14.00-24PR | ||||||||
Type | Pneumatic type | Pneumatic type | ||||||||
Pressure | 10 bar | 10 bar | ||||||||
Quantity,Front/Rear | 4/2 | 4/2 | ||||||||
Spreader | ||||||||||
Model | Self made | Self made | ||||||||
Side shift distance | +/-600mm | +/-600mm | ||||||||
Working pressure for attachments | 140bar | 140bar | ||||||||
For handing | 20'or40'ISO standard container | 20'or40'ISO standard container | ||||||||
Details
Customer Photos
Test before delivery
After the assembly is completed, our engineers will conduct test operations to ensure that our equipment meets the standards and is perfect
Packaging and Shipping

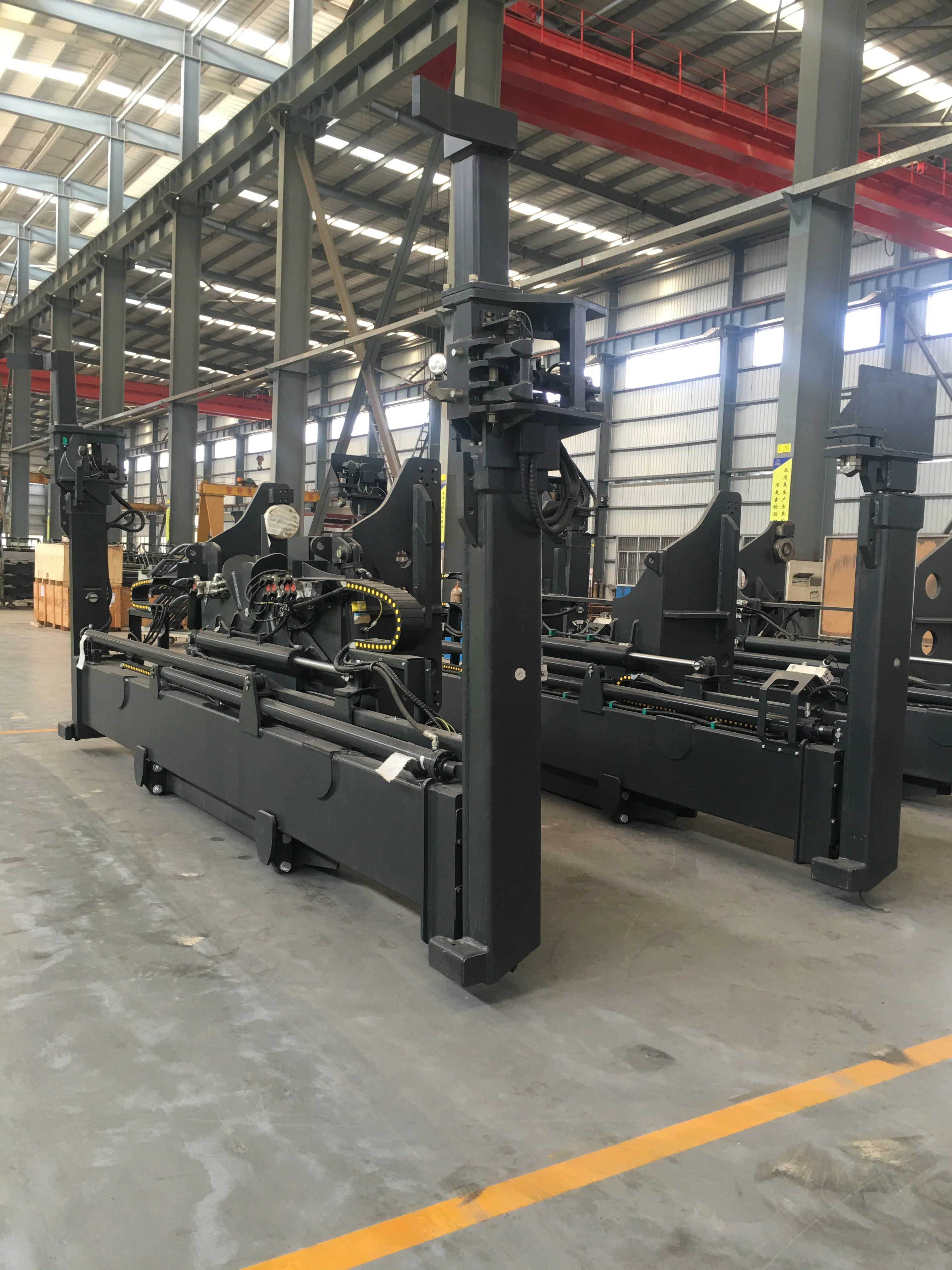

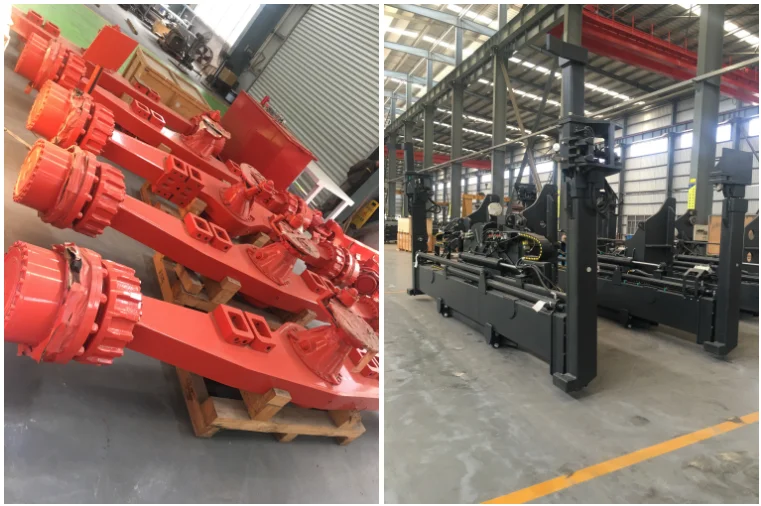

Production Workshop
Company Profile
RUNTX Machinery Group was established in 2006. We have small tonnage forklifts, heavy duty forklifts, port equipments, warehouse equipments factories in China. Which are specialized in the manufacturing, sale, after sales service and R&D of construction and engineering machinery.
We are one of the professional forklift manufacturers in China, which has 37,000 square meter area workshop and outputs 6000 sets forklifts annually. Since foundation, RUNTX has always kept its professional role in Chinese construction machinery industry. At present, it among Top 50 Chinese construction machine enterprises. Now our products include counter-balance diesel forklift, gas/lpg/cng forklift, warehouse equipments, heavy duty diesel forklift, port equipment etc. With first class technology and stable quality, Runtx products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, Canada, Australia, the Middle East, Southeast Asia, Africa and many other countries and regions.
RUNTX is committed to build parts system. Give our clients the best after sales parts service 7X24 hours. All the Products have been approved by the ISO 9001:2015 and CE certificate. The 1.0-35 ton diesel and 1.0-7 ton LPG and 1.0- 12 ton electric forklift series, meet with the Europe and USA EPA requirement.
We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from Runtx.
Our clients include U.S. General Motors, Volkswagen of Germany, Lafarge SA, Shell Oil, China Sinopec, China Petrolem Chemical Corporation, Carrefour, Sharp Electronics, China COSCO, Maersk Logistics. Provide top-class service with our clients.
Welcome to visit our factory!
We are one of the professional forklift manufacturers in China, which has 37,000 square meter area workshop and outputs 6000 sets forklifts annually. Since foundation, RUNTX has always kept its professional role in Chinese construction machinery industry. At present, it among Top 50 Chinese construction machine enterprises. Now our products include counter-balance diesel forklift, gas/lpg/cng forklift, warehouse equipments, heavy duty diesel forklift, port equipment etc. With first class technology and stable quality, Runtx products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, Canada, Australia, the Middle East, Southeast Asia, Africa and many other countries and regions.
RUNTX is committed to build parts system. Give our clients the best after sales parts service 7X24 hours. All the Products have been approved by the ISO 9001:2015 and CE certificate. The 1.0-35 ton diesel and 1.0-7 ton LPG and 1.0- 12 ton electric forklift series, meet with the Europe and USA EPA requirement.
We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from Runtx.
Our clients include U.S. General Motors, Volkswagen of Germany, Lafarge SA, Shell Oil, China Sinopec, China Petrolem Chemical Corporation, Carrefour, Sharp Electronics, China COSCO, Maersk Logistics. Provide top-class service with our clients.
Welcome to visit our factory!
Company history
The permit of sale: June, 2006
The date of conerstone:July, 2006
The permit of completion:October, 2006
The permit of manufacturing:December, 2006
ISO9001:2008 Quality Management System Certificate: March, 2007
Customers Show
After-sale Service
