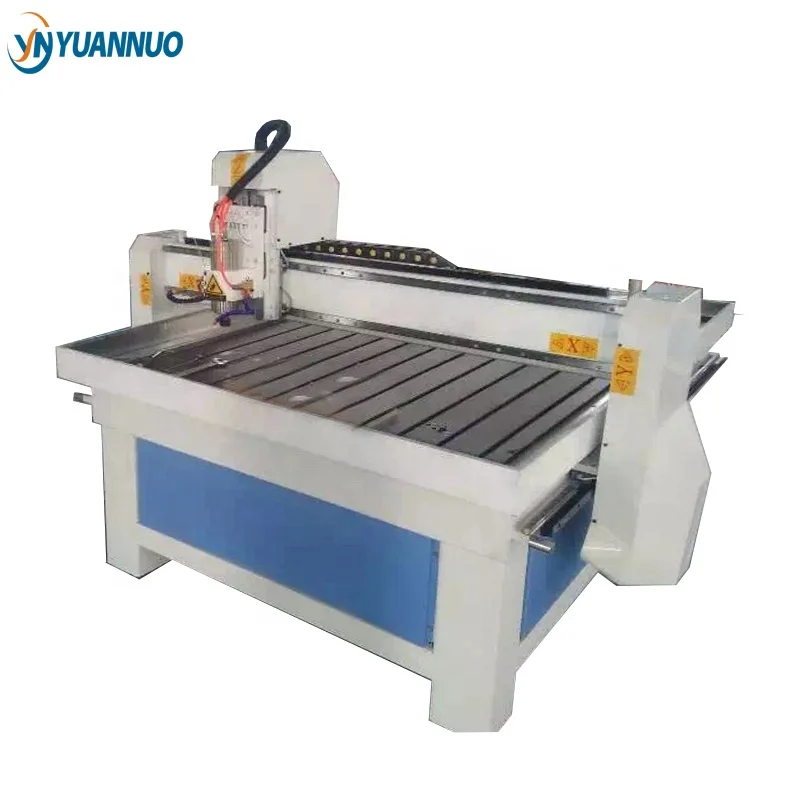

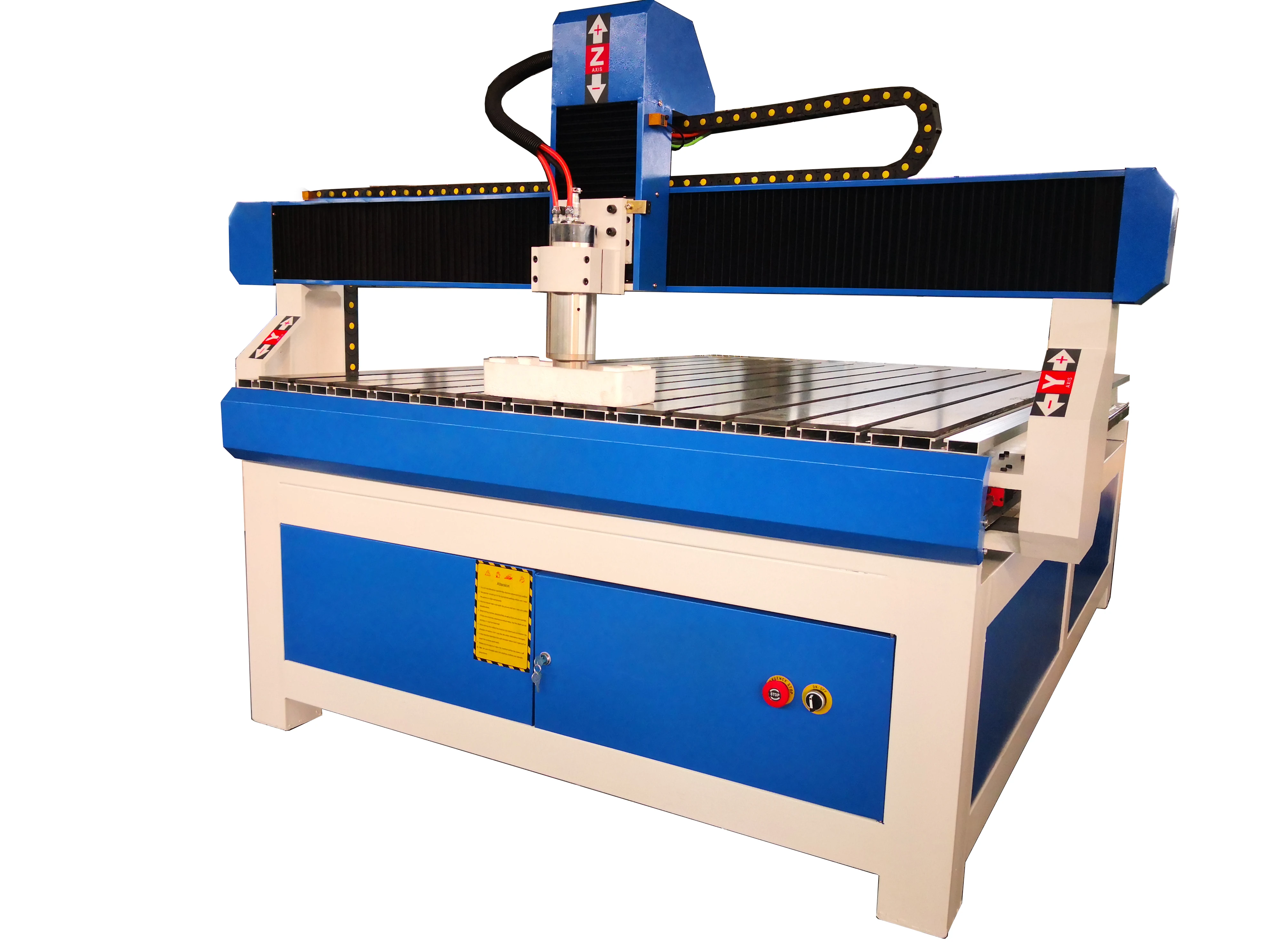

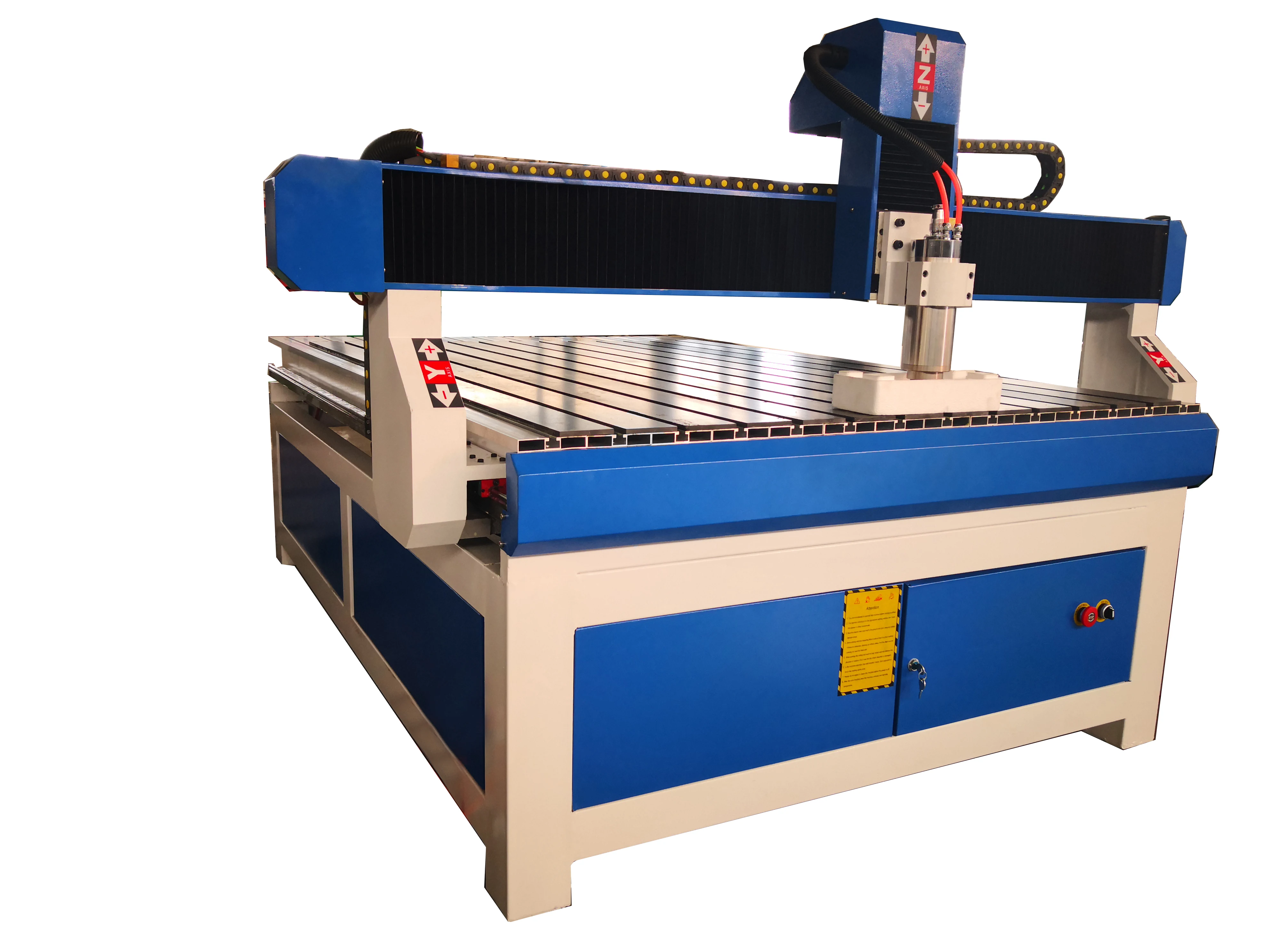

YN маленький 3d cnc 1212 маршрутизатор с большой рамой
- Категория: >>>
- Поставщик: Jinan Yuannuo Cnc Equipment Co. Ltd.
Сохранить в закладки 60650230733:
Описание и отзывы
Характеристики
YN small 3d cnc 1212 router
Heavy duty frame, with Germany ballscrew transmission for Z axis, Helical gear wheels for XY axis
Best chinese HQD air cooling spindle 2.2KW or 3.2KW with cooling system
Full designing woftware, full manual and video with software,easy to operate and learn
Taiwan Original HIWIN linear rails as guide system for XYZ axis, not copy type
Leadshine 860H driver system with strong energy for multi work
APPLICATION MATERIALS of YN small 3d cnc 1212 router
wood, plastics, acrylic, brass, aluminum, mdf, pvc, pcb, stamps, lumber, artificial marble, and other similar materials
APPLICATION MATERIALS of YN small 3d cnc 1212 router
Widly used in area of advertising, stamps, badges,sign making, award, ornaments, craft, breast card, construction model, moudel, metal carving, product label, instrument panel, carpentry products etc.
 |  |  | ||
| NC studio system control machine by computer | water cooling spindle | Helical gear wheels and Taiwan square linear rails | ||
 |  |  | ||
| high precision ball screw transmission system | T slot worktable for fix materials | clear and professional electric control system |
Parameters for YN small 3d cnc 1212 router with heavy duty frame
Model YN-1212 | Parameter |
X,Y,Z Working Area | 1200X1200X200mm |
X,Y,Z Positioning Accuracy | ±0.05/300mm |
X,Y,Z repositioning Positioning Accuracy | ±0.05mm |
Frame | Welded Steel |
X Y Z Structure | Ball Screw |
Max. Power consumption (Without spindle) | 0.3kw |
Max. Rapid Travel speed | 10000mm/min |
Max. Working Speed | 6000mm/min |
Spindle Power | 2.2KW / 3.2KW air cooling (air cooling is optional) |
Spindle Speed | 0-24000RPM |
Drive System | Stepper system (Option: servo ) |
Working Voltage | AC220V/50Hz |
Command Language | G code |
Operating System | DSP System ,Ncstudio /Mach3 PC |
X-Y Resolution | <0.02mm |
Software compatibility | Ucamcam V9 ,Type3 ,Artcam |
Driver system | Leadshine 860H driver |
Gross weight | 700kg |
Samples of YN small 3d cnc 1212 router with heavy duty frame
Jinan YuanNuo CNC Equipment Co., Ltd., located in the beautiful spring city Jinan, is a world famous manufacturer for producing various cnc router and laser machine. The company has a strong technical R & D strength, is committed to providing customers with the most suitable industry solutions. Now we have panel furniture production line, woodworking machining center, CNC cutting machine, advertising engraving machine, laser engraving machine, laser cutting machine, laser marking machine etc., we are high-tech enterprises which is the integration of research and development, production and sales. Company philosophy: quality as the core, and service to the customer as basis, to do what we say, say we can do, serve the global customers. JiNan YuanNuo CNC Equipment Co., Ltd., is willing to cooperate with friends from all over the world sincerely, welcome to come to negotiate.
| 1.How to make order: | |
| 1.1 | Please inform us more information about your work, such as: what is the materials you want to process, the work is engrave or cut or others The max size of the materials: Length*wideth*thickness |
| 1.2 | Quotation: According to your requirement, we will suggest the most suitable machines, and quoted the most competitive price with best quality. |
| 1.3 | Deep communication: Then we talk about the details, such as specification, accessories configuration included, parameters, cooperation terms, shipping things etc. Fix everything and avoid any misunderstanding. |
| 1.4 | Placing order: If there is not any problem and we agree with each other, then we send to you the PI(proforma invoice)with all the details of machine, both sides sign contract. Then customer make prepayment and send to us the bank receipt pictures. |
| 1.5 | Strat to produce: As soon as received your prepayment, we will strat to produce, and inform the news of prodution always,such as pictures, producing videos,testing work etc. Owning professional testing department, testing precision, real cutting engraving work and every cable connection again, painting etc. before delivery. |
| 1.6 | Delivery: After machine finished, we will send detailed pictures and videos to you for confirm, if no problem, will delivery it out and clear Chinese custom |
| 1.7 | Docusments: After delivery out, we could prepare all the docusments and send to you, for clear your country custom when machine arrive, such as Bill of Lading, invoice, packing list etc. |
| PAYMENT | |
| 1 | T/T---the most popular and convenient method |
| 2 | Alibaba trade assurance---place order online, customer get full protection |
| 3 | L/C---For big order could accept L/C payment |
| 4 | Western union---for small parts under 1000USD |
| SHIPPING | |
| 1 | Usually by sea, could use LCL or full container as your choice |
| 2 | By air, cost about 3~4 days, depends on different countries |
| 3 | By DHL or TNT or FEDEX etc., cost about 5-7 days. |
| GAURATEE AND AFTER SALE SERVICE | |
| 1 | One year guarantee for whole machine under normal use |
| 2 | Supply full englishh manual and operating video on how to use step by step, easy to learn |
| 3 | Supply 24 hours online service by phone,skype,MSN, Romot or email |
| 4 | If need, customer could come to our factory for detailed free training |
| 5 | If need, could also send engineer to your place for training, just customer will stand cost for engineer living, ticket etc. |
Похожие товары
3 axis cnc milling machine for sale 1212 router
8 000,00 $ - 8 500,00 $

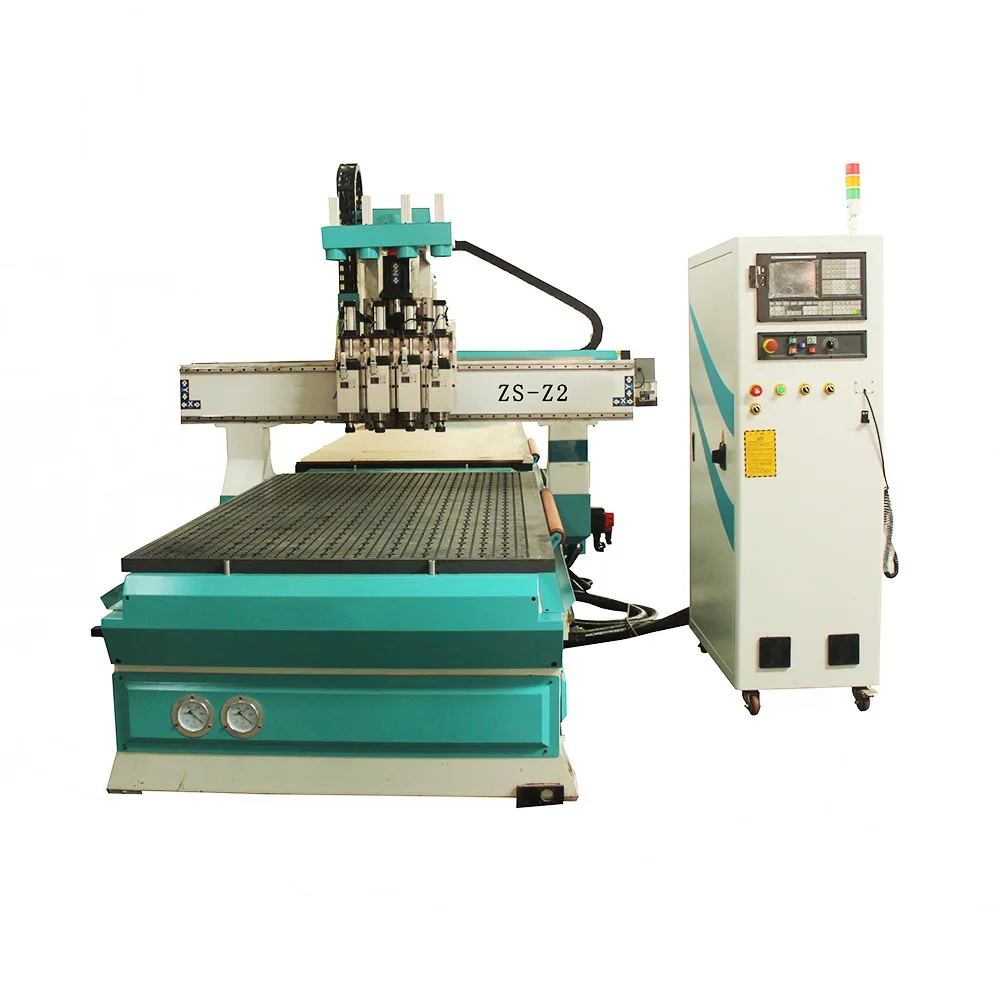

Хороший деревообрабатывающий фрезерный станок с ЧПУ деревообрабатывающий станок с буровыми головками
Китай, металл, ЧПУ маршрутизатор 1212, горячая Распродажа, завод станков
3 200,00 $ - 4 000,00 $
Низкое энергопотребление дорожного освещения, натриевое освещение высокого давления 1000 Вт
Фрезерный станок с ЧПУ 1212 для деревообработки, резьбы по дереву, гравер с ЧПУ, 3D гравировальный станок для гравировки и резки дерева и акрила
Прессованная мягкая Резина EPDM полые резиновые трубки с различной плотностью

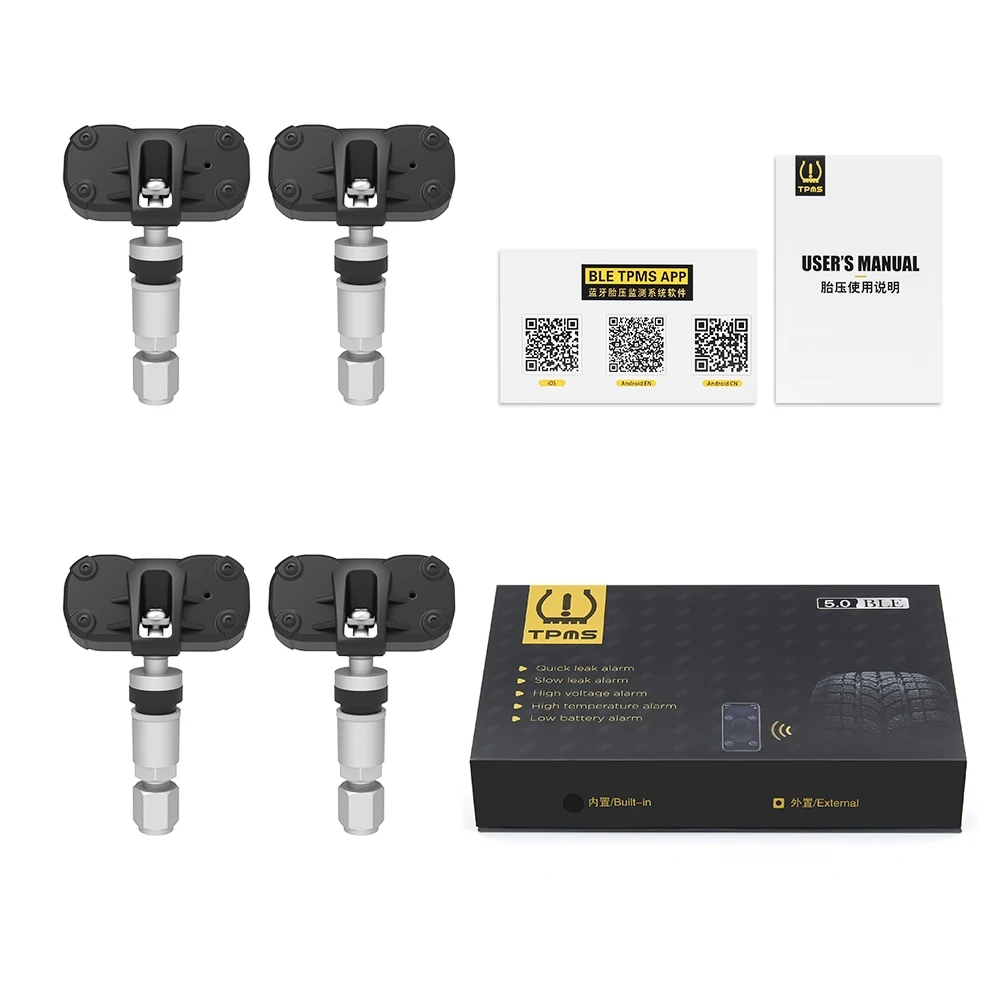

Беспроводная система контроля давления в шинах с внутренними датчиками V101A BLE TPMS показывает данные в реальном времени
