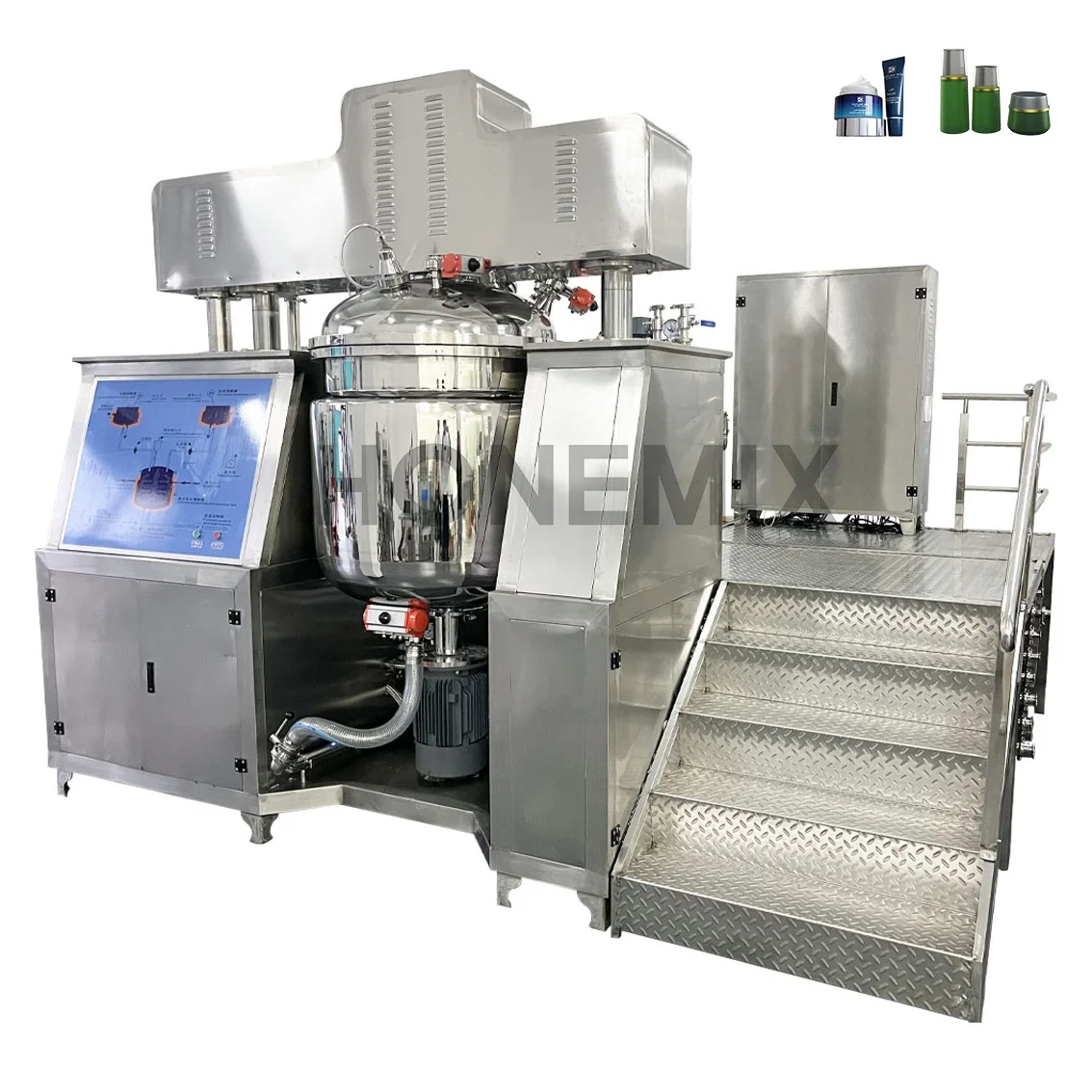

Hone пользовательская Автоматическая циркуляция вакуумная эмульгирующая машина для производства косметического
30 000,00 $ - 33 000,00 $

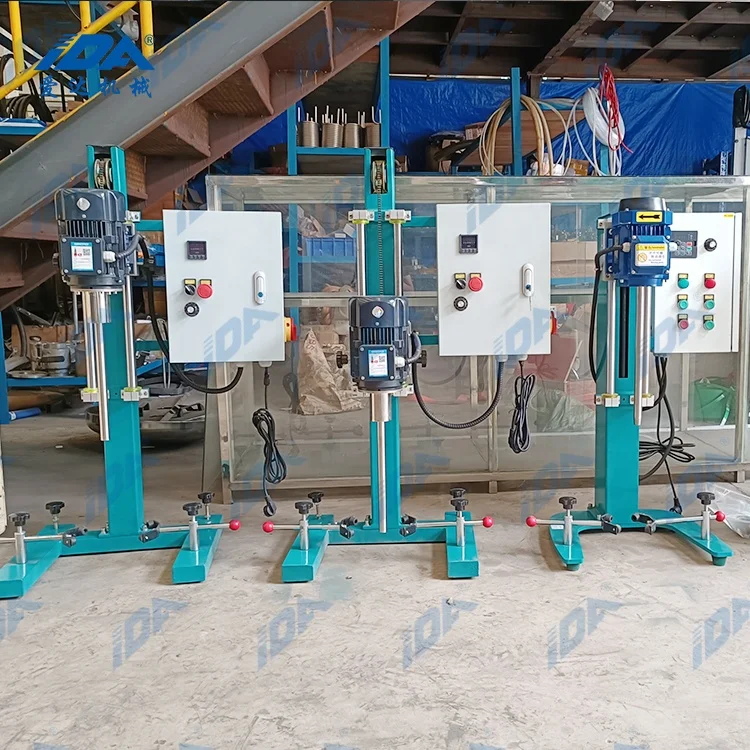

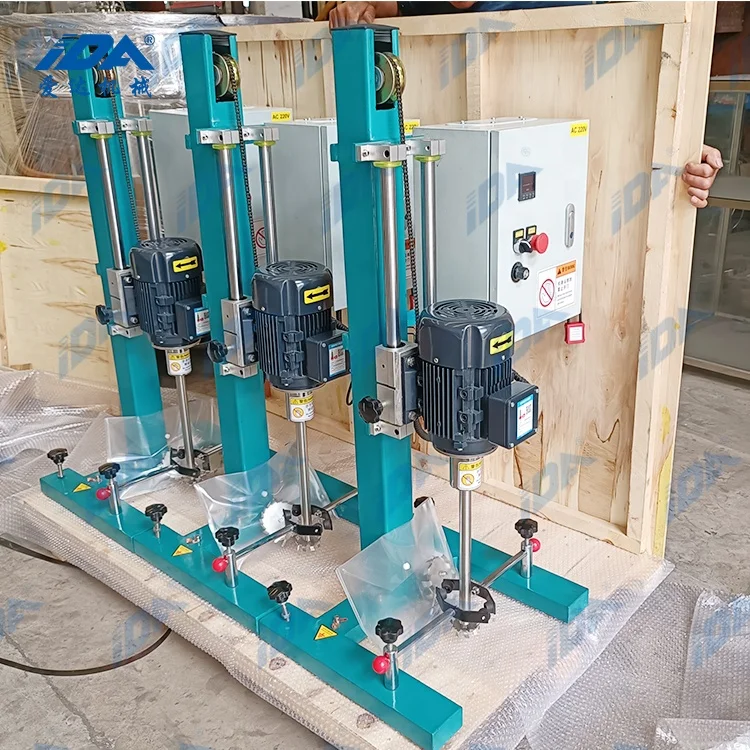

Использованная лабораторная автоматическая машина для смешивания краски или чернил
- Категория: Mixing Equipment >>>
- Поставщик: Jiangyin Ida Equipment Co. Ltd.
Сохранить в закладки 60650336532:
Описание и отзывы
Характеристики

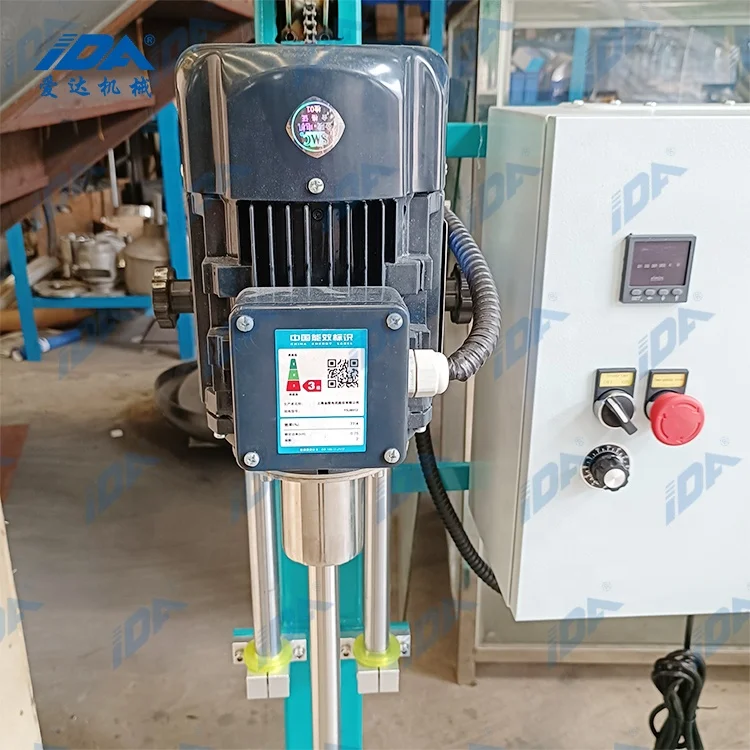

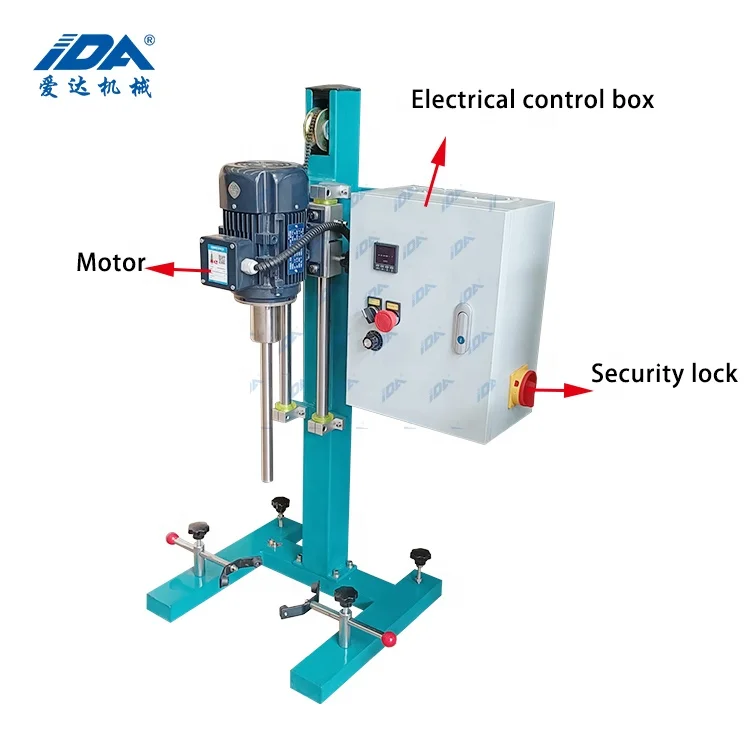

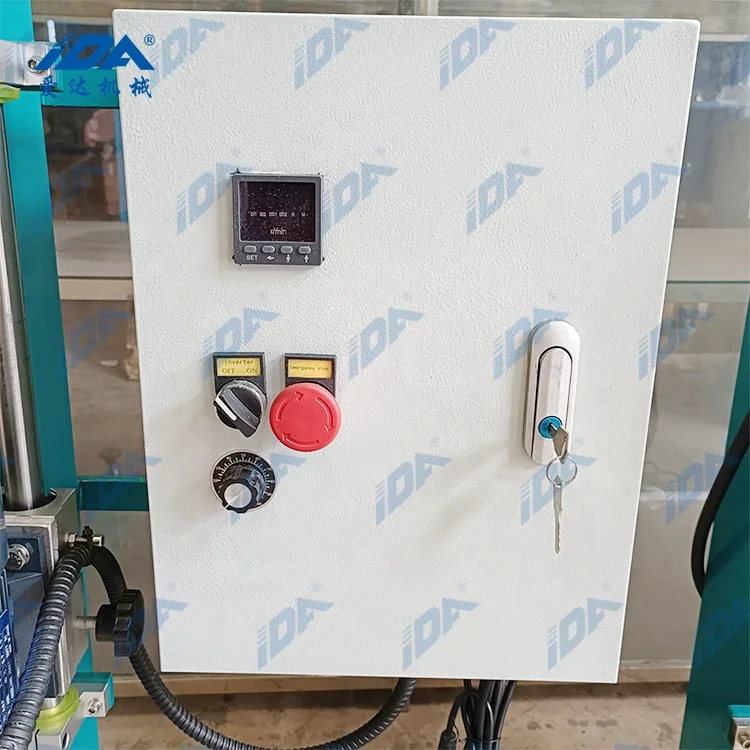

ISF versatile sand-milling dispersing-agitator (frequency control) concentrates sand milling, dispersion and agitation versatile equipments functions, it is ideal for chemical industry's laboratory. It adopts motor of frequency control, heating is lower, there is no need for carbon brush. frequency converter adopts multiloop frequency-changer speed button, direct digits display axis revolution, it is easy to operate; it is equipped with sand-milling disc, dispersing blade and agitating blade. It can fit different testing need of laboratory.
Working Principle
The disc is disk-shaped, With equidistance width up and down at the edge. Slant height at axial makes pushing action and produces non-uniform flow to material when dispersing(viscosity shearing force caused by velocity contrast). Disc runs at high and stable speed, produces shearing and crashing force to material. At normal operation, rotation of disc forms rolling circulation of material, and disc can be partial seen which indicates that max mechanical energy has input material. Material can get full circulating and stirring with the continuous rotation of disc. Granulates at material surface will drop to the circulation bottom, forming a 2.5-5 cm turbulence flow at the edge of disc. Material at this district will bear strong shearing and crashing force, highly dispersing.
| Type | ISF400 | ISF550 | ISF75 | ISF1.1 | ISF2.2 |
| Motor Power (kw) | 0.4 | 0.55 | 0.75 | 1.1 | 2.2 |
| Container capacity (L) | 1-5 | 1-5 | 1-5 | 5-10 | 20-50 |
| Grinding media | Glass bead/zirconia bead | ||||
| Elevating hight (mm) | 200 | 200 | 260 | 400-500 | 400-500 |
| Speed (r/min) | 0-8000 | 0-10000 | 0-2800 | 0-2800 | 0-2800 |
| Weight (kg) | 40 | 40 | 50 | 80 | 150 |
| Overall Dimensions (mm) | 450x450x900 | 450x450x900 | 450x450x930 | 520x500x1300 | 600x720x1600 |
Main Features
1.One machine with multi-vessels,stable capability
2.With electric or manual steering system, easy and convenient to steer the headstock.
3.The adjustable working position enable the machine to work with several tanks, which enhances the machine usage rate greatly, reduce equipment investment and save space.Easy to operate and clean
4.Various speed control
5.Low noise and long-time continuous operation.
6. Non explosion-proof and explosion-proof type of production dispersing equipment are both as standard
7. Vacuum production high speed disperser is available.
8.Little air absorption during mixing and dispersing process makes it disperses and dissolves materials to smaller particle size efficiently .
9.Customized equipments are available.
1.One machine with multi-vessels,stable capability
2.With electric or manual steering system, easy and convenient to steer the headstock.
3.The adjustable working position enable the machine to work with several tanks, which enhances the machine usage rate greatly, reduce equipment investment and save space.Easy to operate and clean
4.Various speed control
5.Low noise and long-time continuous operation.
6. Non explosion-proof and explosion-proof type of production dispersing equipment are both as standard
7. Vacuum production high speed disperser is available.
8.Little air absorption during mixing and dispersing process makes it disperses and dissolves materials to smaller particle size efficiently .
9.Customized equipments are available.
Various types of dispersion disc(May be designed according to customer demand)
Coating:Water-based coating,Solvent-based coating,Decorative coating,Latex paint;
Paint:Car paint,Finish paint,Wood paint,Industrial paint;
Ink:Gravure printing ink,flexographic ink,offset printing ink,silk screen ink ,UV light solid ink,digital inkjet ink etc;
Pigment:Dye,color painted pigment,pen liquid,watercolor;
Electronic Materials:Battery diaphragm alumina,lithium iron phosphate,ceramic slurry,flame retardant;
Food Industry:chocolate syrup,paste etc.
Pesticide:pesticide suspension ,EC,EW,ME
Daily Chemical Industry:cosmetics,luquid soap,shower gel,liquid detergent etc;
Biological Medicine:algae cell framentation,microbiological functional materials;
Nano Materials:metal oxide,magnetic materials,paper industry,optoelectronic industry.
Ink:Gravure printing ink,flexographic ink,offset printing ink,silk screen ink ,UV light solid ink,digital inkjet ink etc;
Pigment:Dye,color painted pigment,pen liquid,watercolor;
Electronic Materials:Battery diaphragm alumina,lithium iron phosphate,ceramic slurry,flame retardant;
Food Industry:chocolate syrup,paste etc.
Pesticide:pesticide suspension ,EC,EW,ME
Daily Chemical Industry:cosmetics,luquid soap,shower gel,liquid detergent etc;
Biological Medicine:algae cell framentation,microbiological functional materials;
Nano Materials:metal oxide,magnetic materials,paper industry,optoelectronic industry.
Our Factory
Packing
1.As per customer's specified requirements
2. Plastics film protection with standard sea packing
Shipping
1. Small parts: By express, TNT/ DHL/ UPS/ Fedex etc.
2. Full machine: By sea or By air
3.Choose the best suitable way as your need.
2. Plastics film protection with standard sea packing
Shipping
1. Small parts: By express, TNT/ DHL/ UPS/ Fedex etc.
2. Full machine: By sea or By air
3.Choose the best suitable way as your need.
Our Services
Pre-Sale Service: IDA engineer team could provide you with design of complete production line. We are owning modern Nano Laboratory and could help clients do test run of your material, generate lab report and guide your actual production.
On-Sale Service: IDA factory will manufacture the good quality machine.
After-sale Service: IDA engineers will be sandby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the disperser and sand mill, train your workers to operate and help with the debugging.
All wear parts of IDA disperser and sand mill is available at any time you need. Our engineer will provide you with spare parts scheme before sending the grinding mill to help you know when it is needed to change the parts so that to avoid any delay of production due to mill parts.
On-Sale Service: IDA factory will manufacture the good quality machine.
After-sale Service: IDA engineers will be sandby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the disperser and sand mill, train your workers to operate and help with the debugging.
All wear parts of IDA disperser and sand mill is available at any time you need. Our engineer will provide you with spare parts scheme before sending the grinding mill to help you know when it is needed to change the parts so that to avoid any delay of production due to mill parts.
Похожие товары
Система дозирования химических добавок автоматическая дозирующая машина для химической
11 000,00 $

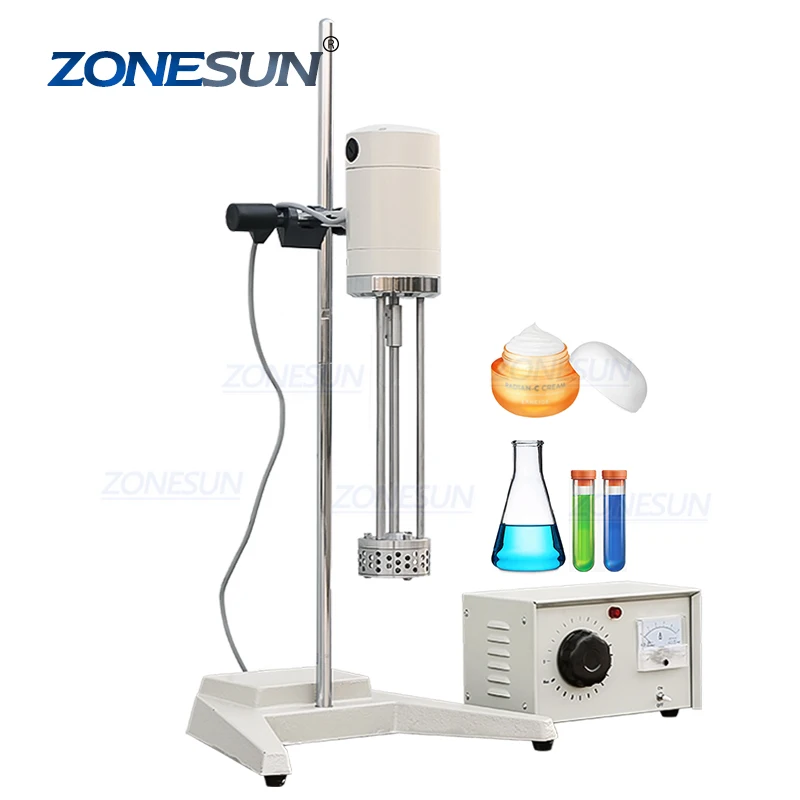

ZONESUN ZS-JC300 40L эмульгирующий гомогенизатор для косметических средств жидкости масла небольшой лабораторный

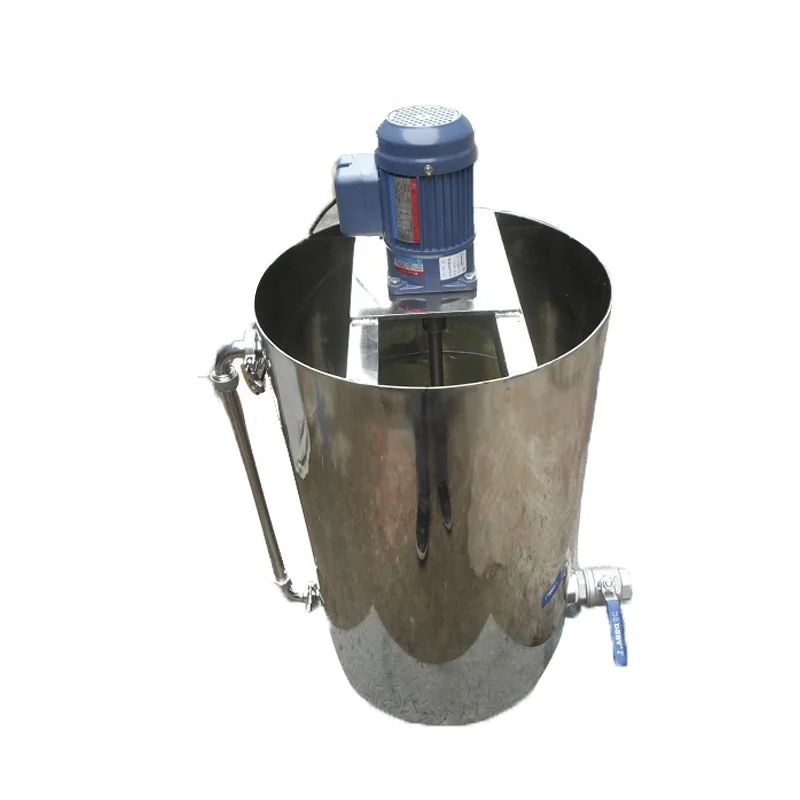

stainless steel mixing tank with agitator

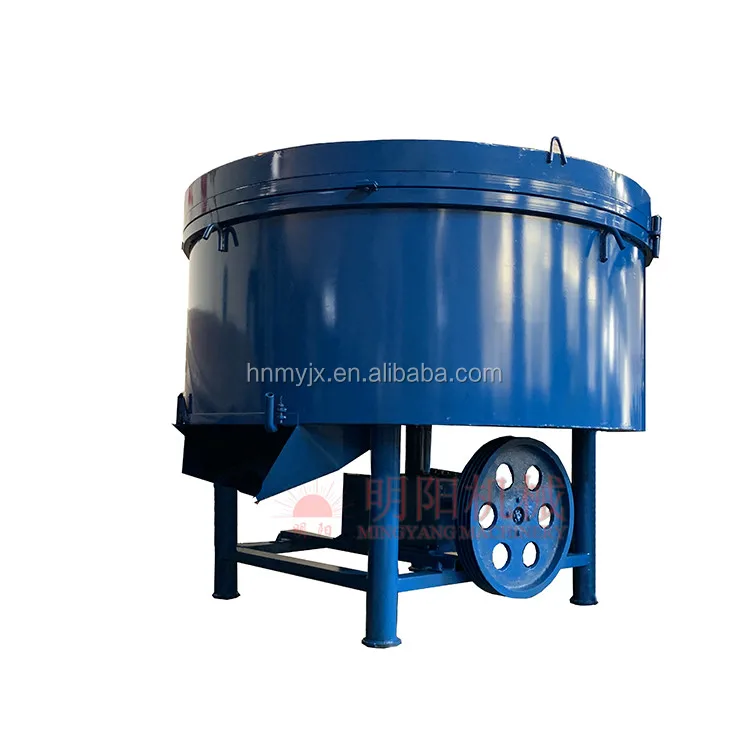

Шлифовальный станок для древесного угля и смесителя по заводской
1 500,00 $ - 1 886,00 $

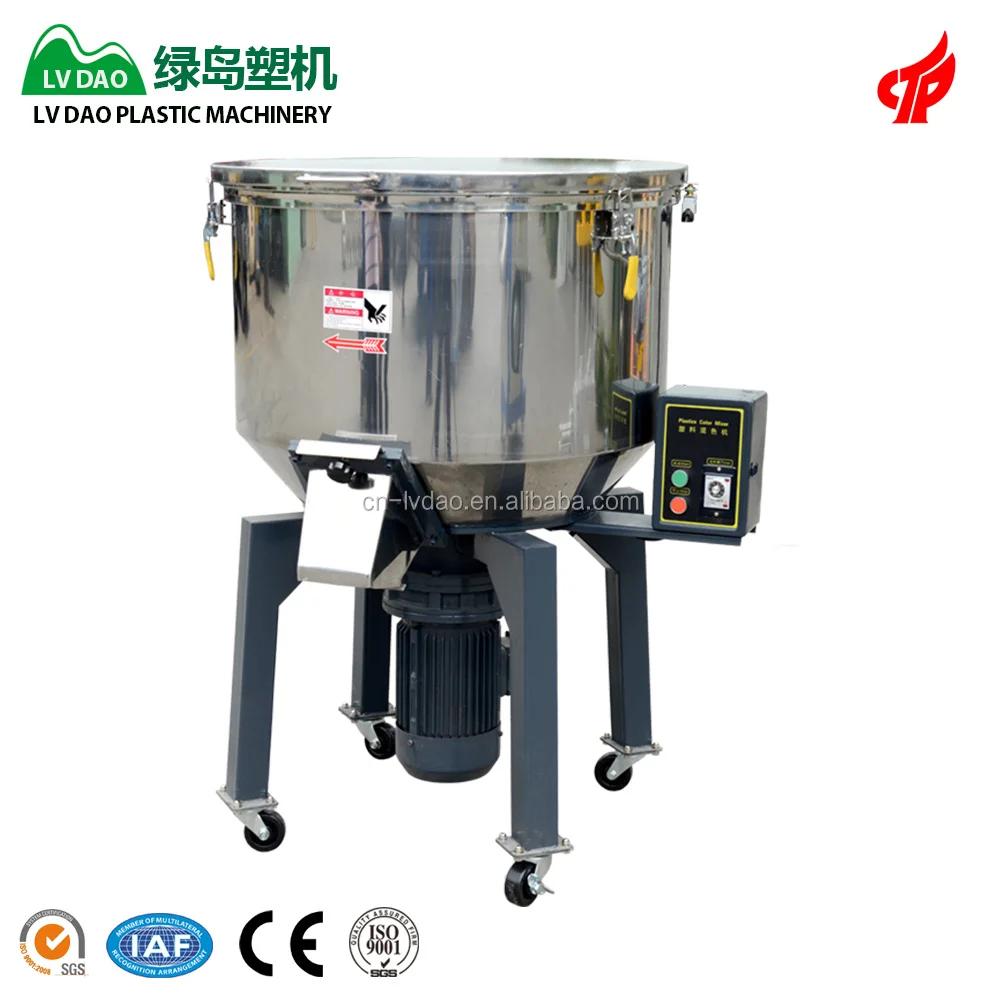

Вертикальный пластиковый мешалка

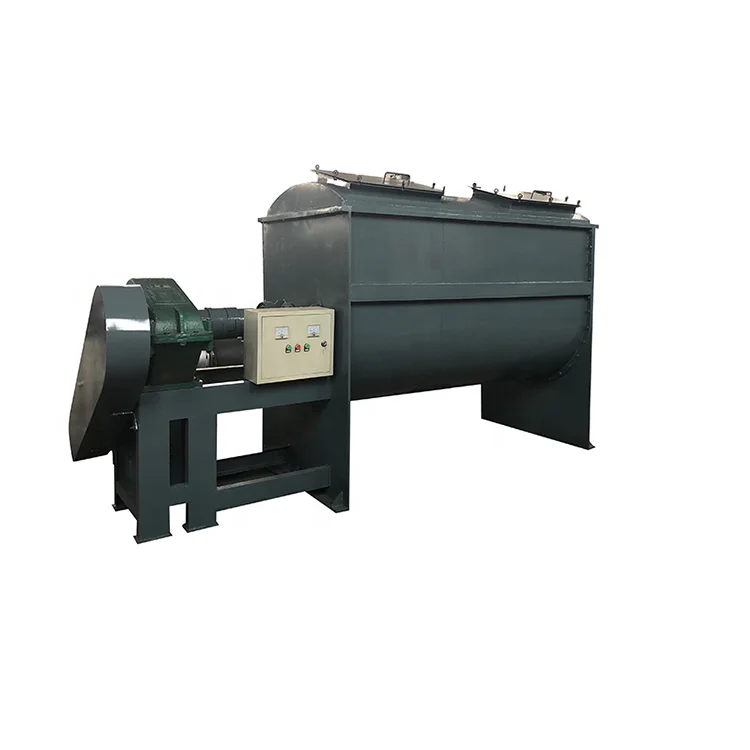

Горизонтальный винтовой ленточный смеситель порошок-порошок смеситель порошок и жидкий смеситель для жидкостей

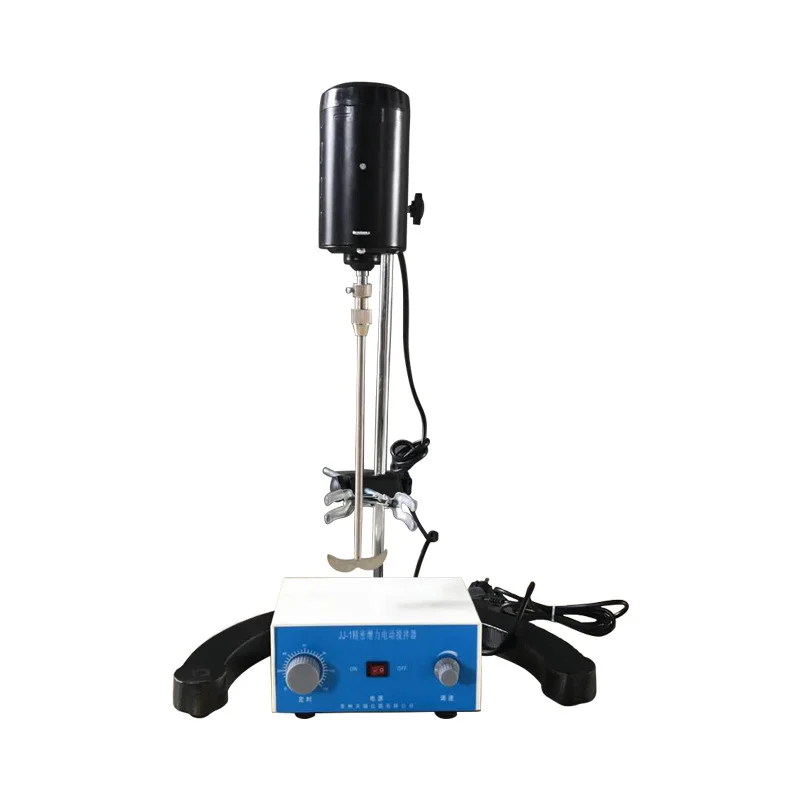

300 Вт Электрический Небольшой лабораторный усилитель, электрический миксер, мешалка
